Barn Details

Property	Value
Rupture Count	915
Ruptures Above Sect Min Mag	913
Ruptures w/ Nonzero Rates	357
Magnitude Range	[7.17, 8.41]
Length Range	[34, 754] km
Total Rate	1.03608014E-4 /yr
Multi-Fault Rate	1.03451806E-4 /yr (99.85%)
Directly-Connected Faults	2
All Co-Rupturing Faults	38

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

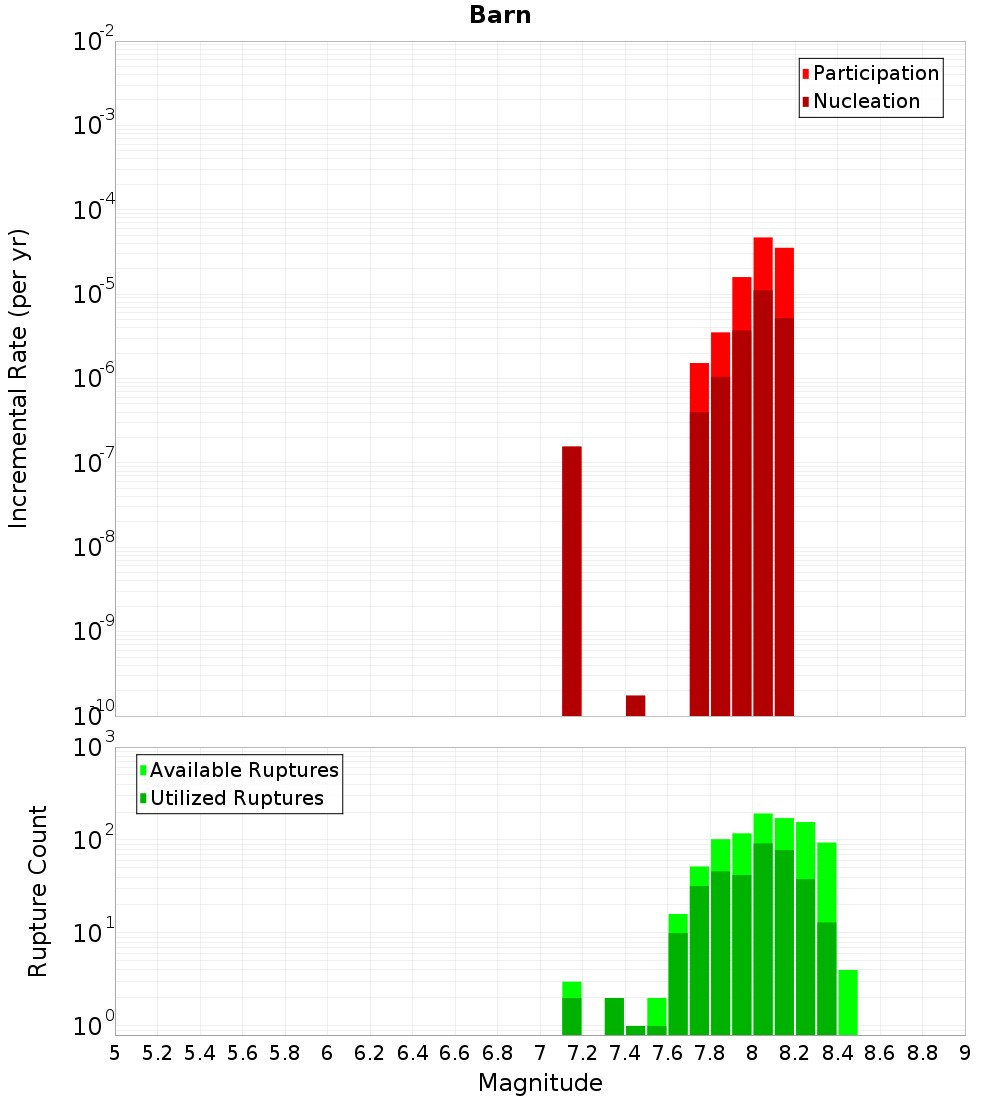

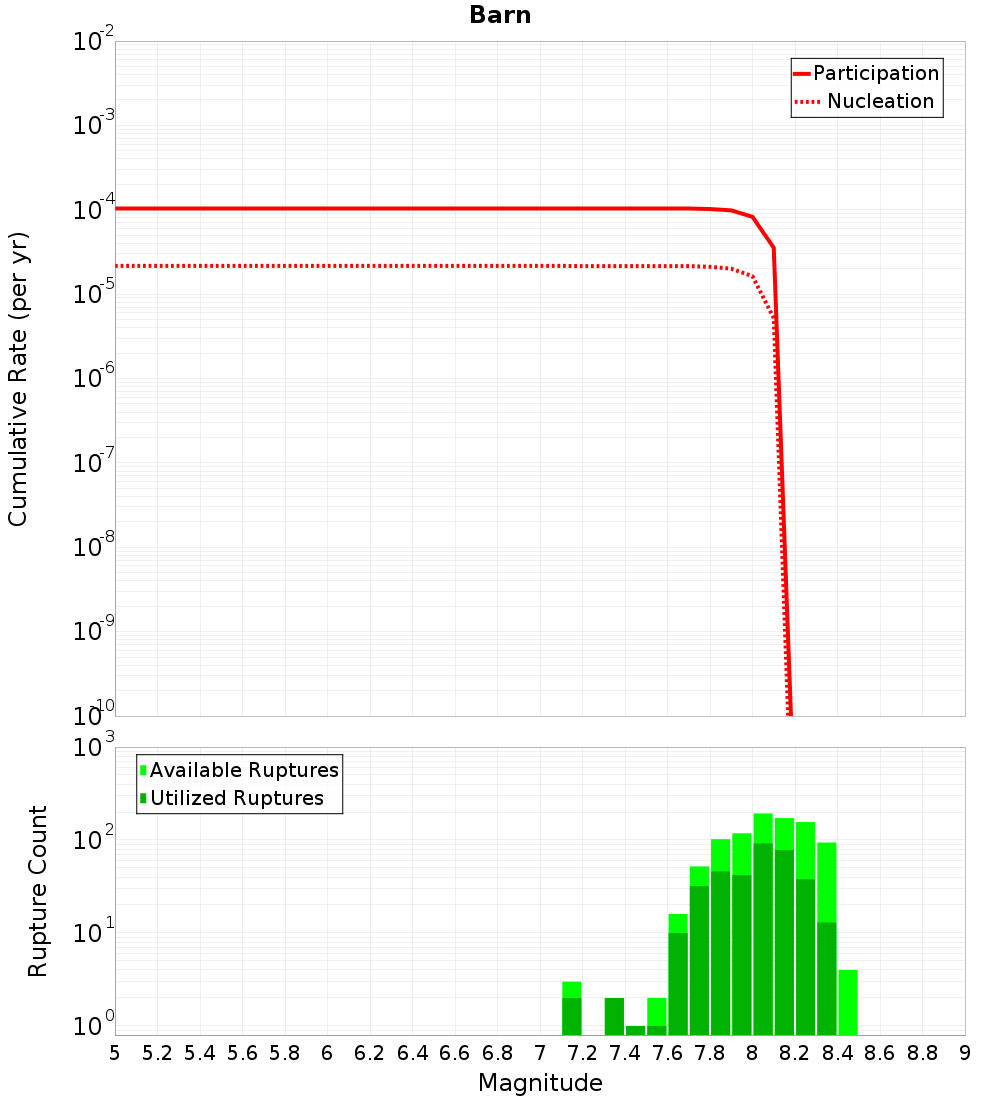

Magnitude-Frequency Distribution

Incremental	Cumulative

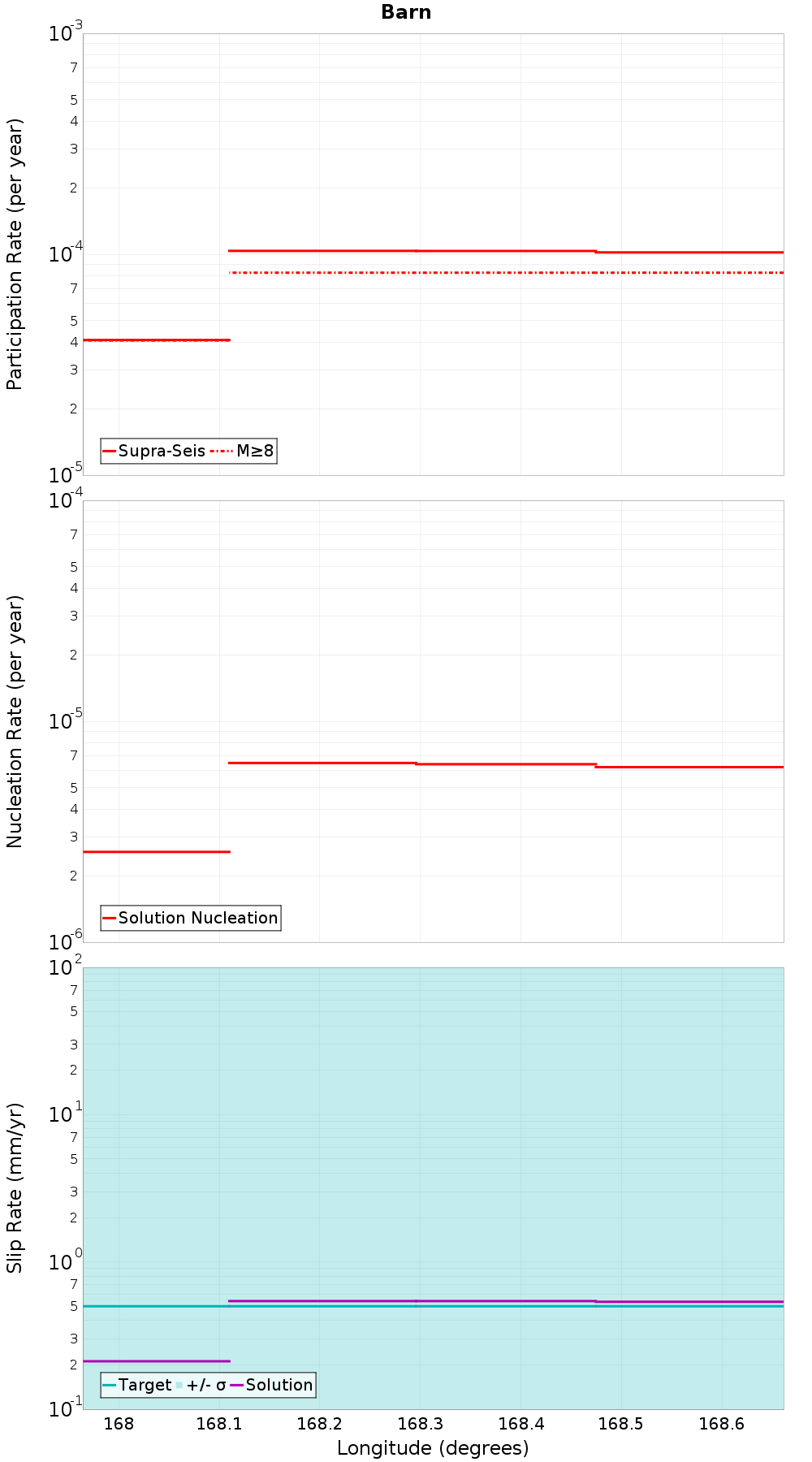

Along-Strike Values

Moment-Rates and b-Values

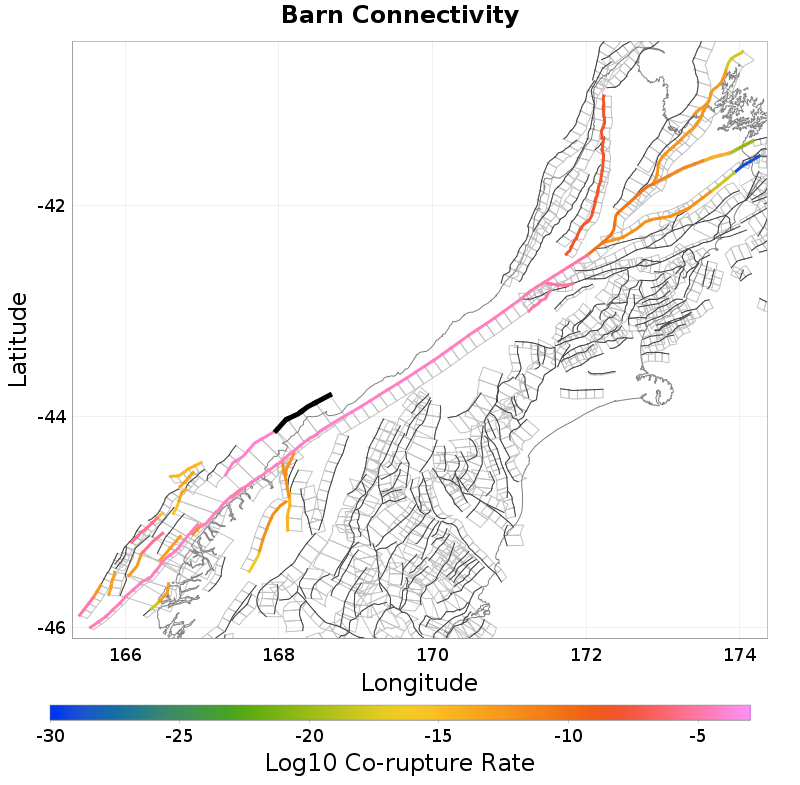

Connectivity

Nearby Sections

Fault Section
Madagascar, 0 km away
Alpine: George to Jacksons, 0.78 km away
Skippers, 2.55 km away
Hollyford, 5.52 km away
Alpine: Jacksons to Kaniere, 8.94 km away
Moonlight North, 10.72 km away

Madagascar, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	277
Co-rupture Rate	6.272469E-5

Alpine: George to Jacksons, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	904
Co-rupture Rate	1.0192655E-4

Skippers, 2.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	4.4093106E-13

Hollyford, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Jacksons to Kaniere, 8.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	false
Co-rupture Count	570
Co-rupture Rate	5.9003858E-5

Moonlight North, 10.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
