Chancet Details

Property	Value
Rupture Count	2,760
Ruptures Above Sect Min Mag	2,740
Ruptures w/ Nonzero Rates	2,027
Magnitude Range	[6.48, 8.08]
Length Range	[14, 495] km
Total Rate	6.7888905E-4 /yr
Multi-Fault Rate	6.7888905E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	70

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

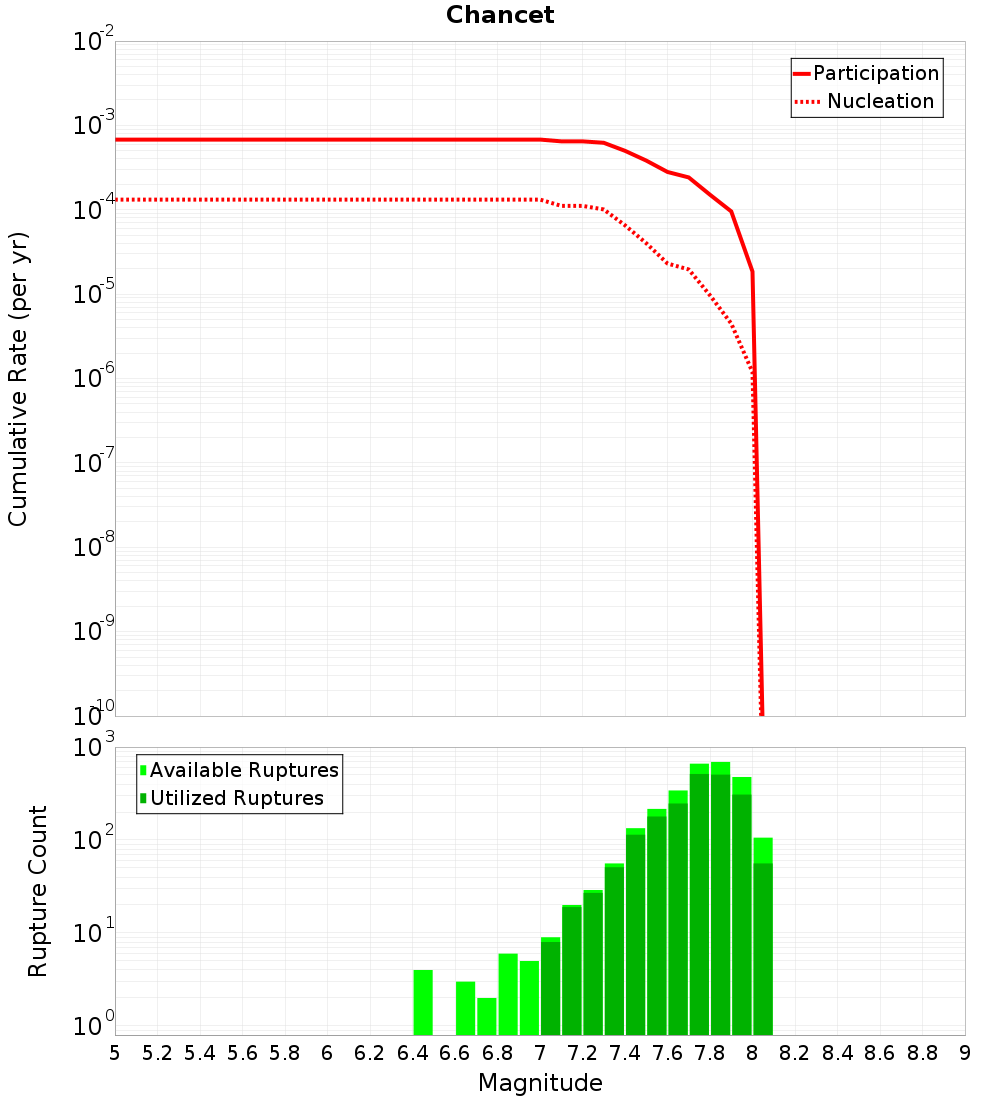

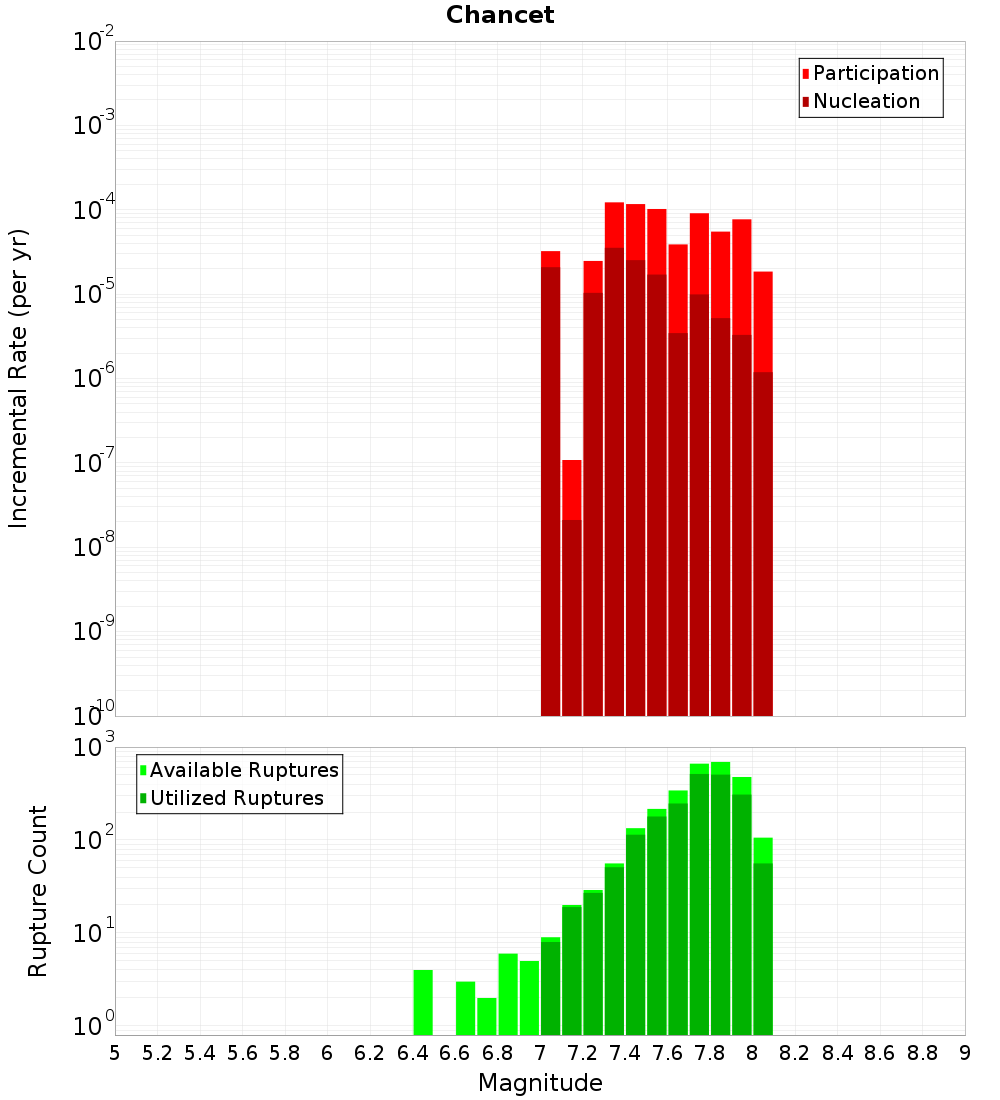

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

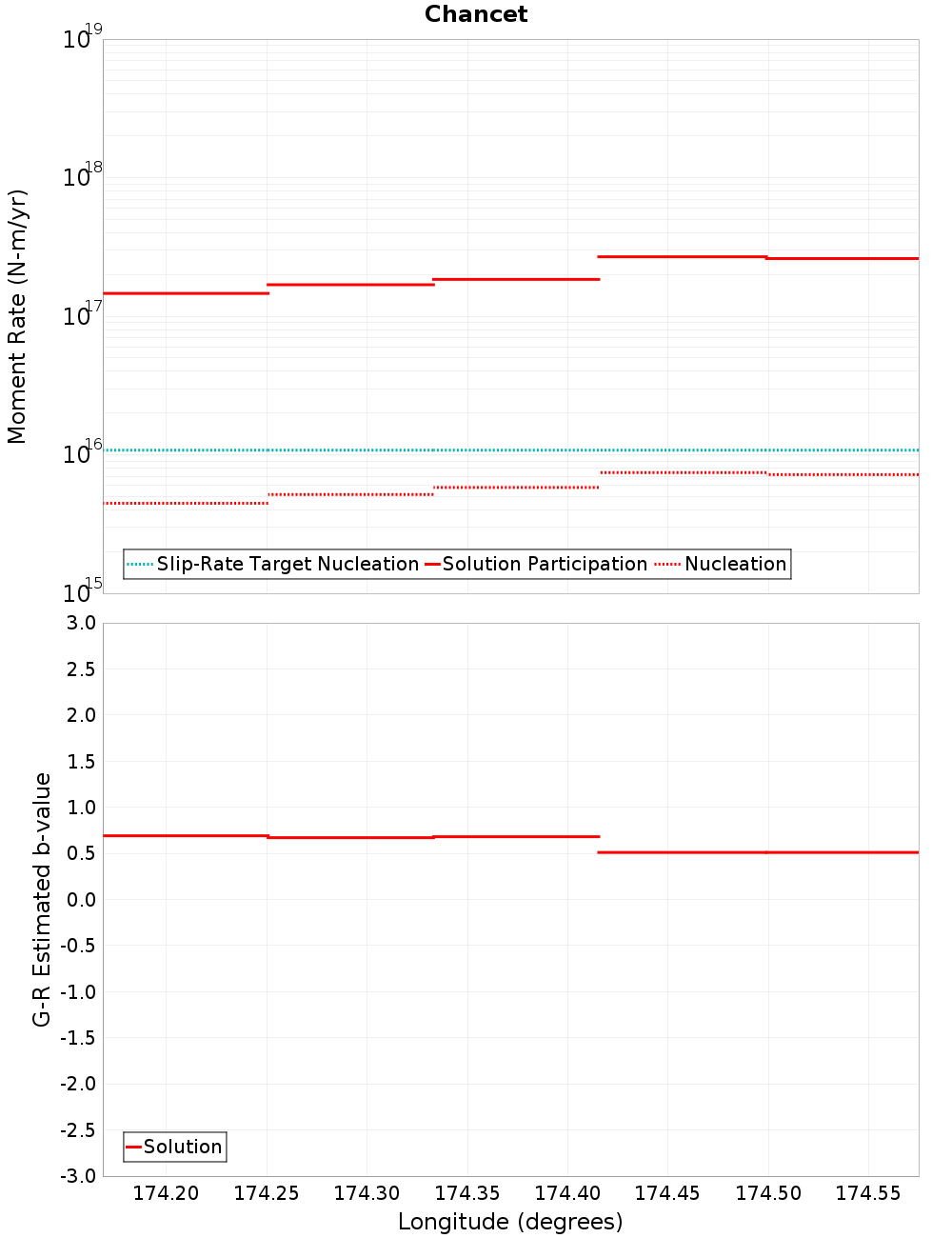

Moment-Rates and b-Values

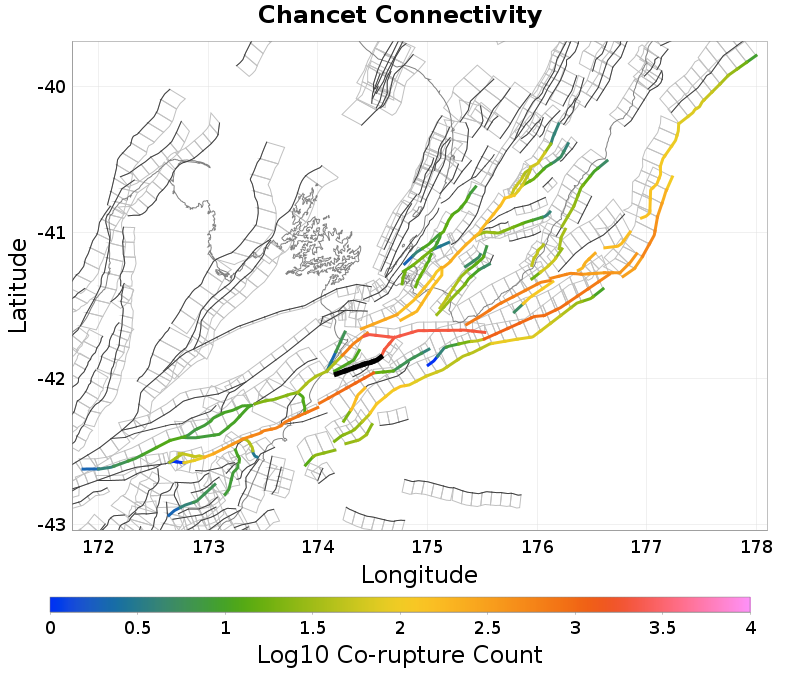

Connectivity

Nearby Sections

Fault Section
Campbell Bank, 0 km away
Wharanui, 0.07 km away
London Hill, 0.17 km away
Upper Slope, 1.61 km away
Needles East 2, 2.61 km away
Needles, 6.52 km away
Kekerengu 1, 7.4 km away
Hope: Te Rapa, 8.16 km away
Te Rapa 1, 8.16 km away
Te Rapa 2, 11.11 km away

Campbell Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,048
Co-rupture Rate	6.295147E-4

Wharanui, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

London Hill, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	4.459751E-6

Upper Slope, 1.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	1.6360346E-4

Needles East 2, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	5.2717034E-8

Needles, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	625
Co-rupture Rate	2.705753E-5

Kekerengu 1, 7.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	false
Co-rupture Count	37
Co-rupture Rate	9.410679E-6

Hope: Te Rapa, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,133
Co-rupture Rate	1.2422698E-4

Te Rapa 1, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	9.334211E-6

Te Rapa 2, 11.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	4.459299E-9
