Maleme Details

PropertyValue
Rupture Count199
Ruptures Above Sect Min Mag161
Ruptures w/ Nonzero Rates130
Magnitude Range[6.08, 8.07]
Length Range[9, 438] km
Total Rate7.811896E-5 /yr
Multi-Fault Rate7.811896E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults27

Table Of Contents

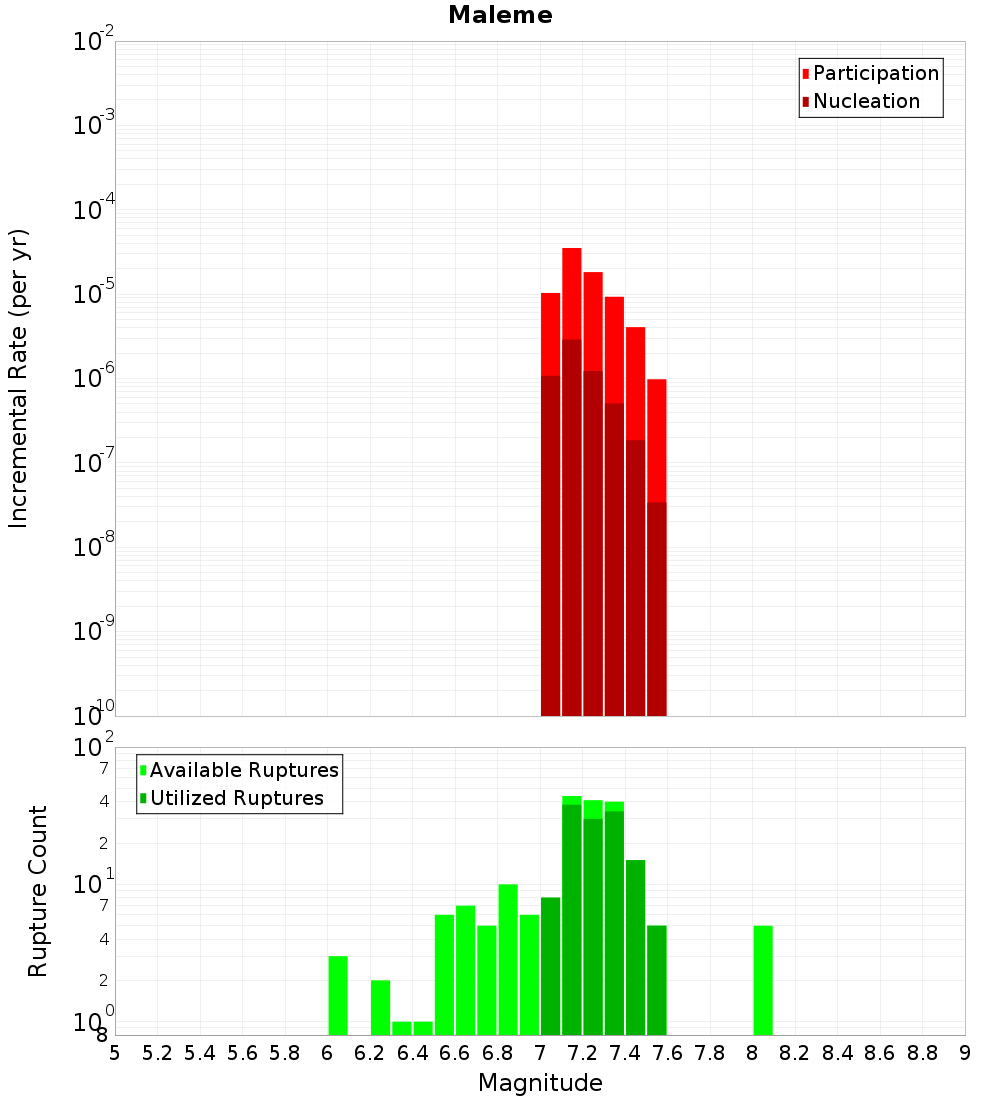

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

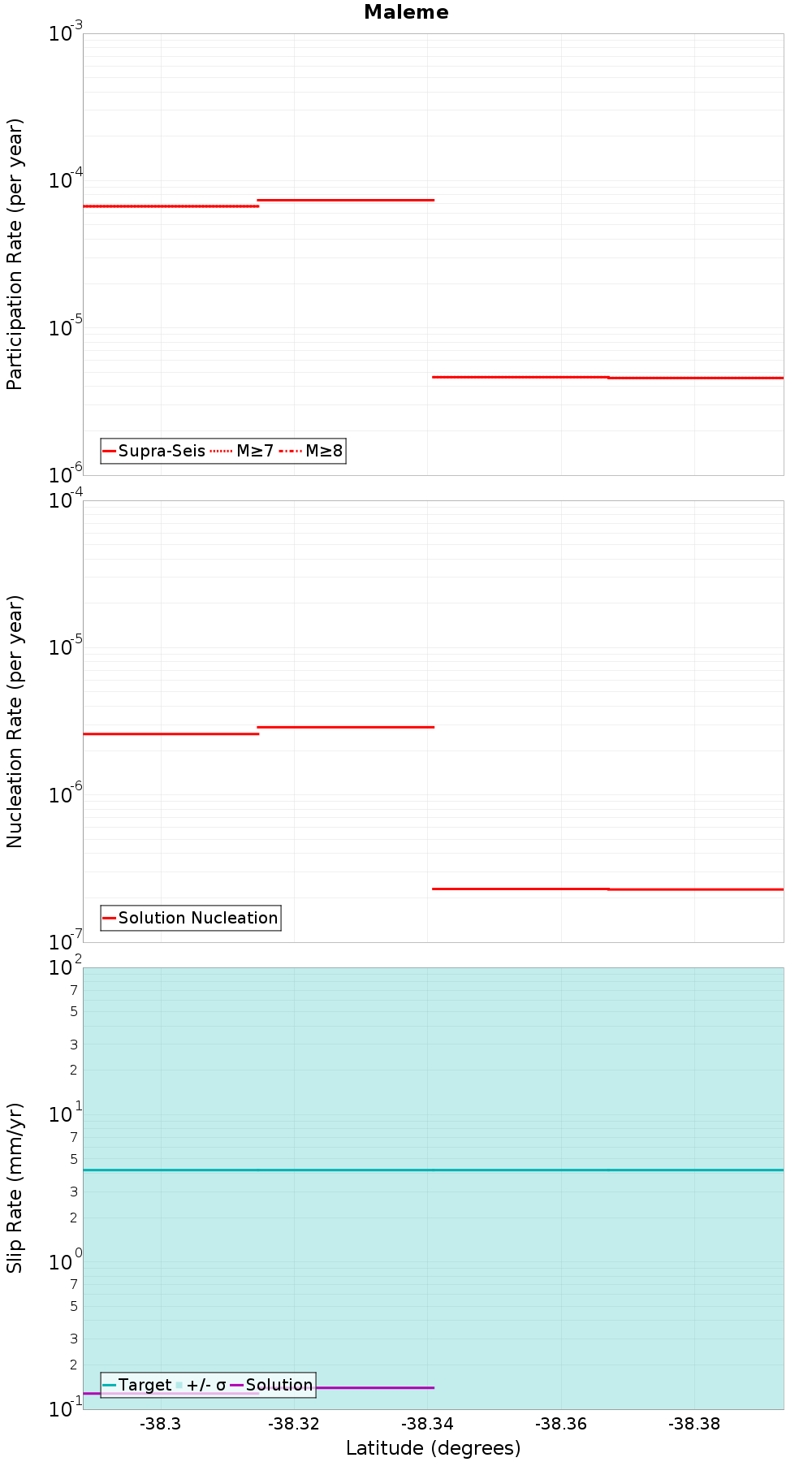

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata North, 0.15 km away
Paeroa, 0.39 km away
Orakeikorako, 0.41 km away
EarthquakeFlat - Tumunui, 0.79 km away
Puketerata, 3.56 km away
Whangamata West, 12.98 km away

Puketerata North, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate6.583698E-6

Paeroa, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate4.5346032E-6

Orakeikorako, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

EarthquakeFlat - Tumunui, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?true
Directly Connected?true
Co-rupture Count189
Co-rupture Rate7.811896E-5

Puketerata, 3.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whangamata West, 12.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTAuMDNBeTd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
