Hawkswood Details

Property	Value
Rupture Count	6,625
Ruptures Above Sect Min Mag	6,617
Ruptures w/ Nonzero Rates	322
Magnitude Range	[6.71, 8.15]
Length Range	[20, 538] km
Total Rate	4.6220495E-4 /yr
Multi-Fault Rate	4.6220495E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	77

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

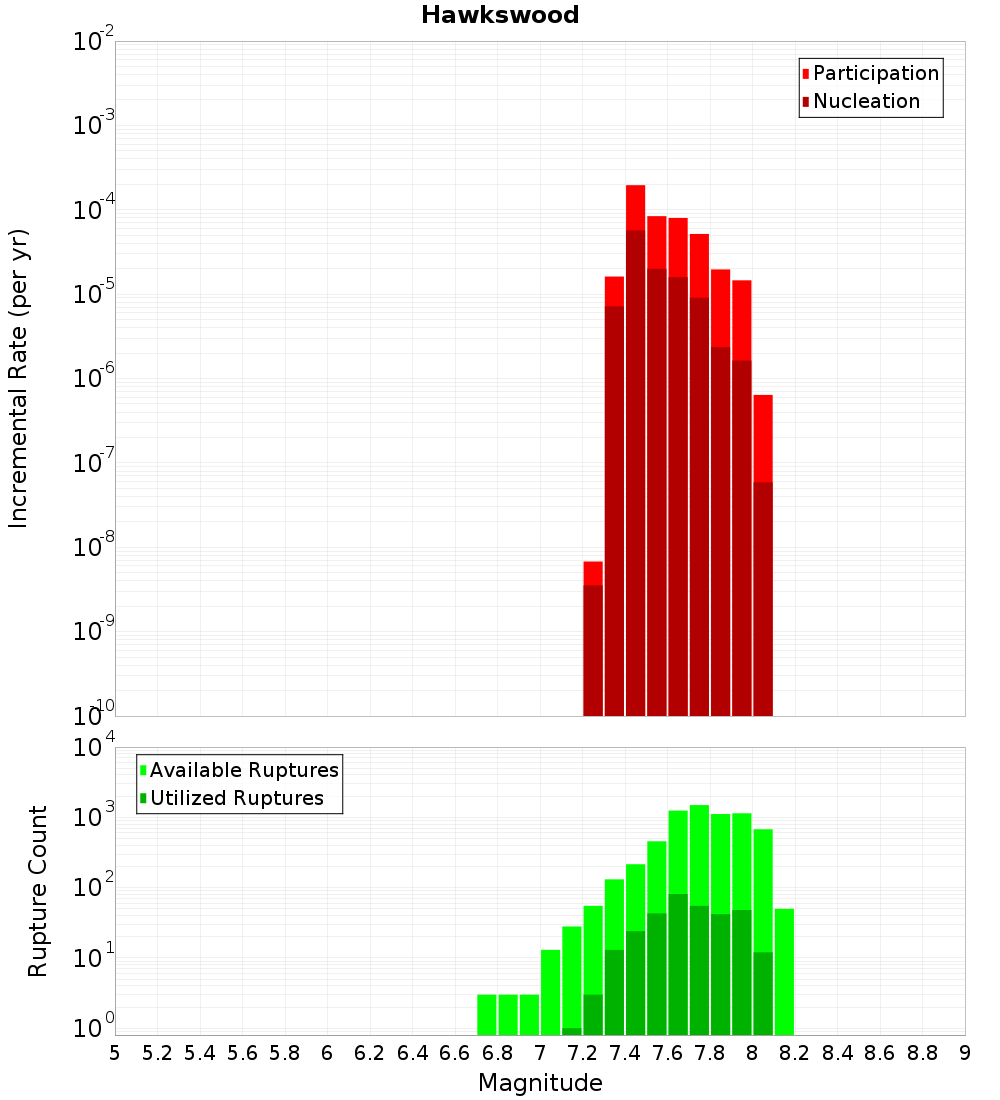

Magnitude-Frequency Distribution

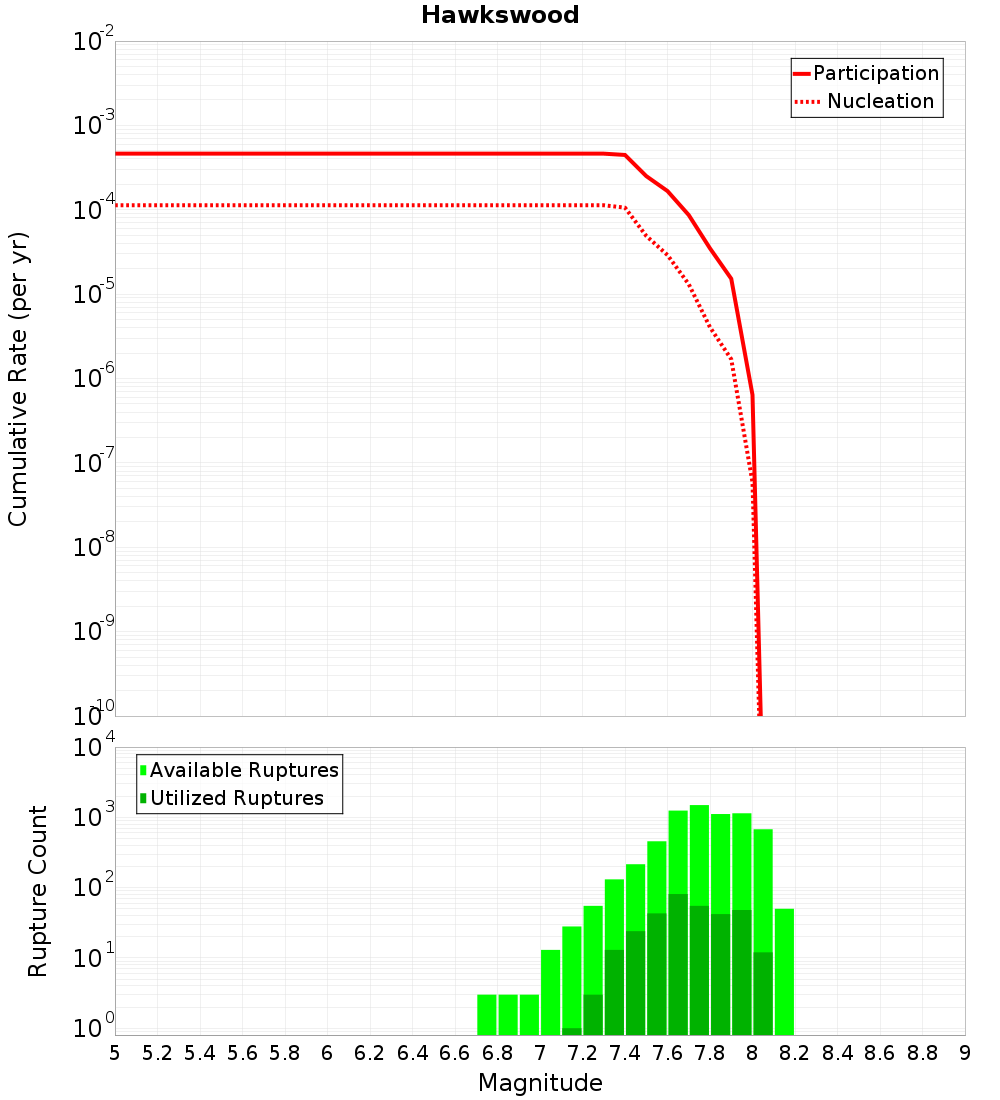

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hundalee, 0.87 km away
StoneJug, 2.25 km away
OmihiLwrHuru, 3.06 km away
AmberBlyth, 3.15 km away
Conway Trough West, 4 km away
Kaiwara North, 9.21 km away
Leader: Central, 10.66 km away
Leader: South, 10.66 km away
Conway Trough East, 10.89 km away
The Humps, 11.31 km away
Point Gibson, 11.9 km away

Hundalee, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,426
Co-rupture Rate	3.2807727E-4

StoneJug, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	4,518
Co-rupture Rate	3.9990624E-5

OmihiLwrHuru, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	3,422
Co-rupture Rate	1.4128341E-4

AmberBlyth, 3.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	2,735
Co-rupture Rate	3.8619494E-4

Conway Trough West, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	48
Co-rupture Rate	3.511603E-5

Kaiwara North, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: Central, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	false
Co-rupture Count	220
Co-rupture Rate	1.1010886E-15

Leader: South, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Conway Trough East, 10.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

The Humps, 11.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	false
Co-rupture Count	124
Co-rupture Rate	2.353677E-6

Point Gibson, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
