Mataikona Details

PropertyValue
Rupture Count3,582
Ruptures Above Sect Min Mag3,555
Ruptures w/ Nonzero Rates404
Magnitude Range[6.64, 8.15]
Length Range[18, 505] km
Total Rate0.0012041297 /yr
Multi-Fault Rate0.0012041297 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults74

Table Of Contents

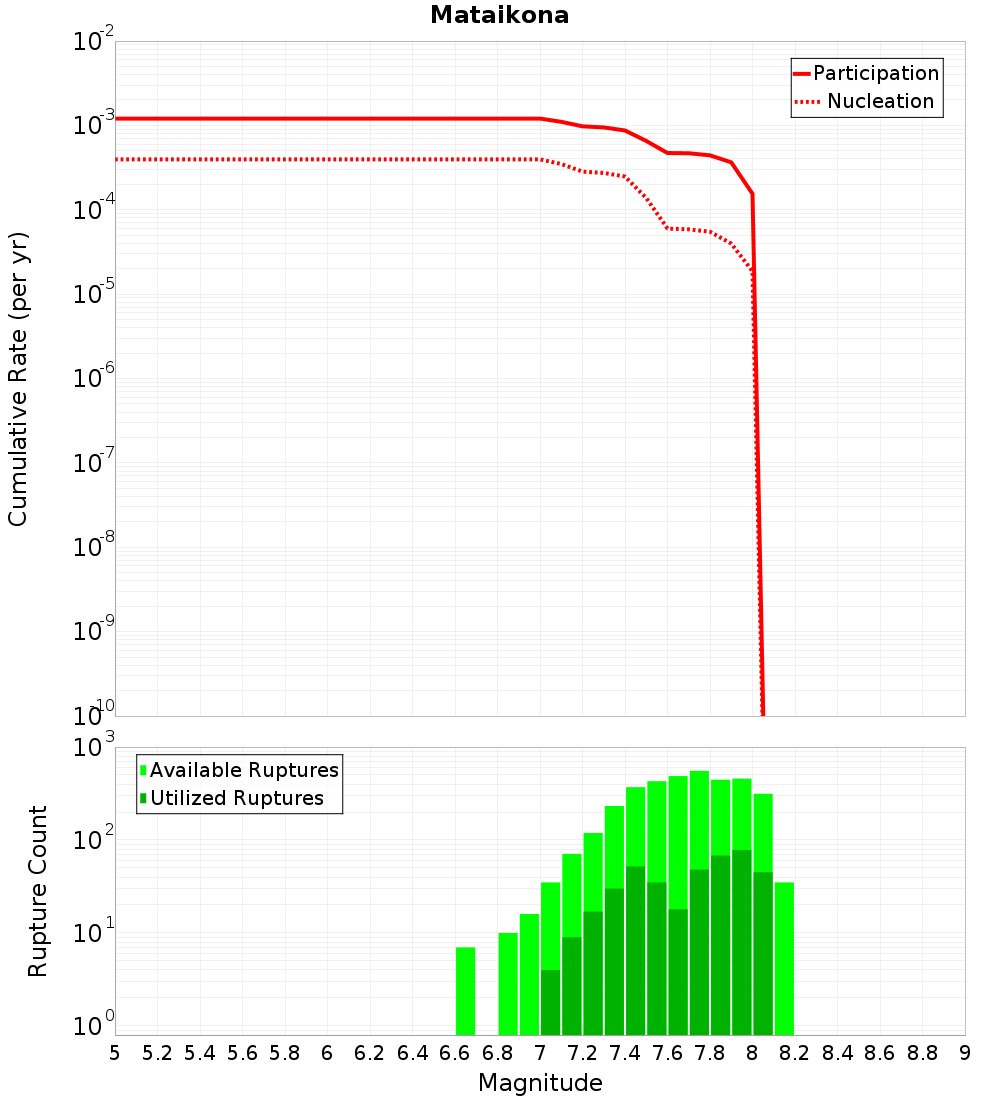

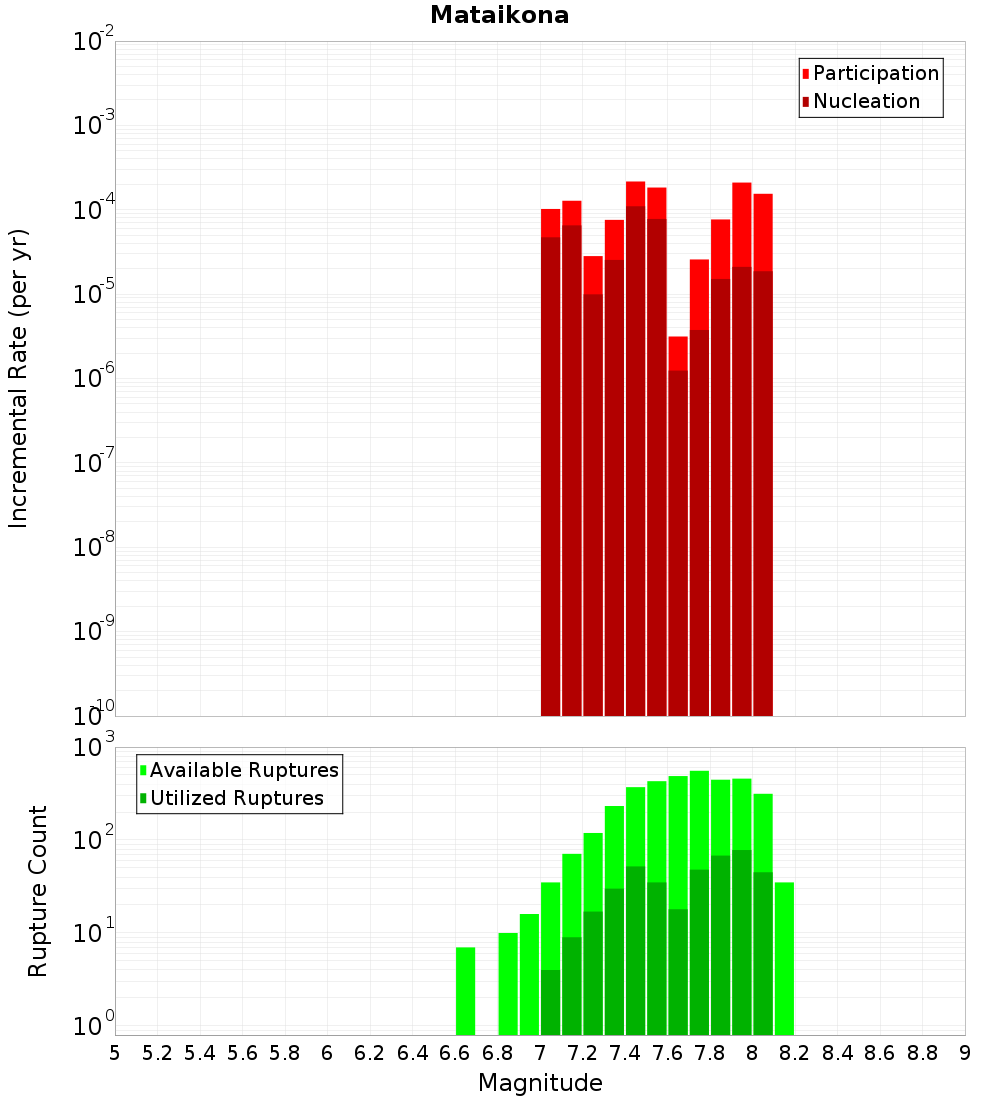

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

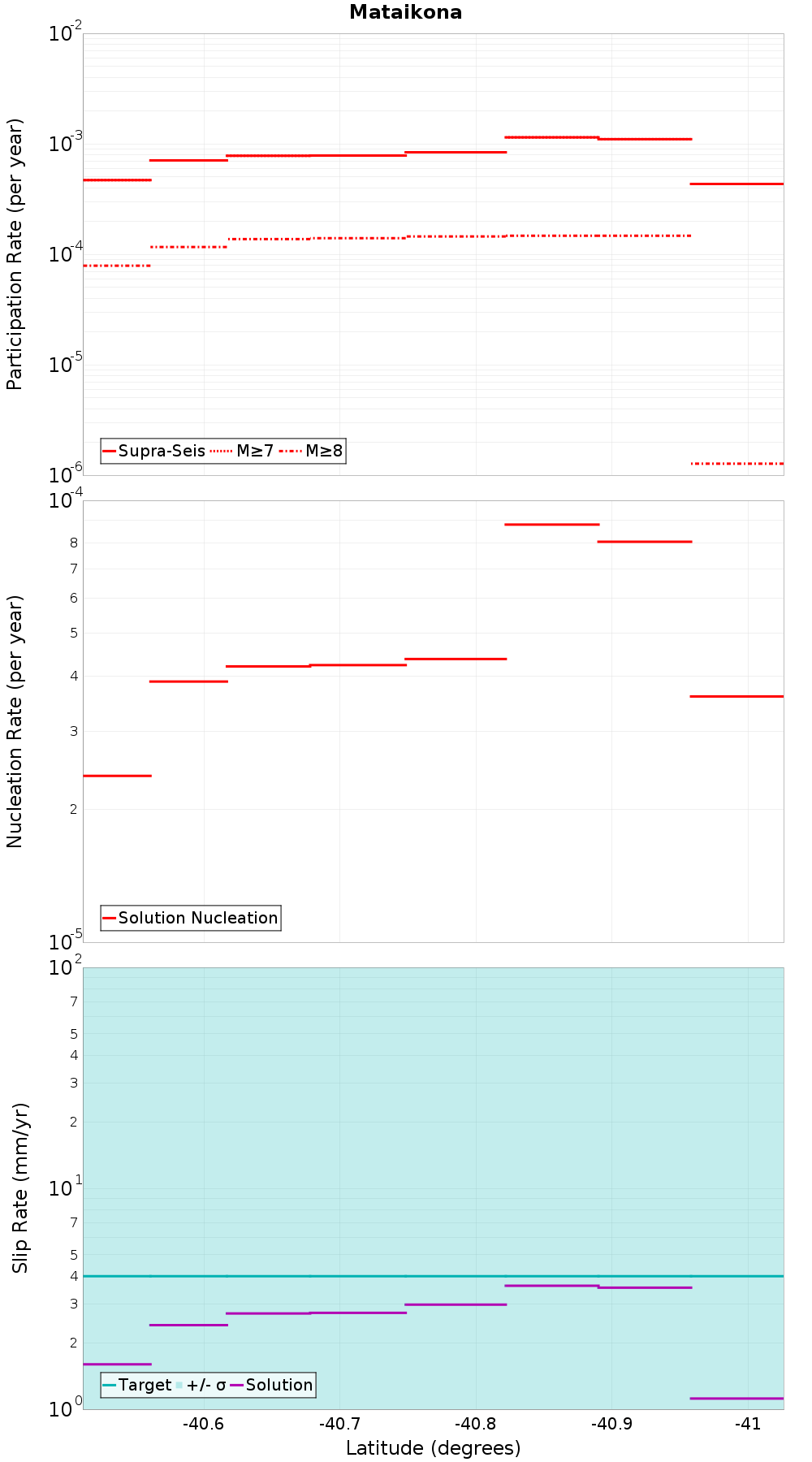

Along-Strike Values

(top)

Along-strike plot

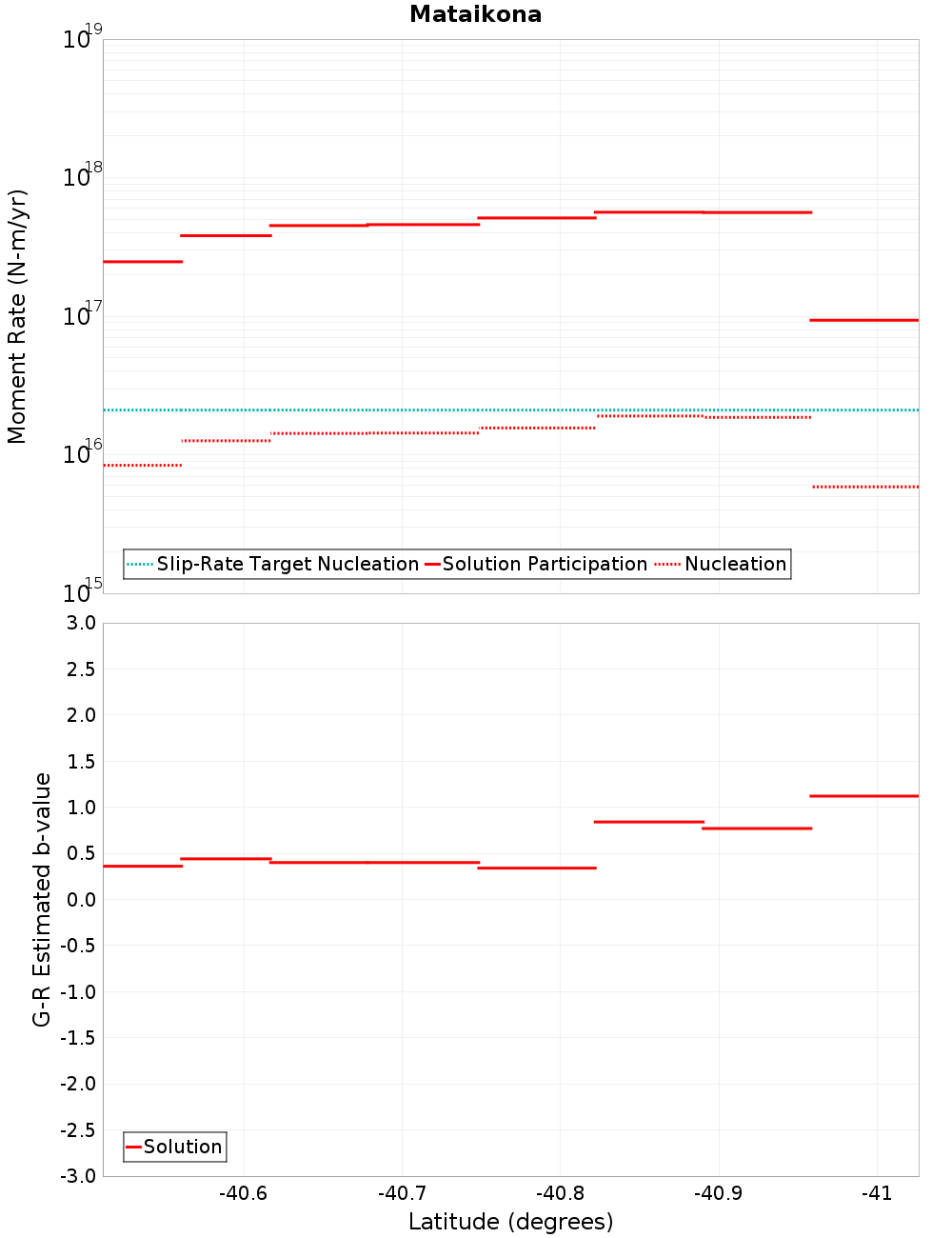

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Carterton, 0.32 km away
Kaumingi, 1.19 km away
Riversdale North, 2.18 km away
Mokonui Northeast, 3.45 km away
Waitawhiti, 4.15 km away
Mataikona East, 5.61 km away
Riversdale, 6.53 km away
Uruti Point, 11.35 km away
Whareama Bank, 12.73 km away
Pongaroa - Weber, 12.8 km away

Carterton, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?true
Co-rupture Count2,153
Co-rupture Rate6.8061356E-4

Kaumingi, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?true
Co-rupture Count375
Co-rupture Rate3.067898E-4

Riversdale North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?true
Co-rupture Count1,234
Co-rupture Rate4.5397357E-4

Mokonui Northeast, 3.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate0.0

Waitawhiti, 4.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate3.1069134E-4

Mataikona East, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?true
Co-rupture Count132
Co-rupture Rate6.0355487E-5

Riversdale, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?false
Co-rupture Count822
Co-rupture Rate3.0681174E-4

Uruti Point, 11.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?false
Co-rupture Count688
Co-rupture Rate4.9002294E-5

Whareama Bank, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate4.368526E-6

Pongaroa - Weber, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?true
Directly Connected?true
Co-rupture Count144
Co-rupture Rate1.1236505E-4
