Wakarara Details

Property	Value
Rupture Count	2,641
Ruptures Above Sect Min Mag	2,641
Ruptures w/ Nonzero Rates	132
Magnitude Range	[6.97, 8.22]
Length Range	[26, 579] km
Total Rate	6.6544395E-5 /yr
Multi-Fault Rate	6.6544395E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution

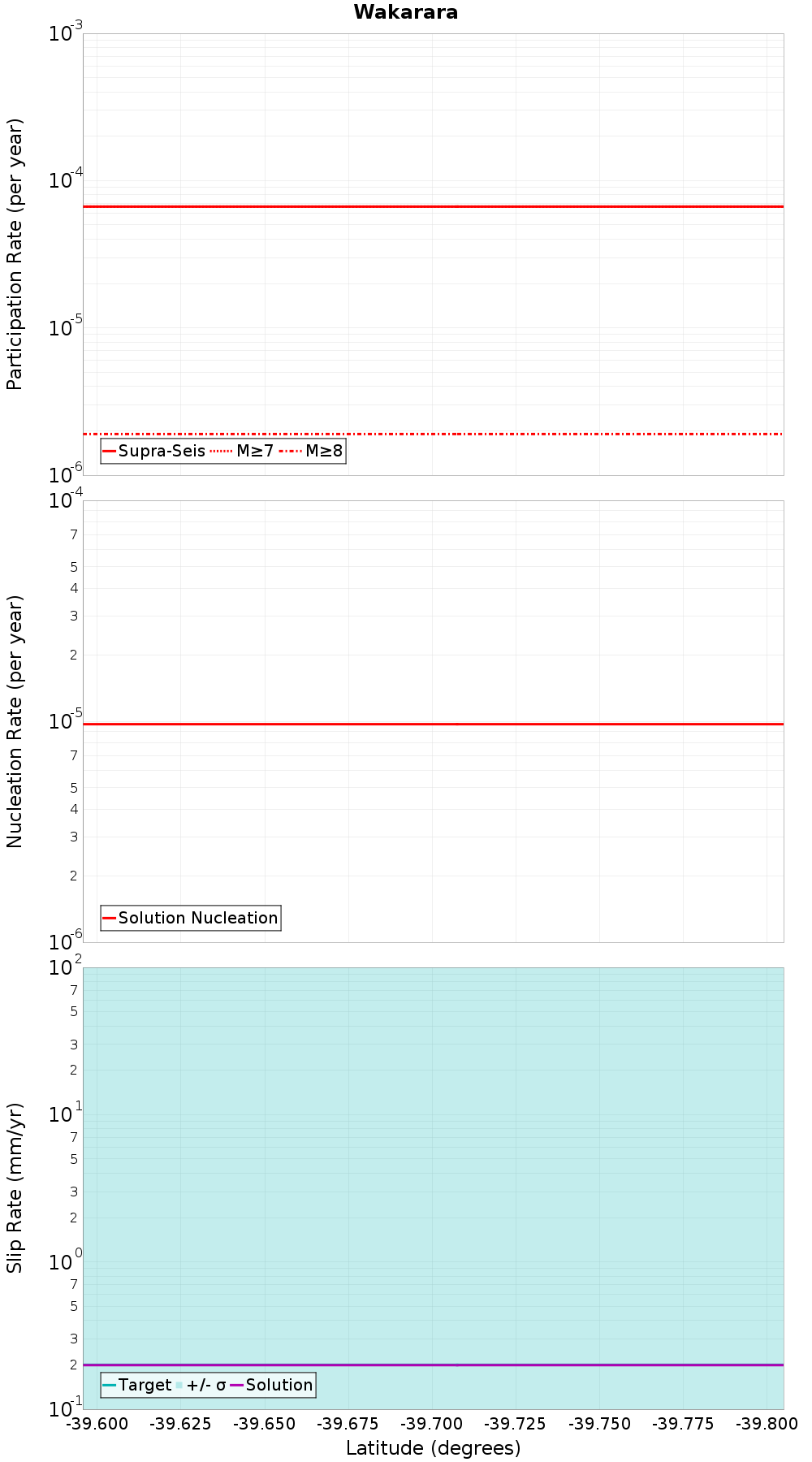

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

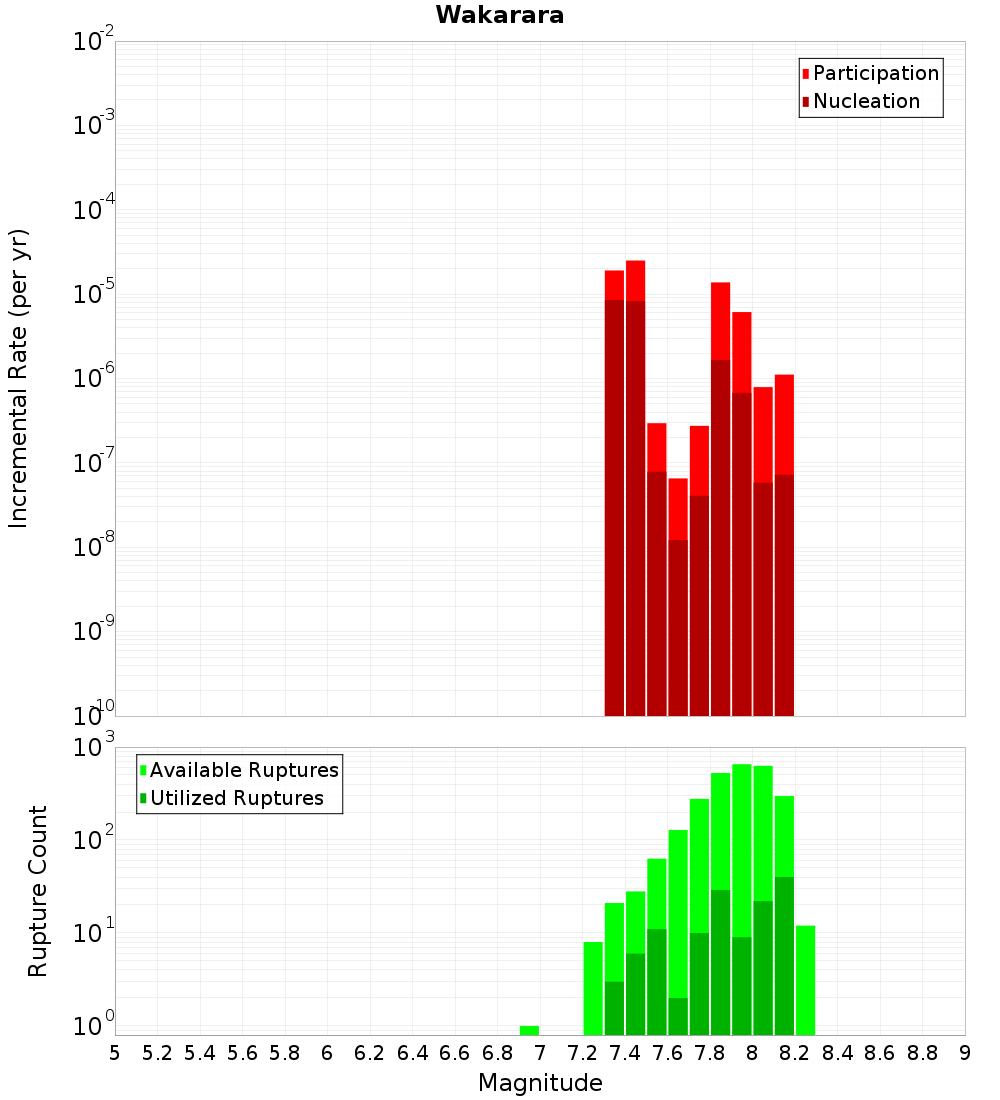

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

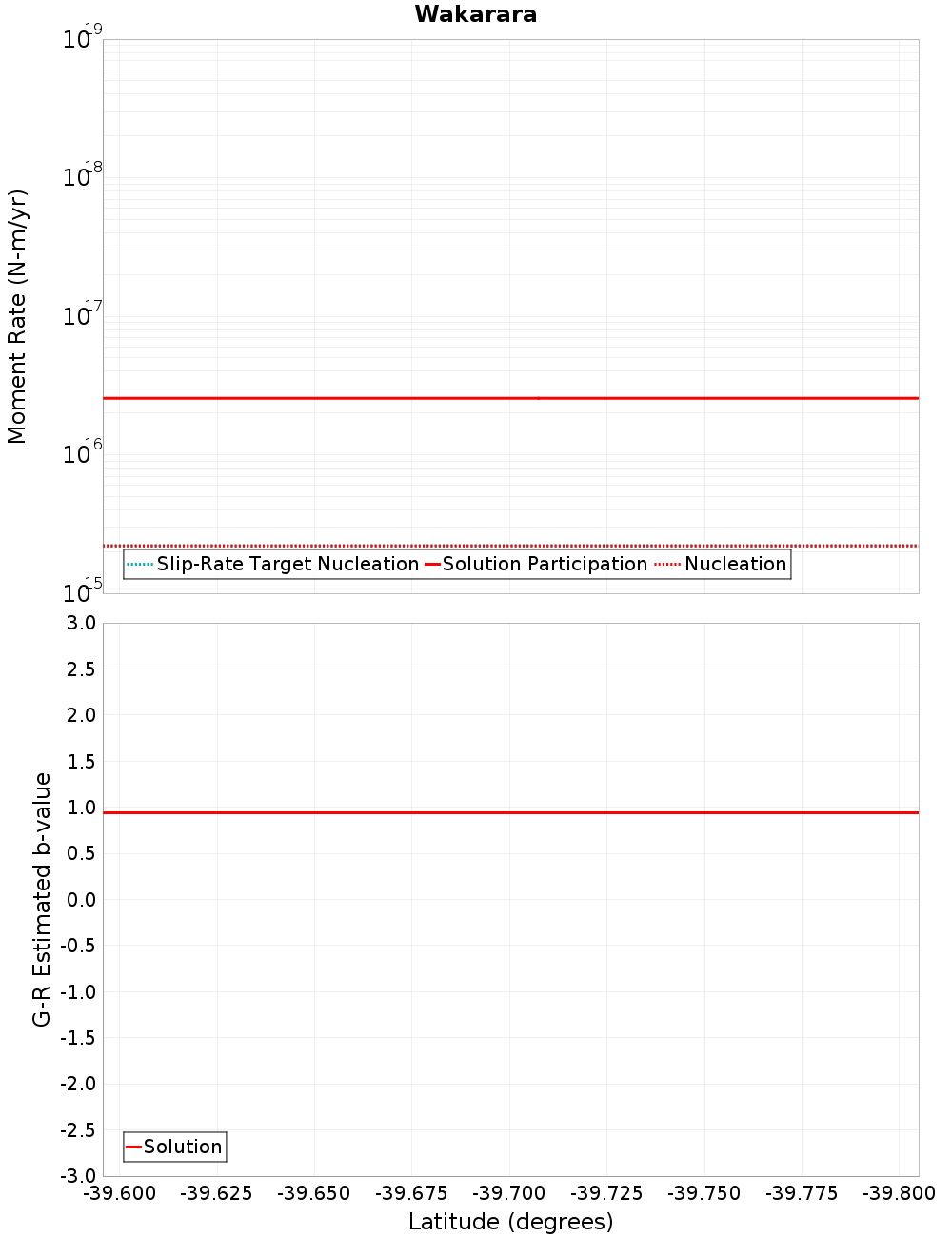

Moment-Rates and b-Values

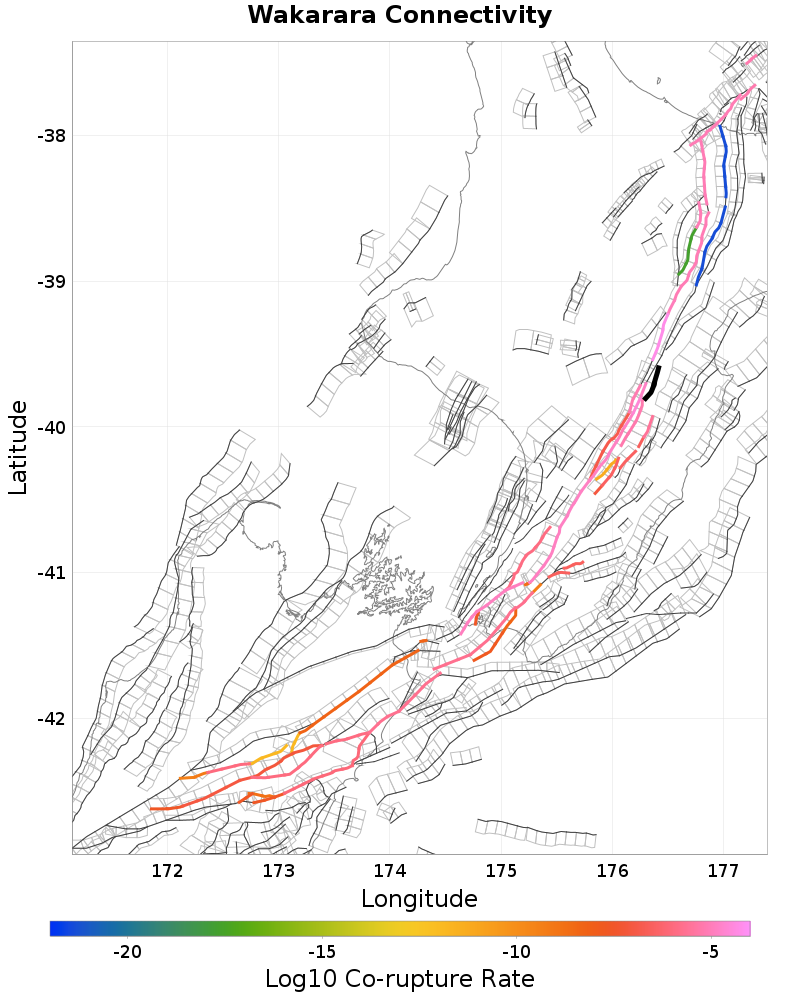

Connectivity

Nearby Sections

Fault Section
Rangefront, 0 km away
Ruahine: Central, 0.11 km away
Mohaka: South, 0.13 km away
Ruahine: North, 4 km away
Mohaka: North, 9.63 km away
Ruataniwha, 13.37 km away
Ruahine: South, 14.13 km away
Te Heka, 14.9 km away
Patoka - Rangiora, 14.99 km away

Rangefront, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	396
Co-rupture Rate	6.139528E-6

Ruahine: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	183
Co-rupture Rate	6.9560065E-6

Mohaka: South, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	2,264
Co-rupture Rate	3.197586E-5

Ruahine: North, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,485
Co-rupture Rate	5.2335807E-5

Mohaka: North, 9.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	2.6985363E-6

Ruahine: South, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	true
Directly Connected?	false
Co-rupture Count	402
Co-rupture Rate	1.6205591E-7

Te Heka, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NTUuMHVWVTZh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
