Alpine: Springs Junction to Tophouse Details

Property	Value
Rupture Count	70,243
Ruptures Above Sect Min Mag	70,239
Ruptures w/ Nonzero Rates	453
Magnitude Range	[7.10, 8.72]
Length Range	[24, 1,132] km
Total Rate	0.001802936 /yr
Multi-Fault Rate	8.3887053E-4 /yr (46.53%)
Directly-Connected Faults	8
All Co-Rupturing Faults	142

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

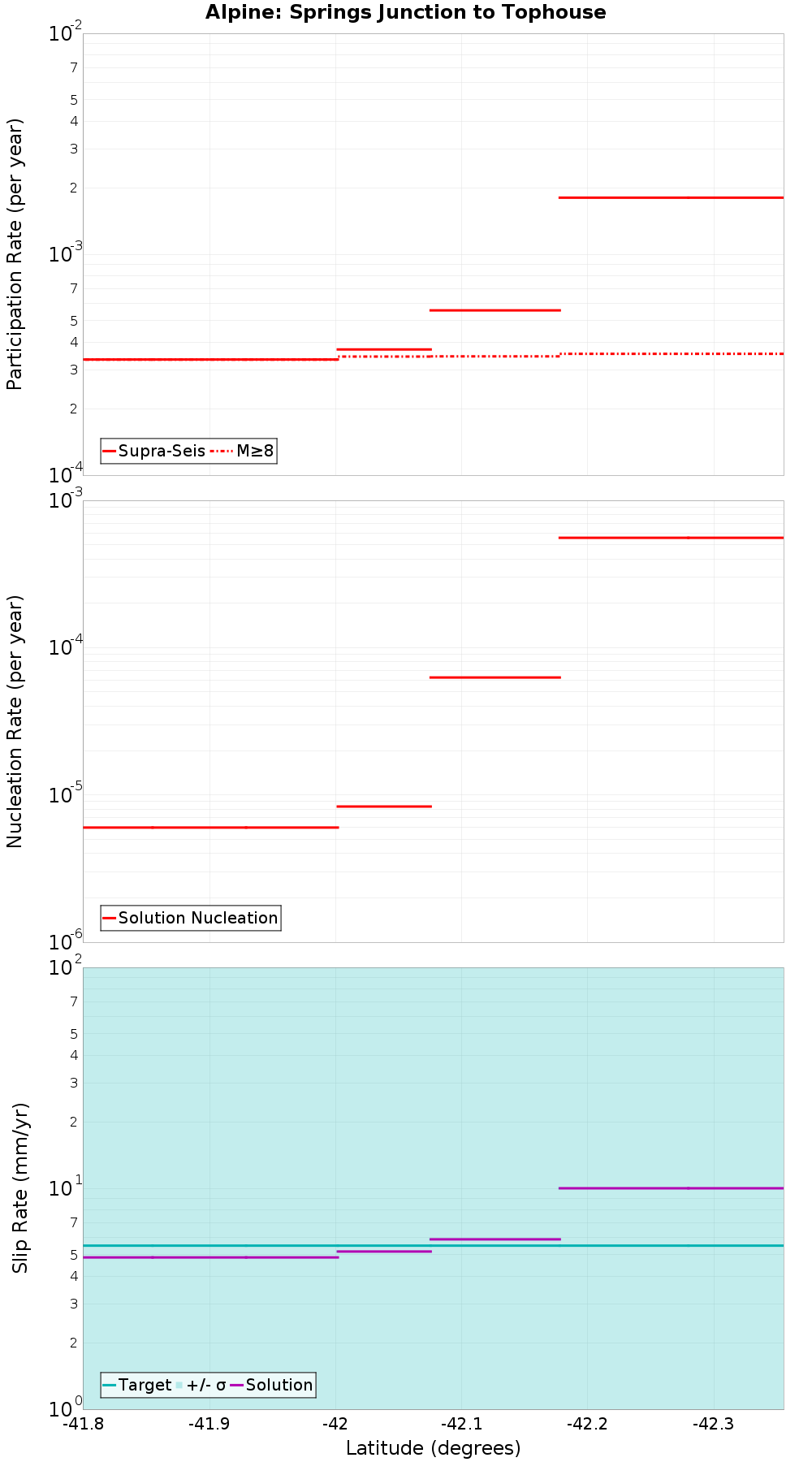

Along-Strike Values

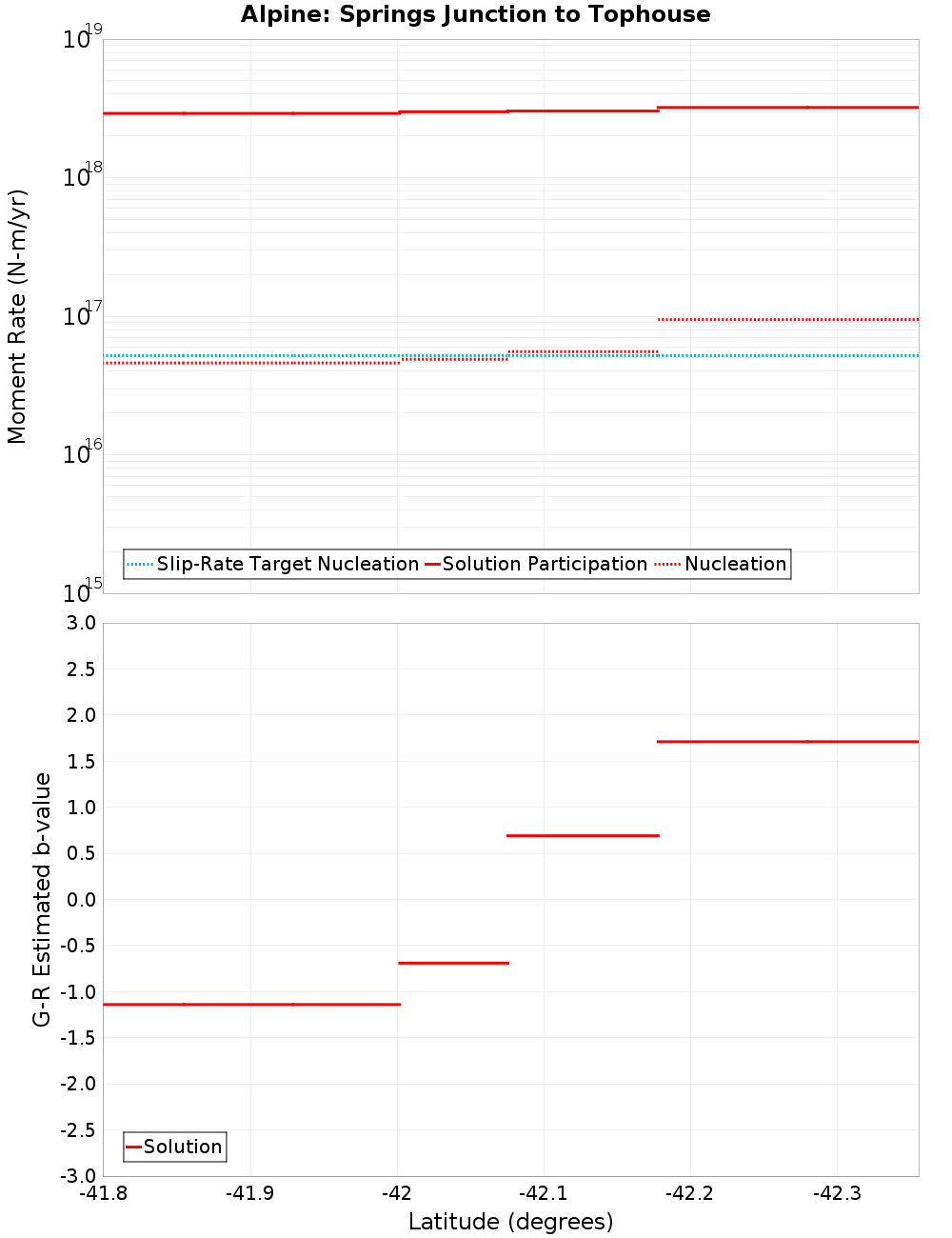

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.13 km away
Fowlers, 0.19 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.57 km away
Hope: Hope River, 13.43 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	68,054
Co-rupture Rate	7.061253E-4

Whangamoa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	1.25380175E-5

Awatere: Southwest, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	692
Co-rupture Rate	8.3799874E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	25,931
Co-rupture Rate	3.053418E-4

Tutaki, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	7,144
Co-rupture Rate	2.4728615E-5

Fowlers, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	335
Co-rupture Rate	5.1042578E-5

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	5,883
Co-rupture Rate	2.2692602E-6

Clarence: Southwest, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	true
Co-rupture Count	838
Co-rupture Rate	3.3954784E-5

Hope: Hope River, 13.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NjUuMDVoSGFC
Connected?	true
Directly Connected?	false
Co-rupture Count	6,599
Co-rupture Rate	6.651883E-5
