Ariel Bank 2 Details

PropertyValue
Rupture Count192
Ruptures Above Sect Min Mag190
Ruptures w/ Nonzero Rates89
Magnitude Range[6.78, 7.83]
Length Range[17, 189] km
Total Rate0.0013609646 /yr
Multi-Fault Rate0.0013609646 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults11

Table Of Contents

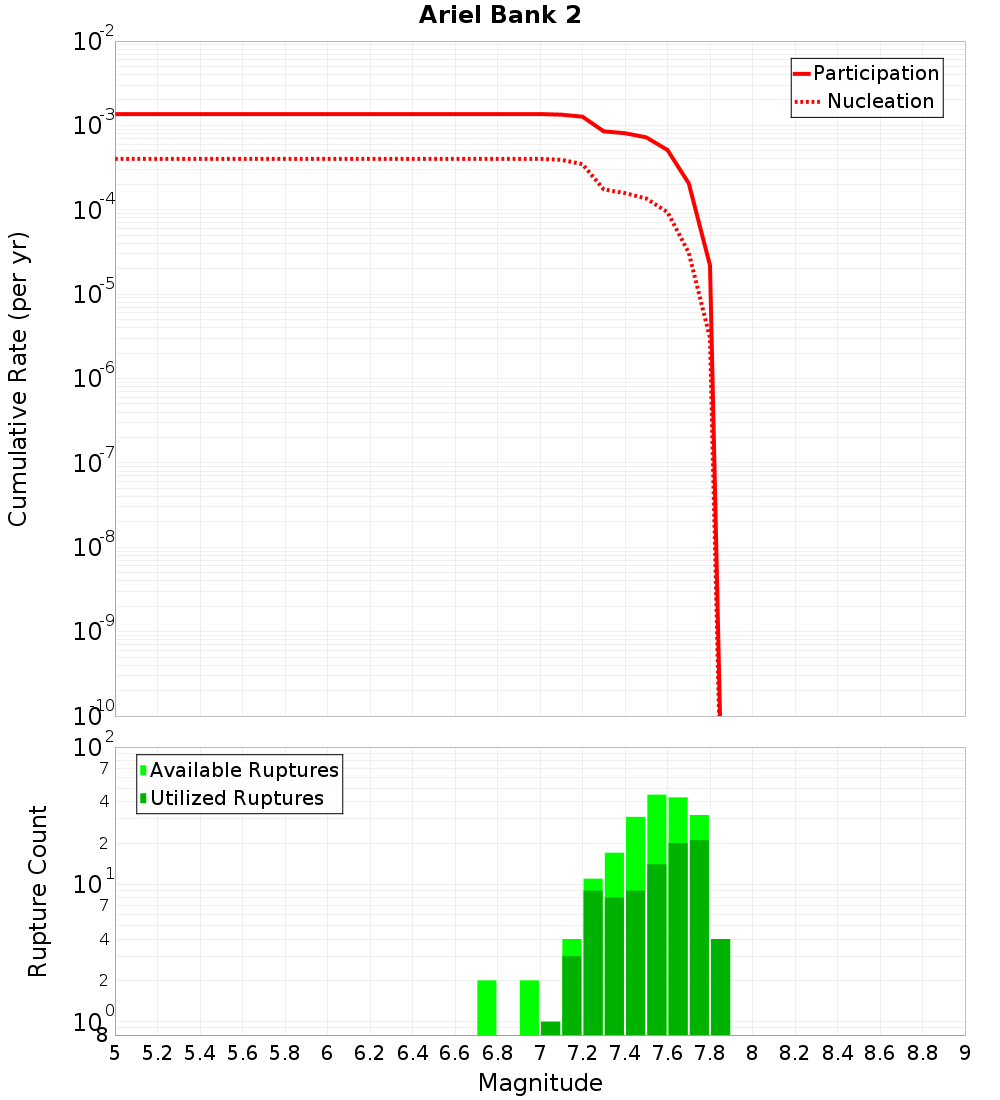

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

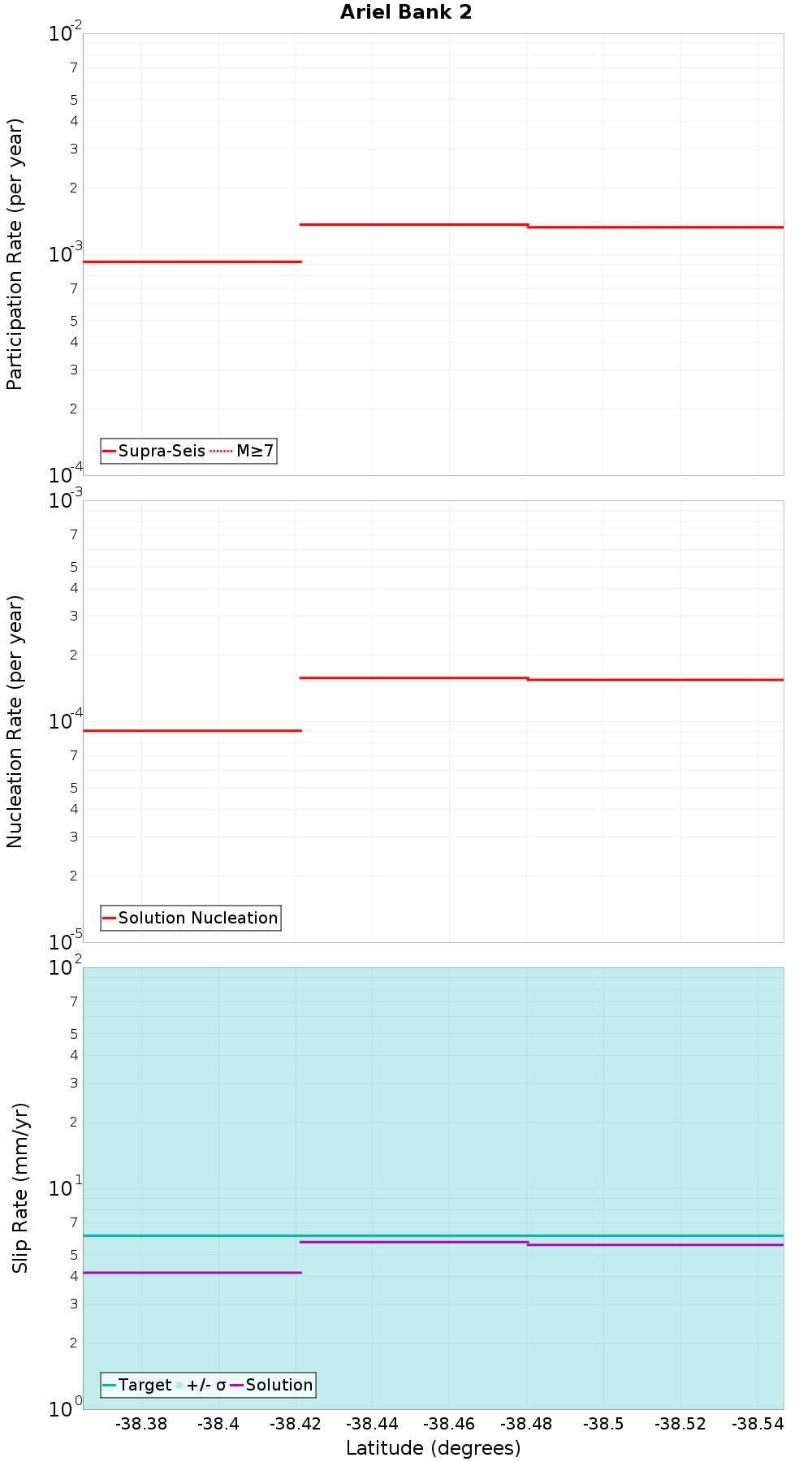

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gable End North, 0.9 km away
Pakarae, 3.93 km away
Ruatoria South 3, 7.91 km away
Te Ikaarongamai, 11.26 km away
Gable End South, 11.88 km away
Ruatoria South 4, 14.82 km away

Gable End North, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NzEuMEVqN3N5
Connected?true
Directly Connected?true
Co-rupture Count105
Co-rupture Rate5.135005E-4

Pakarae, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NzEuMEVqN3N5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruatoria South 3, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NzEuMEVqN3N5
Connected?true
Directly Connected?true
Co-rupture Count112
Co-rupture Rate4.926259E-4

Te Ikaarongamai, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NzEuMEVqN3N5
Connected?true
Directly Connected?true
Co-rupture Count68
Co-rupture Rate8.105799E-4

Gable End South, 11.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NzEuMEVqN3N5
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate8.9571426E-5

Ruatoria South 4, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NzEuMEVqN3N5
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate5.820345E-5
