Lowry Details

Property	Value
Rupture Count	2,764
Ruptures Above Sect Min Mag	2,761
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.88, 8.27]
Length Range	[21, 560] km
Total Rate	8.814097E-5 /yr
Multi-Fault Rate	8.814097E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution

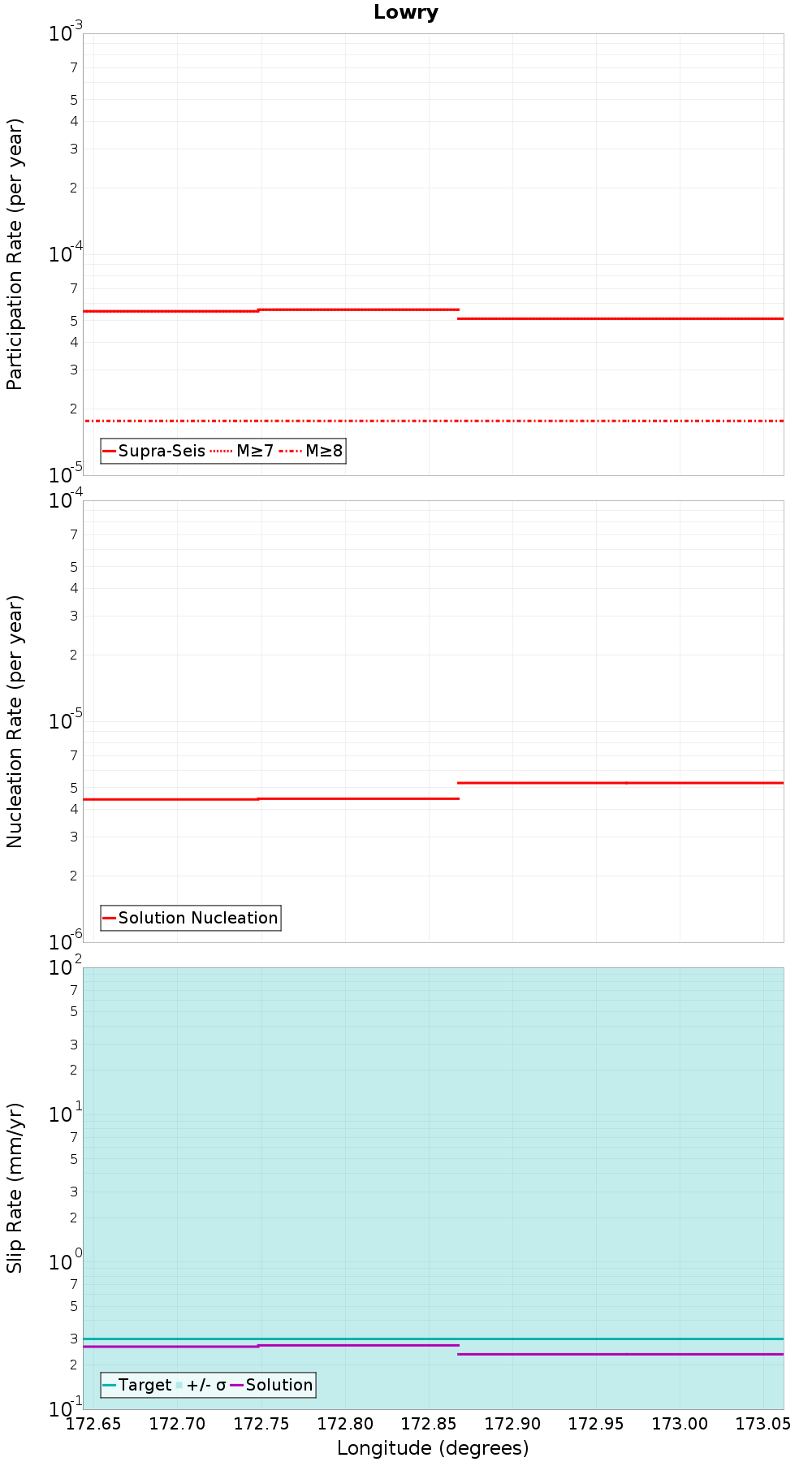

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

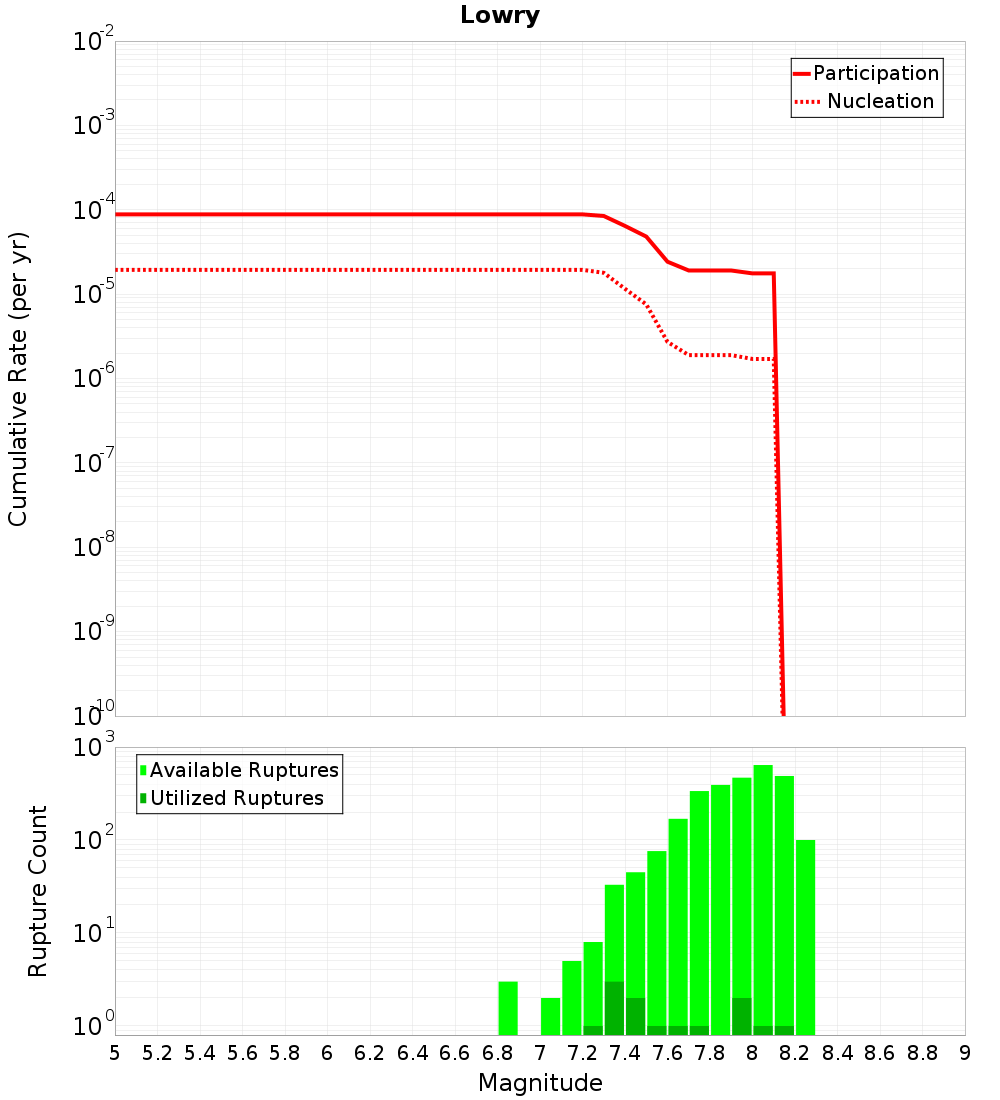

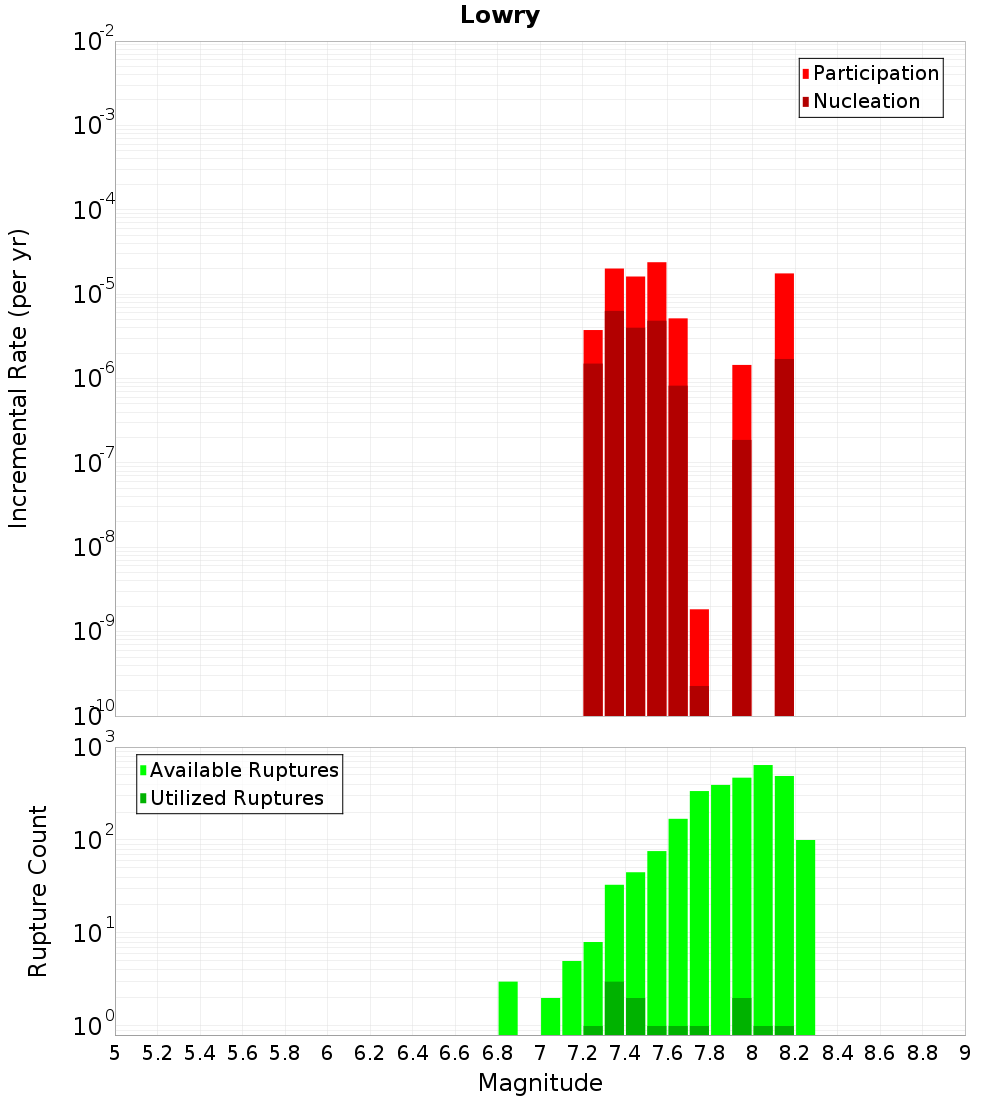

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kaiwara North, 0.15 km away
Doctors, 0.53 km away
Balmoral, 0.6 km away
Leonard Mound, 1.98 km away
Alexander, 2.38 km away
Kaiwara South, 3.01 km away
Mt Culverden, 7.58 km away
The Humps, 8.15 km away
Mt Arden, 9.01 km away
Hurunui Peak, 9.05 km away
Virginia, 9.27 km away
Boby Stream, 10.33 km away
OmihiLwrHuru, 11.55 km away
Leader: South, 12.1 km away

Kaiwara North, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,422
Co-rupture Rate	3.677058E-5

Doctors, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,512
Co-rupture Rate	4.2912106E-5

Balmoral, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	3.7072543E-5

Alexander, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	244
Co-rupture Rate	3.2016156E-5

Kaiwara South, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Culverden, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

The Humps, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	2.6562828E-5

Mt Arden, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hurunui Peak, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Virginia, 9.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Boby Stream, 10.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,475
Co-rupture Rate	6.612812E-6

OmihiLwrHuru, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	251
Co-rupture Rate	5.16761E-6

Leader: South, 12.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
