Riversdale Details

Property	Value
Rupture Count	1,919
Ruptures Above Sect Min Mag	1,912
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.69, 8.23]
Length Range	[16, 505] km
Total Rate	9.66737E-5 /yr
Multi-Fault Rate	9.66737E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	58

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

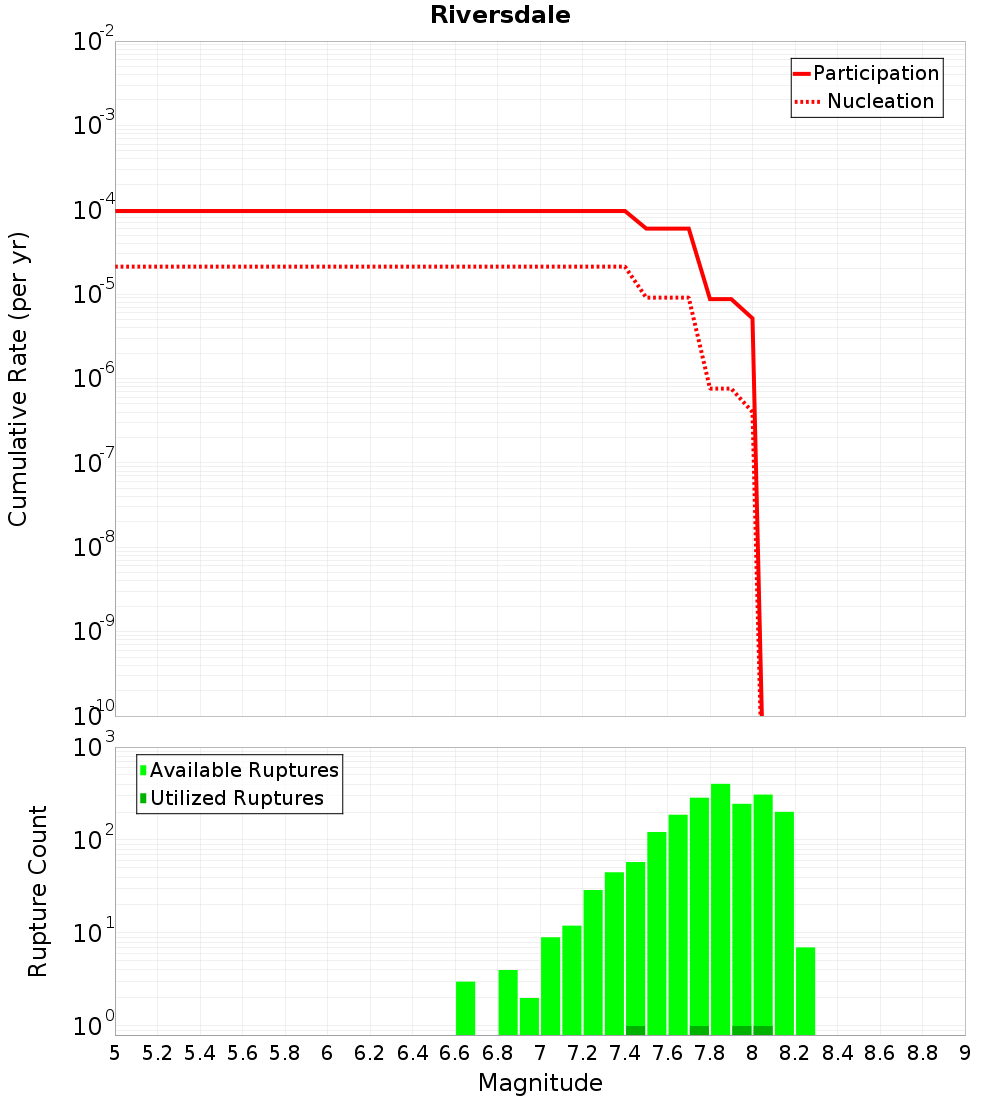

Magnitude-Frequency Distribution

Incremental	Cumulative

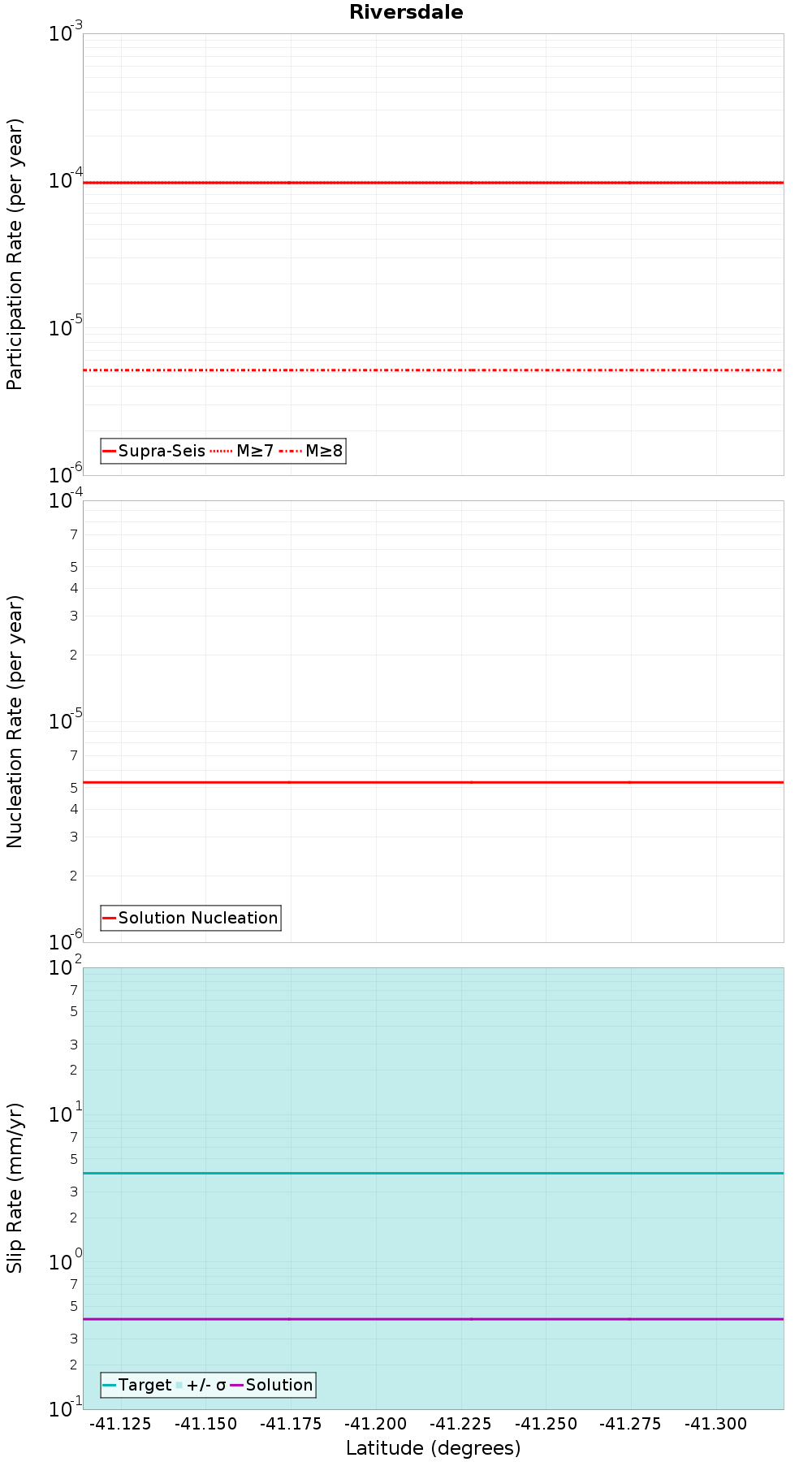

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Point, 0.2 km away
Riversdale North, 1.12 km away
Palliser - Kaiwhata, 3.25 km away
Whareama Bank, 5.42 km away
Mataikona, 6.53 km away
Honeycomb, 6.88 km away
Uruti Basin, 8.5 km away
Kaumingi, 9.84 km away
Carterton, 10.74 km away

Uruti Point, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	47
Co-rupture Rate	0.0

Riversdale North, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	803
Co-rupture Rate	8.73345E-6

Palliser - Kaiwhata, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,798
Co-rupture Rate	5.982513E-5

Whareama Bank, 5.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	50
Co-rupture Rate	8.794024E-5

Mataikona, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	false
Co-rupture Count	822
Co-rupture Rate	8.73345E-6

Honeycomb, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Uruti Basin, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Kaumingi, 9.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	true
Co-rupture Count	157
Co-rupture Rate	0.0

Carterton, 10.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTQuMHM0N3c4
Connected?	true
Directly Connected?	false
Co-rupture Count	61
Co-rupture Rate	0.0
