Kirkliston Details

Property	Value
Rupture Count	1,311
Ruptures Above Sect Min Mag	1,308
Ruptures w/ Nonzero Rates	15
Magnitude Range	[6.78, 8.12]
Length Range	[19, 454] km
Total Rate	4.1122257E-5 /yr
Multi-Fault Rate	4.1122257E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

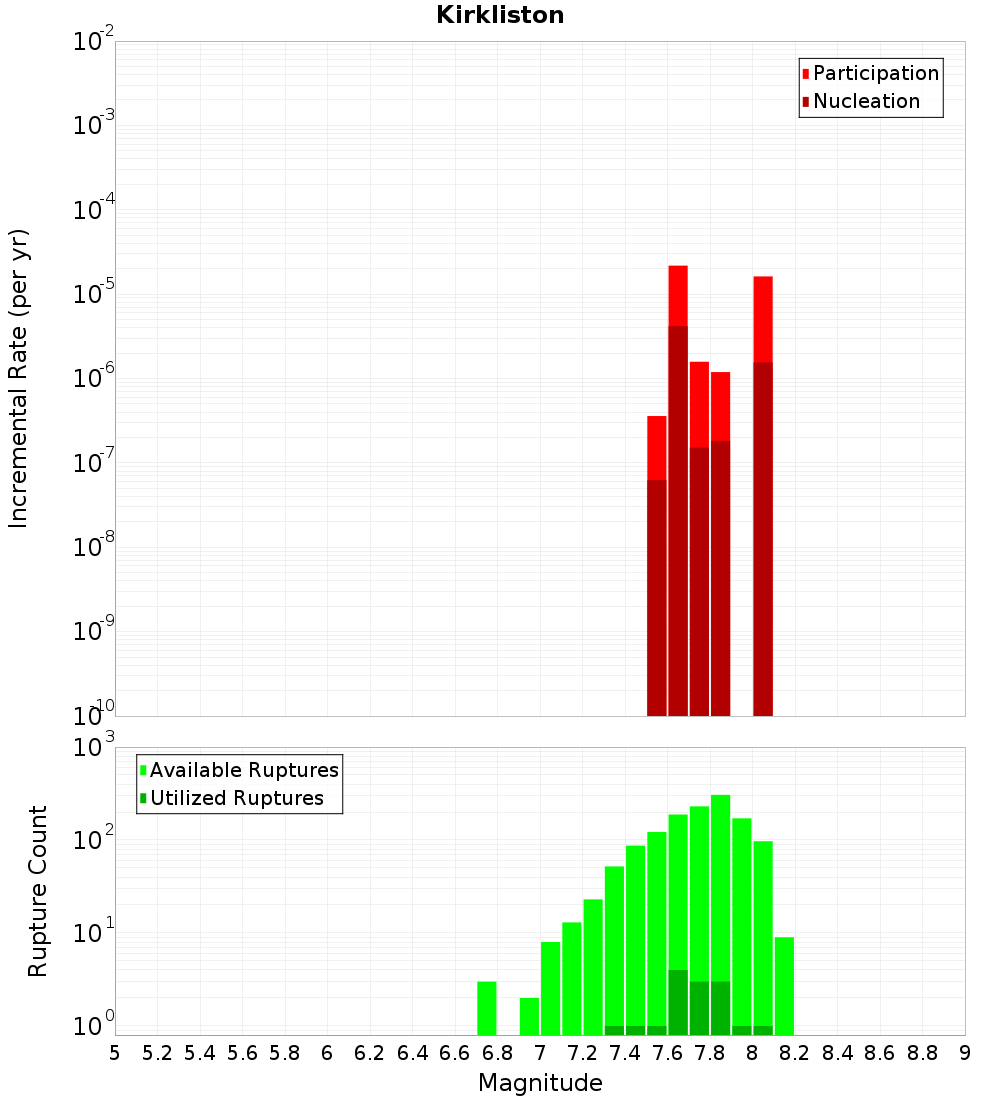

Magnitude-Frequency Distribution

Incremental	Cumulative

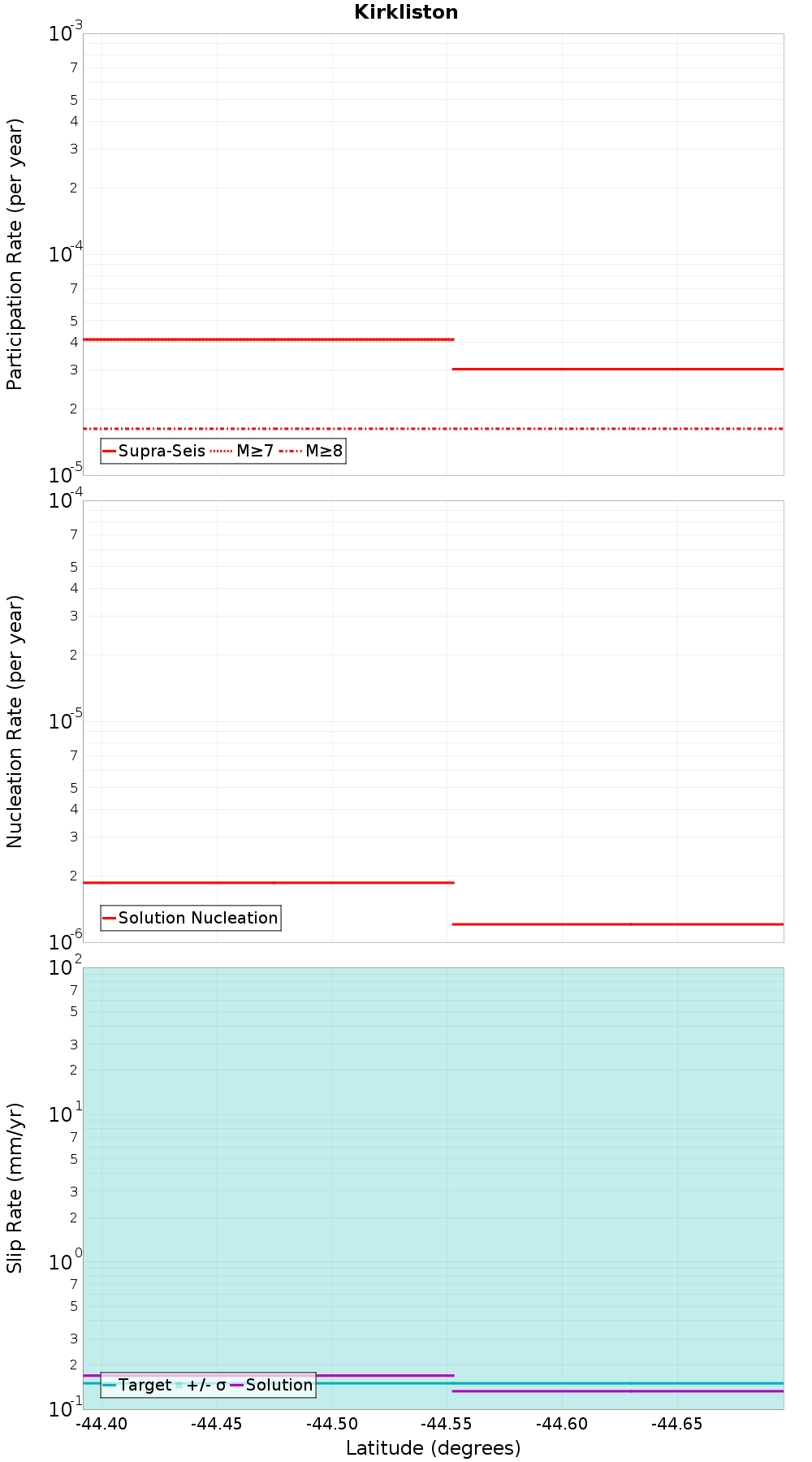

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dryburgh, 0.12 km away
Middle Range, 0.33 km away
Dalgety, 1.1 km away
Waitangi, 1.41 km away
Stonewall, 1.94 km away
Fern Gully, 3.19 km away
Grampian, 4.67 km away
Awahokomo, 5.59 km away
Campbell Hills, 6.26 km away
Mt Sutton, 9.08 km away
Chamberlain, 9.49 km away
Hunters, 14.9 km away
Gibson, 14.93 km away

Dryburgh, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	true
Co-rupture Count	120
Co-rupture Rate	8.718238E-14

Middle Range, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	true
Co-rupture Count	212
Co-rupture Rate	2.0308053E-17

Dalgety, 1.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,144
Co-rupture Rate	4.0763185E-5

Waitangi, 1.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.0478439E-5

Stonewall, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	true
Co-rupture Count	679
Co-rupture Rate	1.3250347E-5

Fern Gully, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	2.293237E-6

Grampian, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	3.590707E-7

Awahokomo, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	true
Co-rupture Count	244
Co-rupture Rate	1.9697616E-5

Campbell Hills, 6.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	1.0946201E-5

Mt Sutton, 9.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chamberlain, 9.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	6.2816446E-15

Hunters, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gibson, 14.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTcuMDcyVTlZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
