Murphys Creek Details
| Property | Value |
|---|---|
| Rupture Count | 199 |
| Ruptures Above Sect Min Mag | 197 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.89, 7.97] |
| Length Range | [22, 244] km |
| Total Rate | 1.8920753E-5 /yr |
| Multi-Fault Rate | 1.8259841E-5 /yr (96.51%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 24 |
Table Of Contents

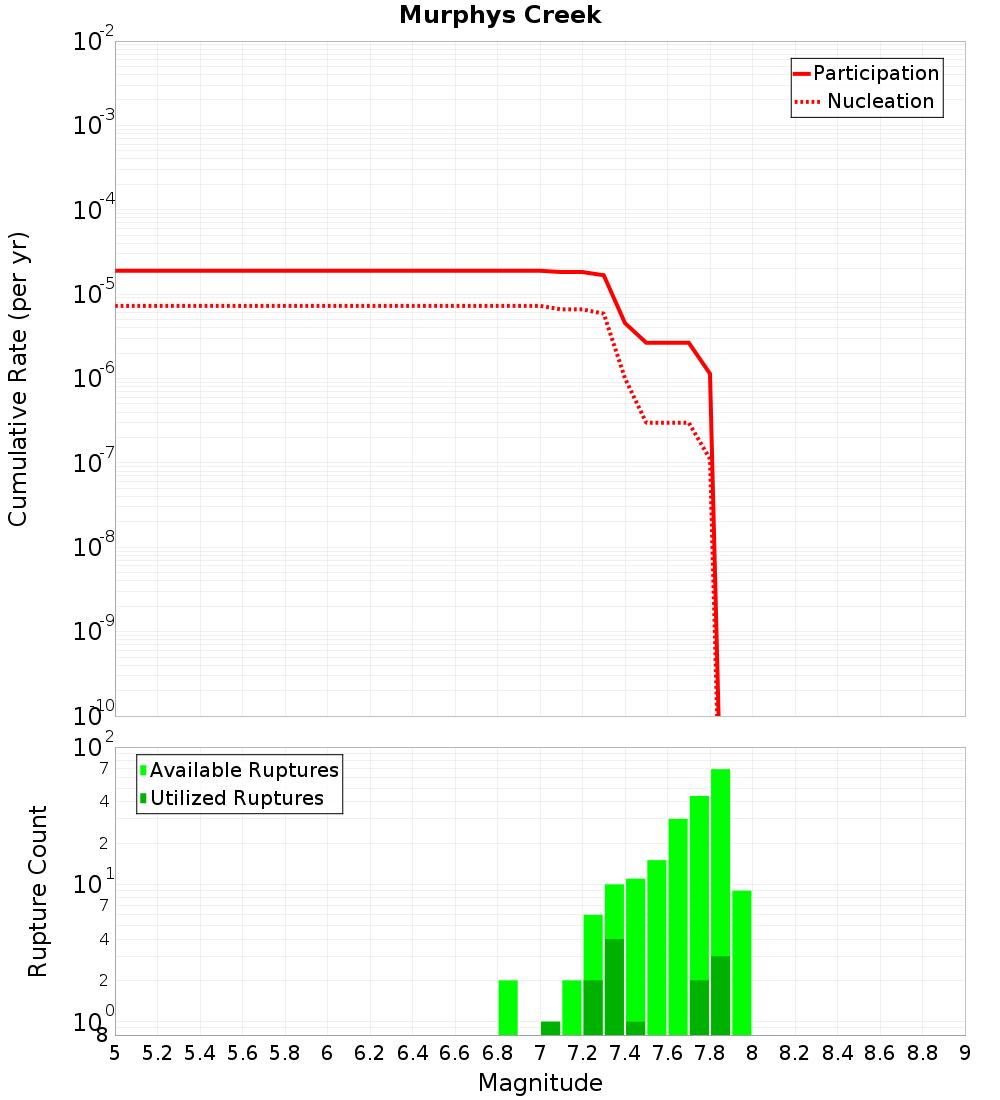

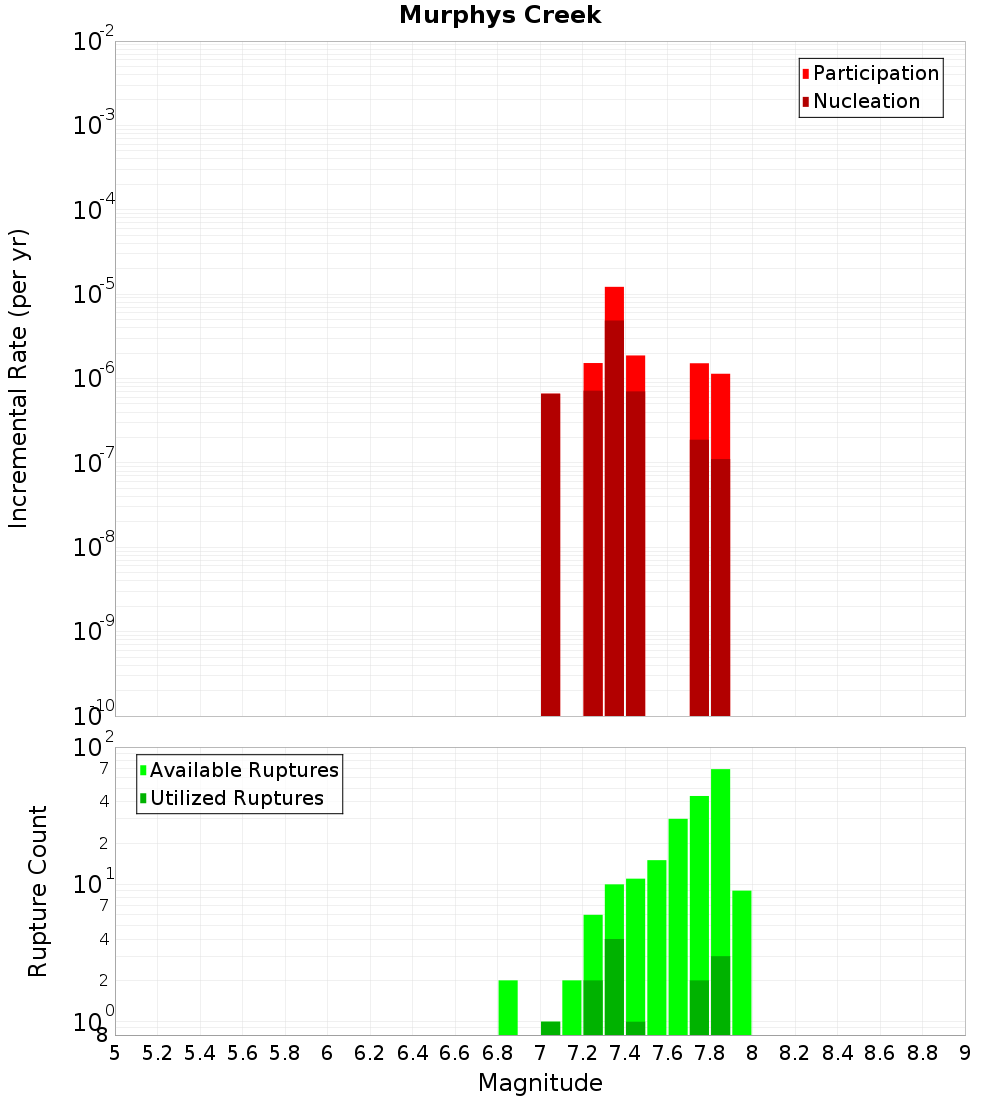

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

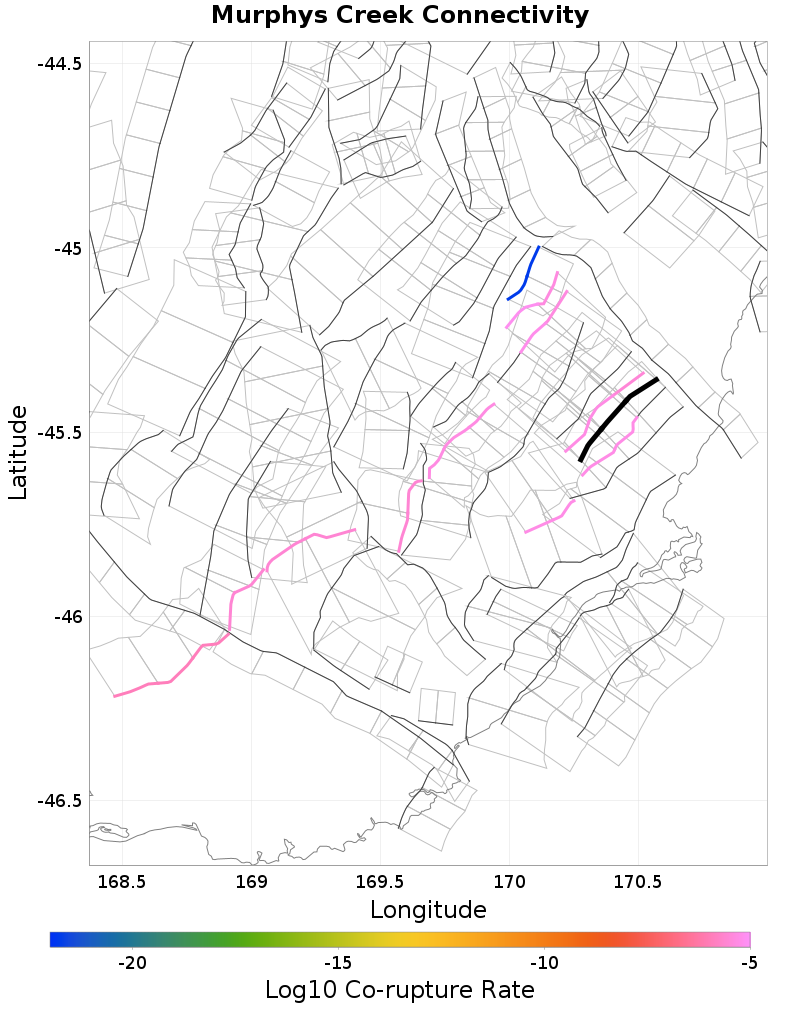

Connectivity
 |  |
|---|
Nearby Sections
Waipiata, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 5.963103E-6 |
Ranfurly, 0.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 7.222543E-6 |
Billys Ridge, 2.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 4.8562874E-6 |
Dunback Hill, 2.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 5.0741946E-6 |
Waihemo, 3.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Logan Burn, 4.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 184 |
| Co-rupture Rate | 4.530729E-6 |
Horse Flat, 5.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Pylap, 6.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Flat Stream - Glenpark, 7.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Nichols Rock, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 5.0741946E-6 |
Hyde North, 12.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3OTguMFdrVTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
