Billys Ridge Details

Property	Value
Rupture Count	431
Ruptures Above Sect Min Mag	430
Ruptures w/ Nonzero Rates	7
Magnitude Range	[7.09, 8.17]
Length Range	[23, 245] km
Total Rate	8.517234E-6 /yr
Multi-Fault Rate	8.517234E-6 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	23

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

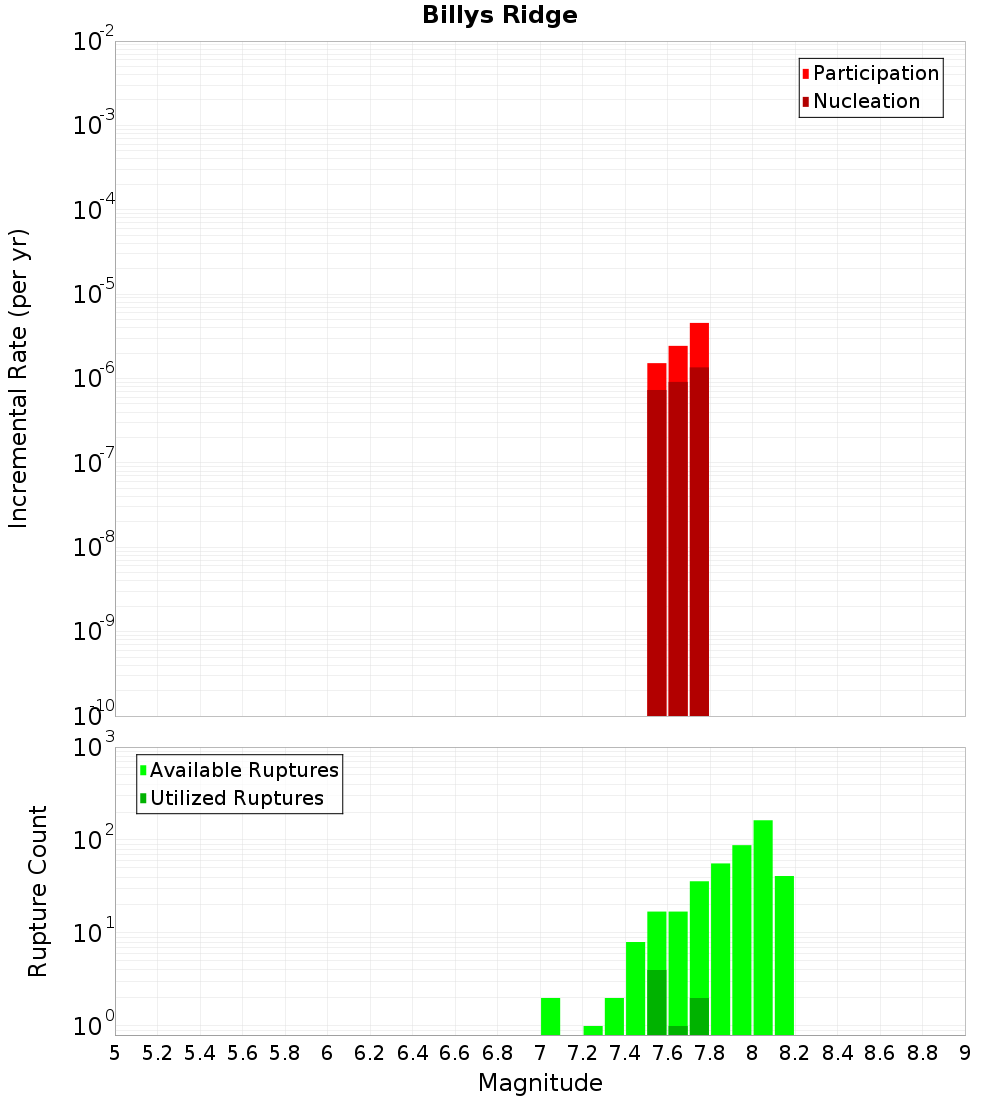

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

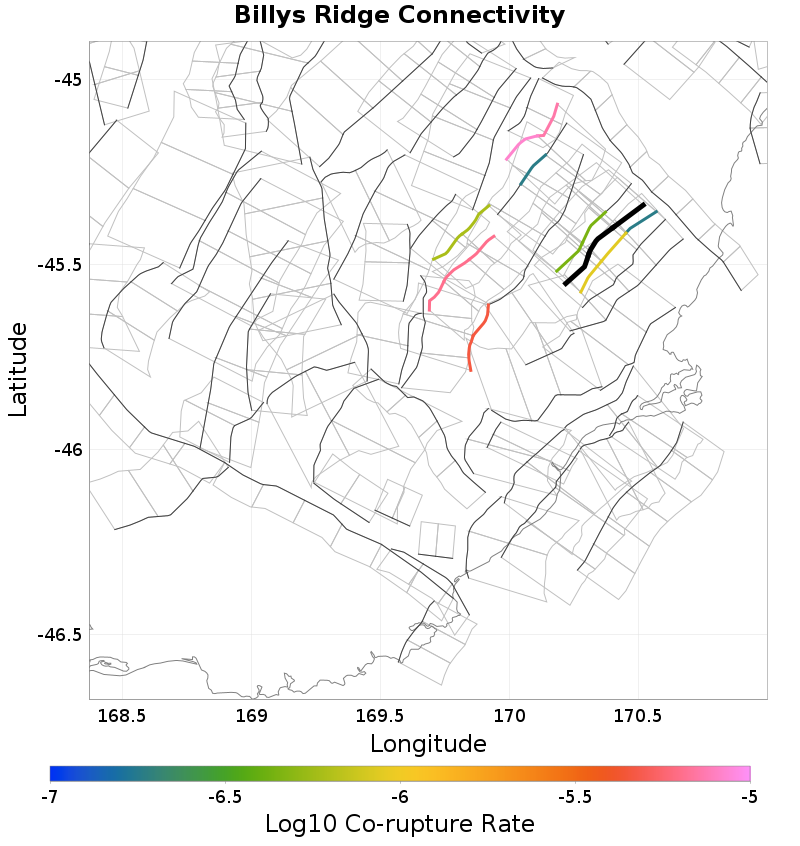

Connectivity

Nearby Sections

Fault Section
Ranfurly, 0.13 km away
Waipiata, 0.21 km away
Murphys Creek, 2.04 km away
Horse Flat, 2.27 km away
Pylap, 2.61 km away
Logan Burn, 3.75 km away
Waihemo, 4.71 km away
Dunback Hill, 5.55 km away
Hyde North, 9.04 km away
Nichols Rock, 9.84 km away
Flat Stream - Glenpark, 9.9 km away
Long Valley, 11.13 km away
Cross Eden, 13.09 km away

Ranfurly, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	167
Co-rupture Rate	8.3343575E-6

Waipiata, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	1.828765E-7

Murphys Creek, 2.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	8.774954E-7

Horse Flat, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	4.4126486E-7

Pylap, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	153
Co-rupture Rate	6.0126536E-7

Logan Burn, 3.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	265
Co-rupture Rate	6.3953753E-6

Waihemo, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunback Hill, 5.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hyde North, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Nichols Rock, 9.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flat Stream - Glenpark, 9.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Long Valley, 11.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cross Eden, 13.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0
