Maunga Details

Property	Value
Rupture Count	663
Ruptures Above Sect Min Mag	661
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.85, 8.23]
Length Range	[17, 365] km
Total Rate	7.0189155E-5 /yr
Multi-Fault Rate	5.310877E-5 /yr (75.67%)
Directly-Connected Faults	2
All Co-Rupturing Faults	35

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

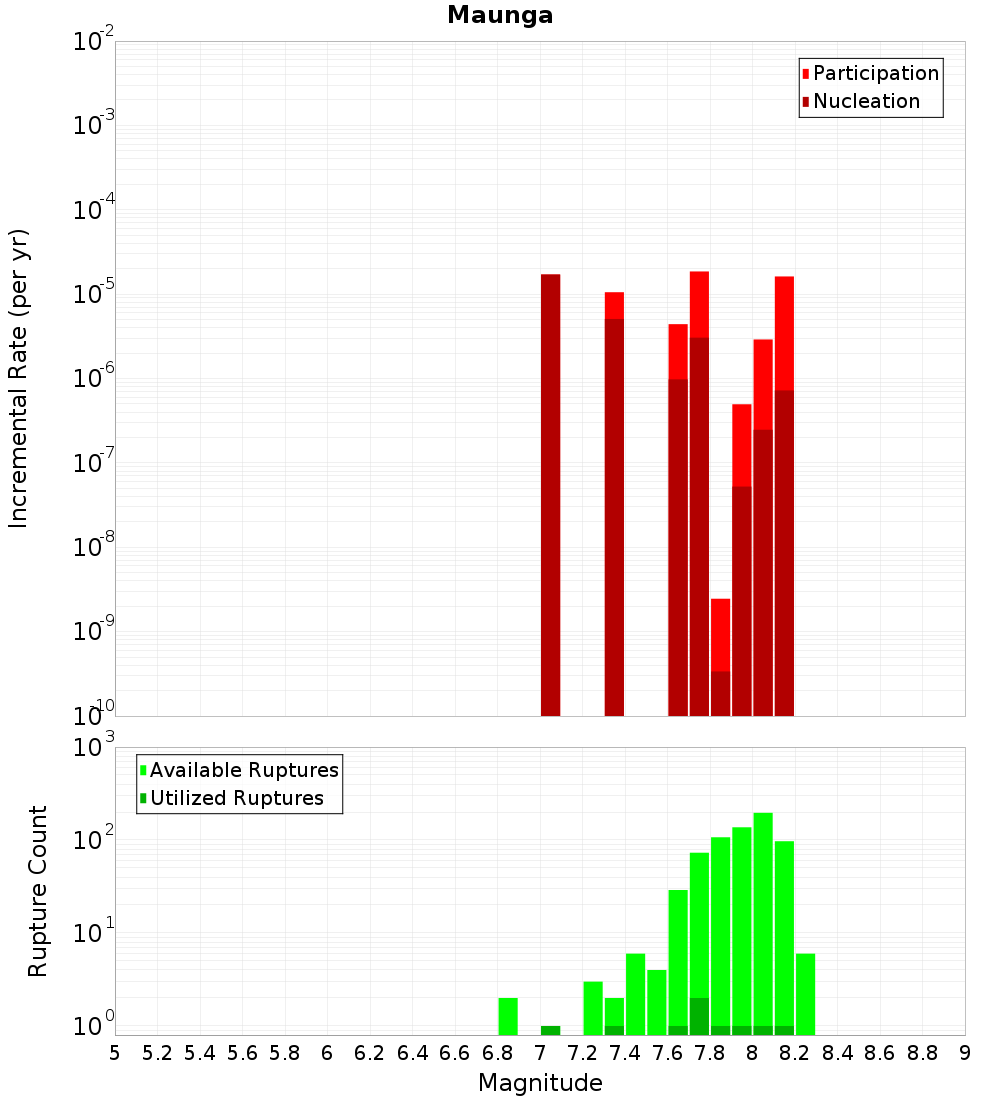

Magnitude-Frequency Distribution

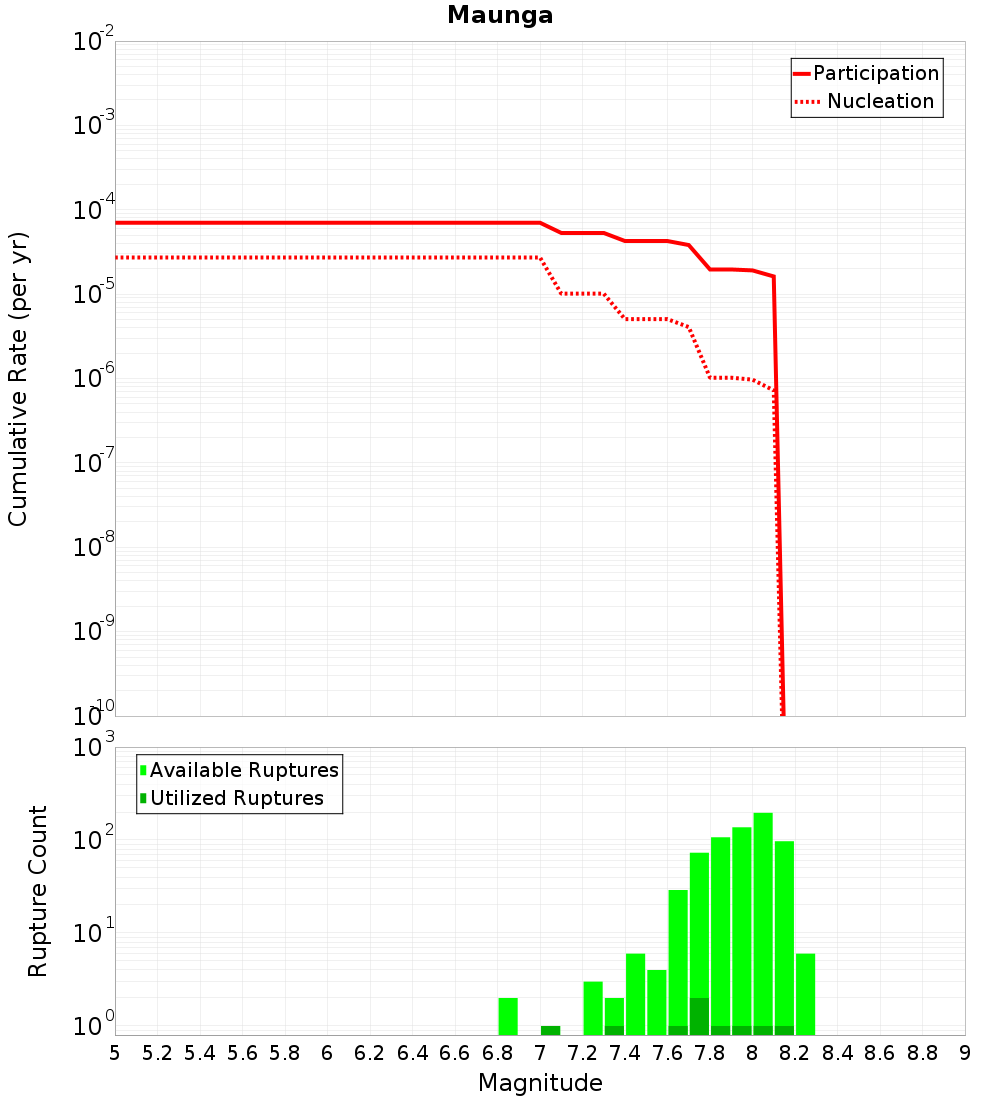

Incremental	Cumulative

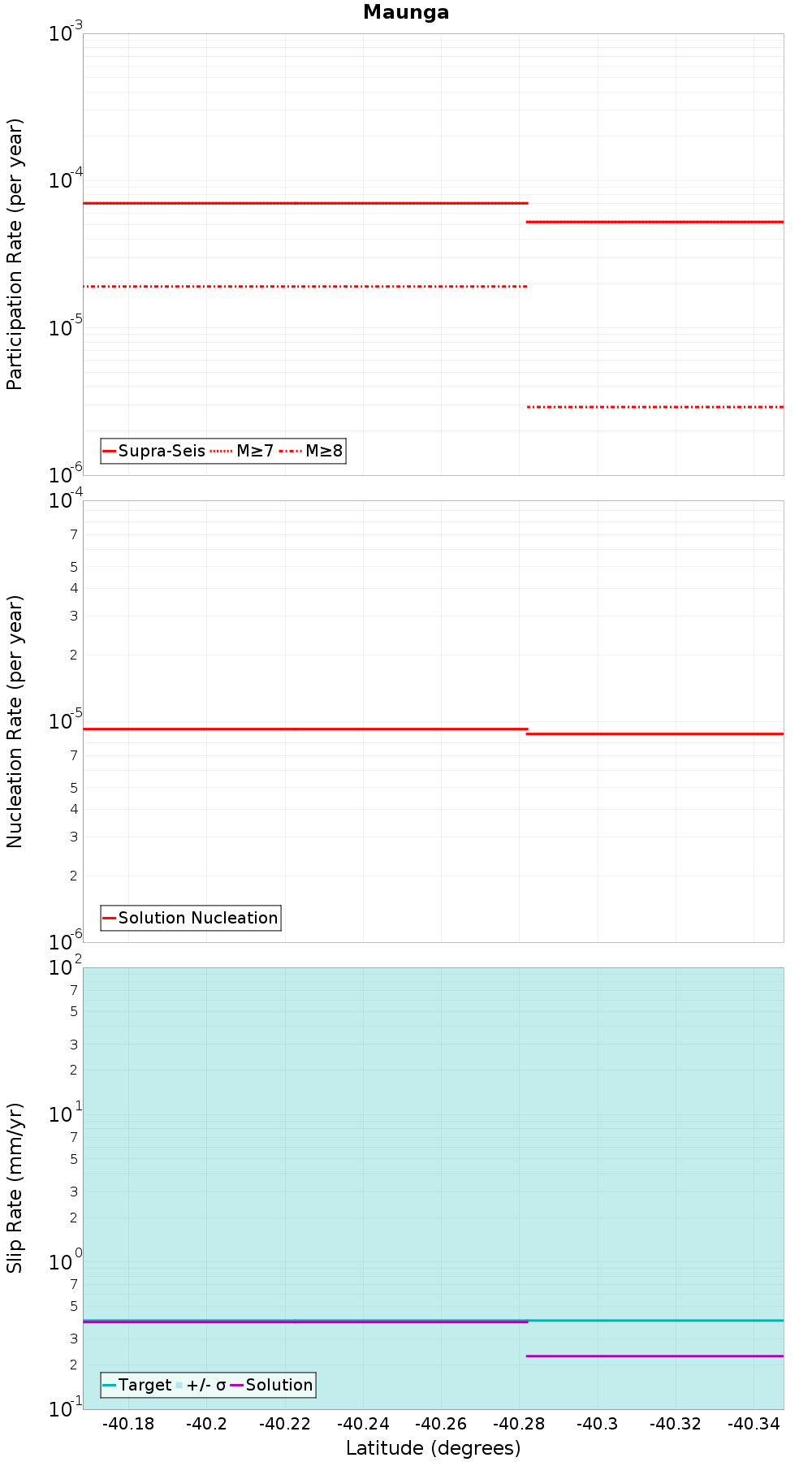

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pahiatua, 3.33 km away
Ruataniwha, 3.9 km away
Clear Hills - Waikopiro, 5.16 km away
Woodville, 5.91 km away
Waewaepa, 6.08 km away
Oruawharo - Mangatoro, 8.13 km away
Mohaka: South, 9.06 km away
Makuri - Waewaepa, 9.19 km away
Rangefront, 10.17 km away
Ruahine: South, 13.33 km away

Pahiatua, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	423
Co-rupture Rate	3.5260662E-5

Ruataniwha, 3.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	468
Co-rupture Rate	3.6909423E-5

Clear Hills - Waikopiro, 5.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Woodville, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 6.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 8.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	false
Co-rupture Count	469
Co-rupture Rate	1.9104646E-5

Makuri - Waewaepa, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	false
Co-rupture Count	191
Co-rupture Rate	2.347043E-5

Ruahine: South, 13.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	false
Co-rupture Count	213
Co-rupture Rate	1.6199348E-5
