Ngatoro South 2 Details

Property	Value
Rupture Count	16
Ruptures Above Sect Min Mag	16
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.09, 7.78]
Length Range	[24, 106] km
Total Rate	9.245476E-5 /yr
Multi-Fault Rate	9.245476E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

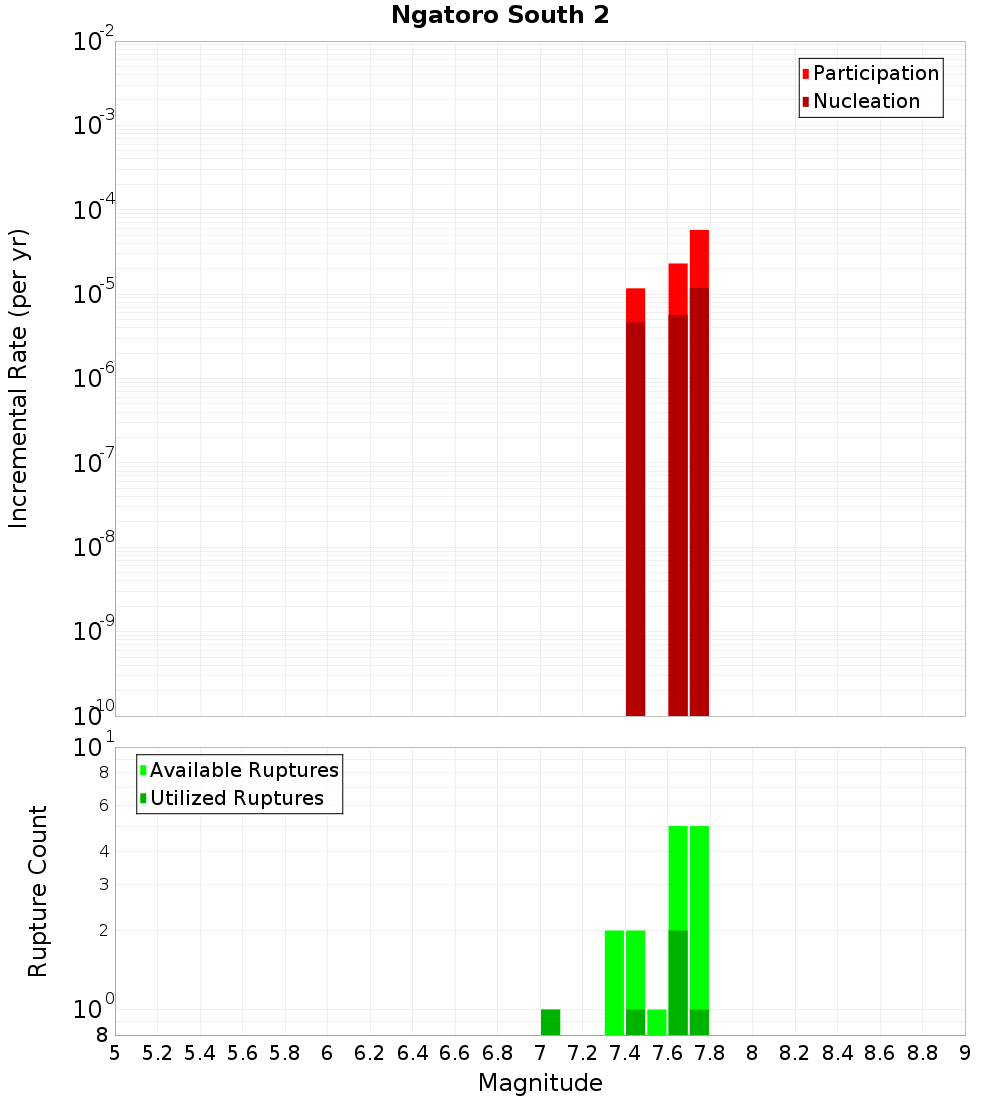

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

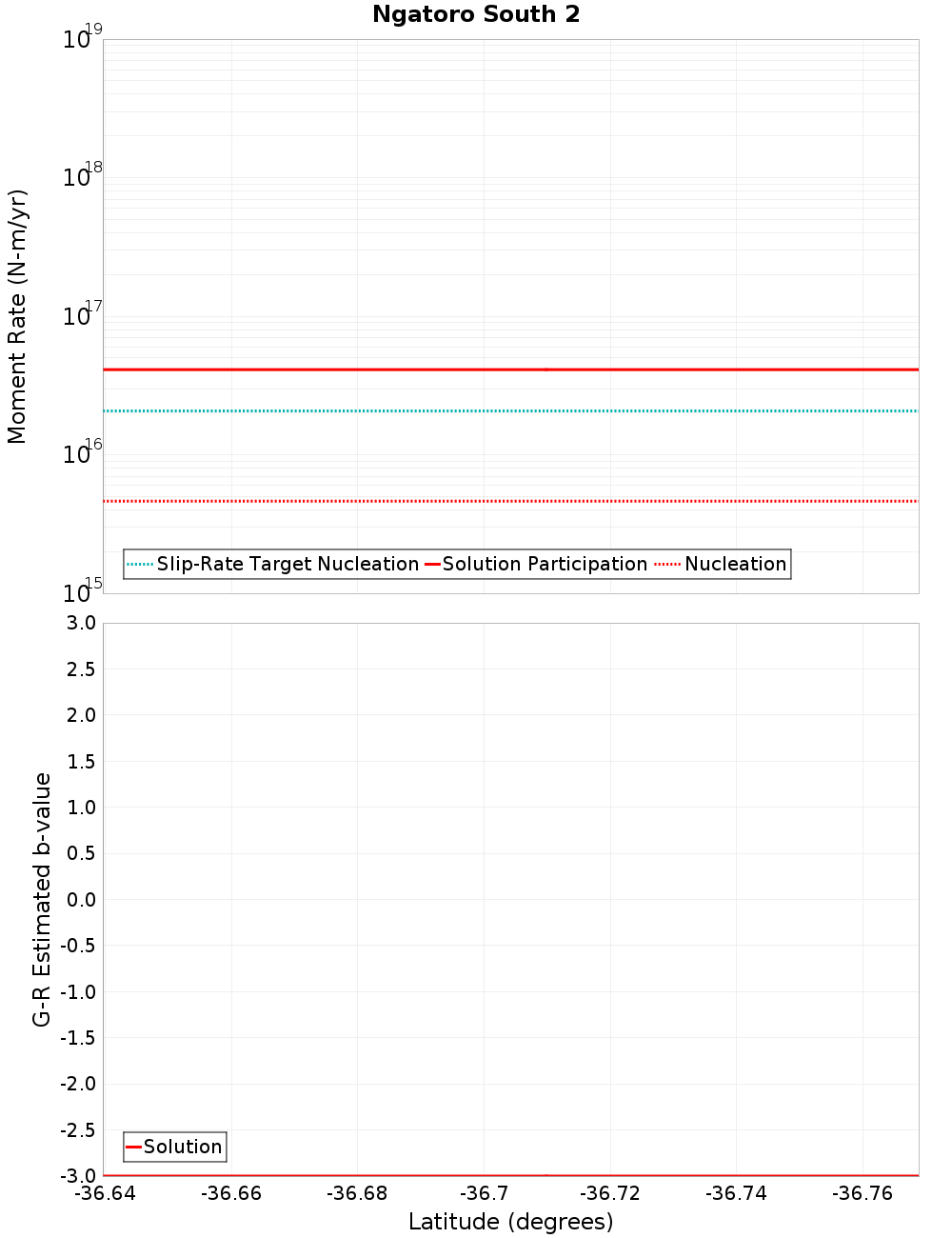

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Tauranga Trough West 2, 0.18 km away
Tauranga Trough East 2, 0.25 km away
Ngatoro South 5, 2.58 km away
Ohena 2, 6.63 km away
Ohena 3, 9.72 km away
Ohena 4, 14.7 km away

Tauranga Trough West 2, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	2.7410772E-5

Tauranga Trough East 2, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	6.504398E-5

Ngatoro South 5, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohena 2, 6.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohena 3, 9.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohena 4, 14.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4MDYuMFp3VUpx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
