Mohaka: North Details

Property	Value
Rupture Count	39,239
Ruptures Above Sect Min Mag	39,236
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.98, 8.71]
Length Range	[20, 1,132] km
Total Rate	2.7301902E-4 /yr
Multi-Fault Rate	2.7301902E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	131

Table Of Contents

Magnitude-Frequency Distribution

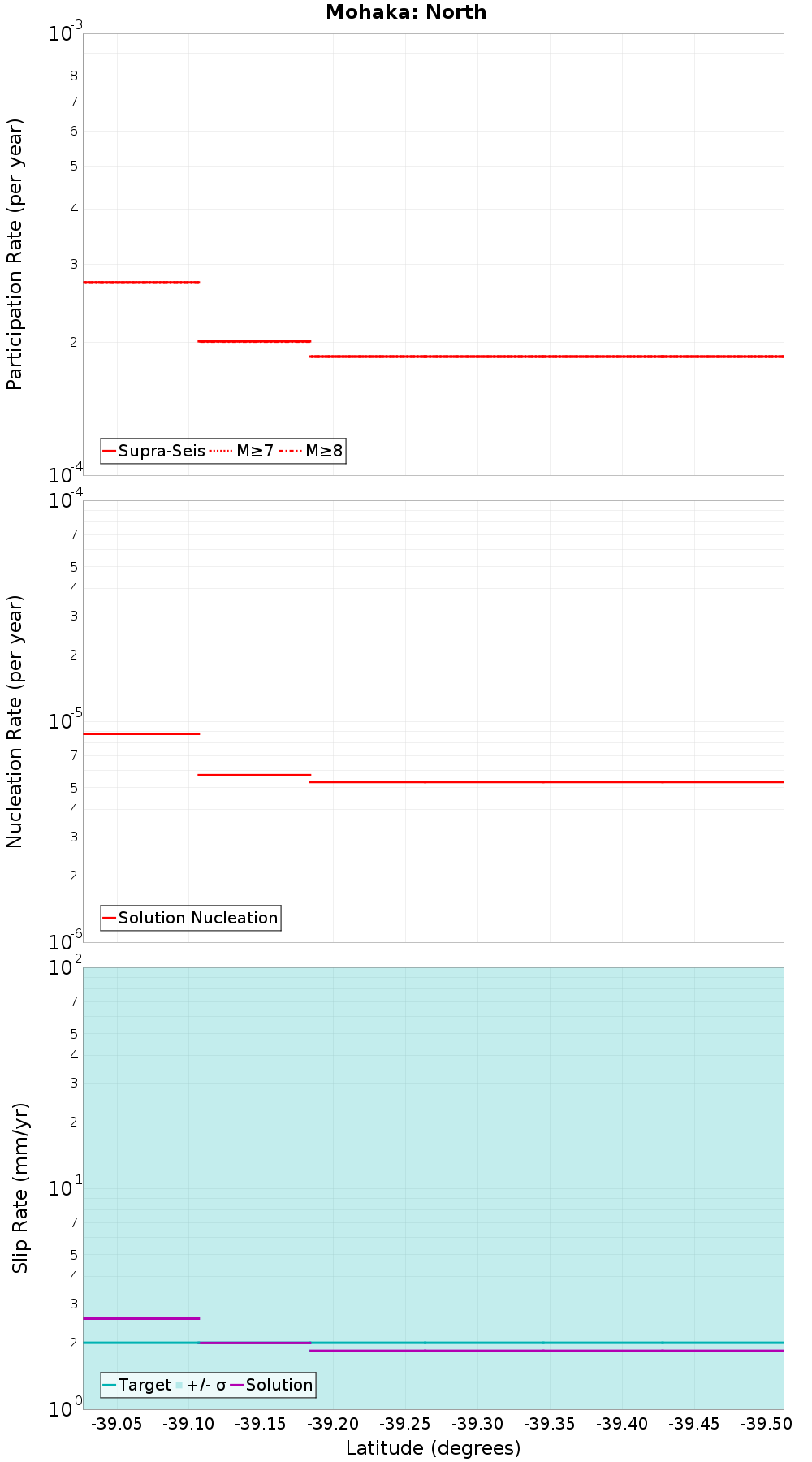

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mohaka: South, 0 km away
Whakatane: South, 0 km away
Waimana: South, 0 km away
Patoka - Rangiora, 0.41 km away
Ruahine: North, 5.2 km away
Ruahine: Central, 7.58 km away
Waiohau: South, 8.1 km away
Wakarara, 9.63 km away
Kaweka, 10.6 km away
Awanui, 11.19 km away
Waiotahi: South, 11.48 km away
Wheao: South, 13.51 km away
Te Heka, 14.28 km away

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	true
Co-rupture Count	39,377
Co-rupture Rate	1.581772E-4

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	true
Co-rupture Count	7,813
Co-rupture Rate	2.0176517E-4

Waimana: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	true
Co-rupture Count	23,921
Co-rupture Rate	5.4329714E-5

Patoka - Rangiora, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	true
Co-rupture Count	1,658
Co-rupture Rate	1.4992691E-5

Ruahine: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	false
Co-rupture Count	206
Co-rupture Rate	0.0

Ruahine: Central, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiohau: South, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	false
Co-rupture Count	828
Co-rupture Rate	0.0

Wakarara, 9.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaweka, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awanui, 11.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	true
Co-rupture Count	1,289
Co-rupture Rate	5.3771597E-5

Waiotahi: South, 11.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	true
Co-rupture Count	5,719
Co-rupture Rate	1.1205334E-4

Wheao: South, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	false
Co-rupture Count	866
Co-rupture Rate	0.0

Te Heka, 14.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NDUuMDQ2bjVK
Connected?	true
Directly Connected?	false
Co-rupture Count	238
Co-rupture Rate	0.0
