Waipukurau - Poukawa Details

Property	Value
Rupture Count	1,338
Ruptures Above Sect Min Mag	1,326
Ruptures w/ Nonzero Rates	22
Magnitude Range	[6.68, 8.03]
Length Range	[19, 408] km
Total Rate	1.7391123E-4 /yr
Multi-Fault Rate	1.7391123E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	45

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

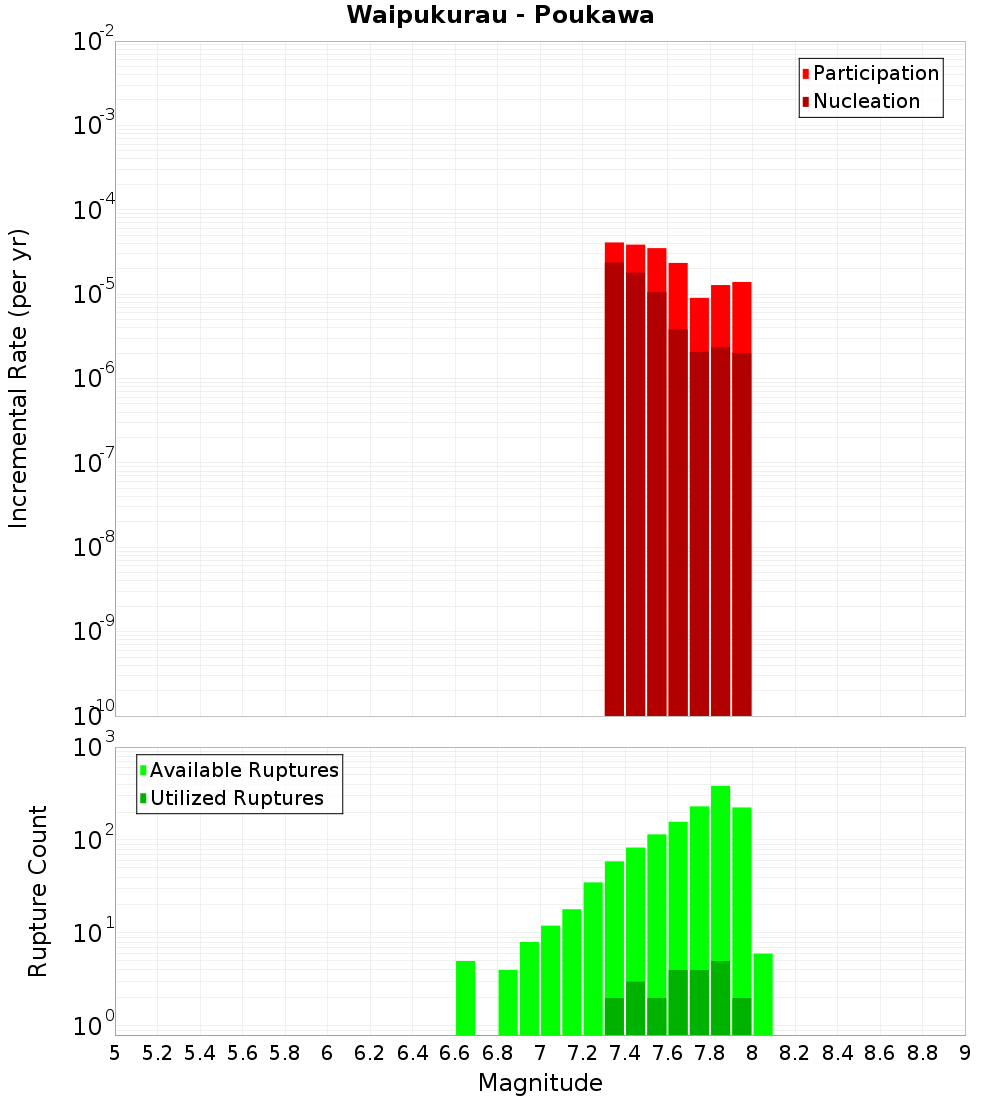

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.34 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjAuMHVSREt5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,110
Co-rupture Rate	7.998255E-5

Clear Hills - Waikopiro, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjAuMHVSREt5
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	5.7063247E-5

Oruawharo - Mangatoro, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjAuMHVSREt5
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	1.16232506E-4

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjAuMHVSREt5
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	5.1223E-5

Te Heka, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjAuMHVSREt5
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	1.2366927E-5

Ruataniwha, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjAuMHVSREt5
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	1.022407E-5
