Maimai: North Details
| Property | Value |
|---|---|
| Rupture Count | 2,693 |
| Ruptures Above Sect Min Mag | 2,690 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.72, 8.13] |
| Length Range | [18, 395] km |
| Total Rate | 1.08309534E-4 /yr |
| Multi-Fault Rate | 1.08309534E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

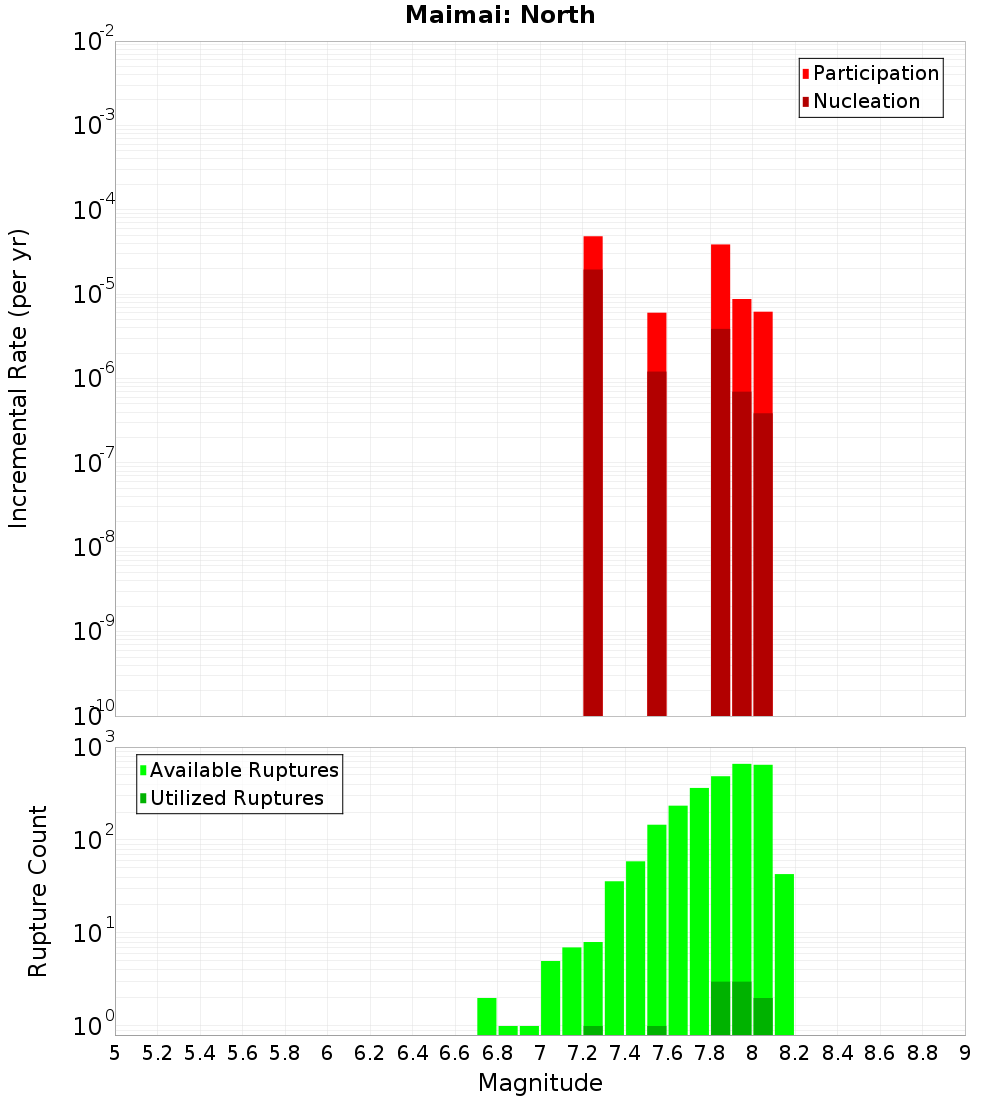

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

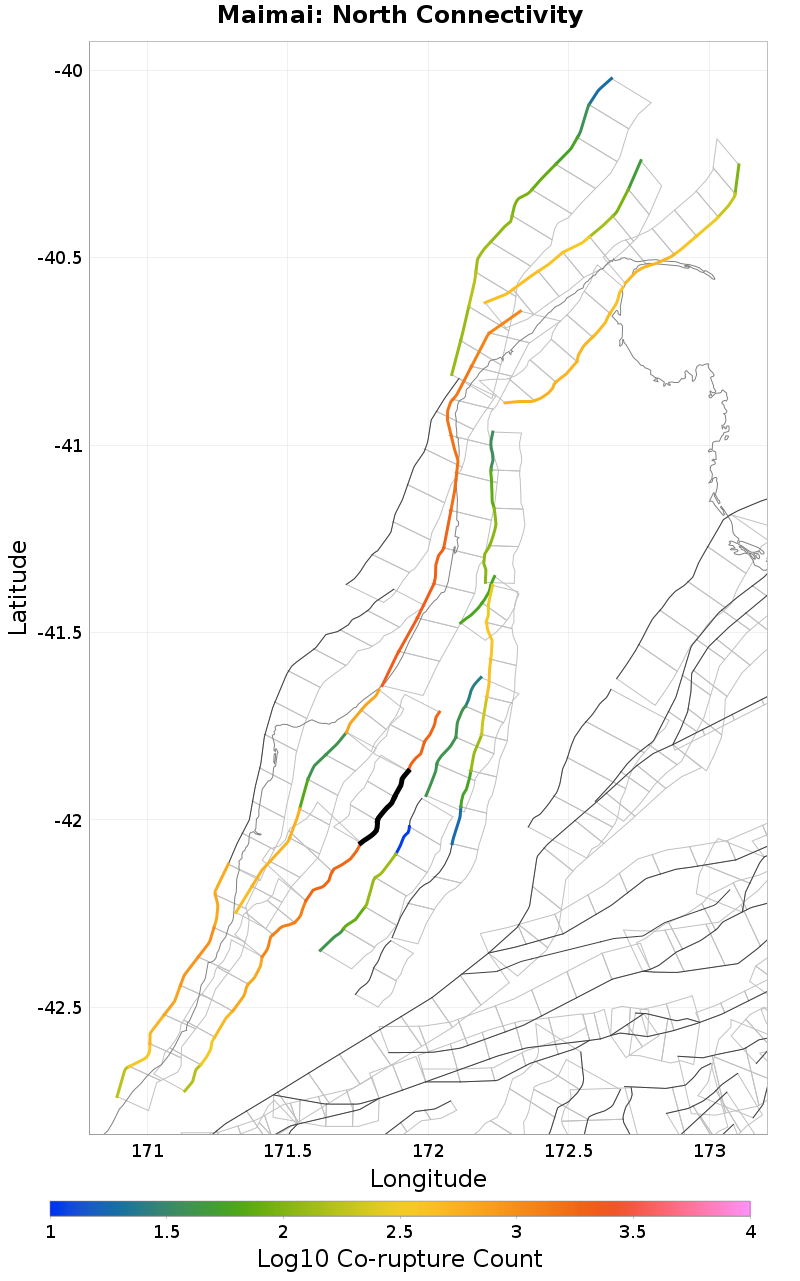

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Inangahua, 0 km away |
| Maimai, 0 km away |
| Paparoa West, 1.82 km away |
| Paparoa West: North, 2.9 km away |
| Lyell South, 7.01 km away |
| Lyell, 7.56 km away |
| Cape Foulwind 2, 14.88 km away |
Inangahua, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjYuMENRV2RR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,952 |
| Co-rupture Rate | 5.182898E-5 |
Maimai, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjYuMENRV2RR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,846 |
| Co-rupture Rate | 4.9253318E-5 |
Paparoa West, 1.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjYuMENRV2RR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 671 |
| Co-rupture Rate | 6.91304E-5 |
Paparoa West: North, 2.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjYuMENRV2RR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 684 |
| Co-rupture Rate | 1.829942E-5 |
Lyell South, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjYuMENRV2RR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 131 |
| Co-rupture Rate | 4.510766E-6 |
Lyell, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjYuMENRV2RR | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 2, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NjYuMENRV2RR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
