Kelly Details

Property	Value
Rupture Count	61,108
Ruptures Above Sect Min Mag	61,097
Ruptures w/ Nonzero Rates	670
Magnitude Range	[6.71, 8.59]
Length Range	[17, 973] km
Total Rate	3.5601342E-4 /yr
Multi-Fault Rate	3.5601342E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	174

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

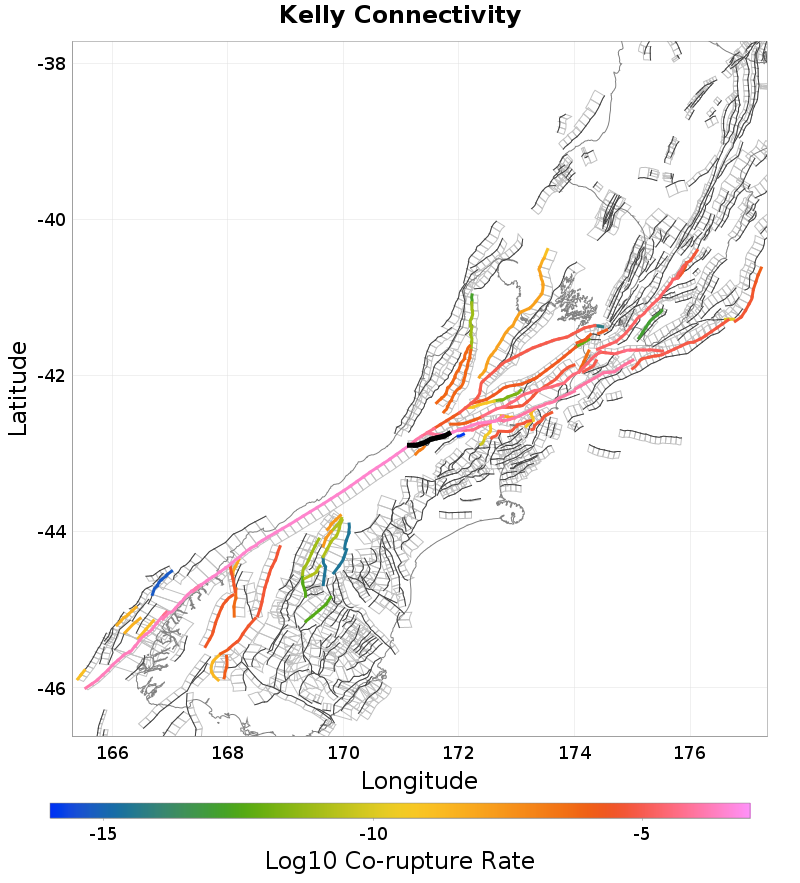

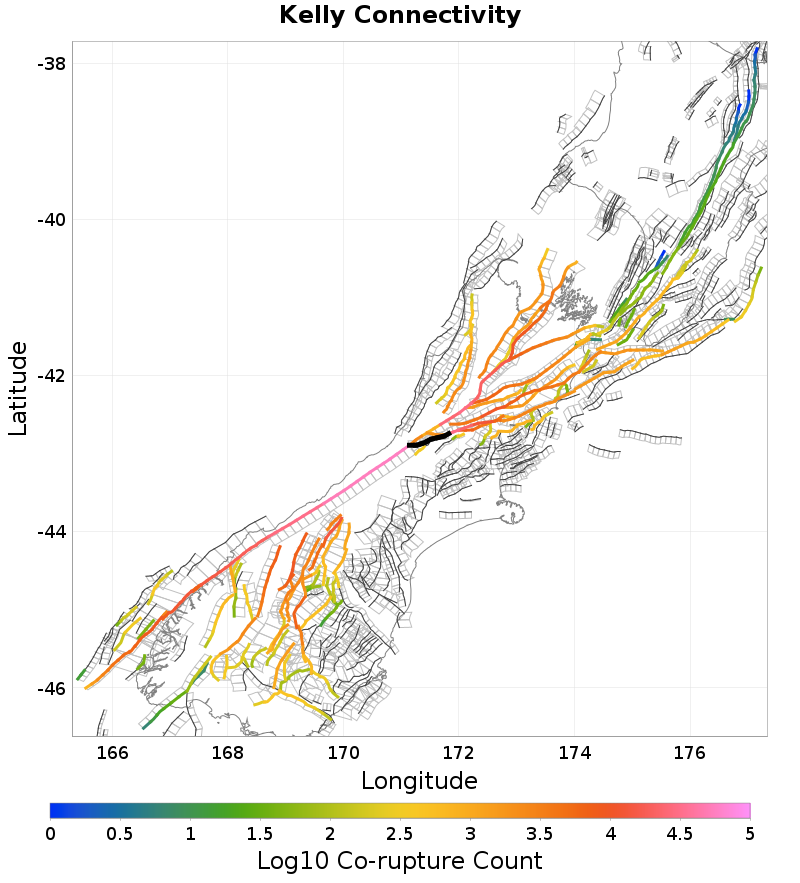

Connectivity
- Nearby Sections

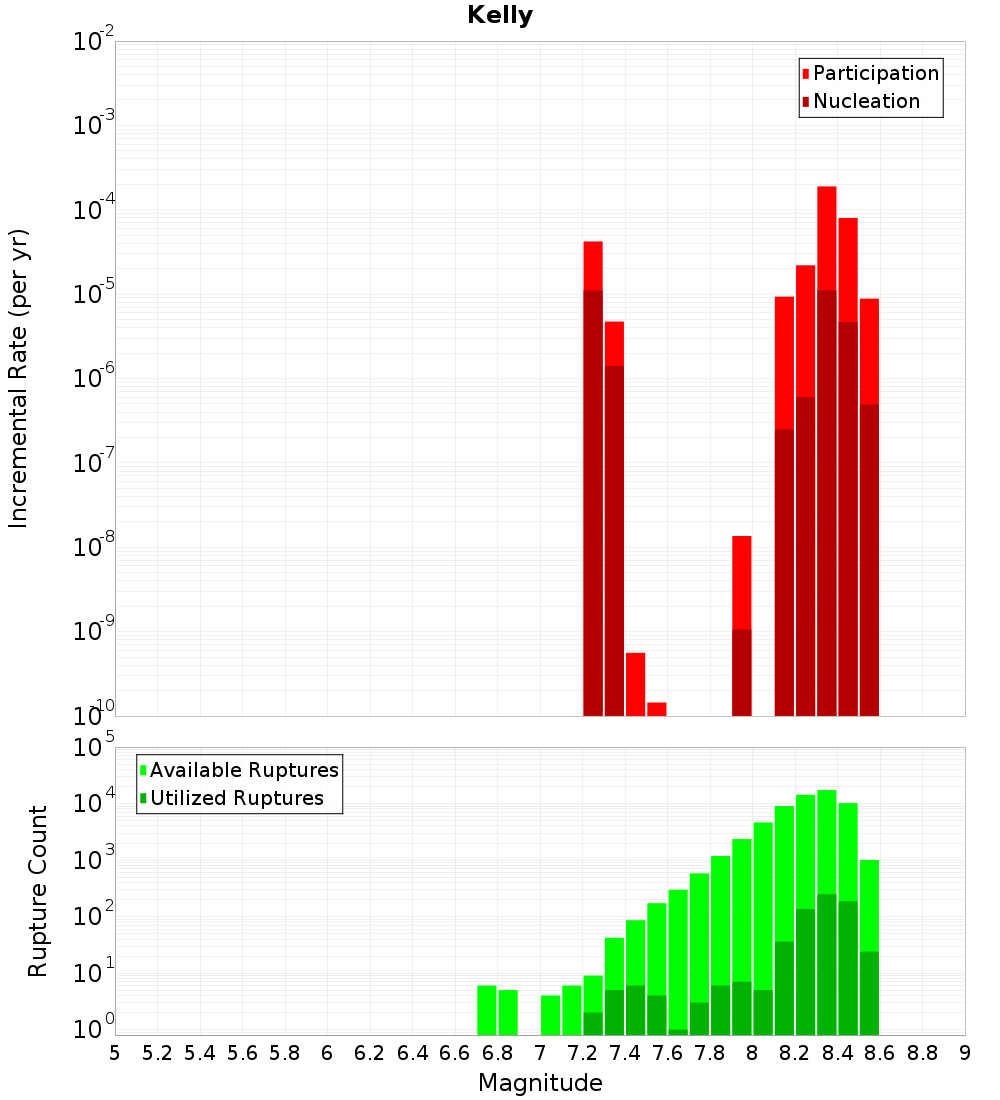

Magnitude-Frequency Distribution

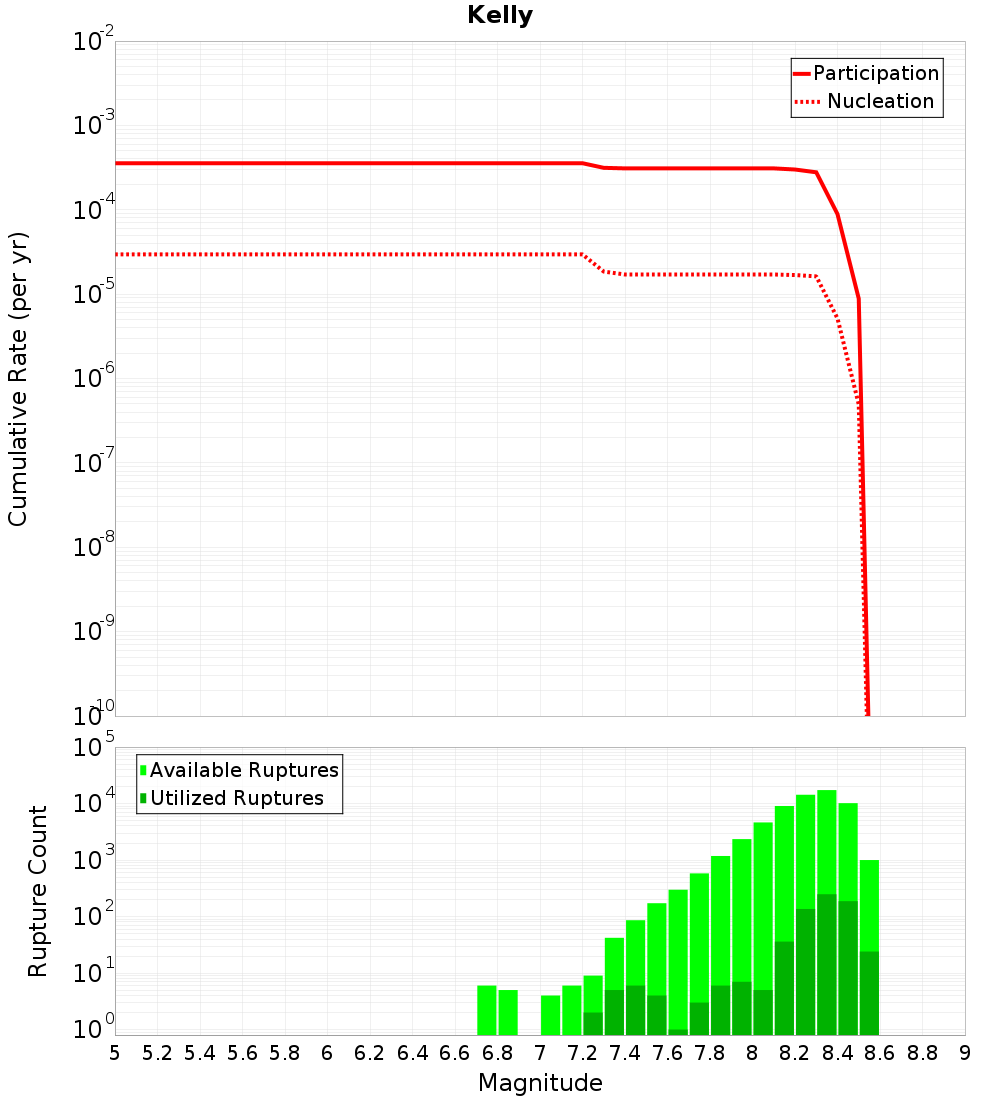

Incremental	Cumulative

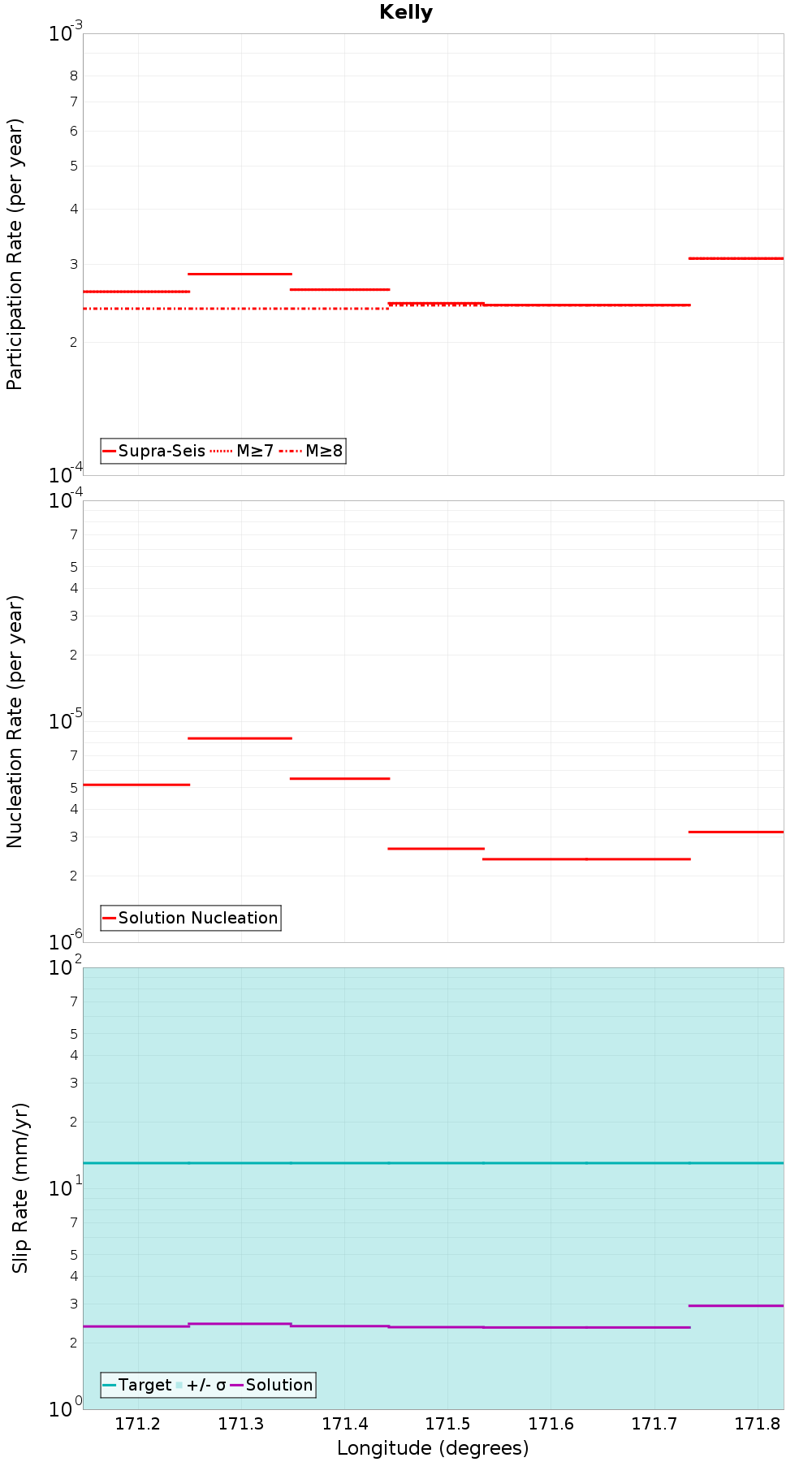

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Poulter, 9.5 km away
Cape Foulwind 1, 11.56 km away
Clarence: Southwest, 13.14 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	true
Co-rupture Count	56,730
Co-rupture Rate	3.0916845E-4

Hope: Hurunui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	true
Co-rupture Count	29,970
Co-rupture Rate	3.0254578E-4

Hope: Taramakau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	true
Co-rupture Count	2,576
Co-rupture Rate	7.1011054E-5

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	true
Co-rupture Count	37,700
Co-rupture Rate	1.2909617E-4

Browning Pass, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	false
Co-rupture Count	321
Co-rupture Rate	1.5362147E-7

Poulter, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	false
Co-rupture Count	375
Co-rupture Rate	1.2874121E-16

Cape Foulwind 1, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Southwest, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	false
Co-rupture Count	10,808
Co-rupture Rate	3.836658E-5

Kakapo, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	false
Co-rupture Count	7,156
Co-rupture Rate	4.1657364E-5

Hope: Hope River, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMEU4WnJi
Connected?	true
Directly Connected?	false
Co-rupture Count	23,160
Co-rupture Rate	2.6316853E-4
