Hunter Valley Details

PropertyValue
Rupture Count16,939
Ruptures Above Sect Min Mag16,935
Ruptures w/ Nonzero Rates22
Magnitude Range[6.87, 8.46]
Length Range[22, 859] km
Total Rate2.0327485E-5 /yr
Multi-Fault Rate2.0327485E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults78

Table Of Contents

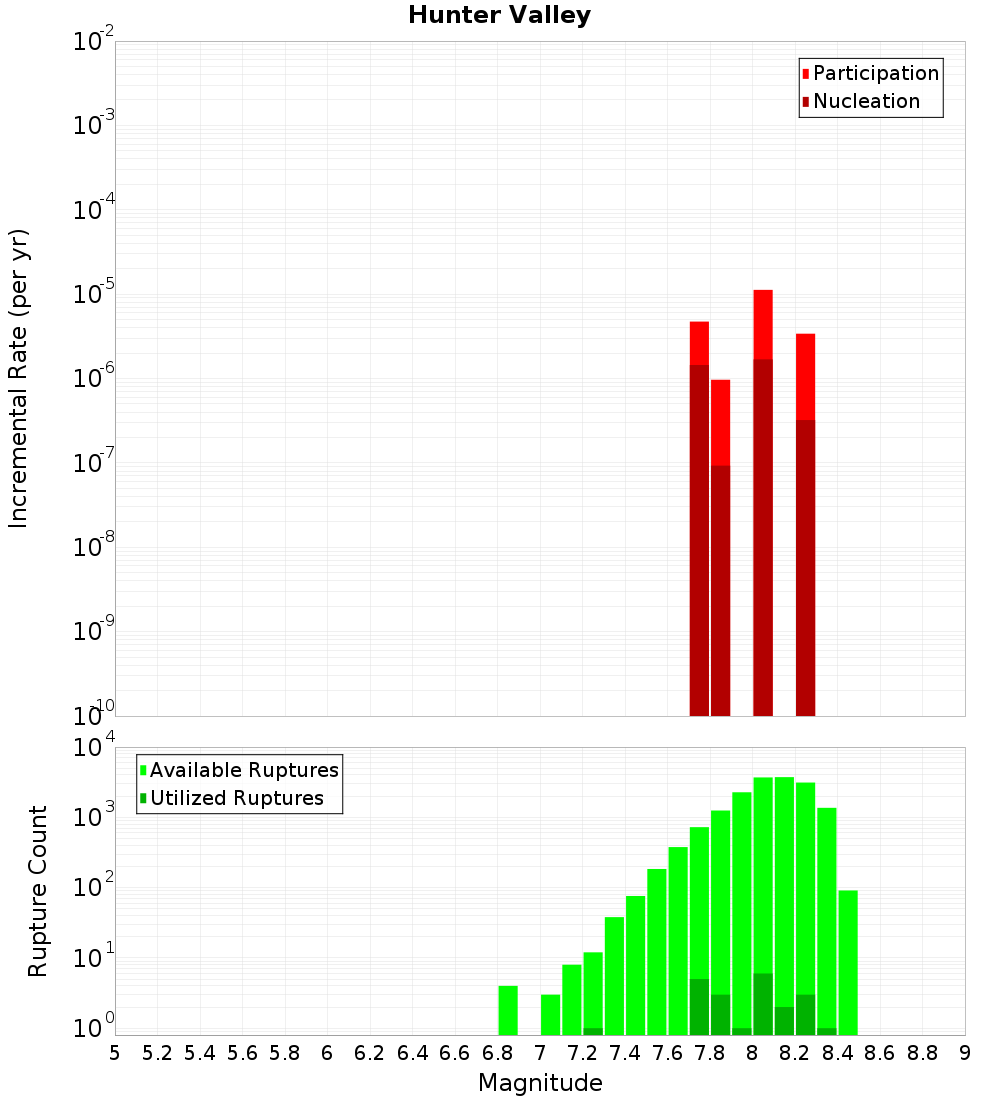

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

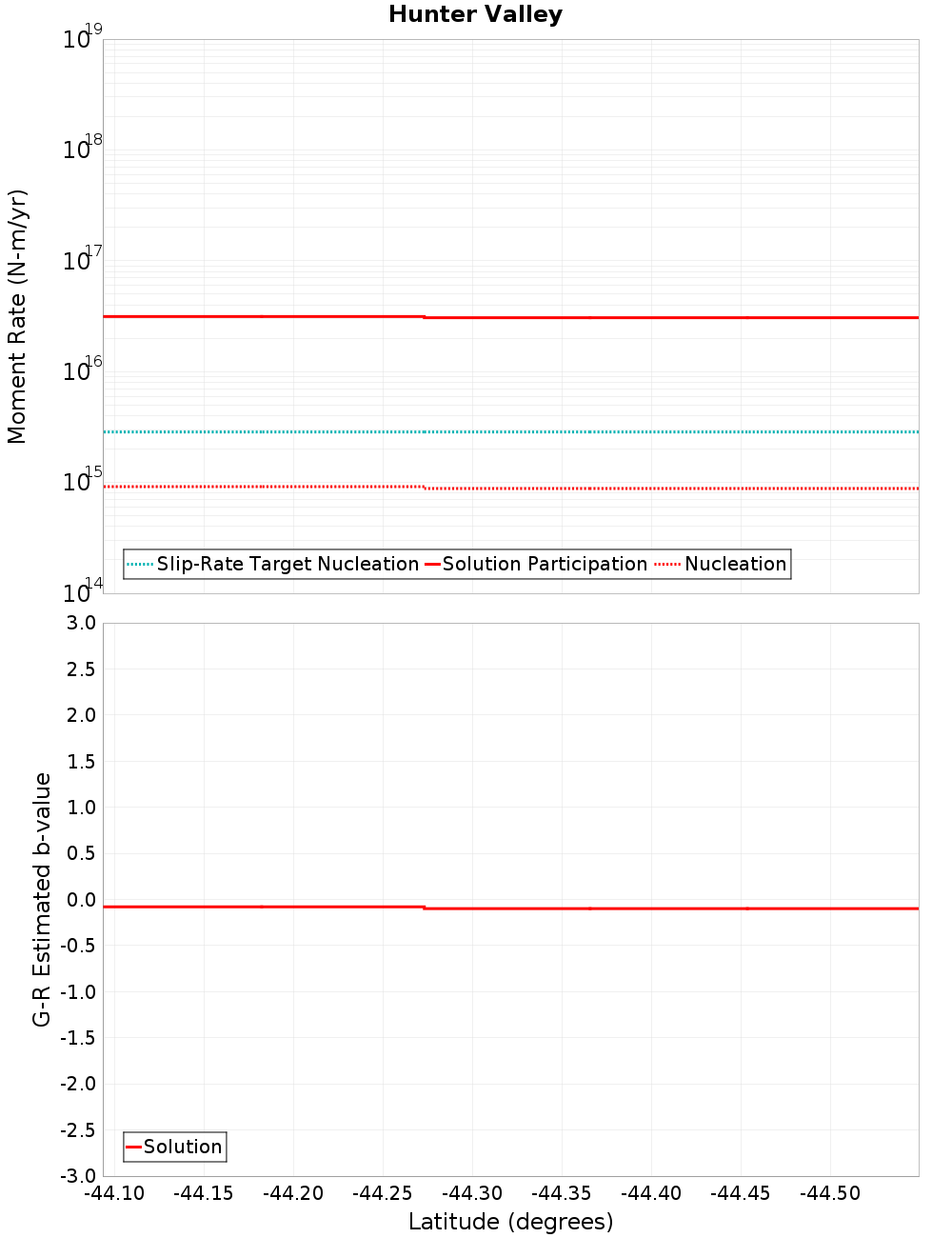

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wanaka, 0.32 km away
Cardrona - Hawea, 0.67 km away
Grandview, 1.98 km away
Timaru Creek, 4.93 km away
Dingle, 6.56 km away
Motatapu, 6.65 km away
Hopkins, 7.71 km away
Barrier Range, 14.29 km away
Alpine: Jacksons to Kaniere, 14.36 km away
Dromedary, 14.89 km away

Wanaka, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?true
Co-rupture Count3,511
Co-rupture Rate9.116014E-17

Cardrona - Hawea, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?true
Co-rupture Count7,024
Co-rupture Rate1.8268624E-6

Grandview, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?true
Co-rupture Count5,223
Co-rupture Rate1.7533845E-5

Timaru Creek, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?true
Co-rupture Count127
Co-rupture Rate0.0

Dingle, 6.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motatapu, 6.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?false
Co-rupture Count3,372
Co-rupture Rate1.8718128E-20

Hopkins, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?true
Co-rupture Count7,647
Co-rupture Rate1.1507011E-16

Barrier Range, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Jacksons to Kaniere, 14.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?true
Co-rupture Count12,763
Co-rupture Rate2.0327485E-5

Dromedary, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzcuMHh2c0RY
Connected?true
Directly Connected?true
Co-rupture Count311
Co-rupture Rate1.6689354E-15
