Whakaari 4 Details

Property	Value
Rupture Count	4,576
Ruptures Above Sect Min Mag	4,573
Ruptures w/ Nonzero Rates	1,228
Magnitude Range	[6.70, 8.25]
Length Range	[18, 611] km
Total Rate	7.5576856E-4 /yr
Multi-Fault Rate	7.5576856E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	62

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

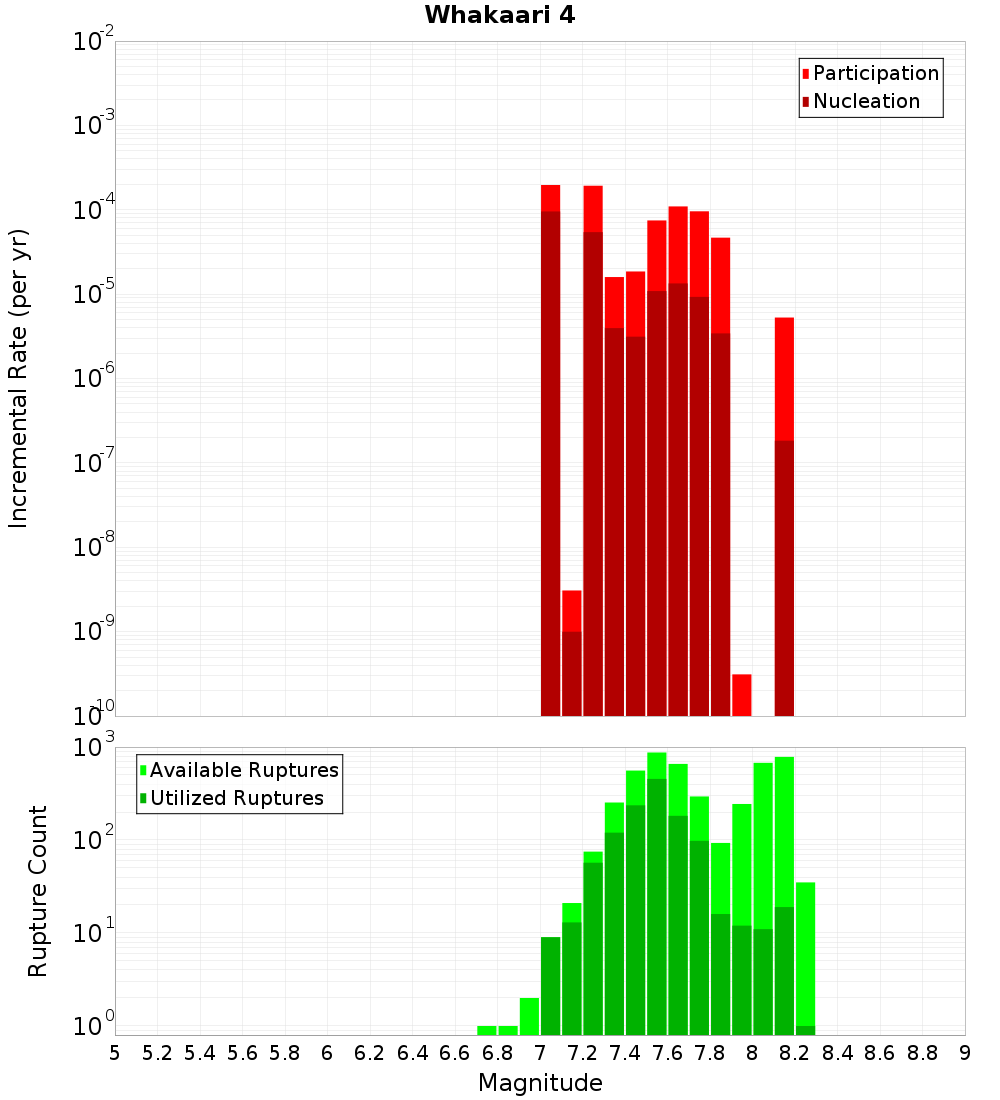

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

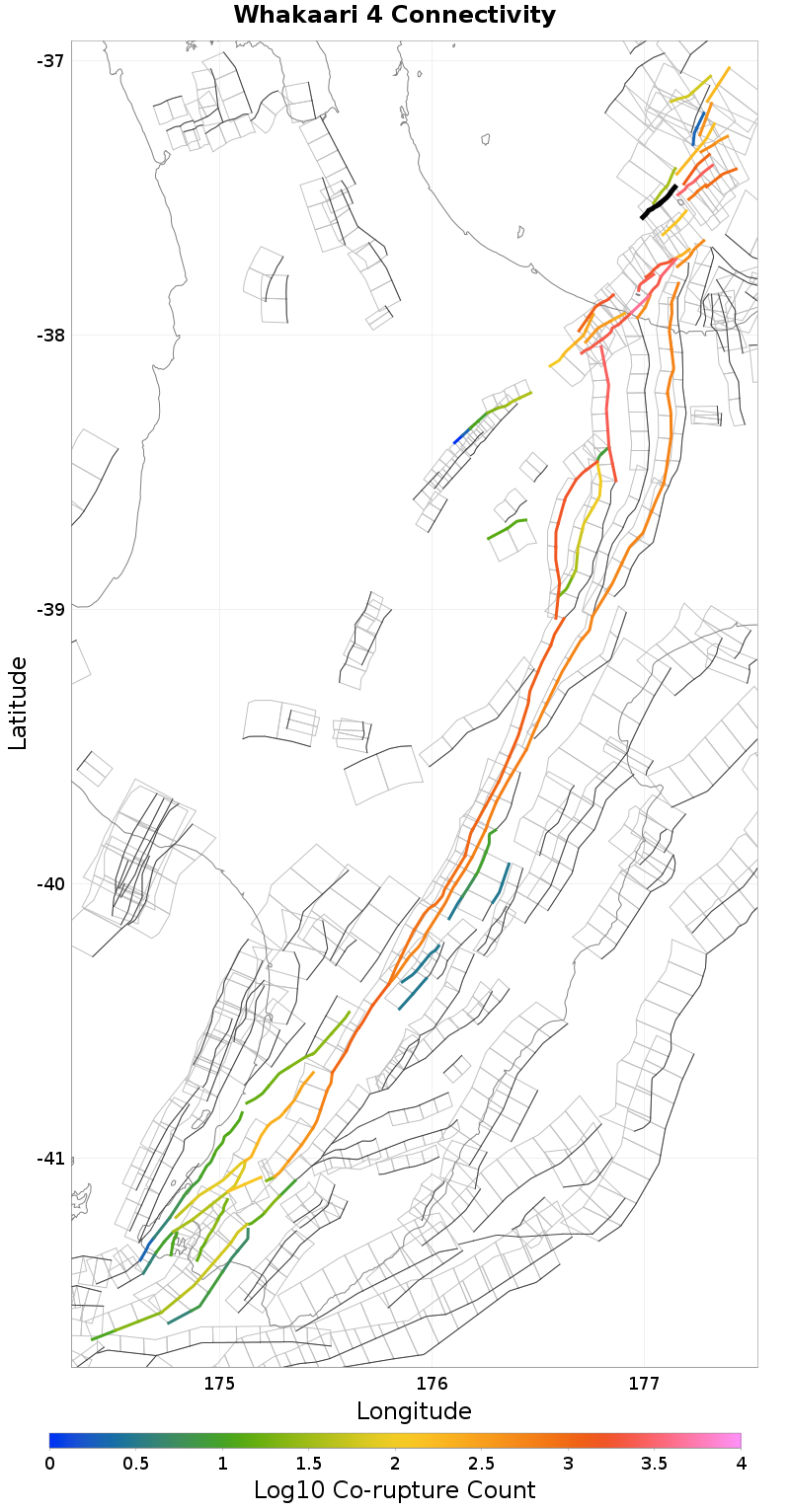

Connectivity

Nearby Sections

Fault Section
Ohiwa 1, 0.14 km away
Calypso 2, 0.2 km away
Rangitaiki 2, 0.45 km away
White Island 2, 0.45 km away
White Island 1, 1.52 km away
Volkner 3, 1.58 km away
Te Arawa 1, 2.25 km away
Te Arawa 2, 3.86 km away
Volkner 4, 5.31 km away
Tuatoru 1, 5.84 km away
Waimanawa - Waikaremoana, 7.01 km away
Opotiki 3, 8.08 km away
Rangitaiki 1, 10.86 km away
Tuatoru 2, 11.04 km away
Te Arawa 3, 14.7 km away

Ohiwa 1, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	false
Co-rupture Count	211
Co-rupture Rate	1.46486855E-5

Calypso 2, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	false
Co-rupture Count	134
Co-rupture Rate	9.933576E-7

Rangitaiki 2, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	true
Co-rupture Count	1,795
Co-rupture Rate	3.1725882E-4

White Island 2, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	false
Co-rupture Count	512
Co-rupture Rate	4.3922315E-5

White Island 1, 1.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	true
Co-rupture Count	5,346
Co-rupture Rate	5.7363306E-4

Volkner 3, 1.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	3.0104757E-5

Te Arawa 1, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	true
Co-rupture Count	2,966
Co-rupture Rate	3.6632436E-4

Te Arawa 2, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	true
Co-rupture Count	1,281
Co-rupture Rate	2.1132216E-4

Volkner 4, 5.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	true
Co-rupture Count	183
Co-rupture Rate	8.308813E-5

Tuatoru 1, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	true
Co-rupture Count	792
Co-rupture Rate	1.7903898E-5

Waimanawa - Waikaremoana, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	false
Co-rupture Count	2,319
Co-rupture Rate	3.4551823E-4

Tuatoru 2, 11.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	false
Co-rupture Count	988
Co-rupture Rate	1.1449443E-4

Te Arawa 3, 14.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzguMDVCS3BI
Connected?	true
Directly Connected?	false
Co-rupture Count	498
Co-rupture Rate	2.5148198E-4
