Alpine: Jacksons to Kaniere Details

Property	Value
Rupture Count	158,044
Ruptures Above Sect Min Mag	158,024
Ruptures w/ Nonzero Rates	107
Magnitude Range	[6.92, 8.62]
Length Range	[22, 1,132] km
Total Rate	0.0012084746 /yr
Multi-Fault Rate	0.0011182764 /yr (92.54%)
Directly-Connected Faults	9
All Co-Rupturing Faults	196

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

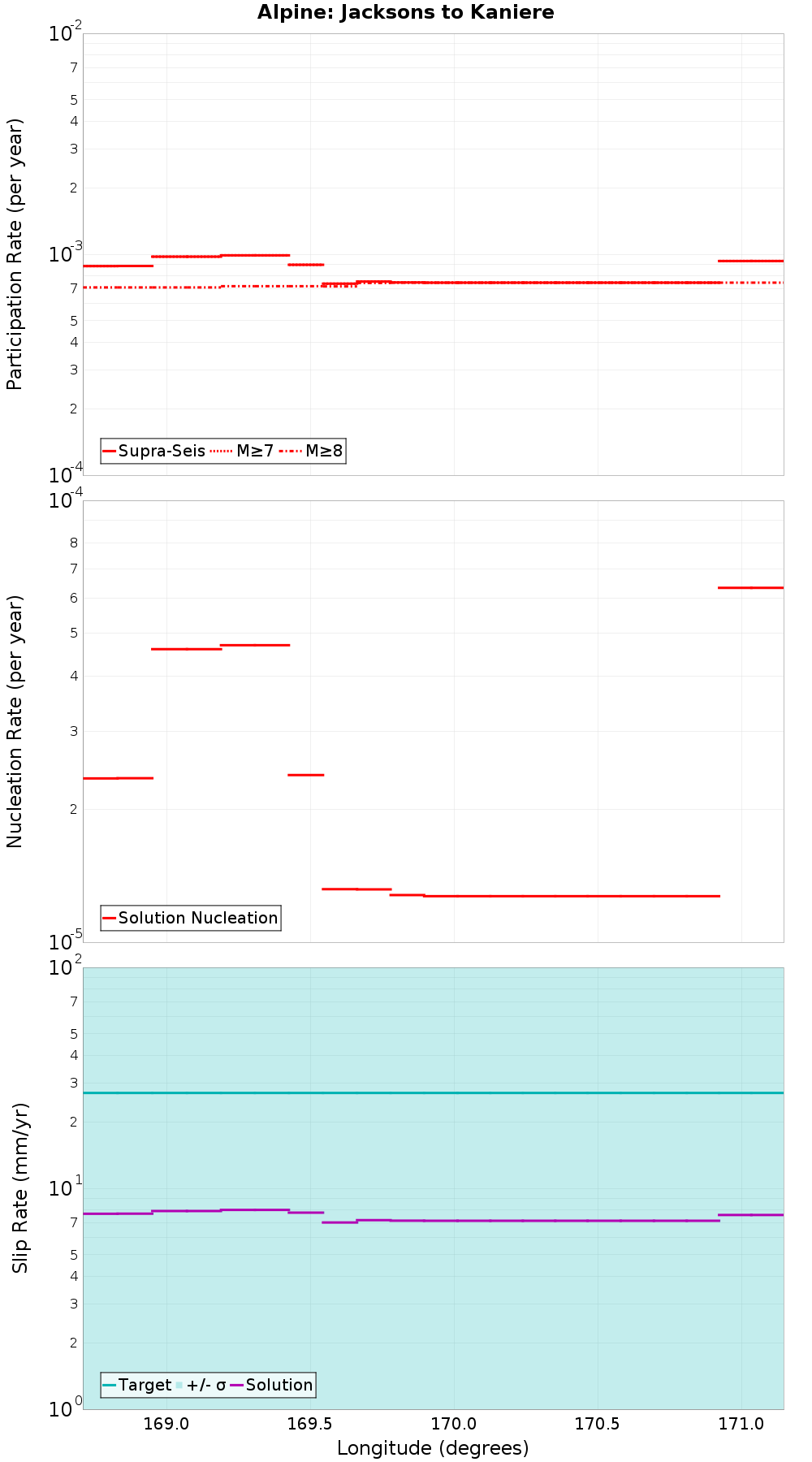

Along-Strike Values

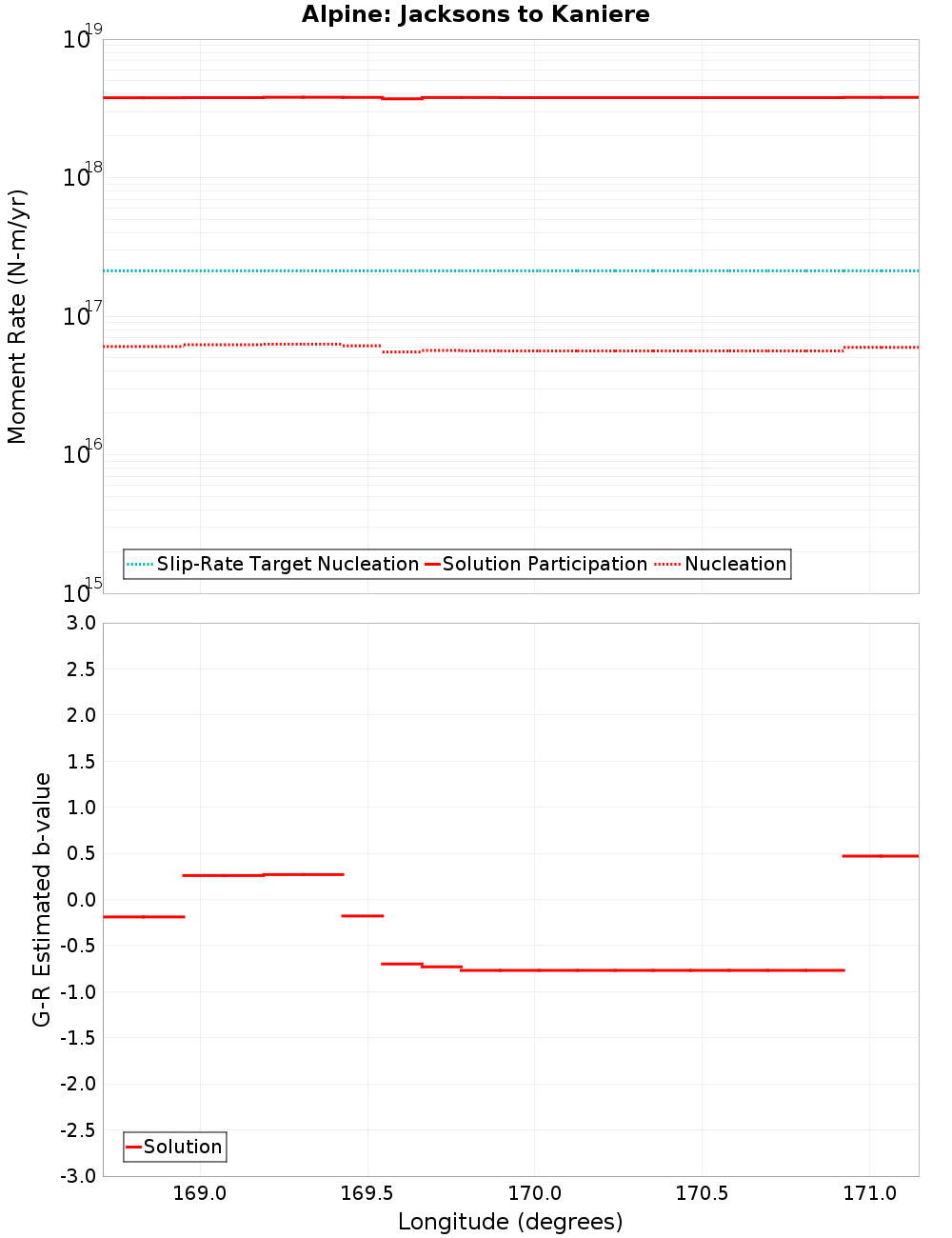

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kelly, 0 km away
Alpine: George to Jacksons, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.34 km away
Moonlight North, 1.51 km away
Huxley, 1.8 km away
Hopkins, 5.91 km away
Barn, 8.94 km away
Barrier Range, 9.21 km away
Ostler North, 14.33 km away
Hunter Valley, 14.36 km away

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	56,730
Co-rupture Rate	1.4558063E-4

Alpine: George to Jacksons, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	55,249
Co-rupture Rate	8.7867375E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	117,557
Co-rupture Rate	8.020807E-4

Browning Pass, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	22,670
Co-rupture Rate	5.632006E-5

Moonlight North, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	16,727
Co-rupture Rate	5.0421518E-6

Huxley, 1.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	11,659
Co-rupture Rate	6.6102316E-6

Hopkins, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	51,362
Co-rupture Rate	4.4549033E-5

Barn, 8.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	false
Co-rupture Count	570
Co-rupture Rate	3.5798525E-6

Barrier Range, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	false
Co-rupture Count	6,002
Co-rupture Rate	3.6581193E-6

Ostler North, 14.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,341
Co-rupture Rate	0.0

Hunter Valley, 14.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMEVWRmdE
Connected?	true
Directly Connected?	true
Co-rupture Count	12,763
Co-rupture Rate	3.1436783E-5
