North Canterbury Shelf 11 Details

PropertyValue
Rupture Count346
Ruptures Above Sect Min Mag336
Ruptures w/ Nonzero Rates51
Magnitude Range[6.49, 7.95]
Length Range[14, 323] km
Total Rate2.4620434E-12 /yr
Multi-Fault Rate2.4620434E-12 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults25

Table Of Contents

Along-Strike Values

(top)

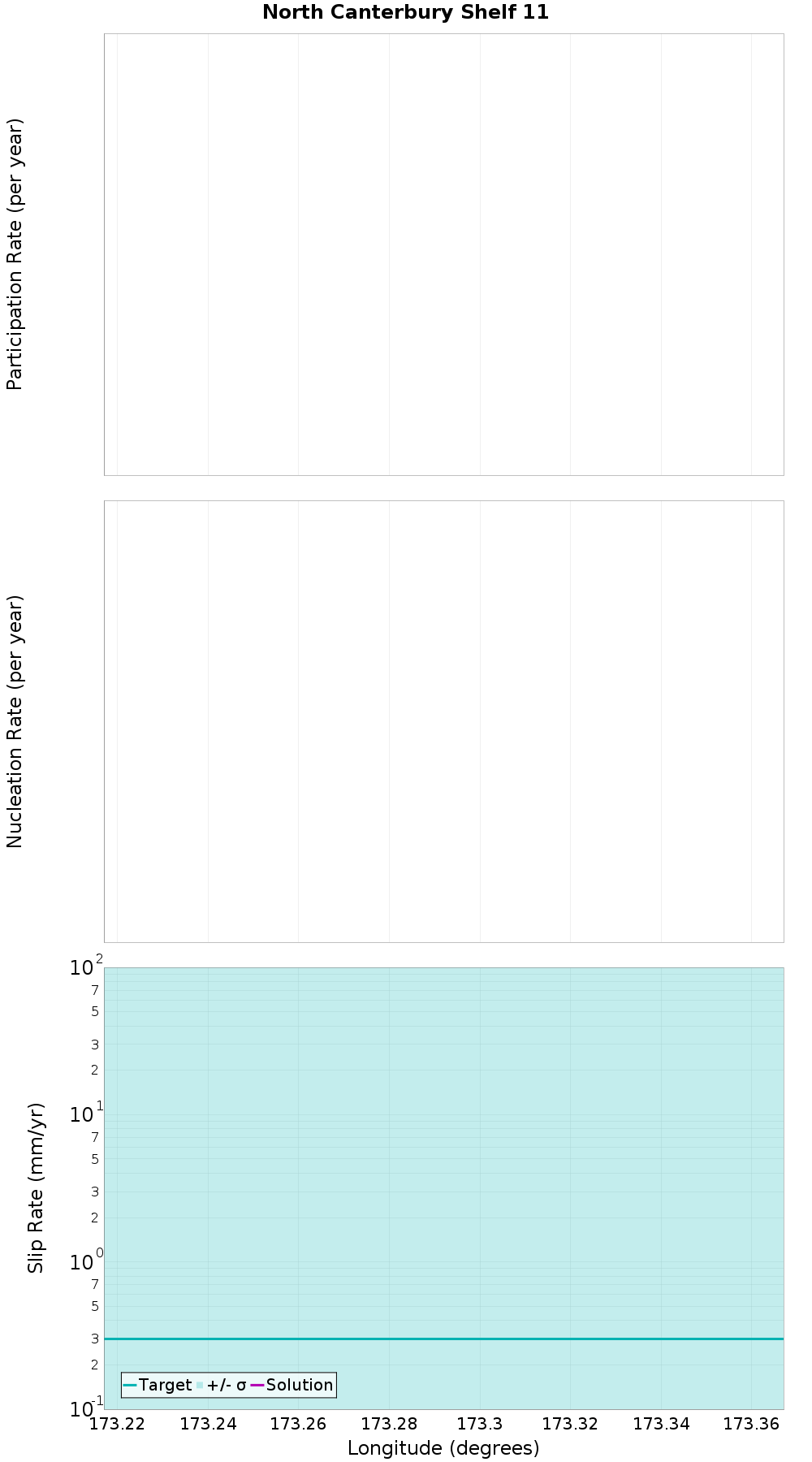

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

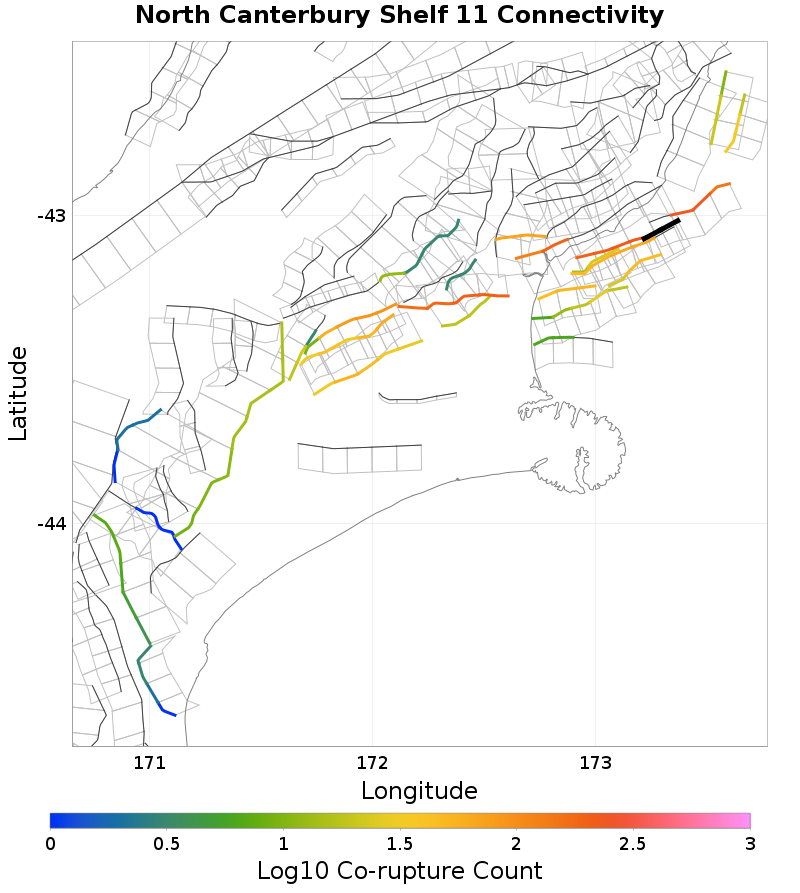

MapMap

Nearby Sections

(top)

Fault Section
Motunau, 0.14 km away
Leithfield - NCVI - NCVII, 1.13 km away
Point Gibson, 2.05 km away
North Canterbury Shelf 4, 5.86 km away
AmberBlyth, 7.7 km away
North Canterbury Shelf 2, 9.96 km away
OmihiLwrHuru, 11.78 km away

Motunau, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMGRzdEF5
Connected?true
Directly Connected?true
Co-rupture Count230
Co-rupture Rate2.3603834E-12

Leithfield - NCVI - NCVII, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMGRzdEF5
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate7.3149033E-14

Point Gibson, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMGRzdEF5
Connected?true
Directly Connected?true
Co-rupture Count234
Co-rupture Rate1.7014908E-12

North Canterbury Shelf 4, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMGRzdEF5
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate9.493019E-14

AmberBlyth, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMGRzdEF5
Connected?true
Directly Connected?false
Co-rupture Count192
Co-rupture Rate7.356442E-13

North Canterbury Shelf 2, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMGRzdEF5
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate2.2711074E-13

OmihiLwrHuru, 11.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg4NzkuMGRzdEF5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
