Hawkdun Details

PropertyValue
Rupture Count6,809
Ruptures Above Sect Min Mag6,804
Ruptures w/ Nonzero Rates11
Magnitude Range[6.92, 8.54]
Length Range[19, 679] km
Total Rate9.7076845E-6 /yr
Multi-Fault Rate9.7076845E-6 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults79

Table Of Contents

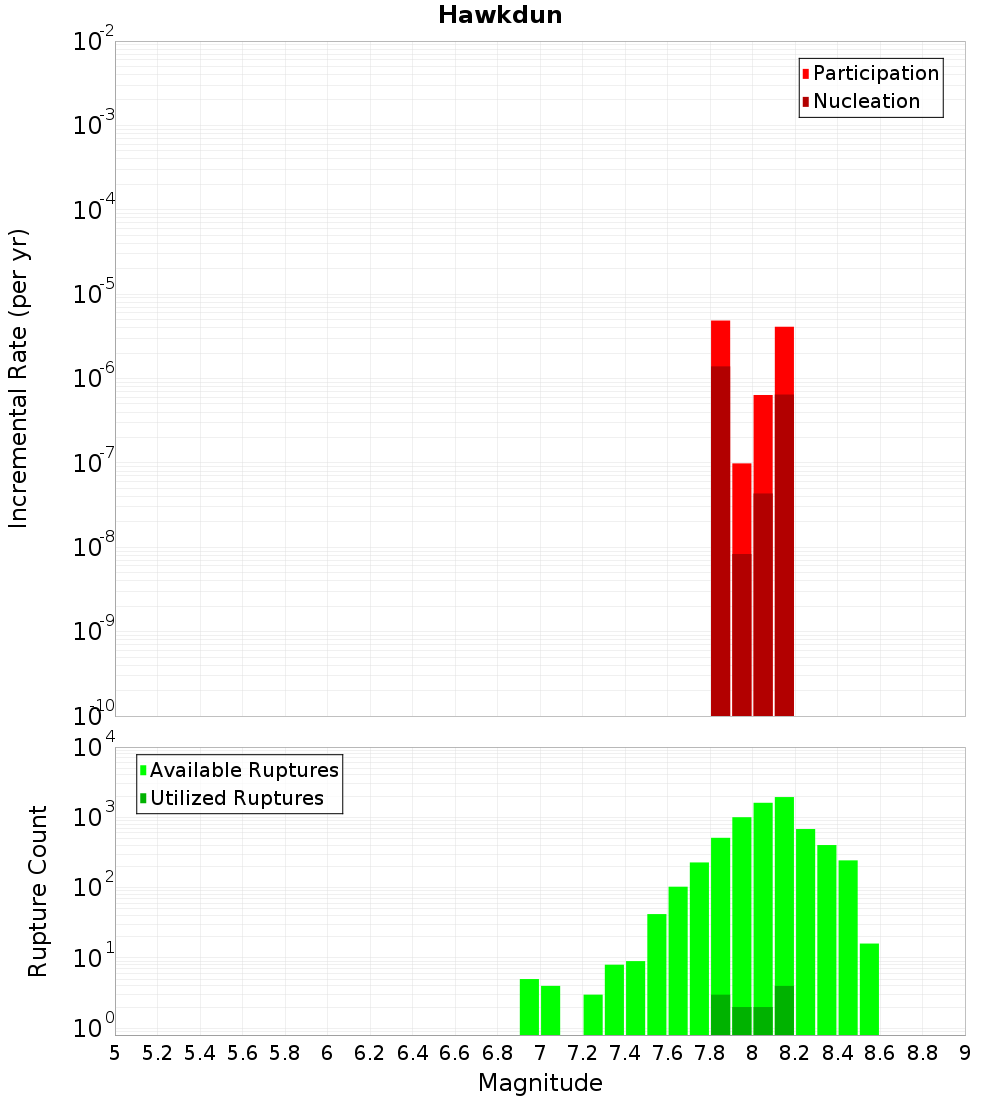

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

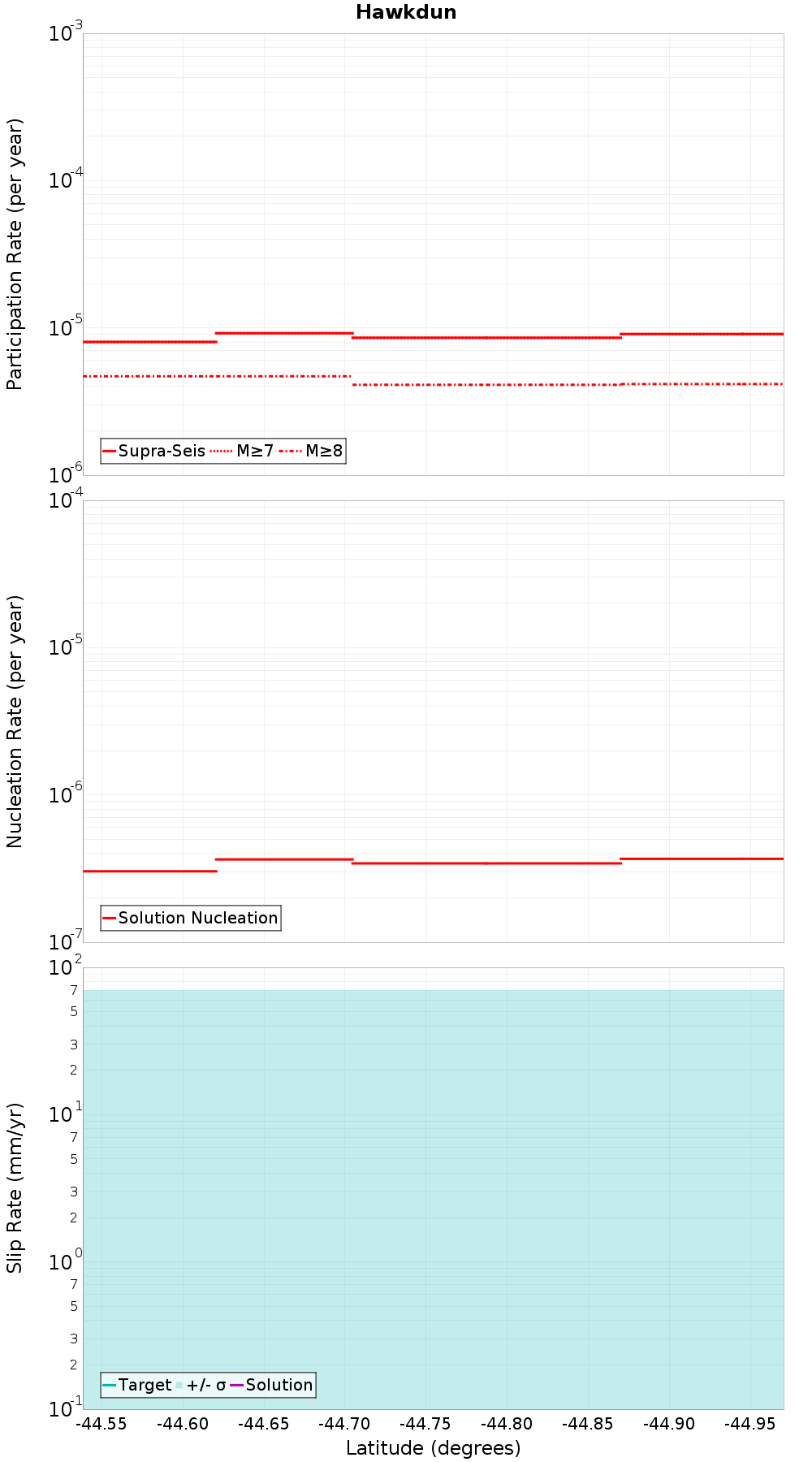

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Omarama Saddle, 0.14 km awayGaribaldi, 3.71 km away
Fern Gully, 0.99 km awayFalstone, 3.91 km away
Waihemo, 1.35 km awayMt Sutton, 9.36 km away
Ostler South, 2.35 km awayBlue Lake, 9.5 km away
Gibson, 2.41 km awayAwahokomo, 10.54 km away
Raggedy - Blackstone, 2.51 km awayRanfurly, 10.99 km away
Cross Eden, 3.2 km awayDromedary, 14.4 km away
Gimmerburn, 3.64 km awayMiddle Range, 14.45 km away

Omarama Saddle, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count2,225
Co-rupture Rate8.024293E-6

Fern Gully, 0.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count585
Co-rupture Rate1.1672911E-6

Waihemo, 1.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count1,049
Co-rupture Rate9.072381E-6

Ostler South, 2.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count1,846
Co-rupture Rate6.3252725E-7

Gibson, 2.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count889
Co-rupture Rate4.2134684E-6

Cross Eden, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count949
Co-rupture Rate0.0

Gimmerburn, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count3,252
Co-rupture Rate6.353034E-7

Garibaldi, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?true
Co-rupture Count344
Co-rupture Rate1.0386726E-6

Falstone, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?false
Co-rupture Count397
Co-rupture Rate1.164515E-6

Mt Sutton, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?false
Co-rupture Count190
Co-rupture Rate4.6778192E-7

Awahokomo, 10.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Ranfurly, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?true
Directly Connected?false
Co-rupture Count160
Co-rupture Rate4.6778192E-7

Middle Range, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTEuMHZzV3lS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
