Opape 1 Details

PropertyValue
Rupture Count86
Ruptures Above Sect Min Mag86
Ruptures w/ Nonzero Rates29
Magnitude Range[7.14, 8.17]
Length Range[32, 470] km
Total Rate7.589252E-5 /yr
Multi-Fault Rate7.589252E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults17

Table Of Contents

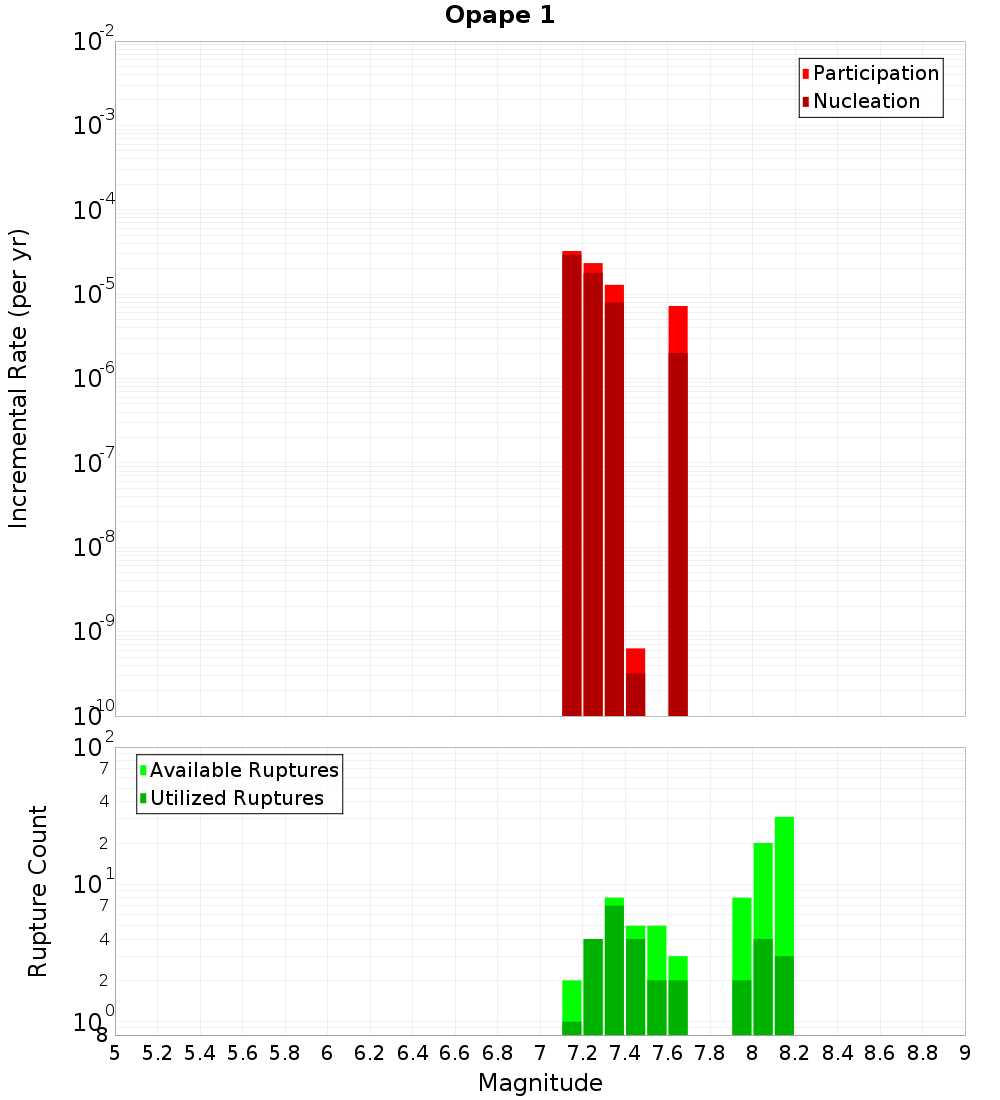

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 1, 0.09 km awayKotare - Moutuhora, 2.38 km away
Motu River, 0.1 km awayMotu, 2.39 km away
Raukumara 18, 0.12 km awayOpotiki 3, 3.74 km away
Ohae 3, 0.13 km awayTirohanga, 4.65 km away
Ohae 2, 0.15 km awayOpotiki 2, 5.57 km away
Raukumara 21, 0.21 km awayRaukumara 25, 6.05 km away
Kereu, 0.22 km awayWaimanawa - Waikaremoana, 11.99 km away
Raukumara 20, 0.24 km awayHariki, 13.53 km away
Raukumara 17, 0.33 km awayRaukumara 24, 14.1 km away
Raukumara 16, 0.44 km awayWhite Island 2, 14.68 km away

Ohae 1, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu River, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 18, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate6.306874E-10

Ohae 2, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 21, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate1.924258E-13

Kereu, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 20, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate4.532636E-5

Raukumara 17, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate2.3331717E-5

Raukumara 16, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate5.288292E-12

Kotare - Moutuhora, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate1.28983265E-5

Motu, 2.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tirohanga, 4.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate7.233799E-6

Raukumara 25, 6.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate5.1166455E-16

Waimanawa - Waikaremoana, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 13.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 24, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 14.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
