Starvation - Ashley Details
| Property | Value |
|---|---|
| Rupture Count | 12,580 |
| Ruptures Above Sect Min Mag | 12,573 |
| Ruptures w/ Nonzero Rates | 5,329 |
| Magnitude Range | [6.77, 8.15] |
| Length Range | [21, 538] km |
| Total Rate | 1.7222158E-4 /yr |
| Multi-Fault Rate | 1.7222158E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 87 |
Table Of Contents

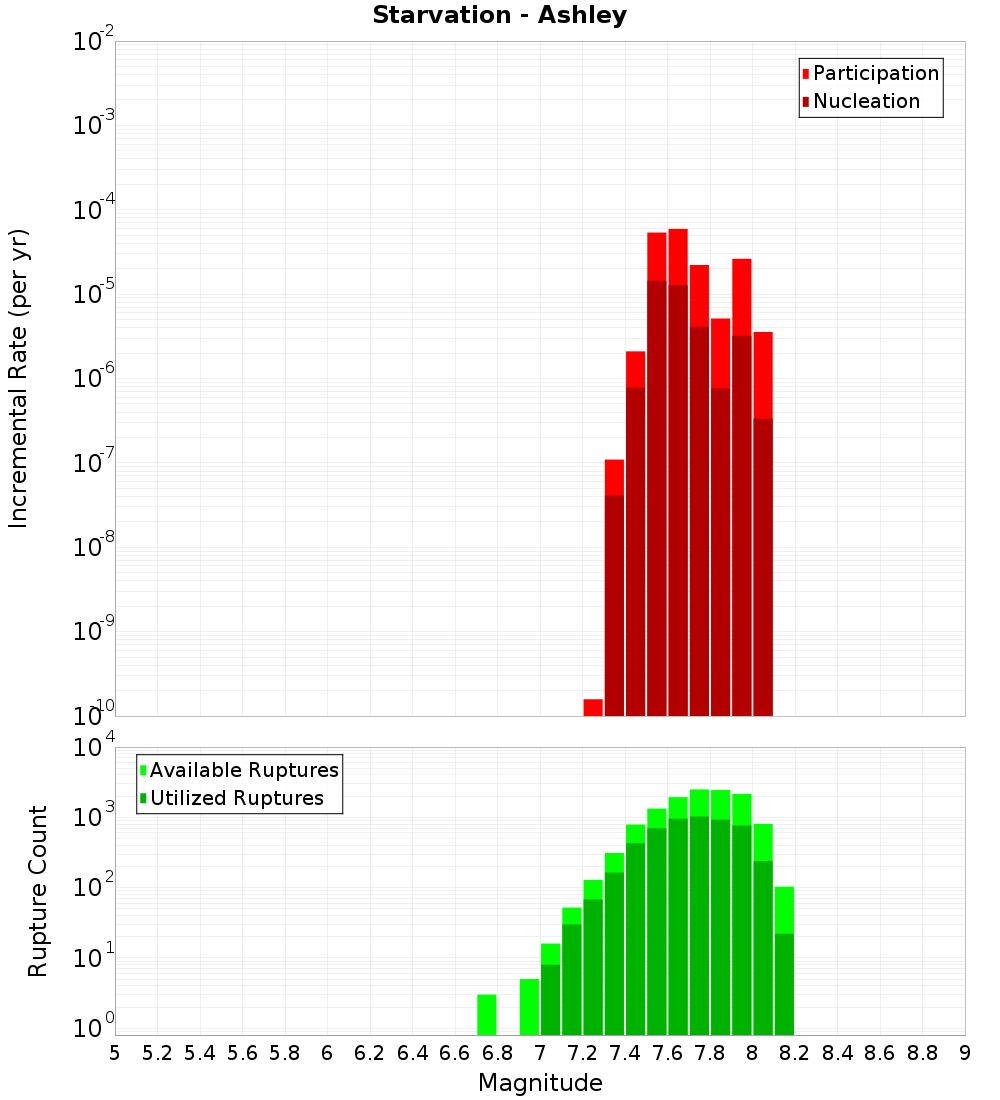

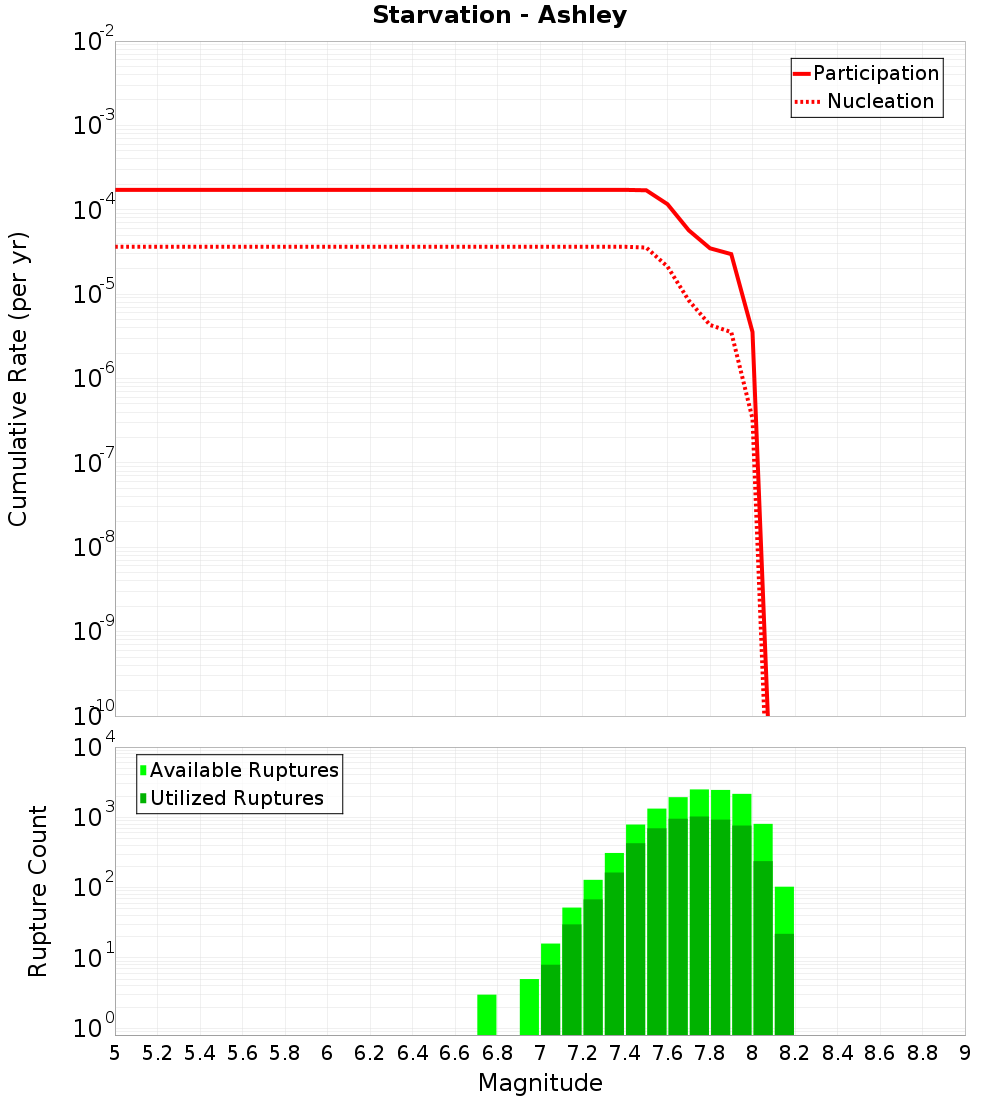

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Springbank, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 338 |
| Co-rupture Rate | 2.4133156E-5 |
Mt Lawry, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 225 |
| Co-rupture Rate | 3.1427128E-11 |
Lees Valley, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,884 |
| Co-rupture Rate | 7.329255E-5 |
Pancake, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 34 |
| Co-rupture Rate | 1.8053206E-11 |
Boby Stream, 0.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,865 |
| Co-rupture Rate | 3.068137E-5 |
Esk South, 0.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kowai - View Hill, 0.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,335 |
| Co-rupture Rate | 4.1088017E-5 |
Knowles Top, 1.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 53 |
| Co-rupture Rate | 8.194563E-6 |
High Peak - Sheffield, 3.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,893 |
| Co-rupture Rate | 5.338128E-5 |
Hororata, 6.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,481 |
| Co-rupture Rate | 8.6723514E-5 |
AmberBlyth, 7.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,404 |
| Co-rupture Rate | 1.4371946E-4 |
Doctors, 8.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4,915 |
| Co-rupture Rate | 1.620584E-5 |
Porters Pass, 10.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,606 |
| Co-rupture Rate | 3.7629856E-5 |
Waikuku, 11.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 474 |
| Co-rupture Rate | 2.1387598E-6 |
Pegasus Bay, 12.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 31 |
| Co-rupture Rate | 5.6420233E-11 |
Torlesse, 12.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MTYuMGNremRa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
