Doctors Details

PropertyValue
Rupture Count6,038
Ruptures Above Sect Min Mag6,033
Ruptures w/ Nonzero Rates53
Magnitude Range[6.66, 8.17]
Length Range[17, 560] km
Total Rate2.3280278E-4 /yr
Multi-Fault Rate2.3280278E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults75

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

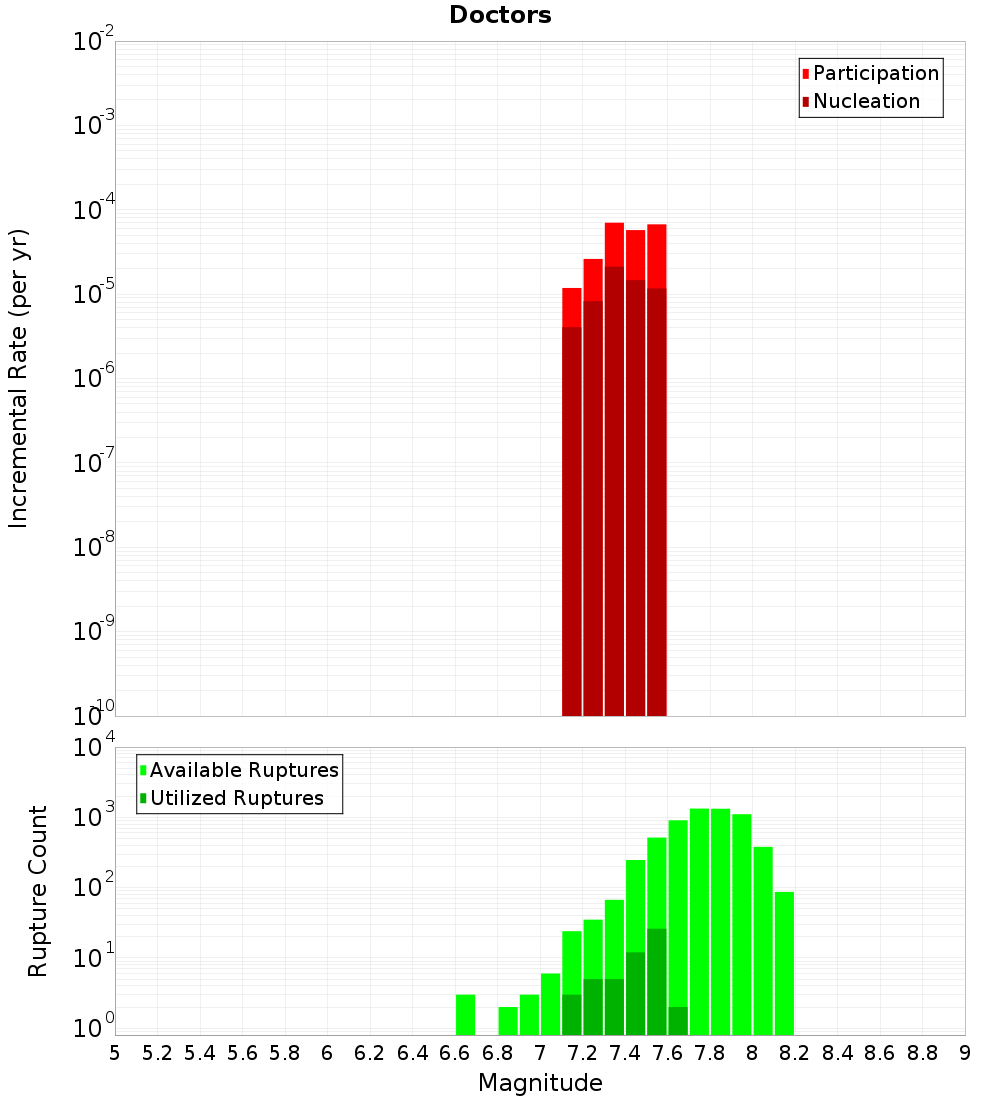

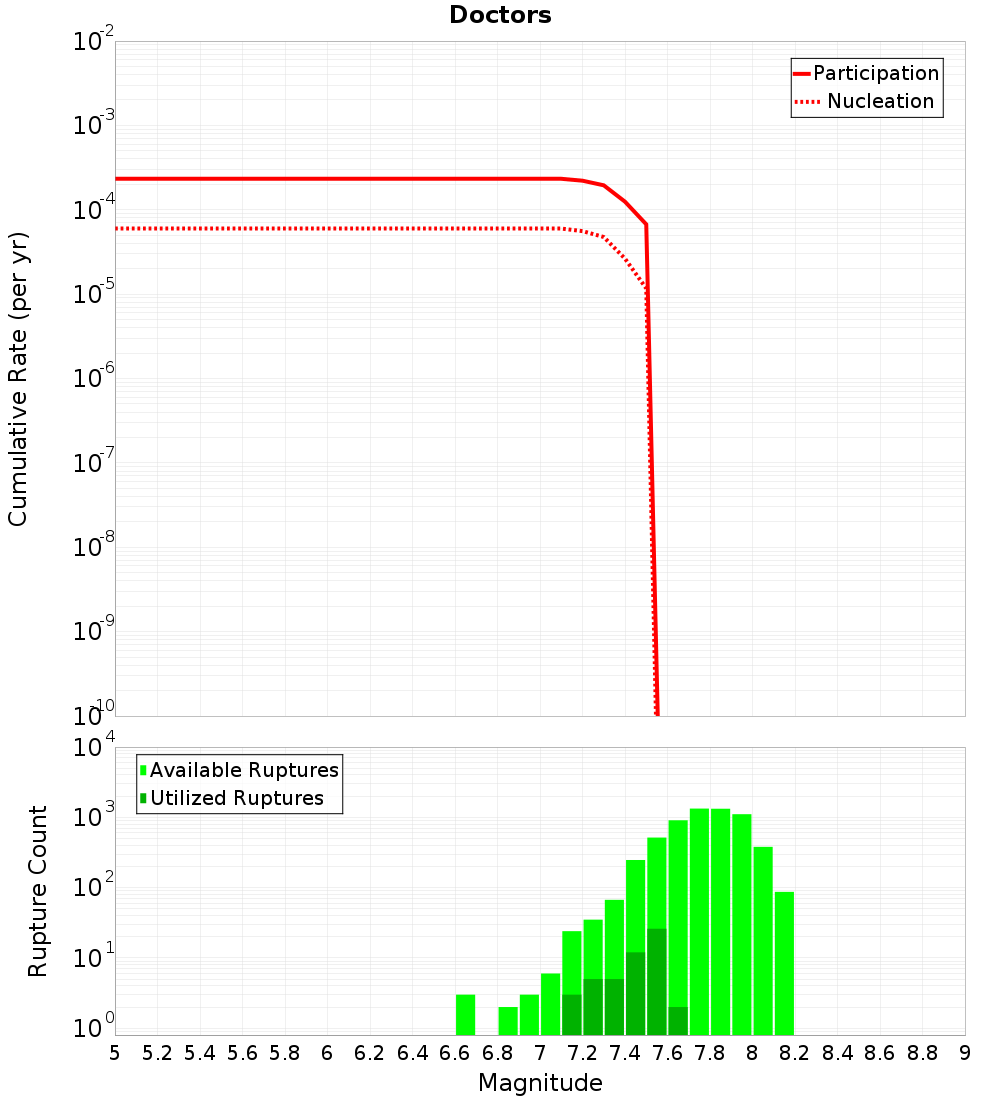

Incremental PlotCumulative Plot

Along-Strike Values

(top)

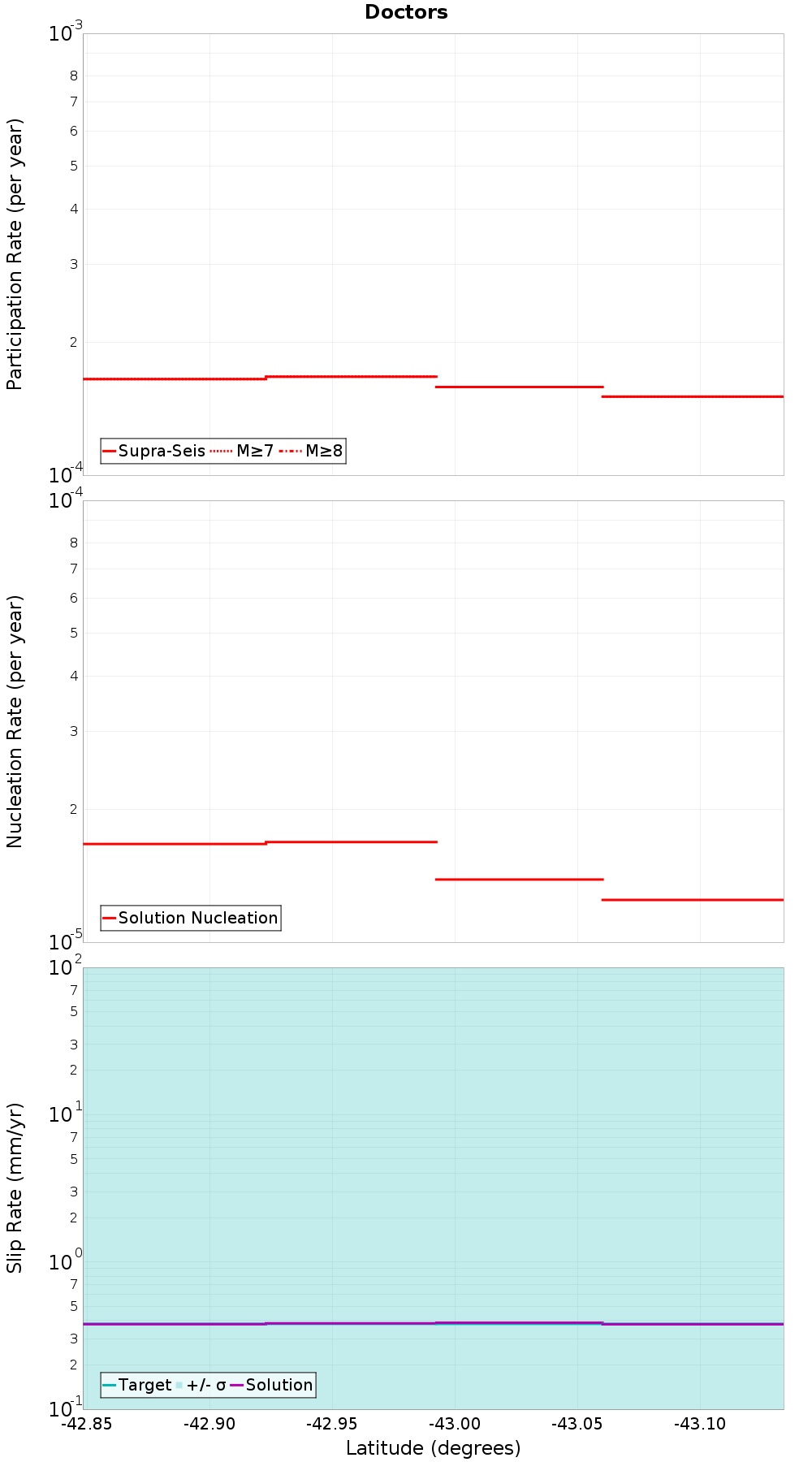

Along-strike plot

Moment-Rates and b-Values

(top)

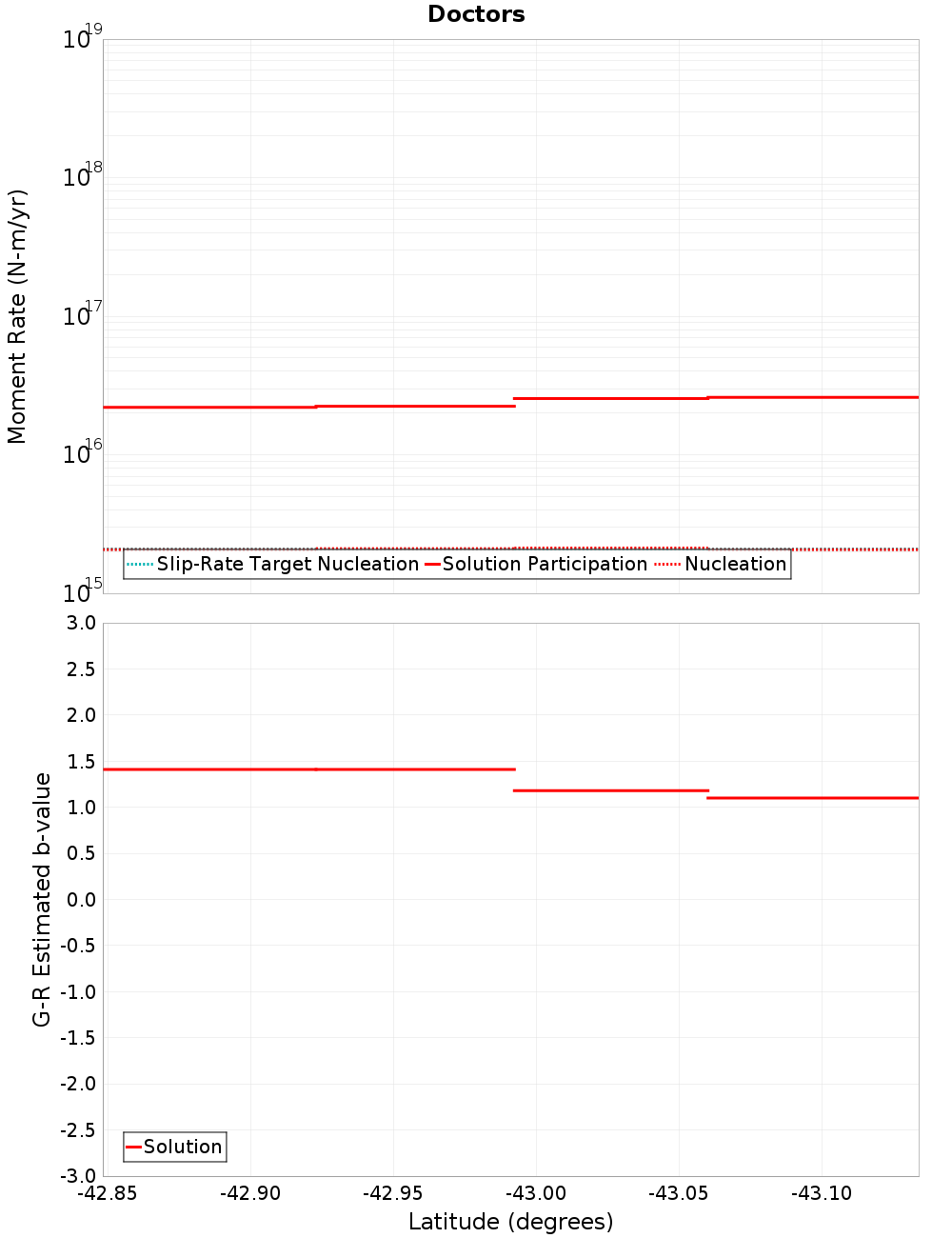

Along-strike plot

Connectivity

(top)

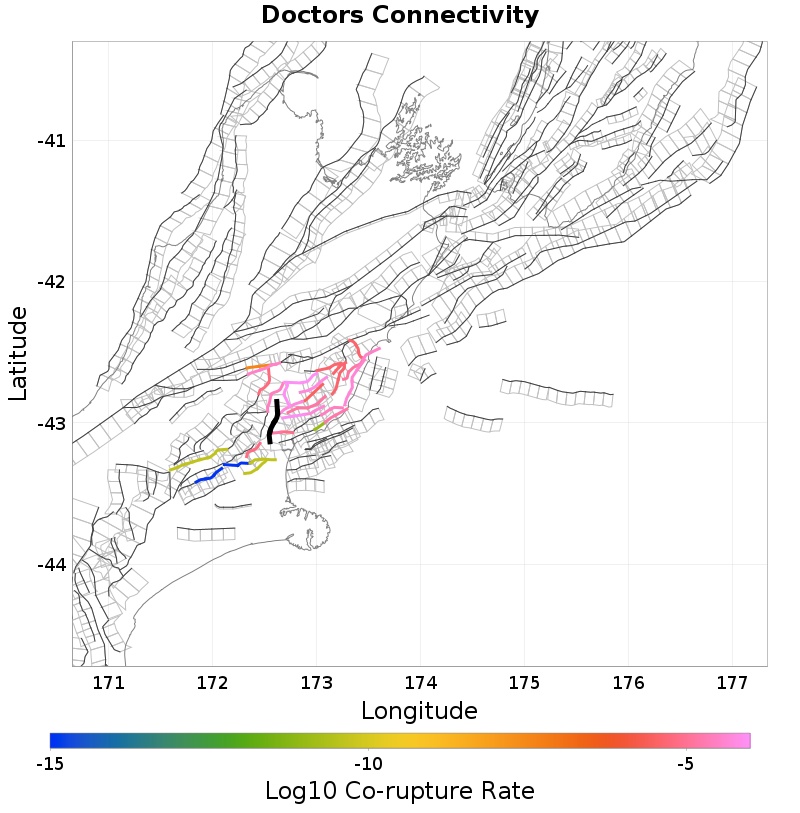

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Boby Stream, 0.22 km awayVirginia, 7.82 km away
Balmoral, 0.24 km awayStarvation - Ashley, 8.76 km away
Lowry, 0.53 km awayOmihiLwrHuru, 12.16 km away
Kaiwara South, 1.93 km awaySpringbank, 12.28 km away
Mt Culverden, 2.68 km awayKnowles Top, 12.44 km away
Alexander, 4.38 km awayLeonard Mound, 12.65 km away
Hurunui Peak, 5.51 km awayPancake, 12.94 km away
AmberBlyth, 5.78 km awayLees Valley, 13.52 km away
Mt Arden, 5.9 km awayEsk North, 14.67 km away
Mt Lawry, 7.57 km away

Boby Stream, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?true
Co-rupture Count5,039
Co-rupture Rate1.4065137E-5

Balmoral, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?true
Co-rupture Count1,299
Co-rupture Rate8.635814E-5

Lowry, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?true
Co-rupture Count1,512
Co-rupture Rate5.1957304E-5

Kaiwara South, 1.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?true
Co-rupture Count1,561
Co-rupture Rate8.371556E-5

Mt Culverden, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?true
Co-rupture Count2,653
Co-rupture Rate9.059933E-5

Alexander, 4.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?true
Co-rupture Count850
Co-rupture Rate1.7416749E-5

Hurunui Peak, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?true
Co-rupture Count125
Co-rupture Rate2.644081E-5

AmberBlyth, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count229
Co-rupture Rate1.6178265E-5

Mt Arden, 5.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Mt Lawry, 7.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count75
Co-rupture Rate6.8000363E-6

Virginia, 7.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 8.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count4,915
Co-rupture Rate4.2633574E-11

OmihiLwrHuru, 12.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate2.7361022E-5

Springbank, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate4.2632457E-11

Knowles Top, 12.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Leonard Mound, 12.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate5.8886977E-5

Pancake, 12.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count361
Co-rupture Rate4.2632457E-11

Esk North, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5MzYuMERVVFhK
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate5.9220265E-6
