Wellington: Pahiatua Details

PropertyValue
Rupture Count77,042
Ruptures Above Sect Min Mag77,039
Ruptures w/ Nonzero Rates7,190
Magnitude Range[6.82, 8.51]
Length Range[21, 1,132] km
Total Rate0.0012357313 /yr
Multi-Fault Rate0.0012357308 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults140

Table Of Contents

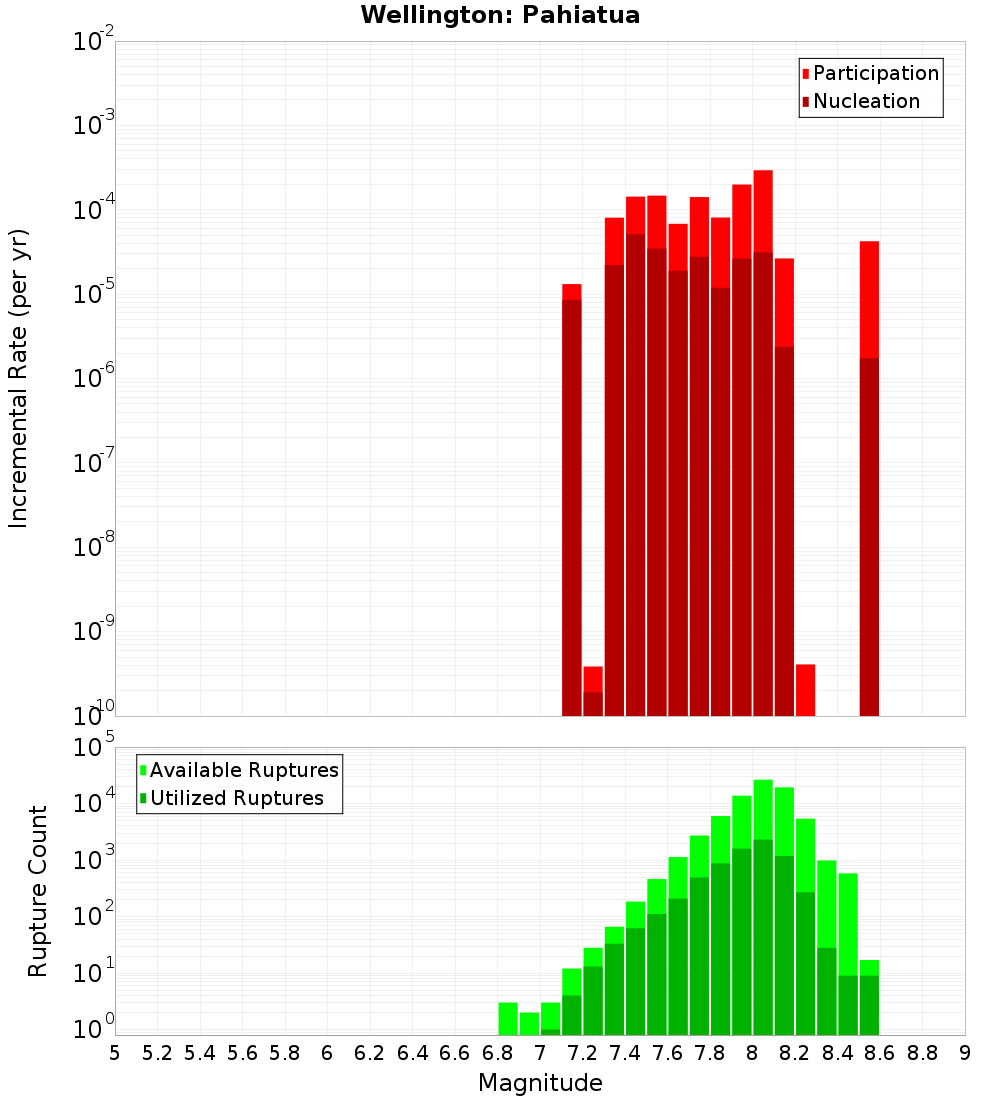

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Ruahine: South, 0 km away
Wellington: Tararua 3, 0.03 km away
Tokomaru, 0.13 km away
Northern Ohariu, 2.46 km away
Otaki Forks: 2, 4.69 km away
Woodville, 5.06 km away
Pahiatua, 5.58 km away
Pohangina, 9.35 km away
Wairarapa: 3, 13.85 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count60,352
Co-rupture Rate4.6954644E-4

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count24,389
Co-rupture Rate2.3786376E-4

Wellington: Tararua 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count49,026
Co-rupture Rate0.001096759

Tokomaru, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count300
Co-rupture Rate1.5283629E-9

Northern Ohariu, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count6,802
Co-rupture Rate2.5650313E-9

Otaki Forks: 2, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count20,110
Co-rupture Rate1.3897056E-4

Woodville, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count5,229
Co-rupture Rate4.9153477E-5

Pahiatua, 5.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?false
Co-rupture Count237
Co-rupture Rate7.375002E-5

Pohangina, 9.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?true
Directly Connected?true
Co-rupture Count1,227
Co-rupture Rate6.896909E-5

Wairarapa: 3, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NDAuMG5NQWNy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
