Old Man Details

Property	Value
Rupture Count	30,839
Ruptures Above Sect Min Mag	30,838
Ruptures w/ Nonzero Rates	209
Magnitude Range	[7.05, 8.50]
Length Range	[26, 919] km
Total Rate	5.3922636E-6 /yr
Multi-Fault Rate	5.3922636E-6 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

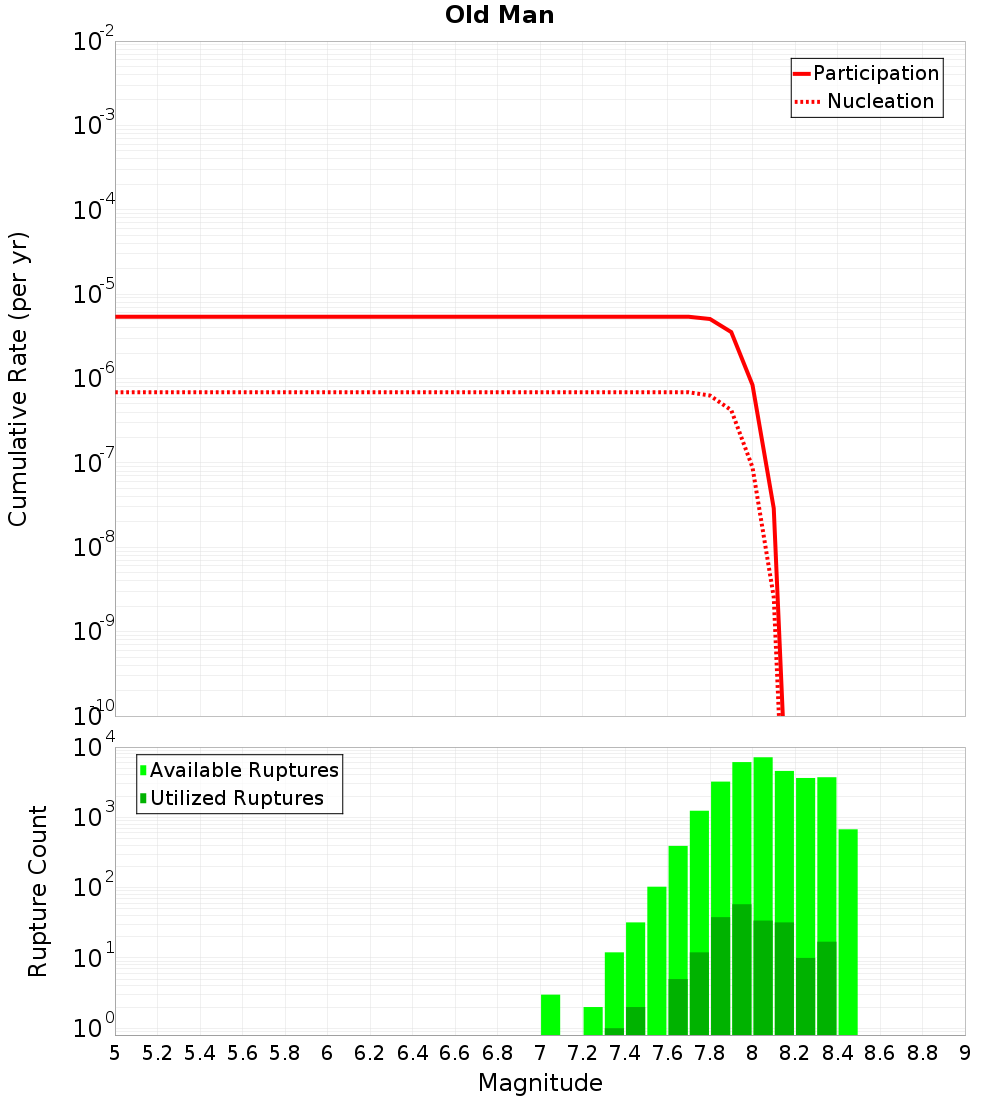

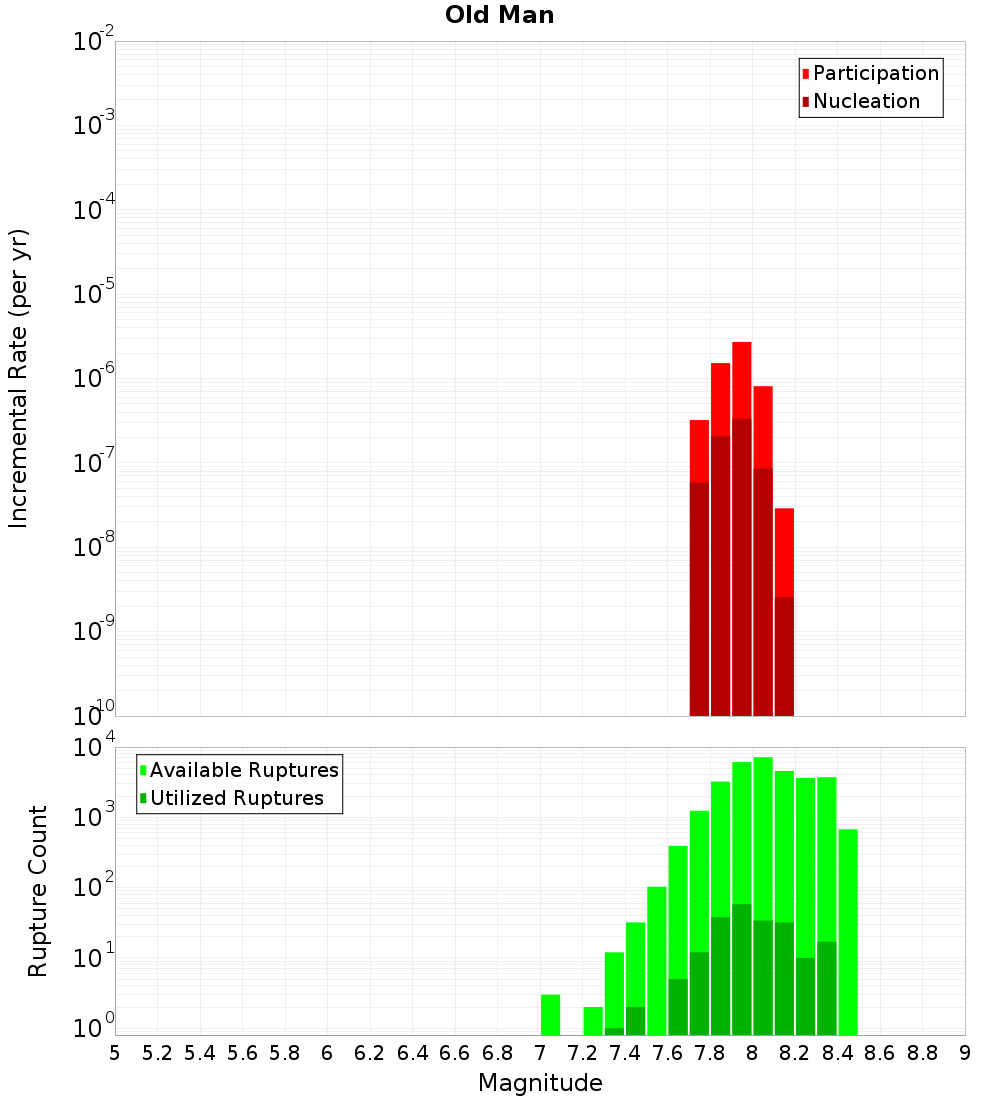

Magnitude-Frequency Distribution

Incremental	Cumulative

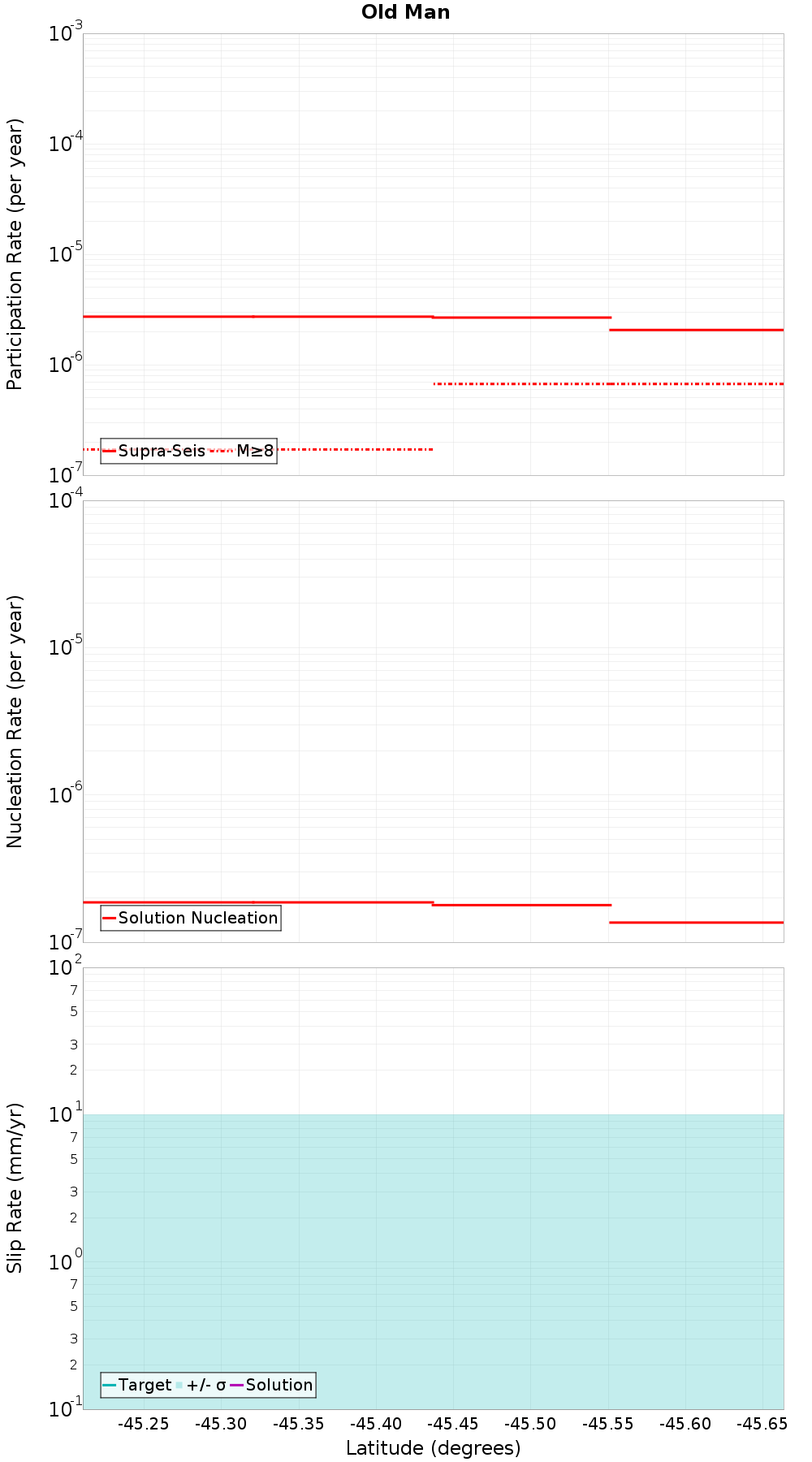

Along-Strike Values

Moment-Rates and b-Values

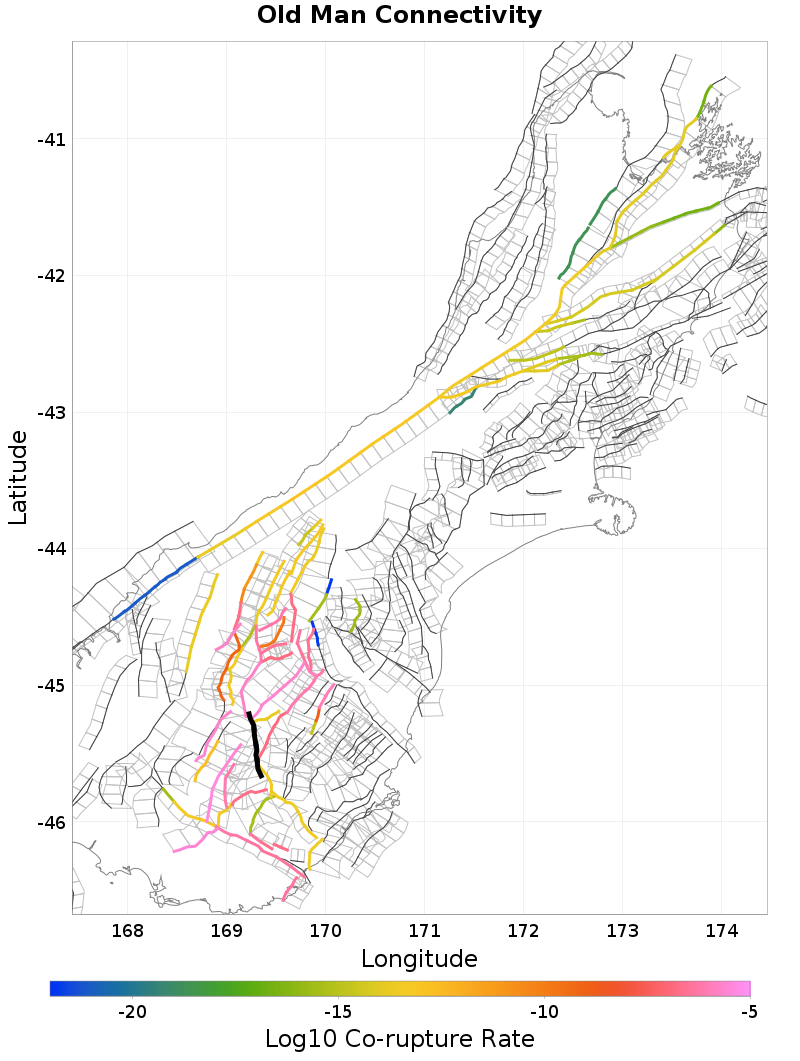

Connectivity

Nearby Sections

Fault Section
Roaring Lion, 0.17 km away
Waikaia, 0.19 km away
Garvie, 0.22 km away
Wendon Valley, 0.27 km away
Galloway, 0.55 km away
Teviot, 0.71 km away
Little Valley, 1.09 km away
Pisa, 1.75 km away
Dunstan, 1.92 km away
Roaring Meg, 11.24 km away
Spylaw, 11.99 km away
Mid Dome, 13.05 km away
Nevis, 14.69 km away

Roaring Lion, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,957
Co-rupture Rate	2.5312056E-6

Waikaia, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	18,237
Co-rupture Rate	4.5900006E-6

Garvie, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,408
Co-rupture Rate	1.616616E-13

Wendon Valley, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,128
Co-rupture Rate	8.023994E-7

Galloway, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,207
Co-rupture Rate	1.4933784E-14

Teviot, 0.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,621
Co-rupture Rate	2.9645675E-14

Little Valley, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	1.3864455E-7

Pisa, 1.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	20,675
Co-rupture Rate	1.873277E-6

Dunstan, 1.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	8,778
Co-rupture Rate	2.722413E-6

Roaring Meg, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,872
Co-rupture Rate	6.316668E-14

Spylaw, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,329
Co-rupture Rate	1.9586315E-7

Mid Dome, 13.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nevis, 14.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
