Wharekauhau Details

Property	Value
Rupture Count	16,111
Ruptures Above Sect Min Mag	16,107
Ruptures w/ Nonzero Rates	471
Magnitude Range	[6.81, 8.26]
Length Range	[20, 640] km
Total Rate	7.589746E-4 /yr
Multi-Fault Rate	7.589746E-4 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	144

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

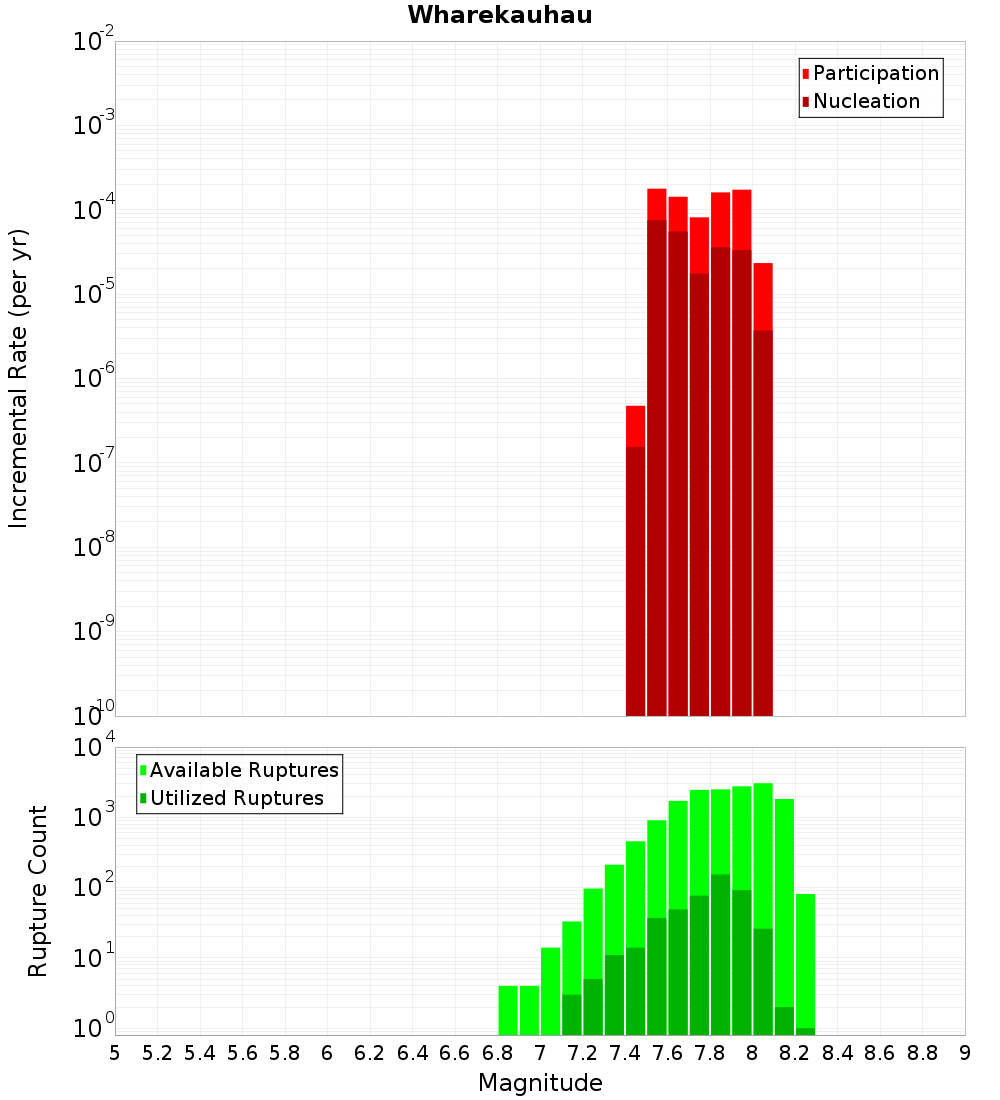

Magnitude-Frequency Distribution

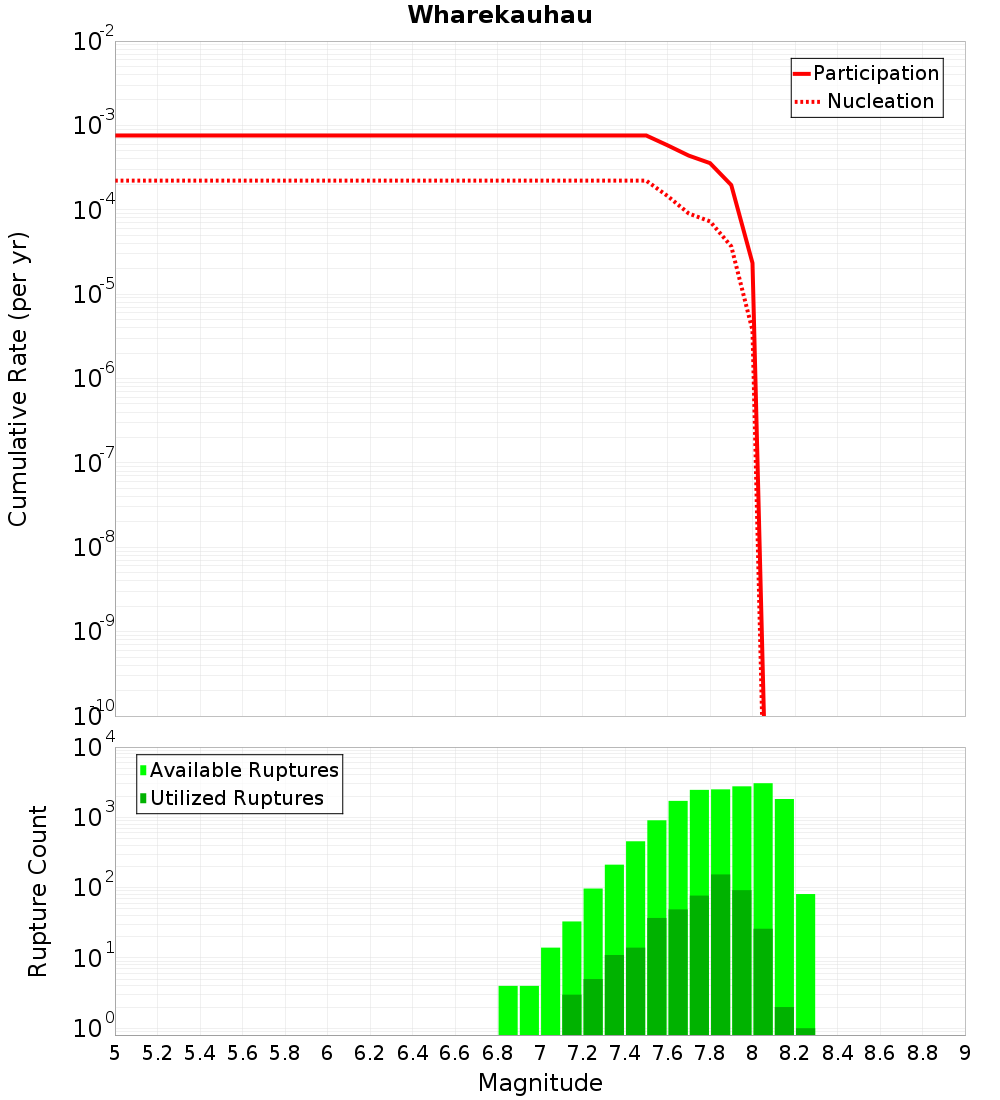

Incremental	Cumulative

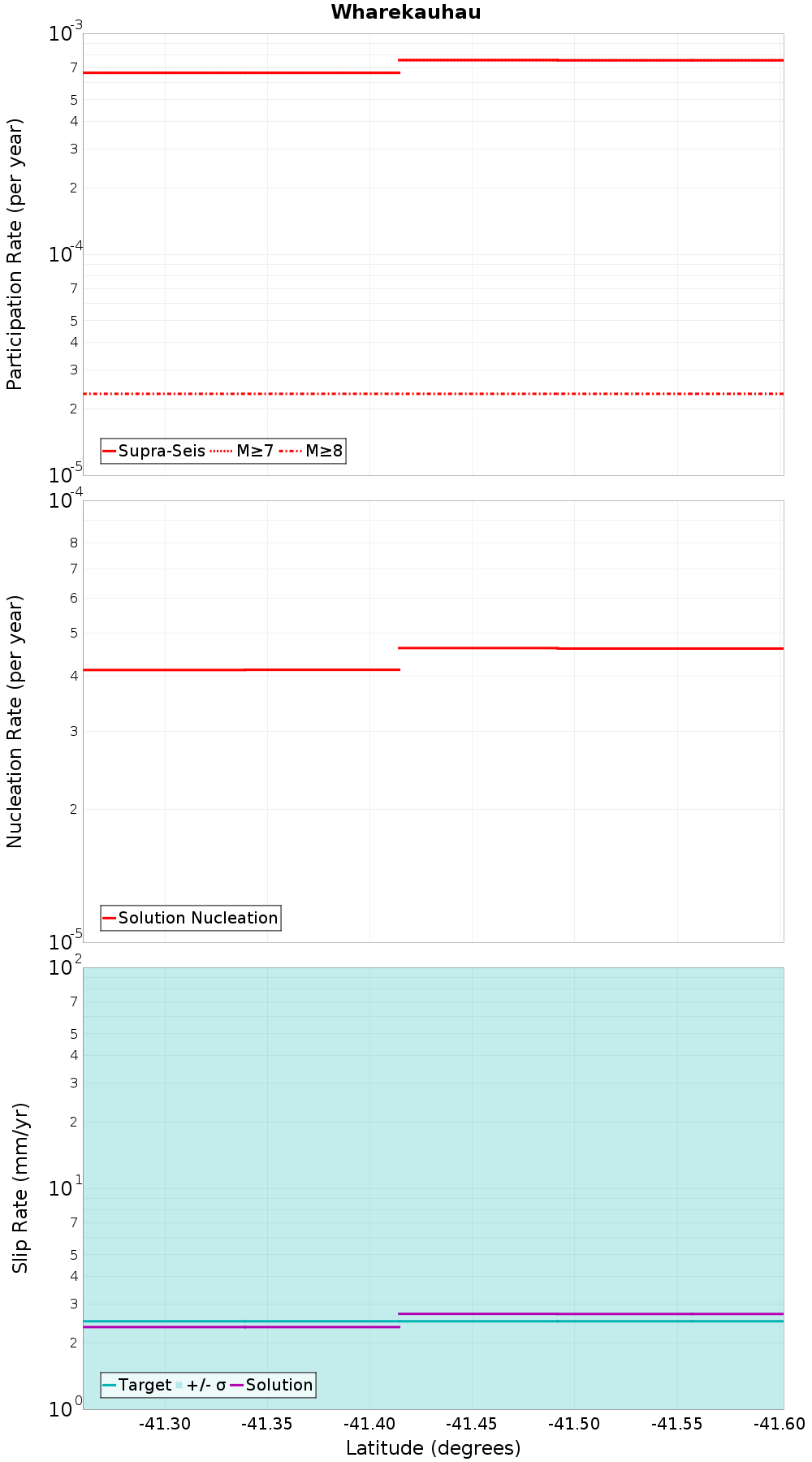

Along-Strike Values

Moment-Rates and b-Values

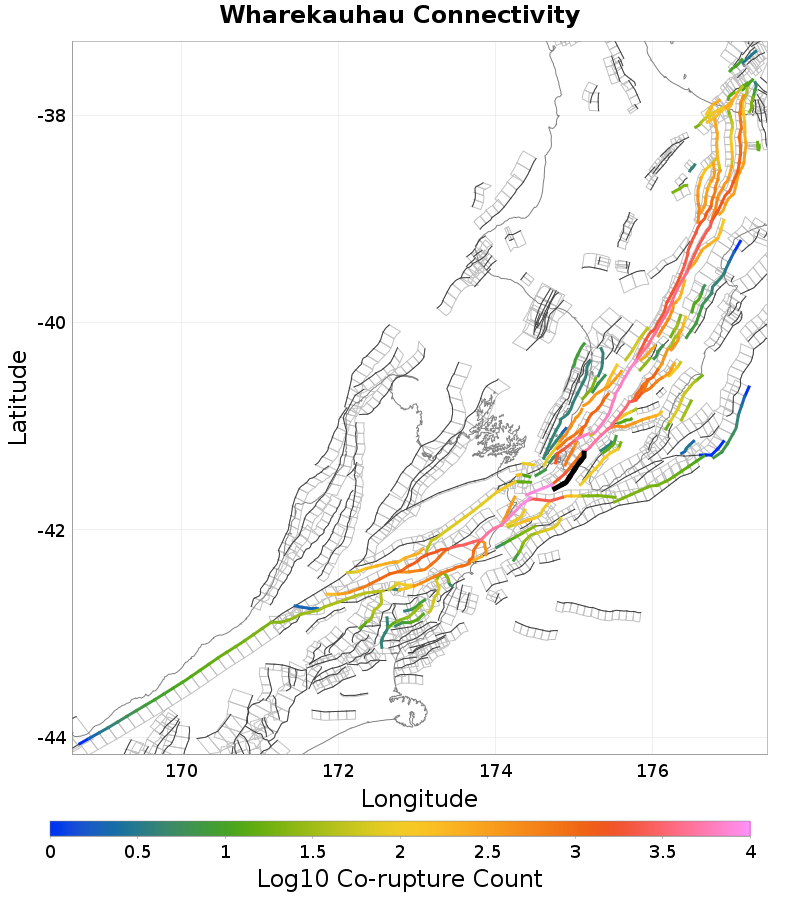

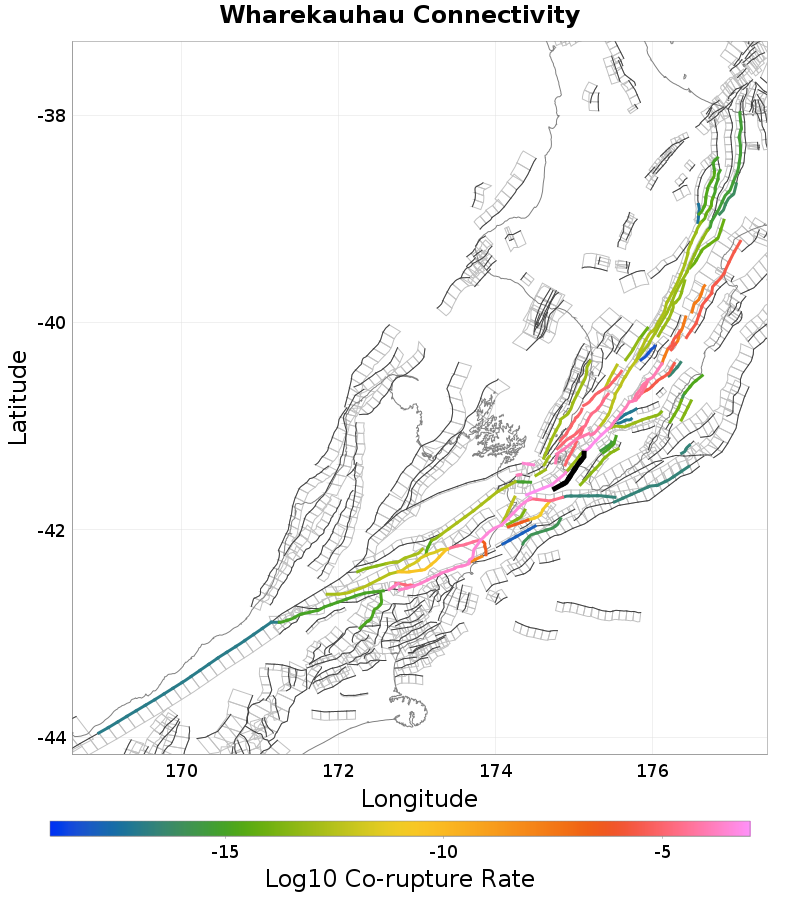

Connectivity

Nearby Sections

Fault Section	Fault Section
Wellington Hutt Valley: 4, 0.09 km away	Wellington Hutt Valley: 2, 8.44 km away
Aotea - Evans Bay, 0.17 km away	Ohariu, 10.05 km away
Wairarapa: 1, 0.2 km away	BooBoo, 10.67 km away
Wairarapa: Needles, 0.3 km away	Wellington Hutt Valley: 1, 11.26 km away
Wairarapa: 2, 1.38 km away	Wairau 3, 11.5 km away
Whitemans Valley, 3.03 km away	Otaraia, 12.78 km away
Wellington Hutt Valley: 5, 4.2 km away	Dry River - Huangarua: 1, 12.89 km away
Moonshine, 4.93 km away	Pukerua - Shepherds Gully: 3, 13.66 km away
Akatarawa, 6.44 km away	Campbell Bank, 13.94 km away
Wellington Hutt Valley: 3, 7.29 km away

Wellington Hutt Valley: 4, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,941
Co-rupture Rate	9.737494E-5

Aotea - Evans Bay, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,668
Co-rupture Rate	8.915046E-5

Wairarapa: 1, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,034
Co-rupture Rate	3.8859466E-4

Wairarapa: Needles, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	8,440
Co-rupture Rate	7.331401E-4

Wairarapa: 2, 1.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	6,003
Co-rupture Rate	5.749472E-4

Whitemans Valley, 3.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	731
Co-rupture Rate	8.447484E-6

Wellington Hutt Valley: 5, 4.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	6,524
Co-rupture Rate	7.632702E-5

Moonshine, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	989
Co-rupture Rate	2.006473E-5

Akatarawa, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	894
Co-rupture Rate	1.5458814E-5

Wellington Hutt Valley: 3, 7.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Wellington Hutt Valley: 2, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 10.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	518
Co-rupture Rate	8.22448E-6

BooBoo, 10.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,629
Co-rupture Rate	2.1671844E-5

Wellington Hutt Valley: 1, 11.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	9.786889E-14

Wairau 3, 11.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	88
Co-rupture Rate	2.6857684E-4

Otaraia, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 1, 12.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	true
Co-rupture Count	122
Co-rupture Rate	3.5088624E-14

Pukerua - Shepherds Gully: 3, 13.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Campbell Bank, 13.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg5NjYuMEprdGcz
Connected?	true
Directly Connected?	false
Co-rupture Count	108
Co-rupture Rate	1.2243094E-11
