Lake Heron Details

Property	Value
Rupture Count	195
Ruptures Above Sect Min Mag	194
Ruptures w/ Nonzero Rates	44
Magnitude Range	[6.99, 8.20]
Length Range	[18, 260] km
Total Rate	2.5552633E-4 /yr
Multi-Fault Rate	1.05528445E-4 /yr (41.30%)
Directly-Connected Faults	3
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

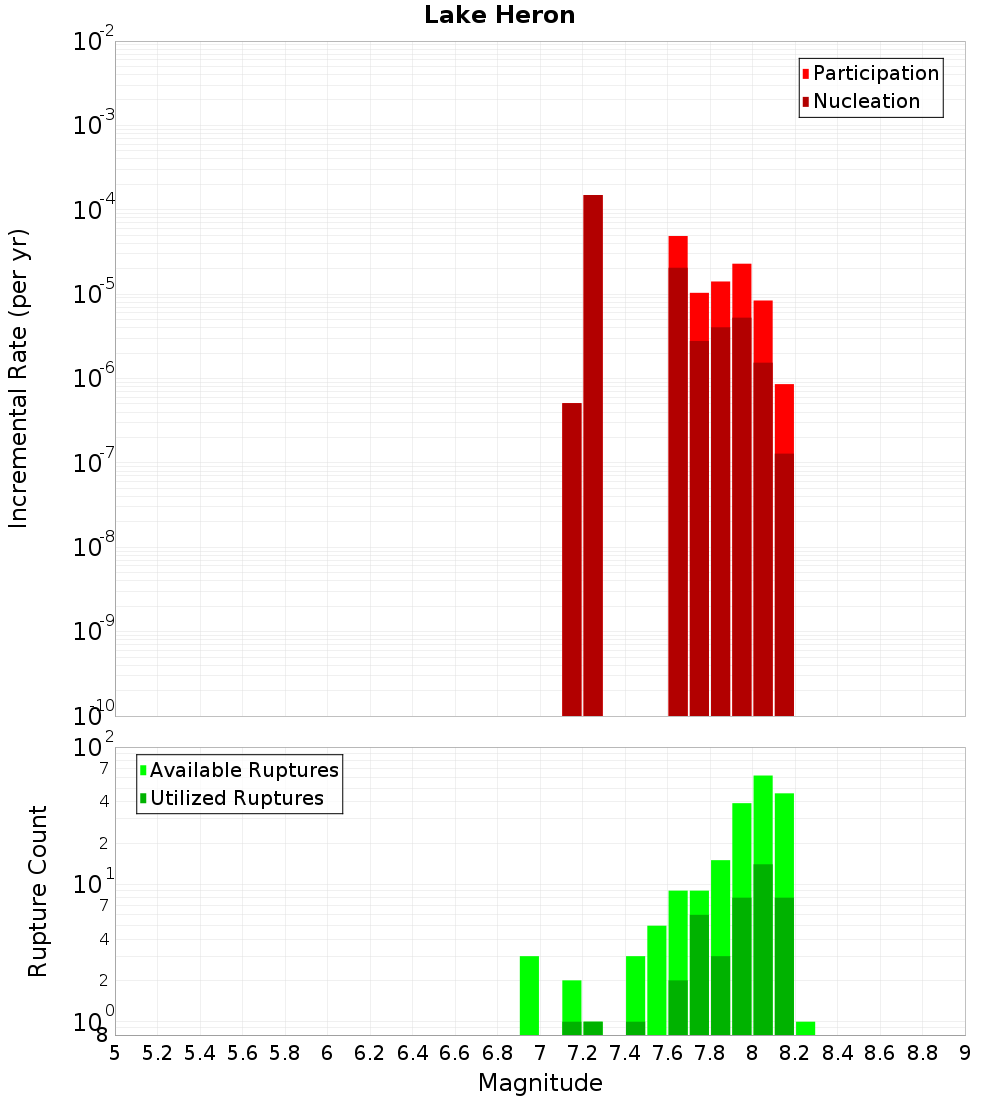

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ben McLeod, 0.47 km away
Double Hill, 1.64 km away
Klondyke Moor, 3.5 km away
Hutt Peel, 12.22 km away
Fox Peak, 13.35 km away
North Branch, 14.3 km away

Ben McLeod, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzIuMHRtSkJh
Connected?	true
Directly Connected?	true
Co-rupture Count	168
Co-rupture Rate	9.7255885E-5

Double Hill, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzIuMHRtSkJh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Klondyke Moor, 3.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzIuMHRtSkJh
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	2.9168134E-6

Hutt Peel, 12.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzIuMHRtSkJh
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	8.272516E-6

Fox Peak, 13.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzIuMHRtSkJh
Connected?	true
Directly Connected?	false
Co-rupture Count	159
Co-rupture Rate	4.633131E-5

North Branch, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzIuMHRtSkJh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
