Acton Details
| Property | Value |
|---|---|
| Rupture Count | 4,435 |
| Ruptures Above Sect Min Mag | 4,434 |
| Ruptures w/ Nonzero Rates | 135 |
| Magnitude Range | [7.29, 8.82] |
| Length Range | [23, 963] km |
| Total Rate | 2.0002397E-5 /yr |
| Multi-Fault Rate | 1.9694247E-5 /yr (98.46%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 64 |
Table Of Contents

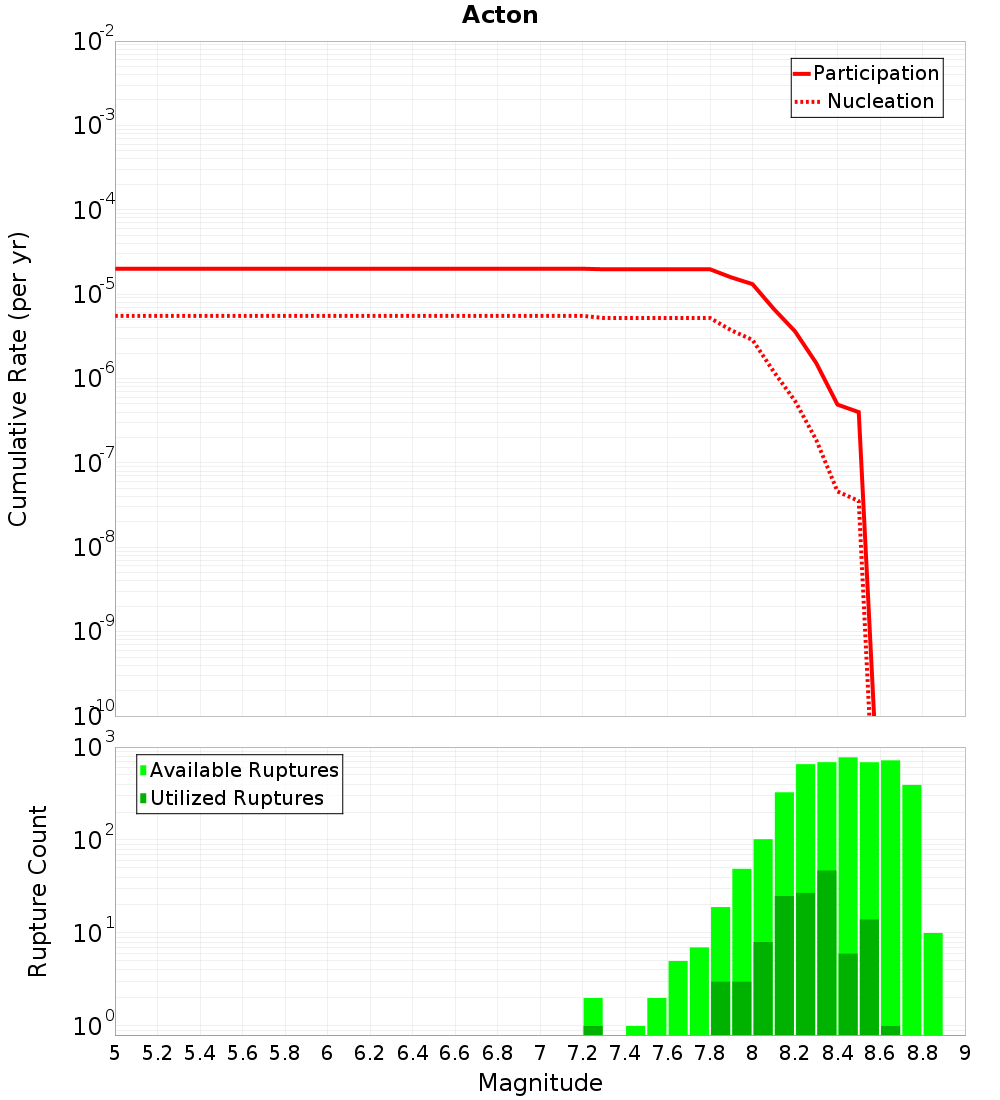

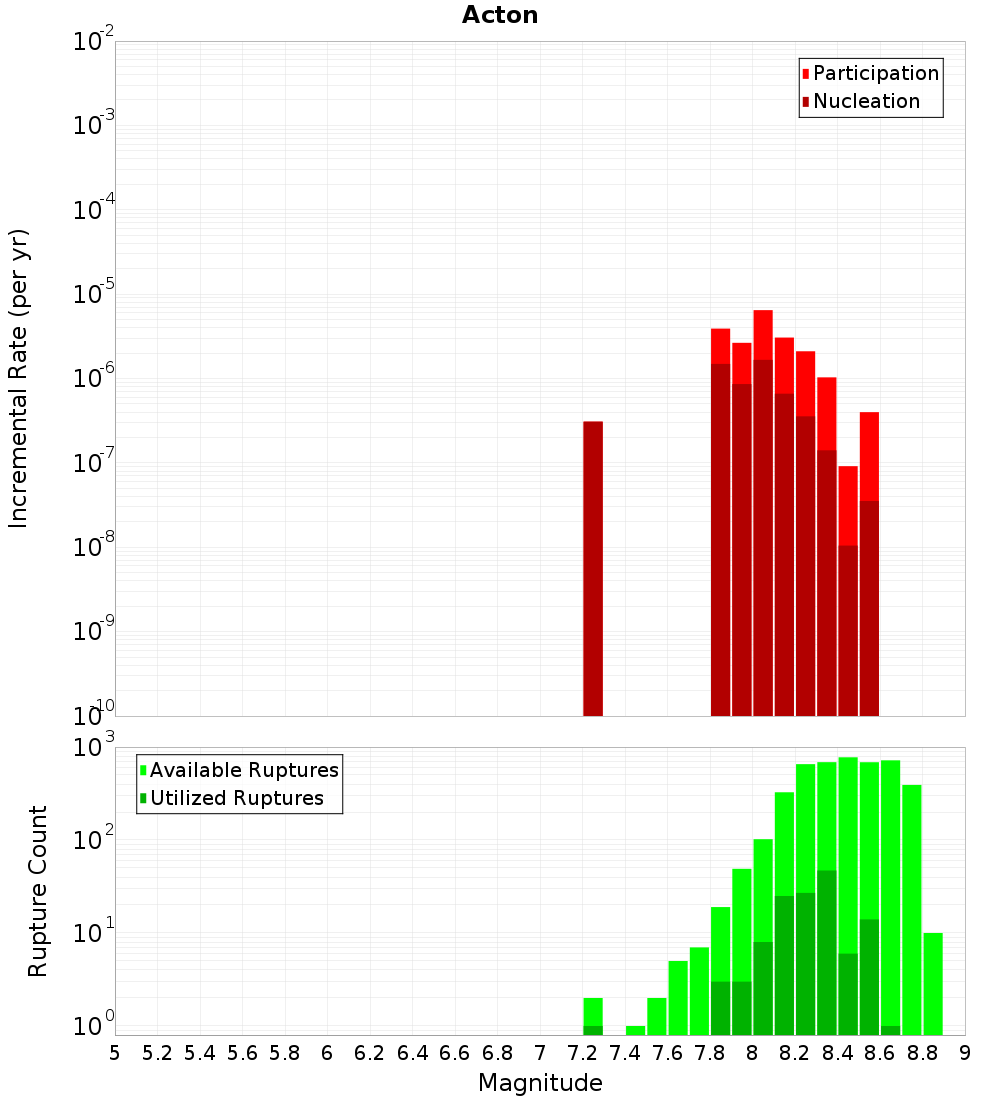

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

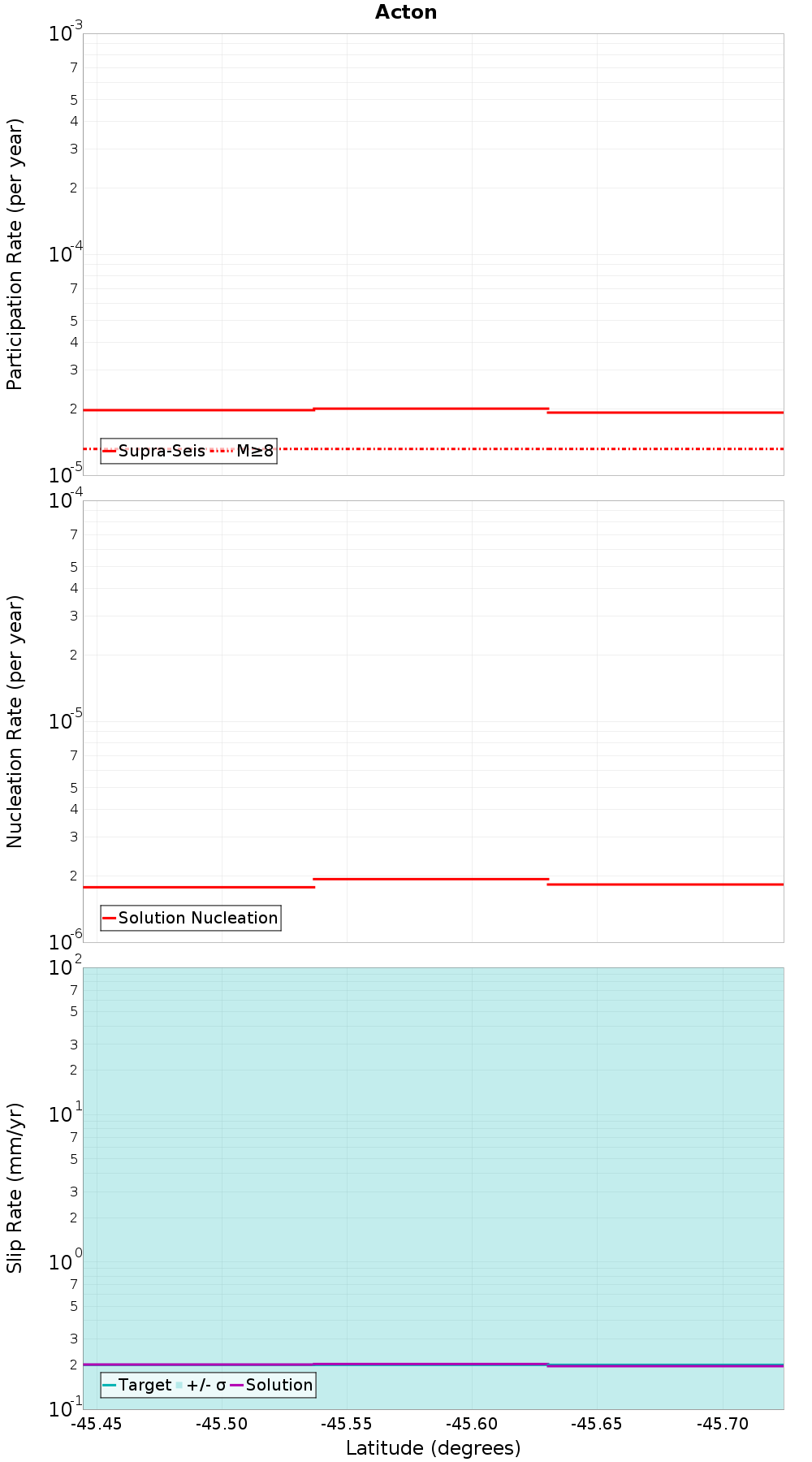

Along-Strike Values
Moment-Rates and b-Values

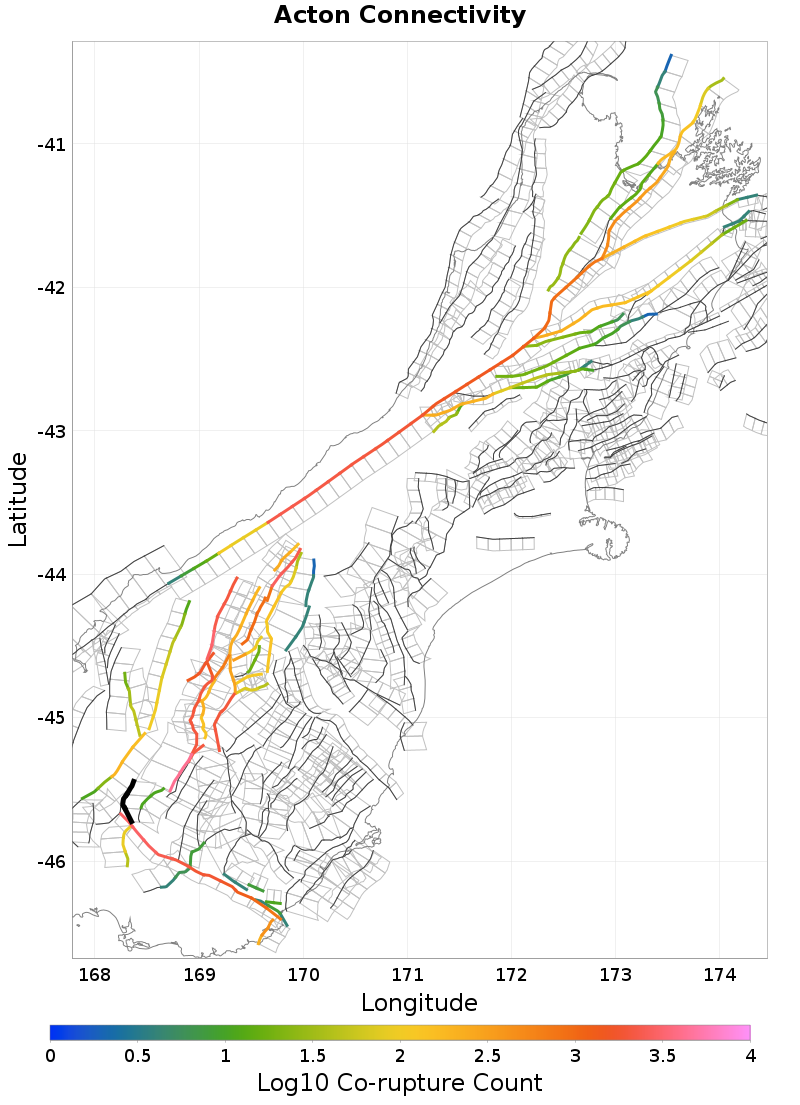

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Nevis, 0.95 km away |
| Mossburn, 1.57 km away |
| Hokonui, 1.83 km away |
| White Hill, 3.1 km away |
| Mid Dome, 3.19 km away |
| Moonlight South, 11.93 km away |
Nevis, 0.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,201 |
| Co-rupture Rate | 1.9674471E-5 |
Mossburn, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hokonui, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,902 |
| Co-rupture Rate | 3.2100636E-6 |
White Hill, 3.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 86 |
| Co-rupture Rate | 8.1597886E-7 |
Mid Dome, 3.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 7.5609685E-15 |
Moonlight South, 11.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 194 |
| Co-rupture Rate | 1.9776007E-8 |
