Bidwill Details

PropertyValue
Rupture Count1,231
Ruptures Above Sect Min Mag1,230
Ruptures w/ Nonzero Rates126
Magnitude Range[6.82, 8.31]
Length Range[15, 447] km
Total Rate2.6205706E-5 /yr
Multi-Fault Rate2.6205706E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults75

Table Of Contents

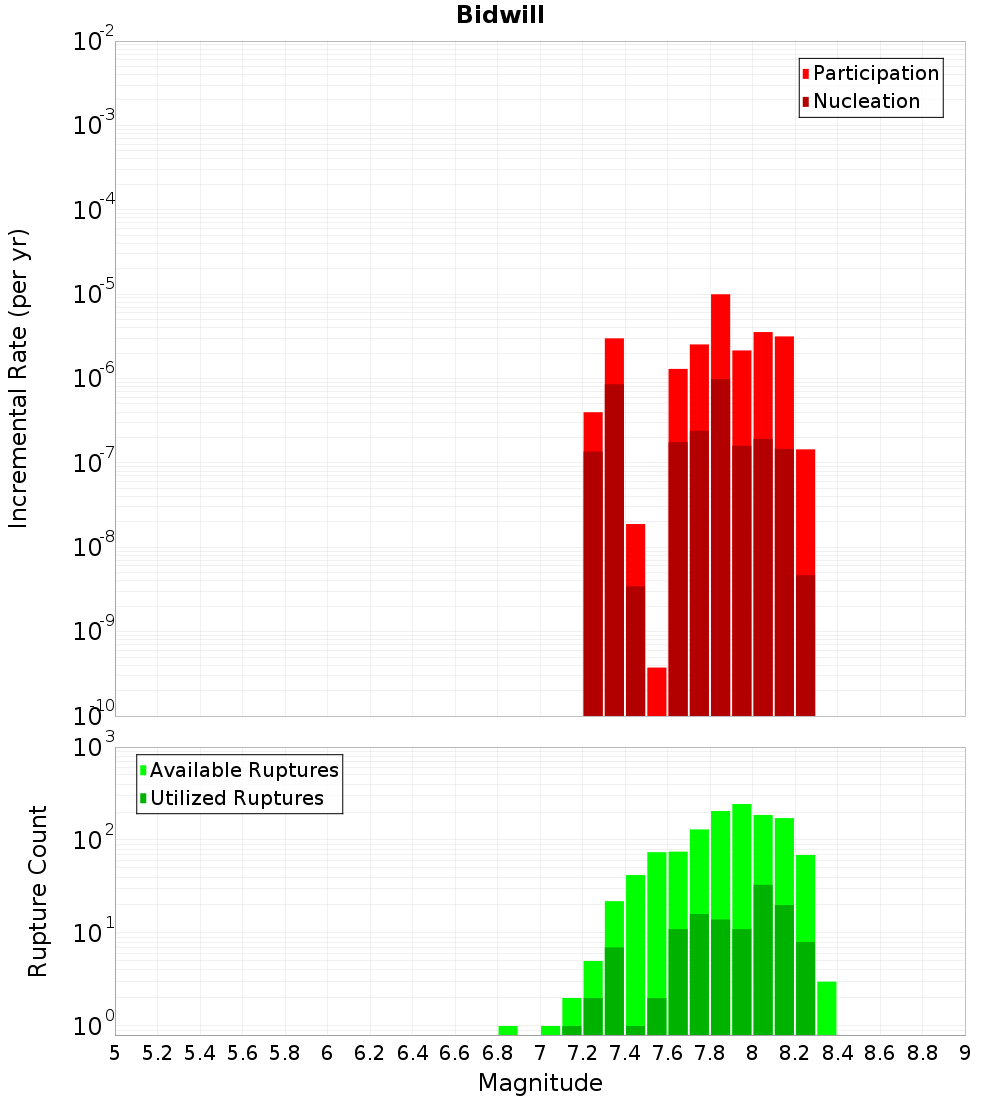

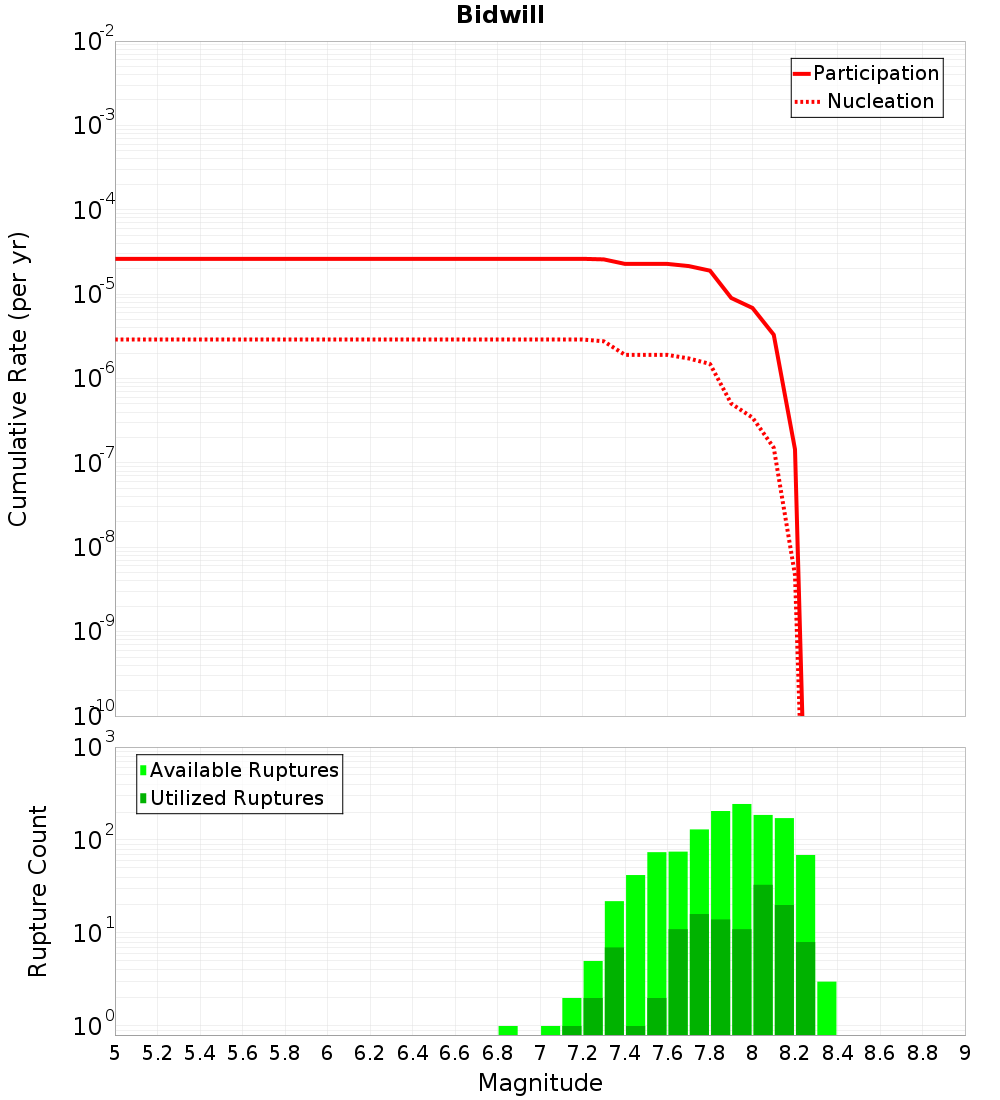

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

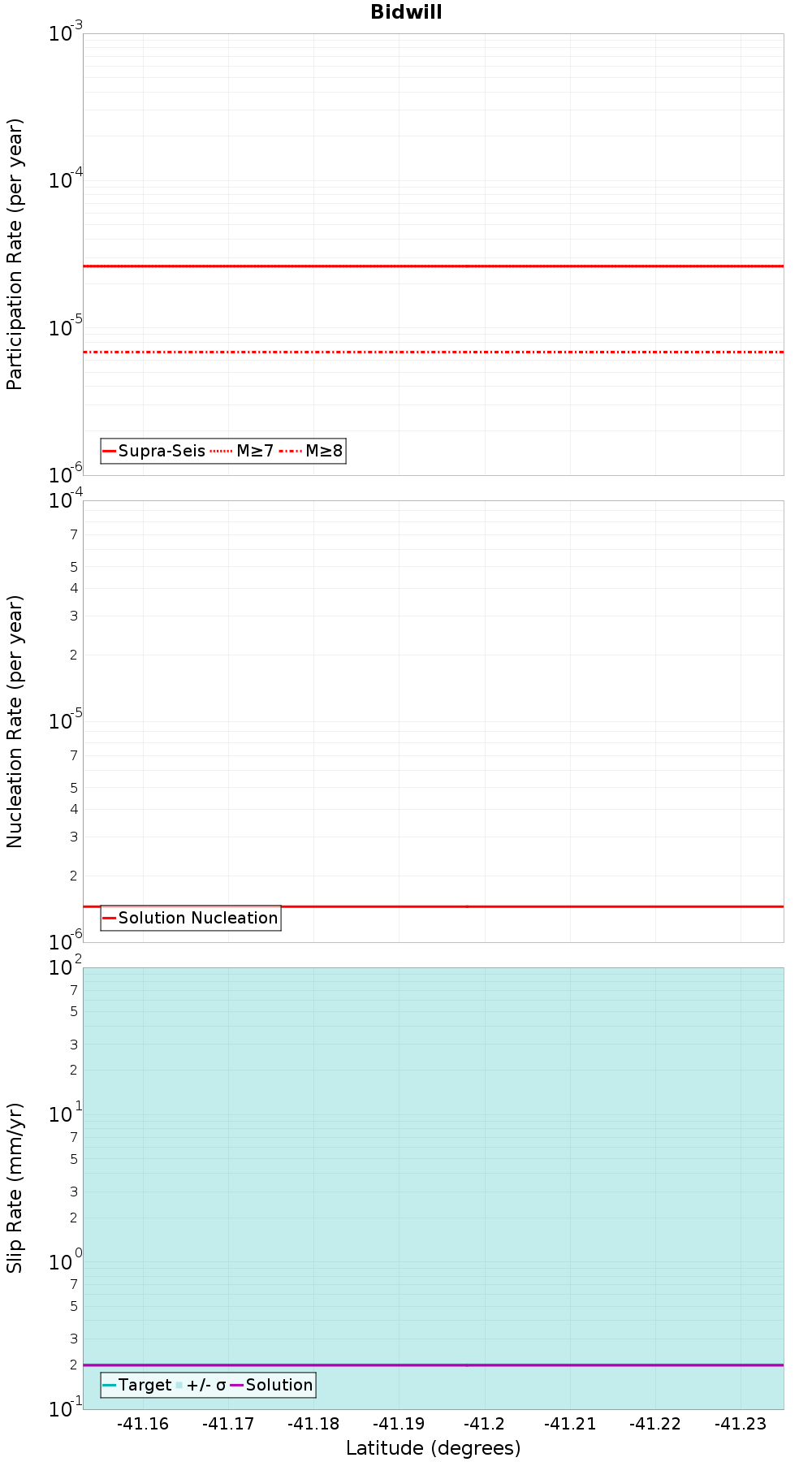

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

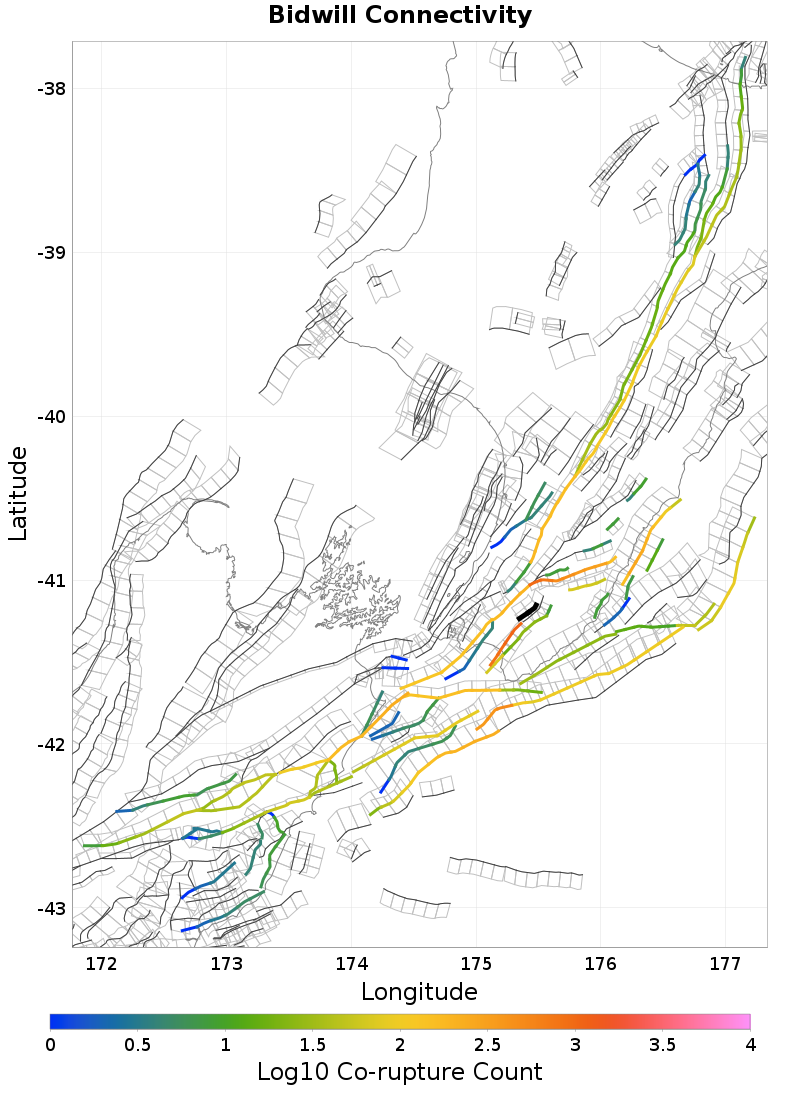

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Martinborough, 2.26 km away
Carterton, 3.31 km away
Otaraia, 3.57 km away
Wellington Hutt Valley: 5, 6 km away
Dry River - Huangarua: 2, 7.05 km away
Dry River - Huangarua: 1, 7.05 km away
Wairarapa: 2, 7.72 km away
Masterton, 8.19 km away
Dry River - Huangarua: 3, 8.48 km away
Wairarapa: 3, 10.11 km away

Martinborough, 2.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Carterton, 3.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?true
Directly Connected?true
Co-rupture Count968
Co-rupture Rate1.9014247E-5

Otaraia, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?true
Directly Connected?true
Co-rupture Count1,068
Co-rupture Rate1.3727518E-5

Wellington Hutt Valley: 5, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 2, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate2.8193826E-6

Dry River - Huangarua: 1, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate3.4874663E-6

Wairarapa: 2, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?true
Directly Connected?false
Co-rupture Count202
Co-rupture Rate2.4279752E-6

Masterton, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.523311E-6

Dry River - Huangarua: 3, 8.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate5.6893543E-7

Wairarapa: 3, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
