Brothers Details
| Property | Value |
|---|---|
| Rupture Count | 1,857 |
| Ruptures Above Sect Min Mag | 1,854 |
| Ruptures w/ Nonzero Rates | 123 |
| Magnitude Range | [7.08, 8.45] |
| Length Range | [21, 538] km |
| Total Rate | 1.1055116E-5 /yr |
| Multi-Fault Rate | 1.1055116E-5 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 64 |
Table Of Contents

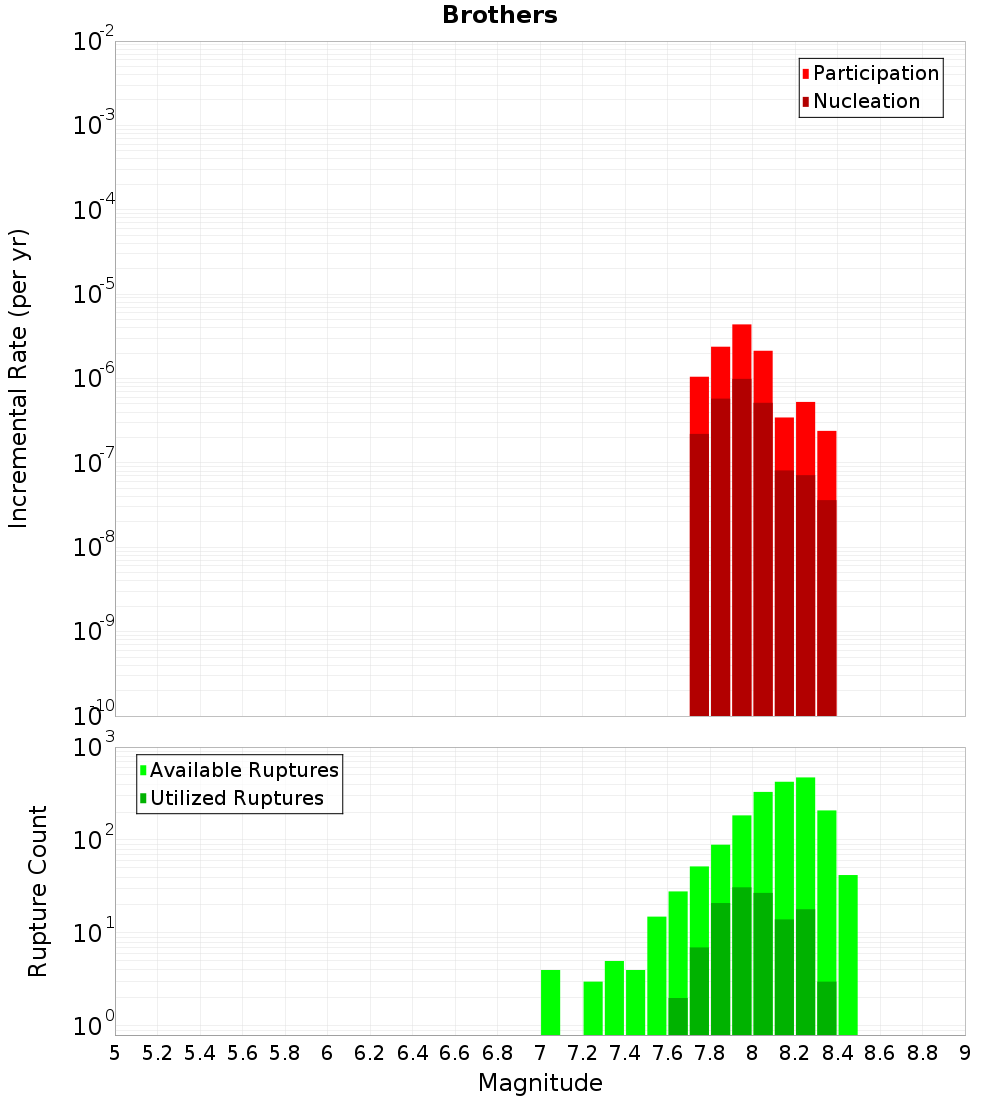

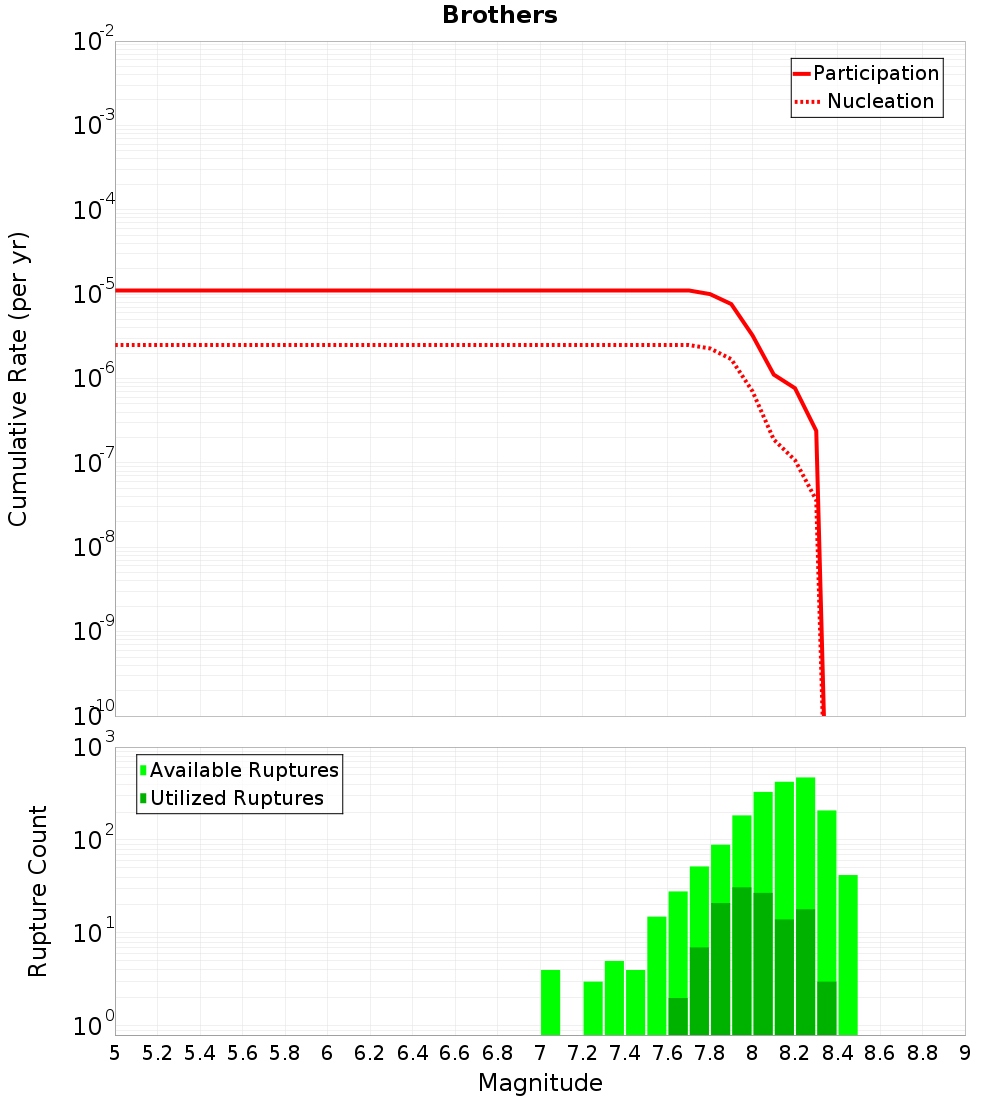

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

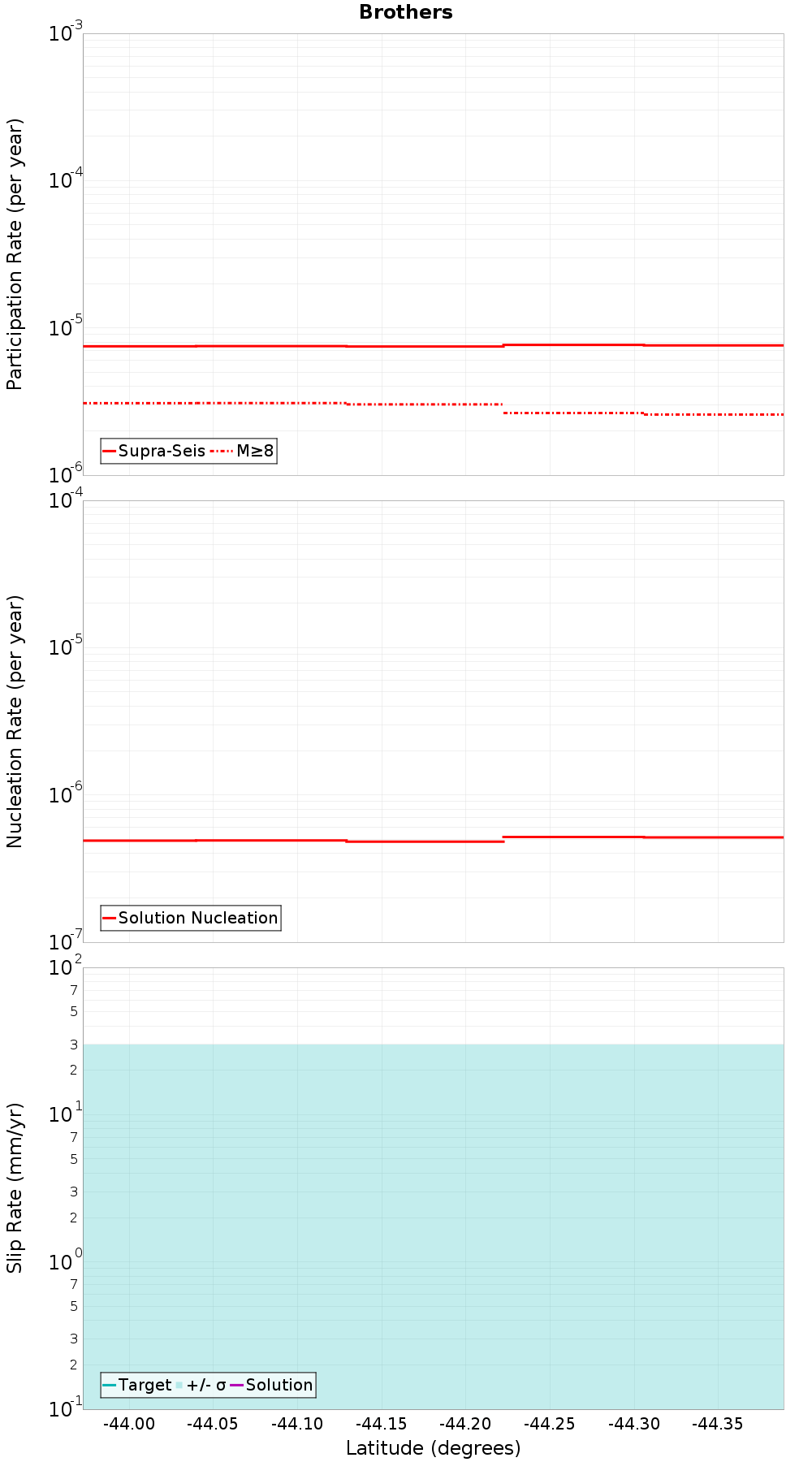

Along-Strike Values
Moment-Rates and b-Values

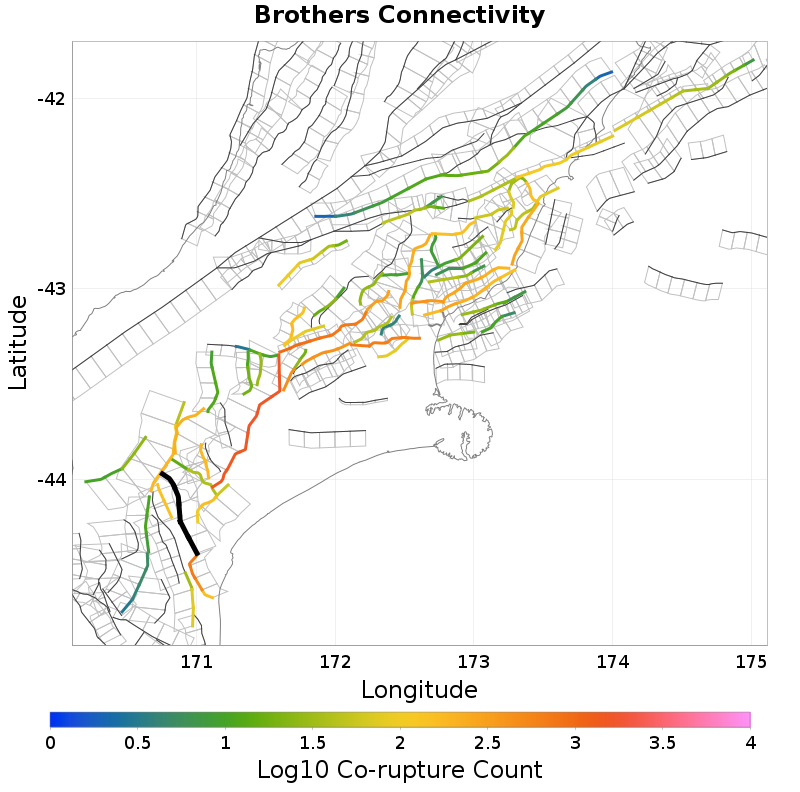

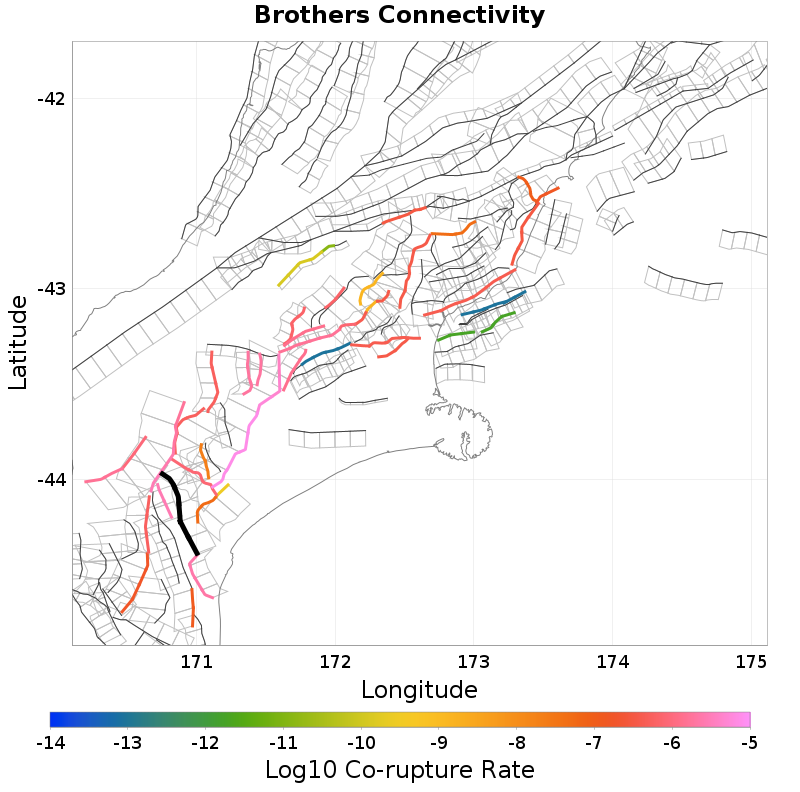

Connectivity
 |  |
|---|
Nearby Sections
Sugarloaf, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 7.9754807E-7 |
Hutt Peel, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,646 |
| Co-rupture Rate | 7.3035794E-6 |
Catherine, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 175 |
| Co-rupture Rate | 2.1435632E-8 |
Maungati, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 696 |
| Co-rupture Rate | 2.295095E-6 |
Fox Peak, 1.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 214 |
| Co-rupture Rate | 2.9824114E-6 |
Edith, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 4.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 155 |
| Co-rupture Rate | 5.0297285E-8 |
Albury, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 139 |
| Co-rupture Rate | 2.735162E-6 |
Irishman Creek, 7.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 1.6862107E-6 |
Hunters, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 75 |
| Co-rupture Rate | 1.1863613E-7 |
Ben McLeod, 8.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 214 |
| Co-rupture Rate | 5.3467573E-7 |
Opawa, 8.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chamberlain, 12.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwMzkuMG1VTEdx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
