Pisa Details

PropertyValue
Rupture Count49,572
Ruptures Above Sect Min Mag49,571
Ruptures w/ Nonzero Rates103
Magnitude Range[7.14, 8.52]
Length Range[32, 963] km
Total Rate3.7113674E-5 /yr
Multi-Fault Rate3.7113674E-5 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults89

Table Of Contents

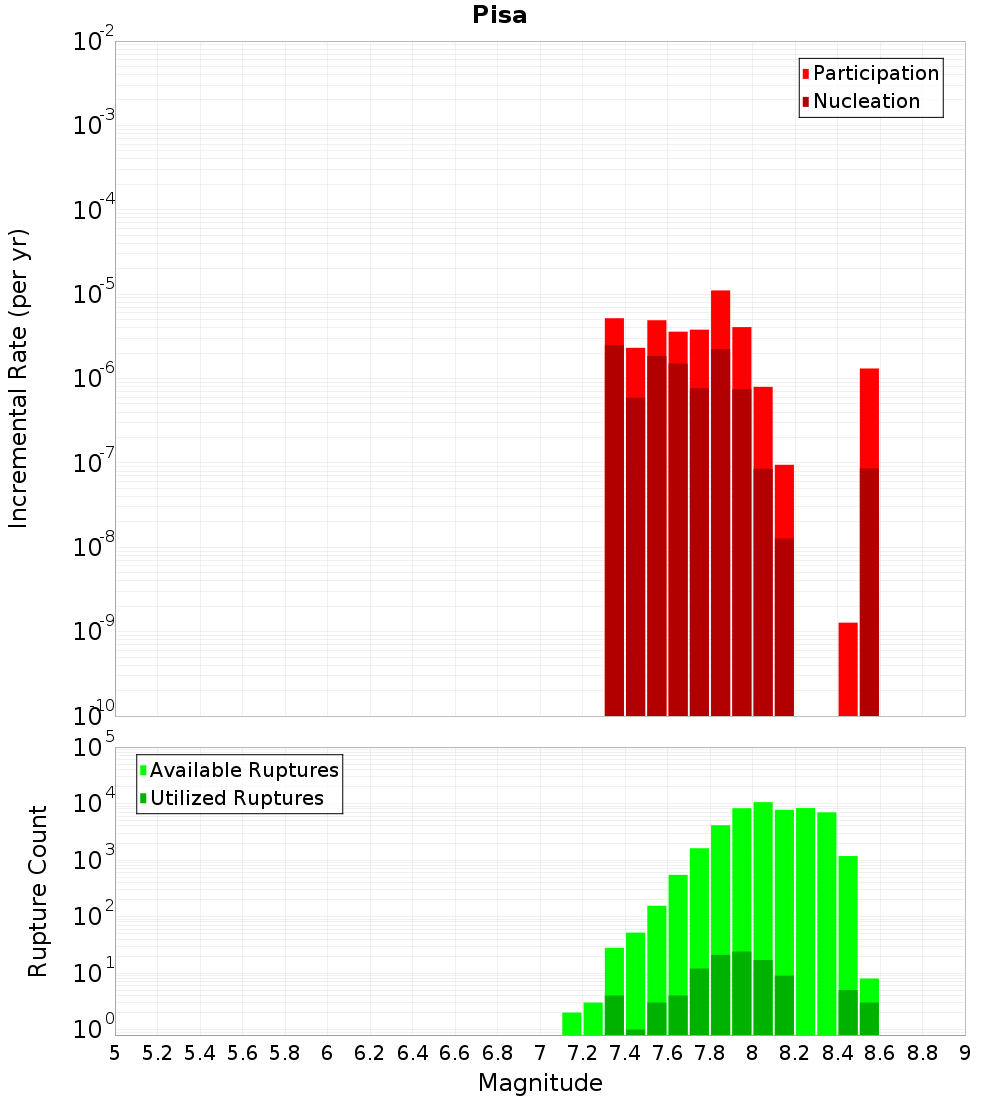

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

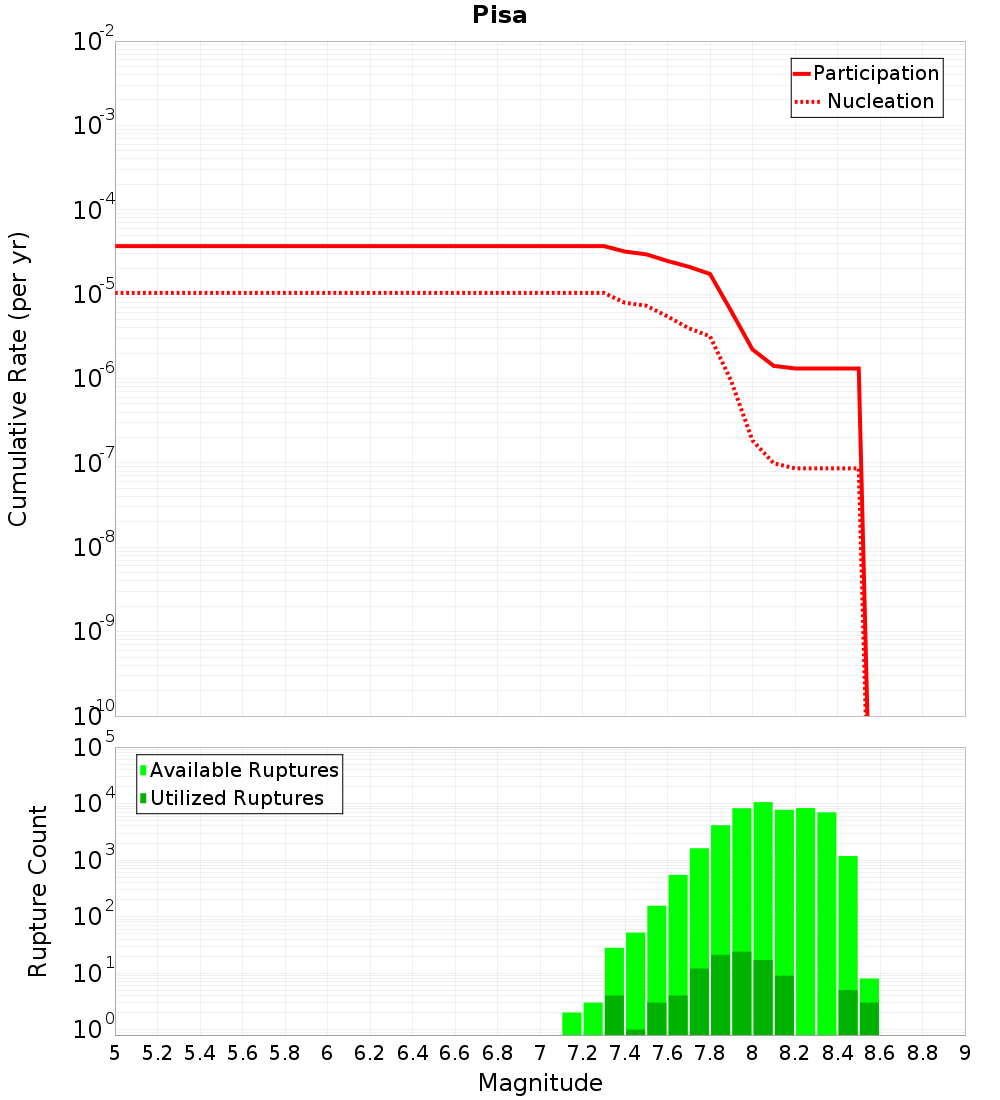

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Motatapu, 0.13 km awayNW Cardrona South, 5.46 km away
Roaring Meg, 0.18 km awayGoodger, 7.74 km away
Paddys Ridge, 0.29 km awayGalloway, 7.93 km away
Roaring Lion, 0.83 km awayGarvie, 8.36 km away
Grandview, 1.55 km awayNW Cardrona North, 9.29 km away
Old Man, 1.75 km awayNevis, 9.56 km away
Cluden, 1.98 km awayLindis River, 12.93 km away
Dunstan, 4.43 km awayCardrona - Hawea, 13.25 km away

Motatapu, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count27,303
Co-rupture Rate2.0799653E-5

Roaring Meg, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count10,705
Co-rupture Rate1.2660302E-5

Paddys Ridge, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count3,759
Co-rupture Rate3.690976E-6

Roaring Lion, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count16,574
Co-rupture Rate8.897458E-6

Grandview, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count7,727
Co-rupture Rate9.5919255E-8

Old Man, 1.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count20,623
Co-rupture Rate1.9815634E-6

Cluden, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count1,465
Co-rupture Rate1.277351E-5

Dunstan, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?false
Co-rupture Count454
Co-rupture Rate0.0

NW Cardrona South, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count5,891
Co-rupture Rate2.0995983E-6

Goodger, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count1,505
Co-rupture Rate0.0

Galloway, 7.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 8.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?true
Co-rupture Count7,567
Co-rupture Rate1.05845065E-5

NW Cardrona North, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?false
Co-rupture Count10,821
Co-rupture Rate8.375378E-6

Nevis, 9.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?false
Co-rupture Count3,810
Co-rupture Rate1.337975E-6

Lindis River, 12.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?false
Co-rupture Count409
Co-rupture Rate1.2253566E-9

Cardrona - Hawea, 13.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNjYuMGZkOHho
Connected?true
Directly Connected?false
Co-rupture Count9,171
Co-rupture Rate6.0203024E-6
