Waipiata Details

Property	Value
Rupture Count	459
Ruptures Above Sect Min Mag	458
Ruptures w/ Nonzero Rates	23
Magnitude Range	[7.03, 8.09]
Length Range	[23, 275] km
Total Rate	2.5090876E-5 /yr
Multi-Fault Rate	2.1400341E-5 /yr (85.29%)
Directly-Connected Faults	8
All Co-Rupturing Faults	38

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

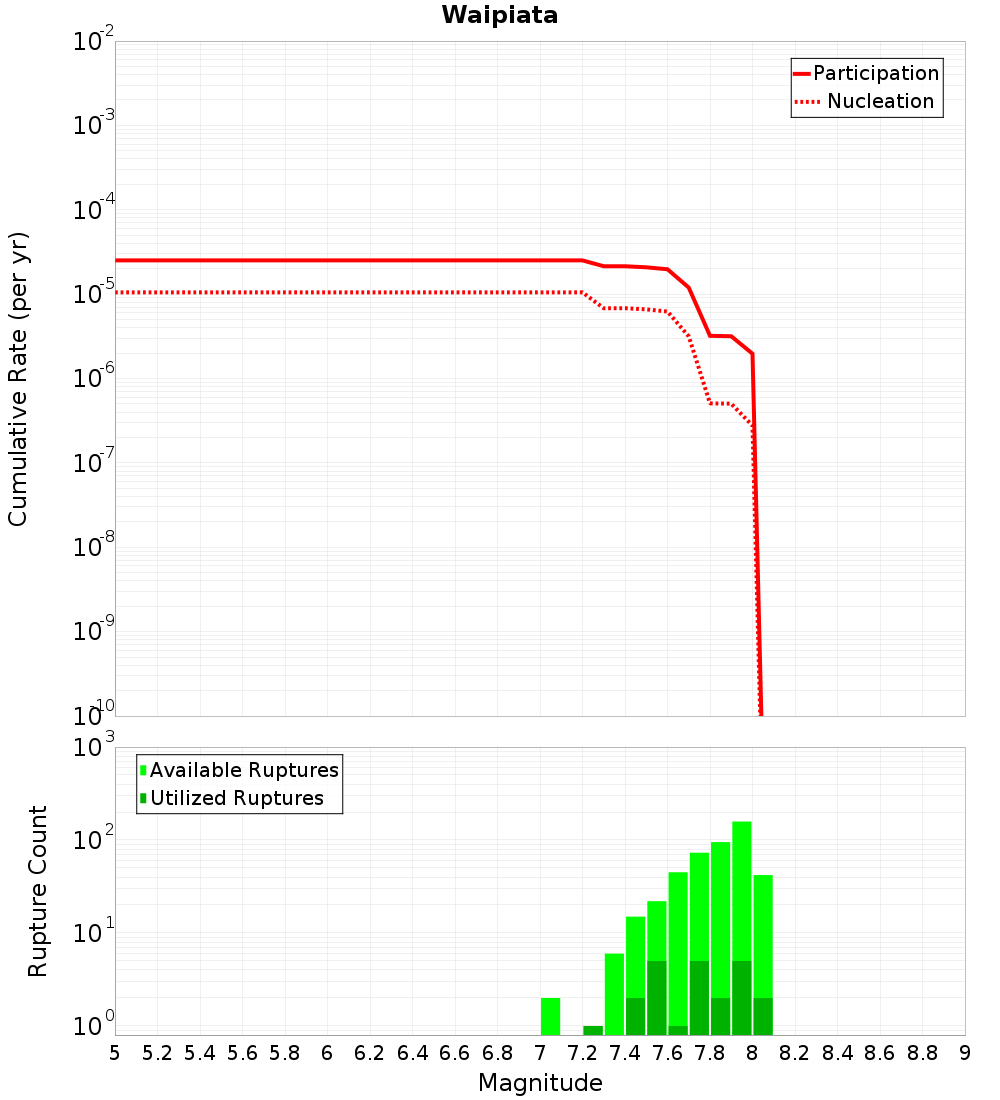

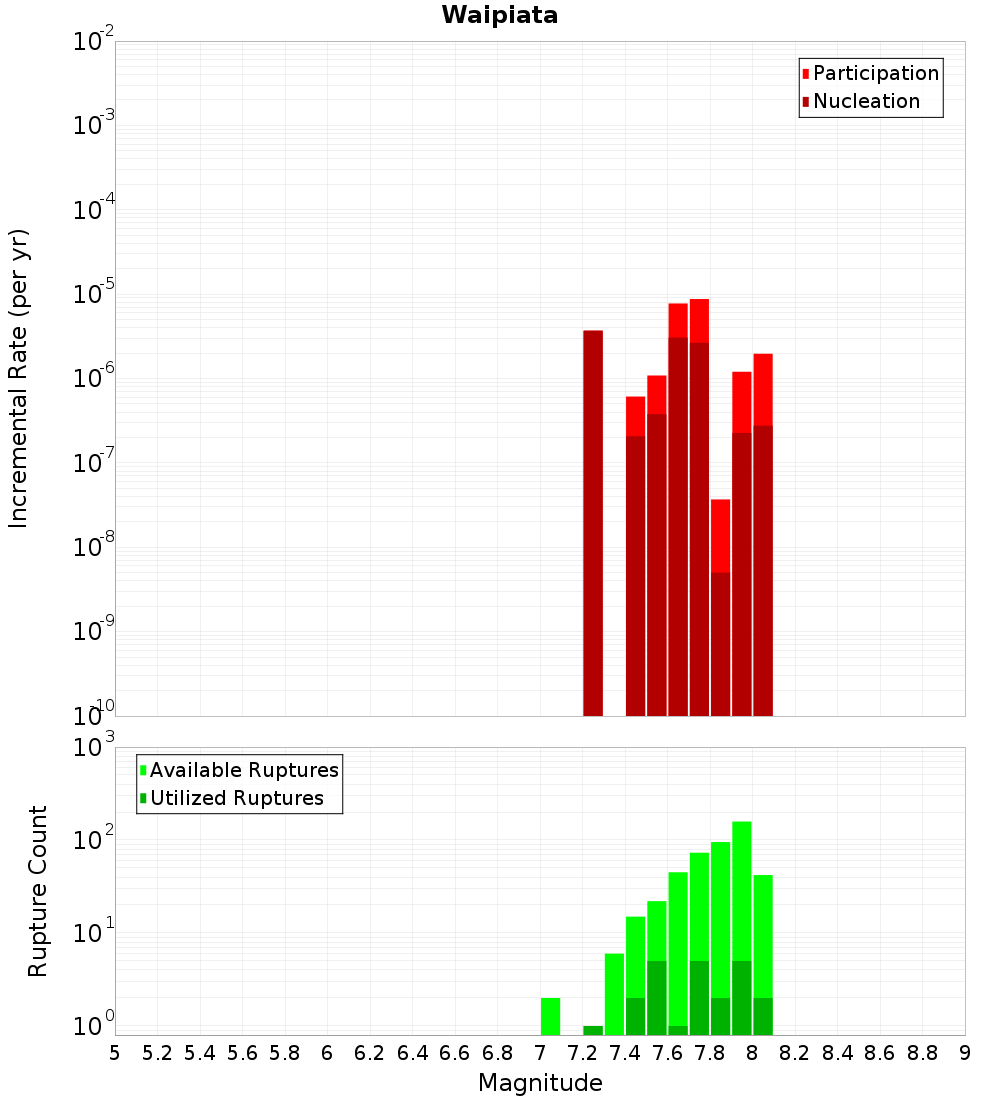

Magnitude-Frequency Distribution

Incremental	Cumulative

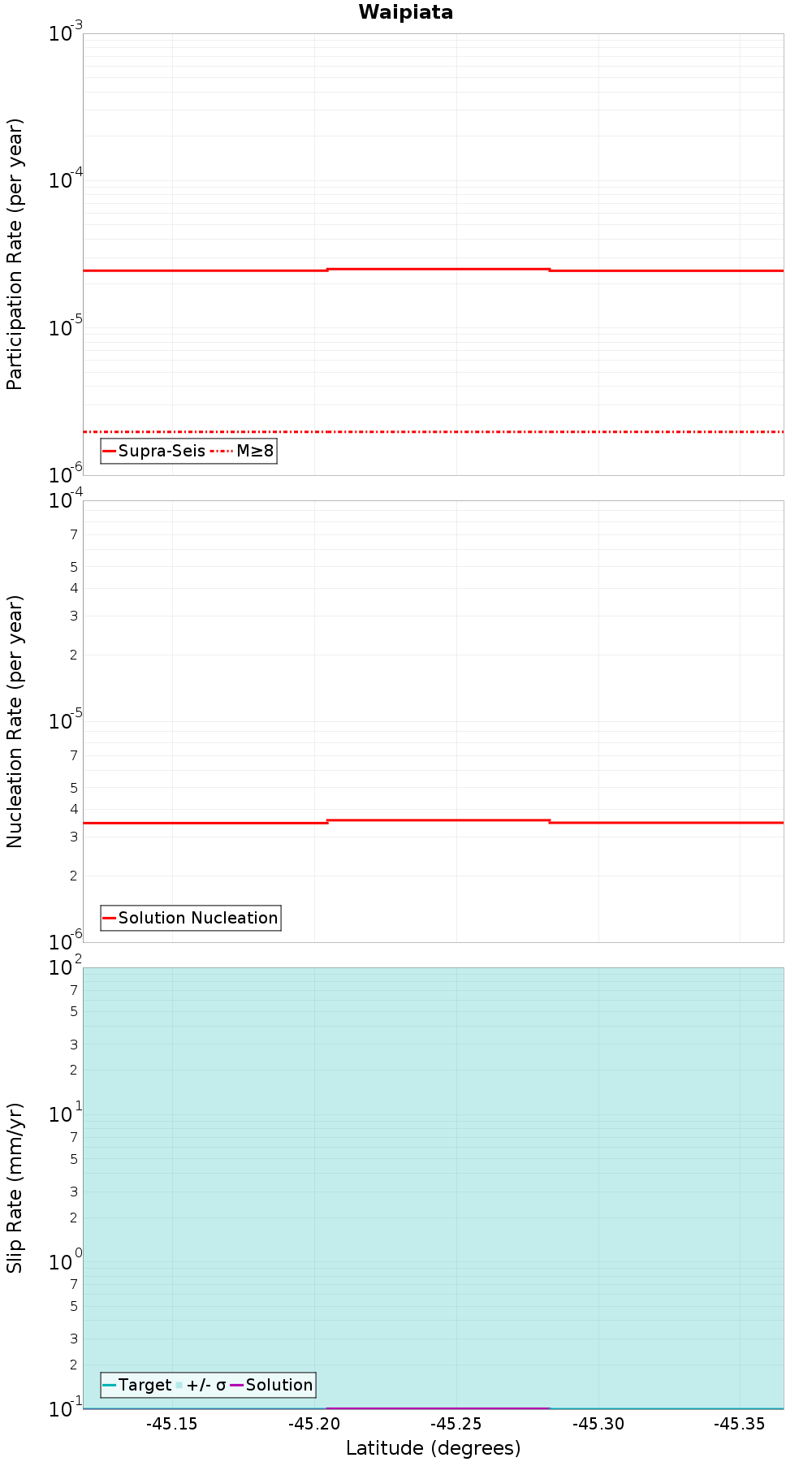

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Billys Ridge, 0.21 km away
Murphys Creek, 0.21 km away
Horse Flat, 0.24 km away
Hyde North, 0.42 km away
Dunback Hill, 0.51 km away
Ranfurly, 2.79 km away
Pylap, 3.22 km away
Flat Stream - Glenpark, 5.65 km away
Logan Burn, 6.25 km away
Gimmerburn, 7.59 km away
Waihemo, 7.68 km away
Nichols Rock, 8.44 km away
Cross Eden, 10.38 km away
Long Valley, 12.3 km away
Sliver Stream - Merton, 14.54 km away

Billys Ridge, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	0.0

Murphys Creek, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	6.6801033E-7

Horse Flat, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	55
Co-rupture Rate	0.0

Hyde North, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	62
Co-rupture Rate	1.8069031E-5

Dunback Hill, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	1.4814011E-8

Ranfurly, 2.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	6.332931E-7

Pylap, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	302
Co-rupture Rate	2.3126279E-6

Flat Stream - Glenpark, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	3.6416776E-7

Logan Burn, 6.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	false
Co-rupture Count	137
Co-rupture Rate	6.6804574E-7

Gimmerburn, 7.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	1.6657953E-6

Waihemo, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	1.34961695E-8

Nichols Rock, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	3.4935374E-7

Cross Eden, 10.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Long Valley, 12.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	1.6657953E-6

Sliver Stream - Merton, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwNzIuMDZNUG84
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0
