Barefell Details
| Property | Value |
|---|---|
| Rupture Count | 2,653 |
| Ruptures Above Sect Min Mag | 2,652 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.91, 8.46] |
| Length Range | [18, 803] km |
| Total Rate | 1.0449091E-4 /yr |
| Multi-Fault Rate | 1.0449091E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 89 |
Table Of Contents

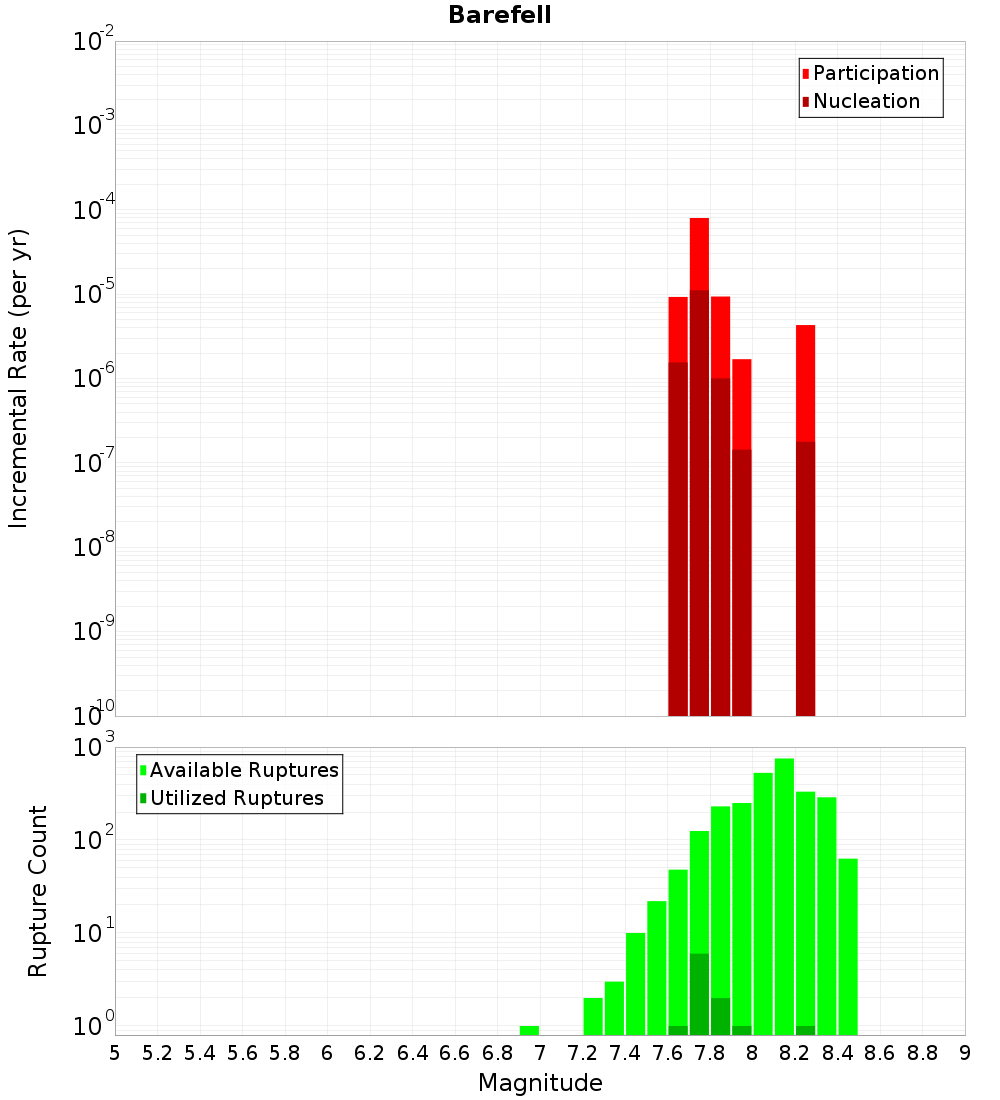

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

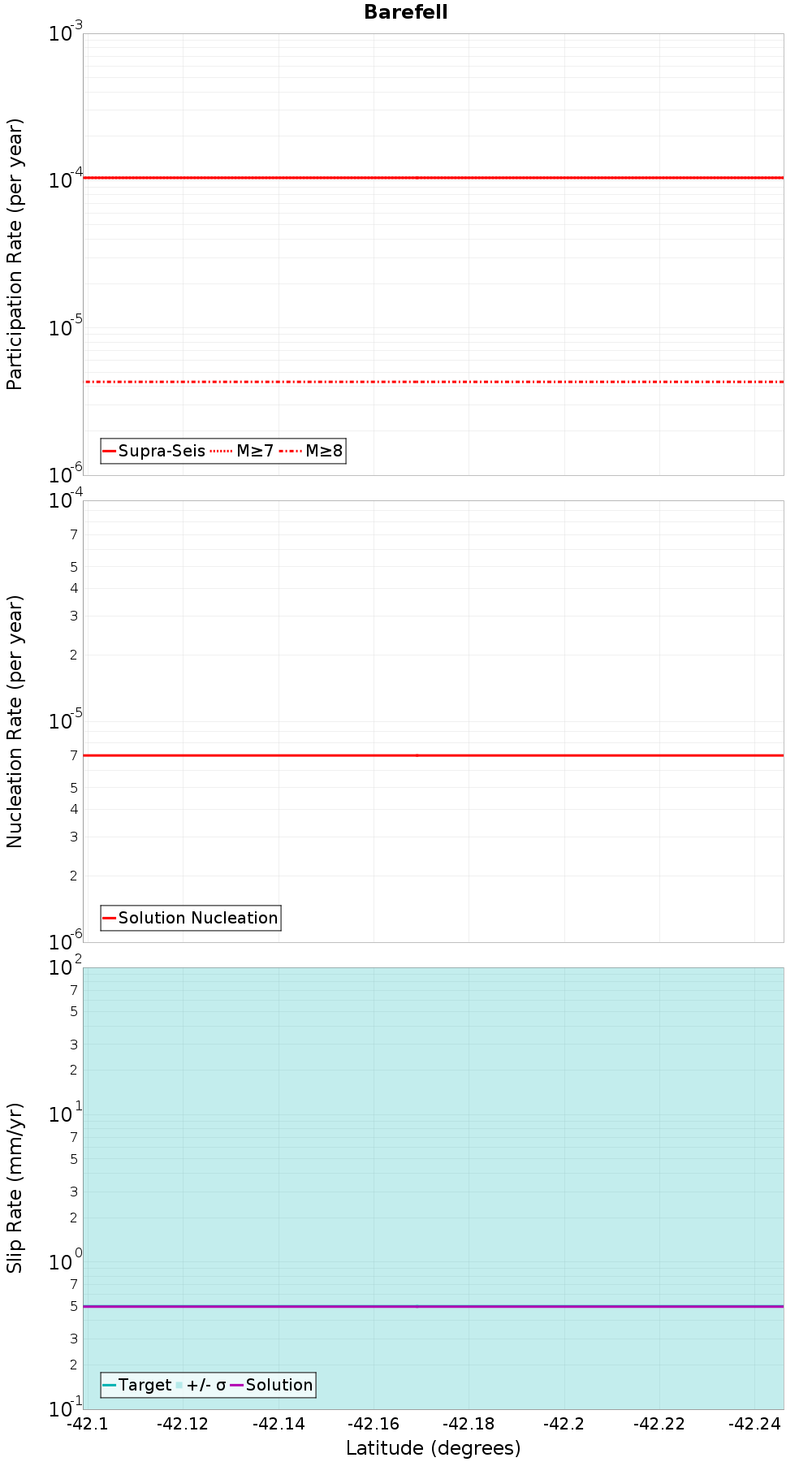

Along-Strike Values
Moment-Rates and b-Values

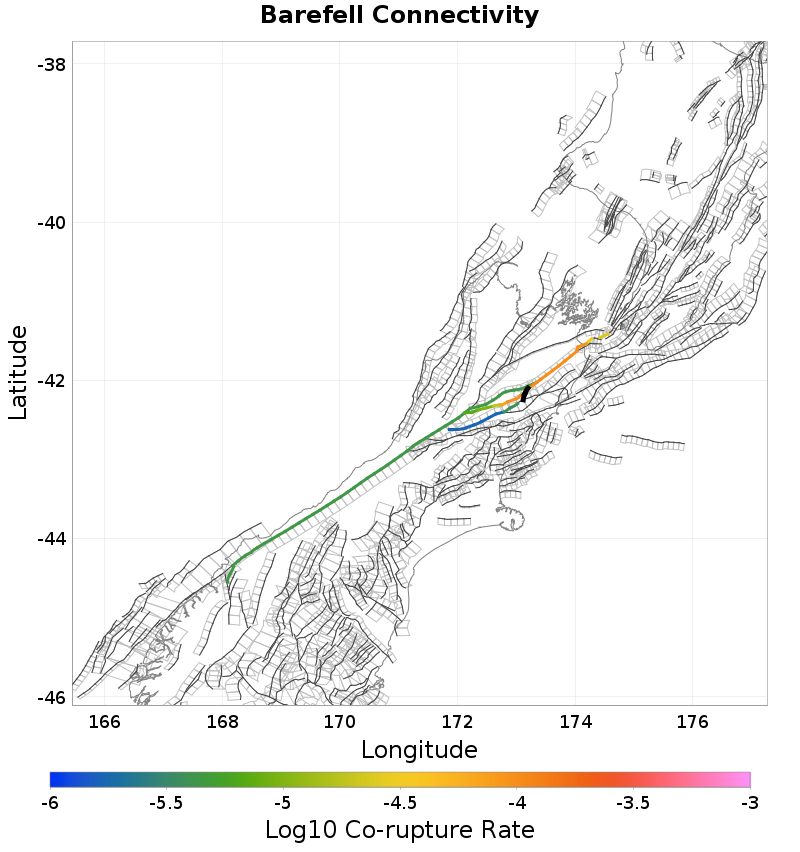

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Awatere: Northeast 1, 0 km away |
| Clarence: Central, 0.11 km away |
| Awatere: Southwest, 0.17 km away |
| Fowlers, 0.26 km away |
| Elliott, 8.47 km away |
Awatere: Northeast 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTAuMHF5emZ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,405 |
| Co-rupture Rate | 1.0019151E-4 |
Clarence: Central, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTAuMHF5emZ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 505 |
| Co-rupture Rate | 3.6592585E-6 |
Awatere: Southwest, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTAuMHF5emZ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 235 |
| Co-rupture Rate | 4.2994E-6 |
Fowlers, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTAuMHF5emZ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,159 |
| Co-rupture Rate | 1.0019151E-4 |
Elliott, 8.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTAuMHF5emZ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
