Flat Stream - Glenpark Details

PropertyValue
Rupture Count96
Ruptures Above Sect Min Mag94
Ruptures w/ Nonzero Rates10
Magnitude Range[6.98, 8.03]
Length Range[23, 219] km
Total Rate1.7276874E-5 /yr
Multi-Fault Rate8.813648E-6 /yr (51.01%)
Directly-Connected Faults4
All Co-Rupturing Faults11

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

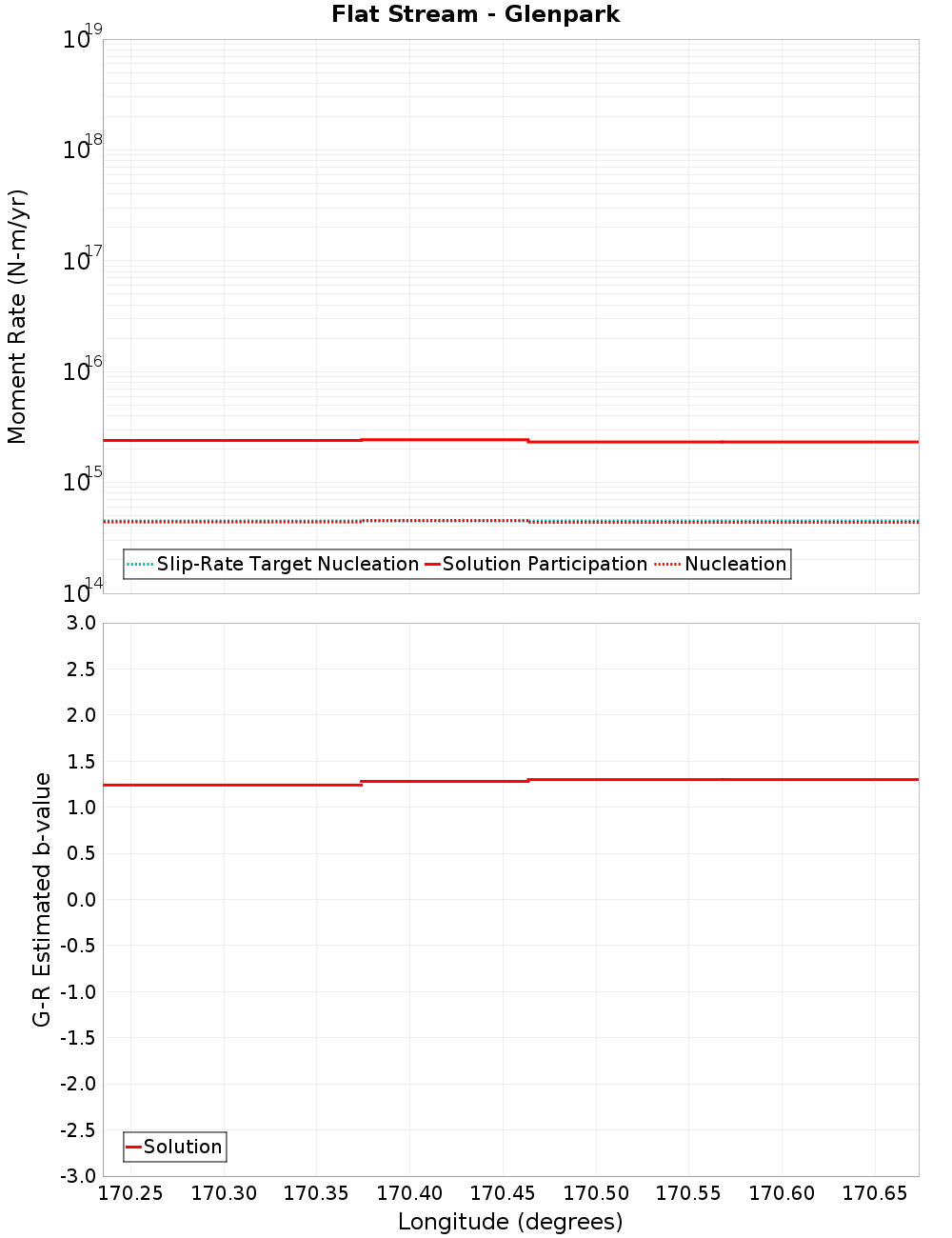

Moment-Rates and b-Values

(top)

Along-strike plot

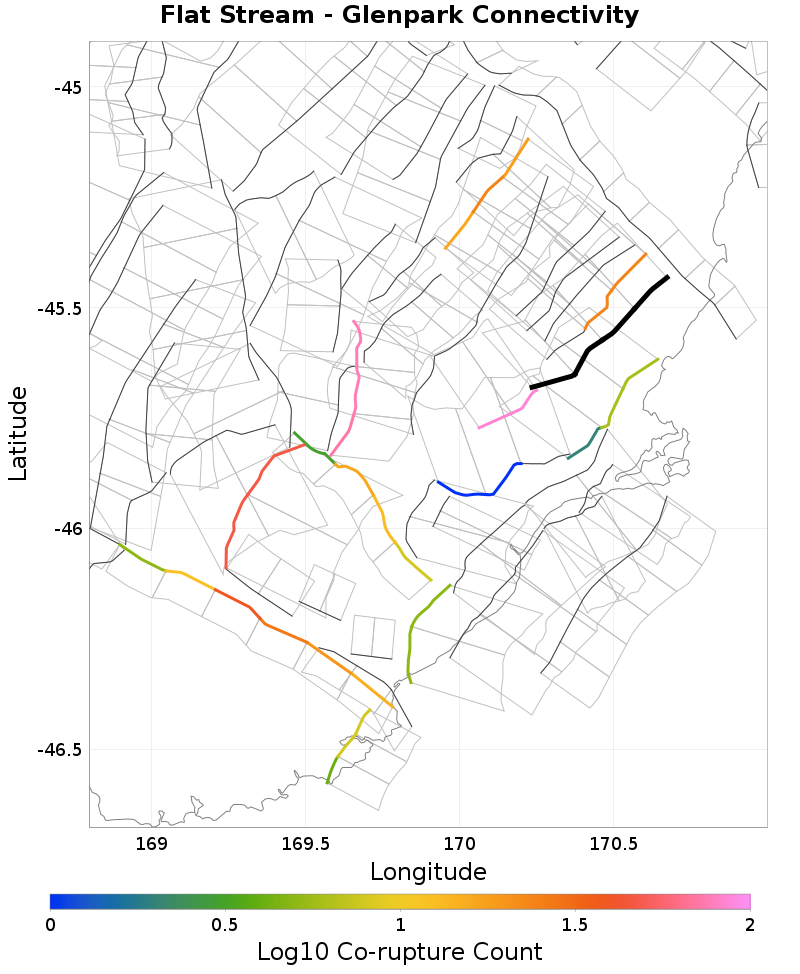

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Nichols Rock, 0.34 km away
Dunback Hill, 2.82 km away
Waihemo, 3.2 km away
Waipiata, 5.65 km away
Logan Burn, 6.4 km away
Murphys Creek, 7.18 km away
Sliver Stream - Merton, 8.28 km away
Billys Ridge, 9.9 km away
Maungatua - North Taieri, 11.66 km away
Pylap, 12.38 km away
Ranfurly, 13.03 km away
Horse Flat, 13.11 km away
Hyde North, 14.79 km away

Nichols Rock, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate7.855984E-6

Dunback Hill, 2.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate4.4056564E-10

Waihemo, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipiata, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate5.043483E-7

Logan Burn, 6.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Murphys Creek, 7.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 8.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate9.572387E-7

Billys Ridge, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Pylap, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 13.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Horse Flat, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde North, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
