Sailor Details

Property	Value
Rupture Count	126
Ruptures Above Sect Min Mag	121
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.67, 8.07]
Length Range	[16, 298] km
Total Rate	5.045348E-5 /yr
Multi-Fault Rate	5.045348E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

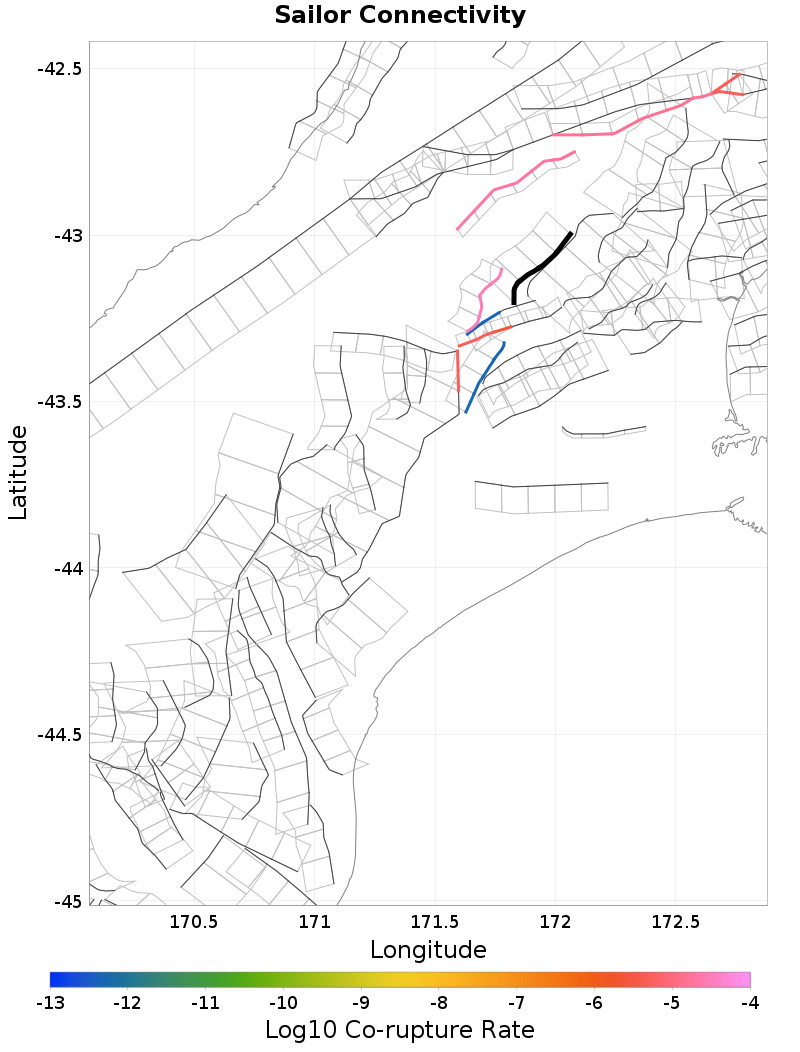

Connectivity
- Nearby Sections

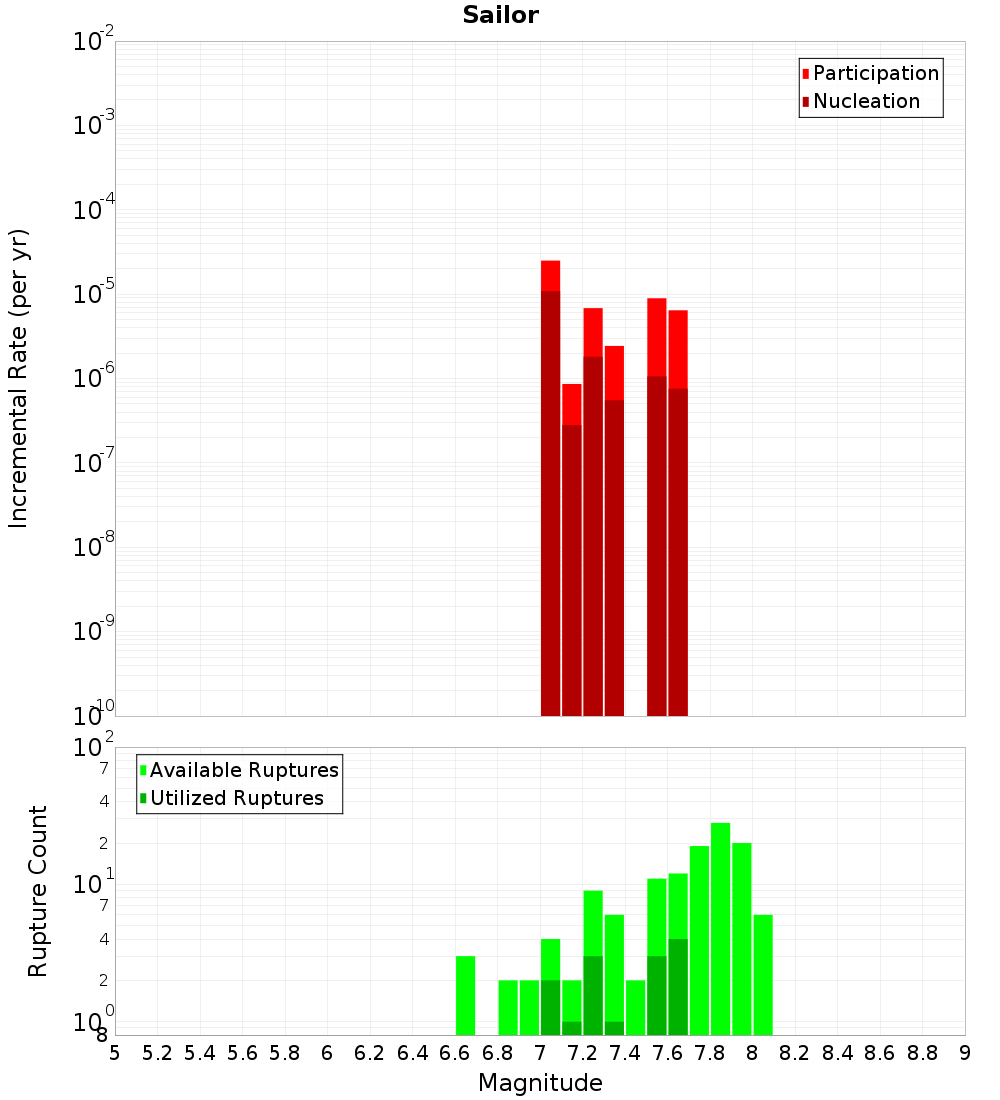

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Esk South, 0.7 km away
Torlesse, 1.39 km away
Cheeseman, 4.42 km away
Porters Pass, 7.26 km away
Pancake, 10.92 km away
Poulter, 11.01 km away
Big Ben, 13.73 km away
Lees Valley, 14.17 km away

Esk South, 0.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Torlesse, 1.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	4.855291E-13

Cheeseman, 4.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	true
Directly Connected?	true
Co-rupture Count	97
Co-rupture Rate	2.9127154E-5

Porters Pass, 7.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	5.10988E-6

Pancake, 10.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poulter, 11.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	2.1326325E-5

Big Ben, 13.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	4.855291E-13

Lees Valley, 14.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgwOTMuMFN1RFN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
