Garibaldi Details

PropertyValue
Rupture Count2,129
Ruptures Above Sect Min Mag2,128
Ruptures w/ Nonzero Rates52
Magnitude Range[7.20, 8.44]
Length Range[22, 347] km
Total Rate5.643608E-6 /yr
Multi-Fault Rate5.643608E-6 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults44

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

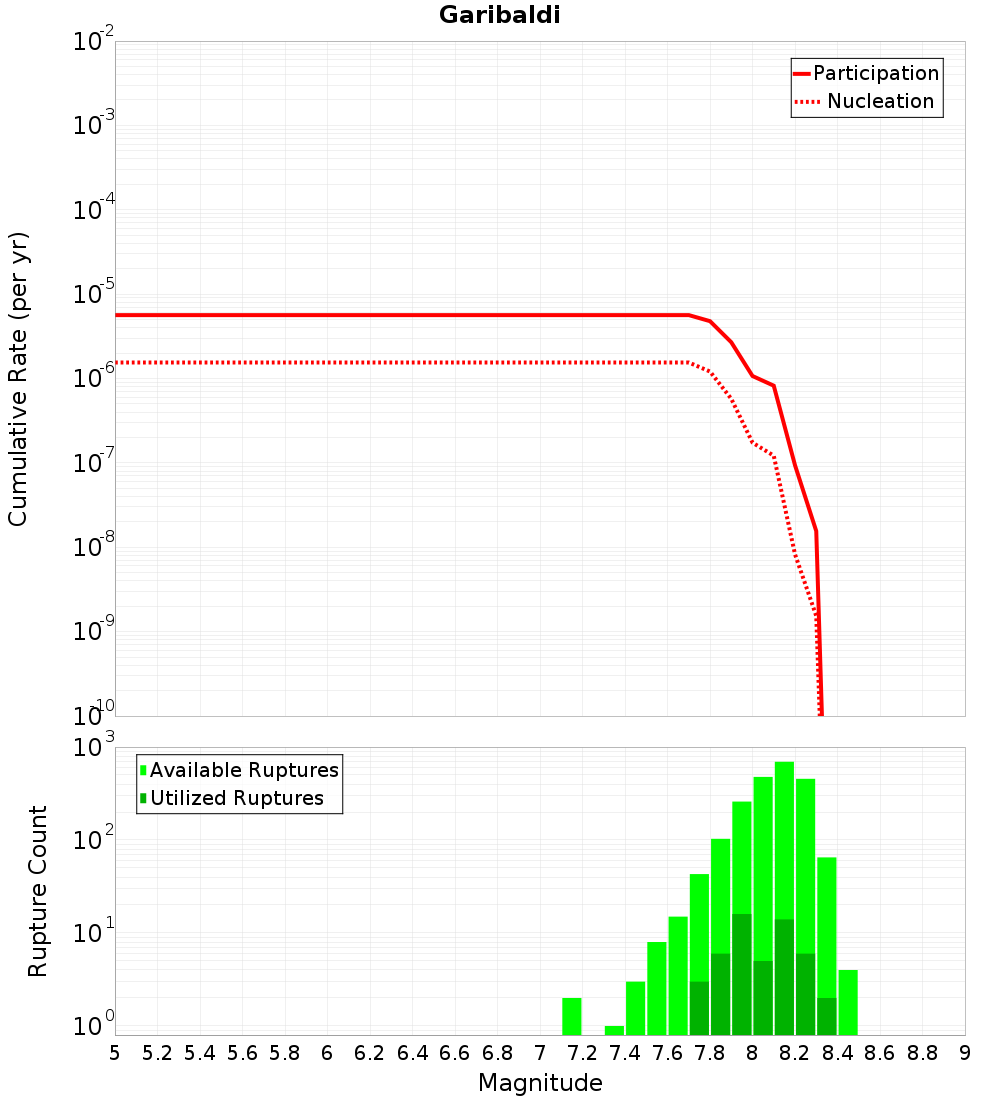

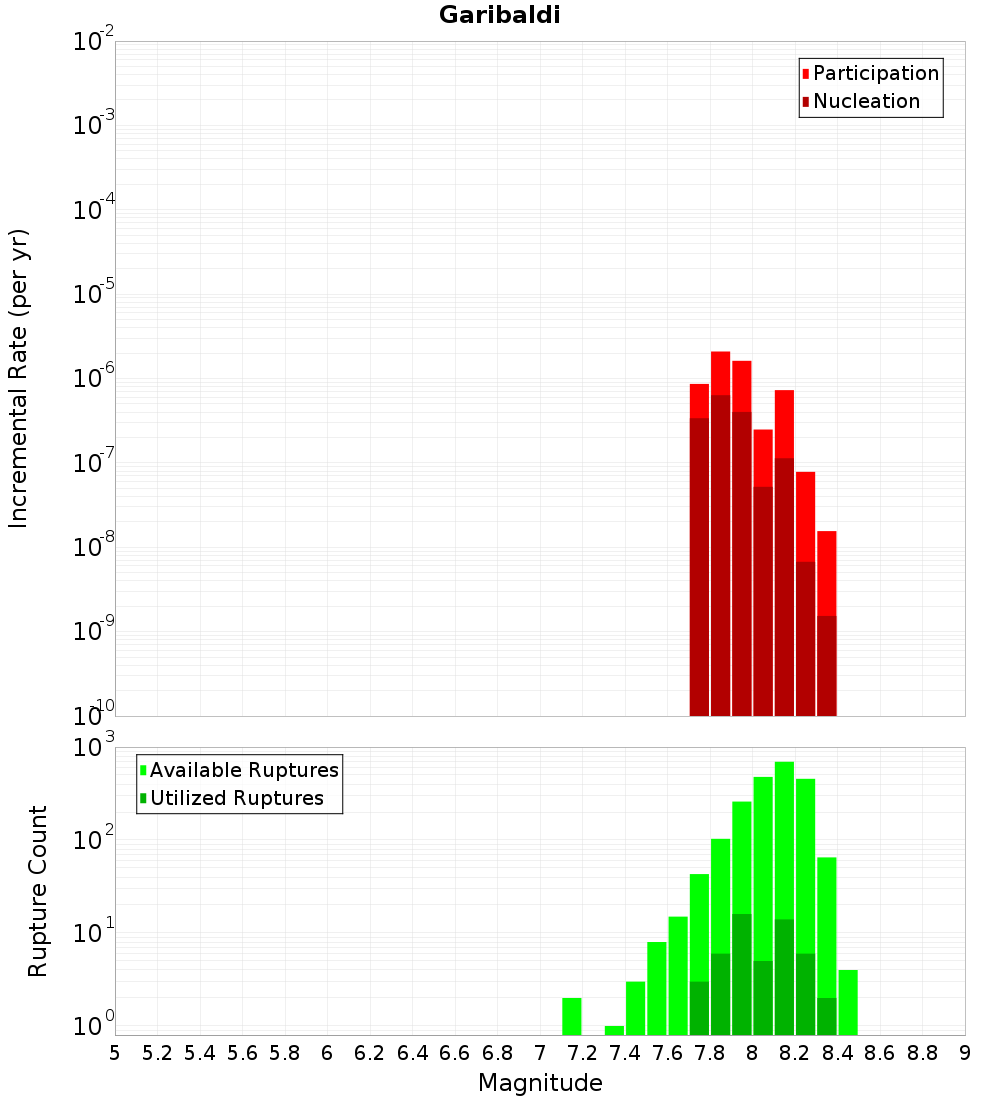

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Lake, 1.08 km away
Omarama Saddle, 3.15 km away
Hawkdun, 3.71 km away
Gimmerburn, 3.79 km away
Raggedy - Blackstone, 6.01 km away
Little Valley, 6.55 km away
Cross Eden, 7.5 km away
Waihemo, 8.5 km away
Long Valley, 11.29 km away
Ranfurly, 12.32 km away
Galloway, 13.11 km away
Goodger, 14.35 km away

Blue Lake, 1.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?true
Co-rupture Count624
Co-rupture Rate9.4051764E-8

Omarama Saddle, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?true
Co-rupture Count955
Co-rupture Rate5.4965158E-6

Hawkdun, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?true
Co-rupture Count344
Co-rupture Rate6.1216826E-7

Gimmerburn, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?true
Co-rupture Count1,970
Co-rupture Rate5.574969E-6

Raggedy - Blackstone, 6.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate9.8450705E-8

Little Valley, 6.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?false
Co-rupture Count929
Co-rupture Rate1.0339236E-6

Cross Eden, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate6.851297E-8

Long Valley, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?false
Co-rupture Count888
Co-rupture Rate2.986732E-6

Ranfurly, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?true
Directly Connected?false
Co-rupture Count153
Co-rupture Rate1.2620974E-6

Goodger, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
