Waiohau: North Details

Property	Value
Rupture Count	16,922
Ruptures Above Sect Min Mag	16,909
Ruptures w/ Nonzero Rates	42
Magnitude Range	[6.70, 8.48]
Length Range	[14, 694] km
Total Rate	1.692051E-4 /yr
Multi-Fault Rate	1.692051E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

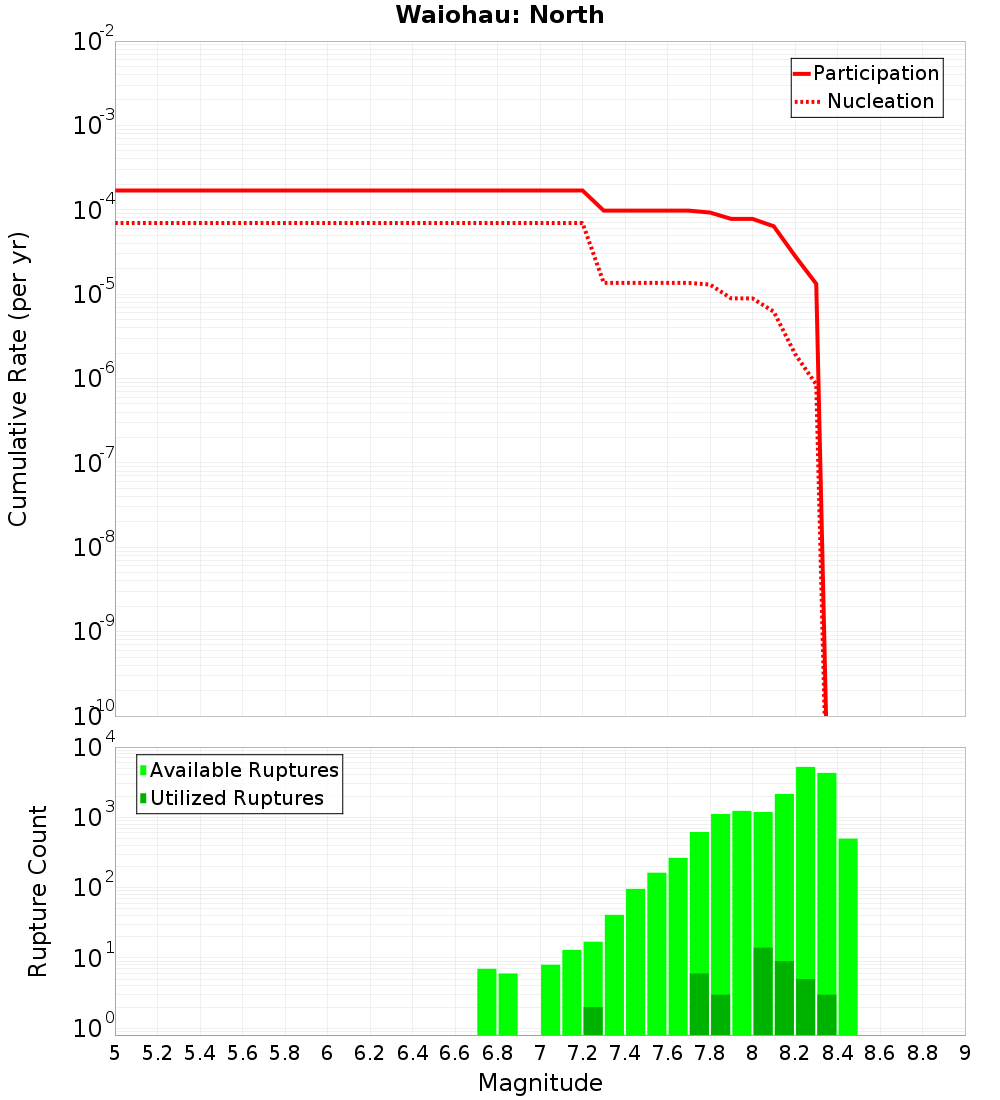

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

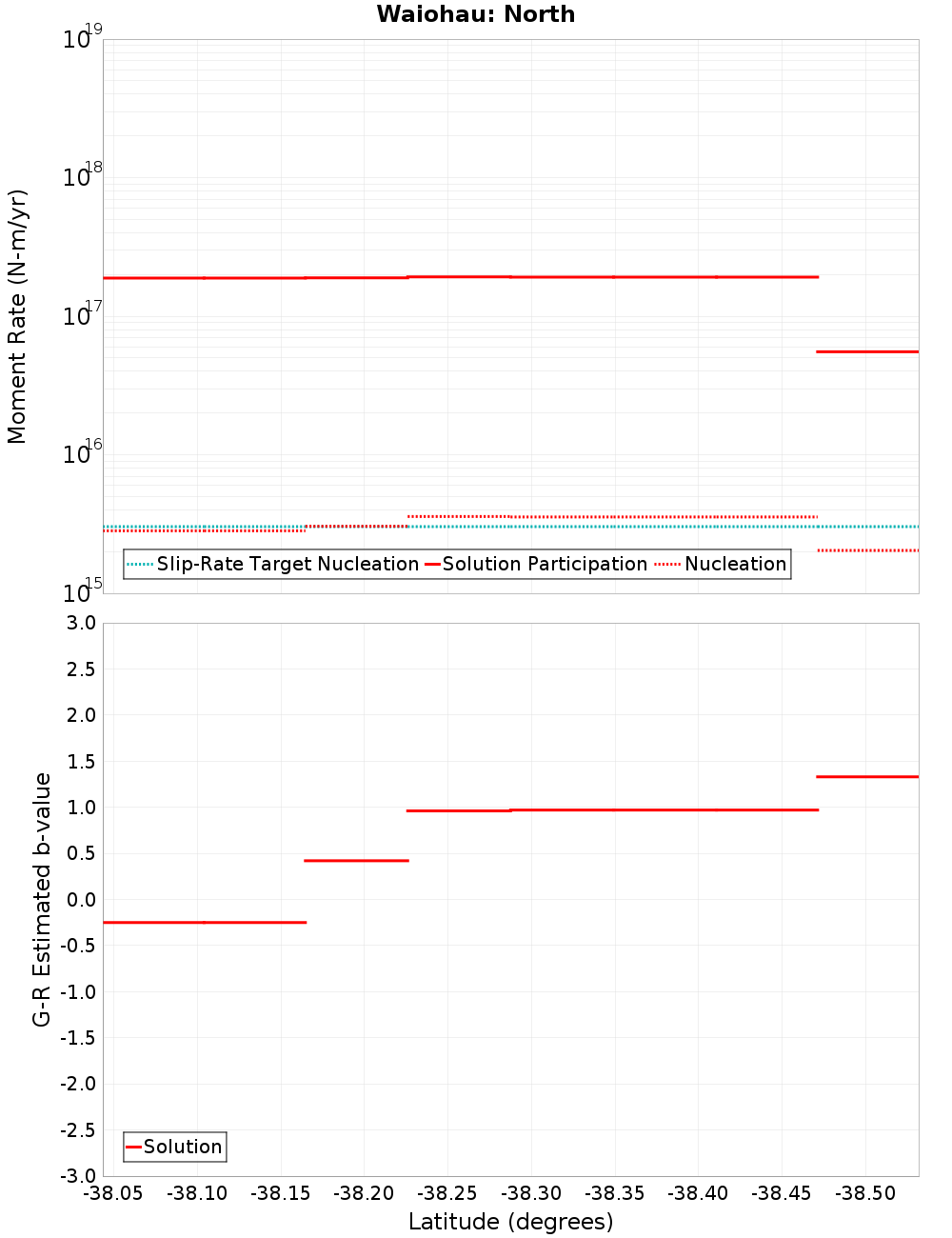

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Te Whaiti North, 0.16 km away
Braemar, 0.22 km away
Otakiri, 0.39 km away
Te Whaiti South, 1.94 km away
Matata, 2.01 km away
Edgecumbe 1987, 2.18 km away
Wheao: North, 2.44 km away
Whakatane: South, 11.09 km away
Edgecumbe Coastal, 11.47 km away
Wheao: South, 11.7 km away
Whakatane: North, 12.32 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	false
Co-rupture Count	2,007
Co-rupture Rate	5.0830808E-5

Te Whaiti North, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	true
Co-rupture Count	203
Co-rupture Rate	8.111356E-5

Braemar, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,167
Co-rupture Rate	0.0

Otakiri, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,461
Co-rupture Rate	0.0

Te Whaiti South, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,295
Co-rupture Rate	5.0830808E-5

Matata, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,361
Co-rupture Rate	7.9923E-6

Edgecumbe 1987, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,955
Co-rupture Rate	8.96254E-5

Wheao: North, 2.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	true
Co-rupture Count	9,050
Co-rupture Rate	2.8091728E-5

Whakatane: South, 11.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe Coastal, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	false
Co-rupture Count	5,761
Co-rupture Rate	8.96254E-5

Wheao: South, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	true
Directly Connected?	false
Co-rupture Count	8,593
Co-rupture Rate	2.7615793E-5

Whakatane: North, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDAuMHNjUXhq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
