Caswell High 3 Details

PropertyValue
Rupture Count230
Ruptures Above Sect Min Mag225
Ruptures w/ Nonzero Rates18
Magnitude Range[6.74, 8.42]
Length Range[13, 605] km
Total Rate1.3896404E-4 /yr
Multi-Fault Rate1.0273377E-4 /yr (73.93%)
Directly-Connected Faults3
All Co-Rupturing Faults16

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

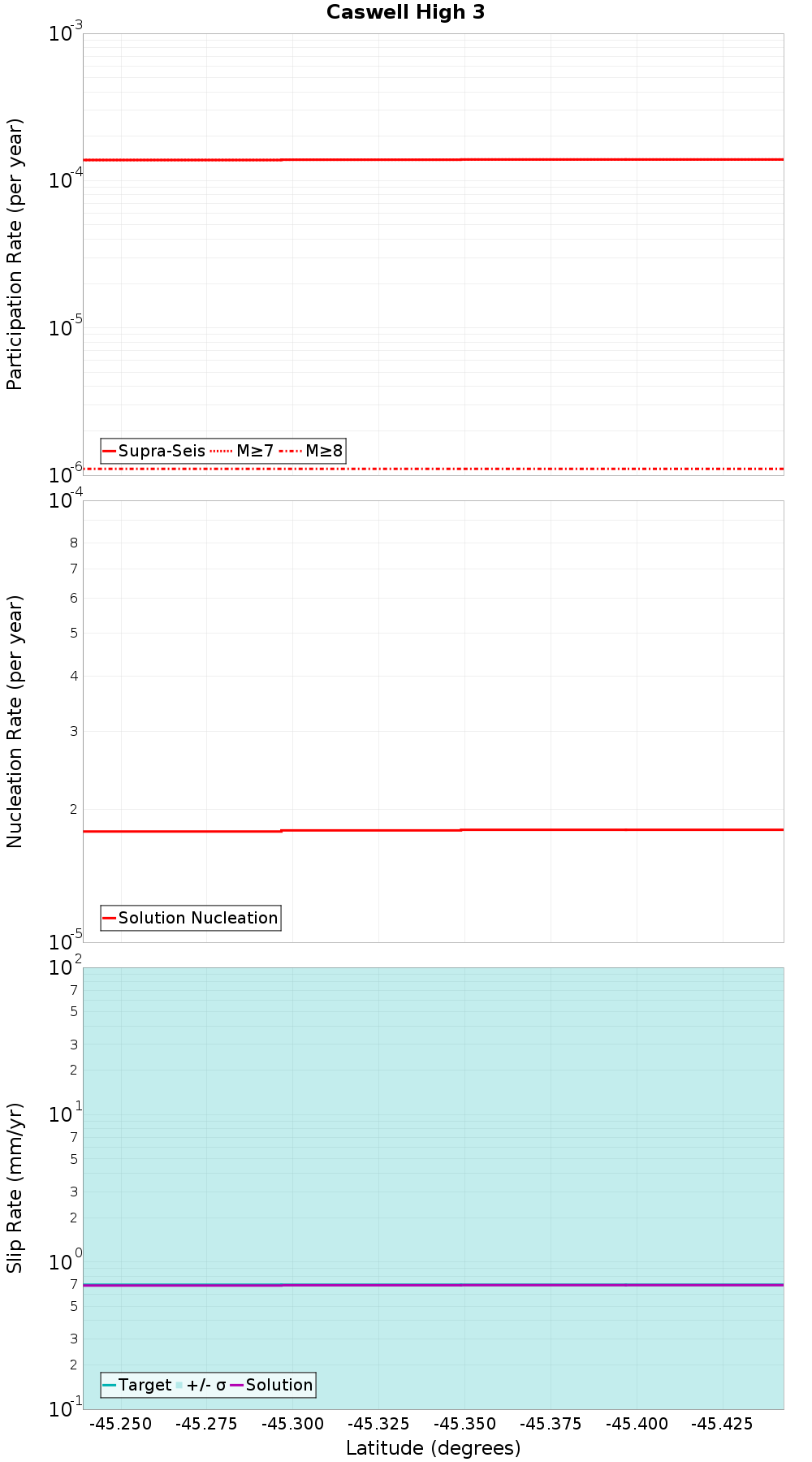

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 4, 0.7 km away
Caswell 211, 2.33 km away
Caswell High 5, 4.35 km away
Caswell High 1, 4.37 km away
South Wedge 5, 6.11 km away
South Wedge 3-6-10, 12.92 km away

Caswell High 4, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj
Connected?true
Directly Connected?true
Co-rupture Count165
Co-rupture Rate3.7400012E-5

Caswell 211, 2.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate7.686403E-5

Caswell High 5, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Caswell High 1, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate2.1502317E-5

South Wedge 5, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.1042586E-6
