Motu o Kura East Details
| Property | Value |
|---|---|
| Rupture Count | 3,657 |
| Ruptures Above Sect Min Mag | 3,649 |
| Ruptures w/ Nonzero Rates | 61 |
| Magnitude Range | [6.91, 8.44] |
| Length Range | [18, 626] km |
| Total Rate | 2.3403294E-4 /yr |
| Multi-Fault Rate | 2.1286291E-4 /yr (90.95%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 35 |
Table Of Contents

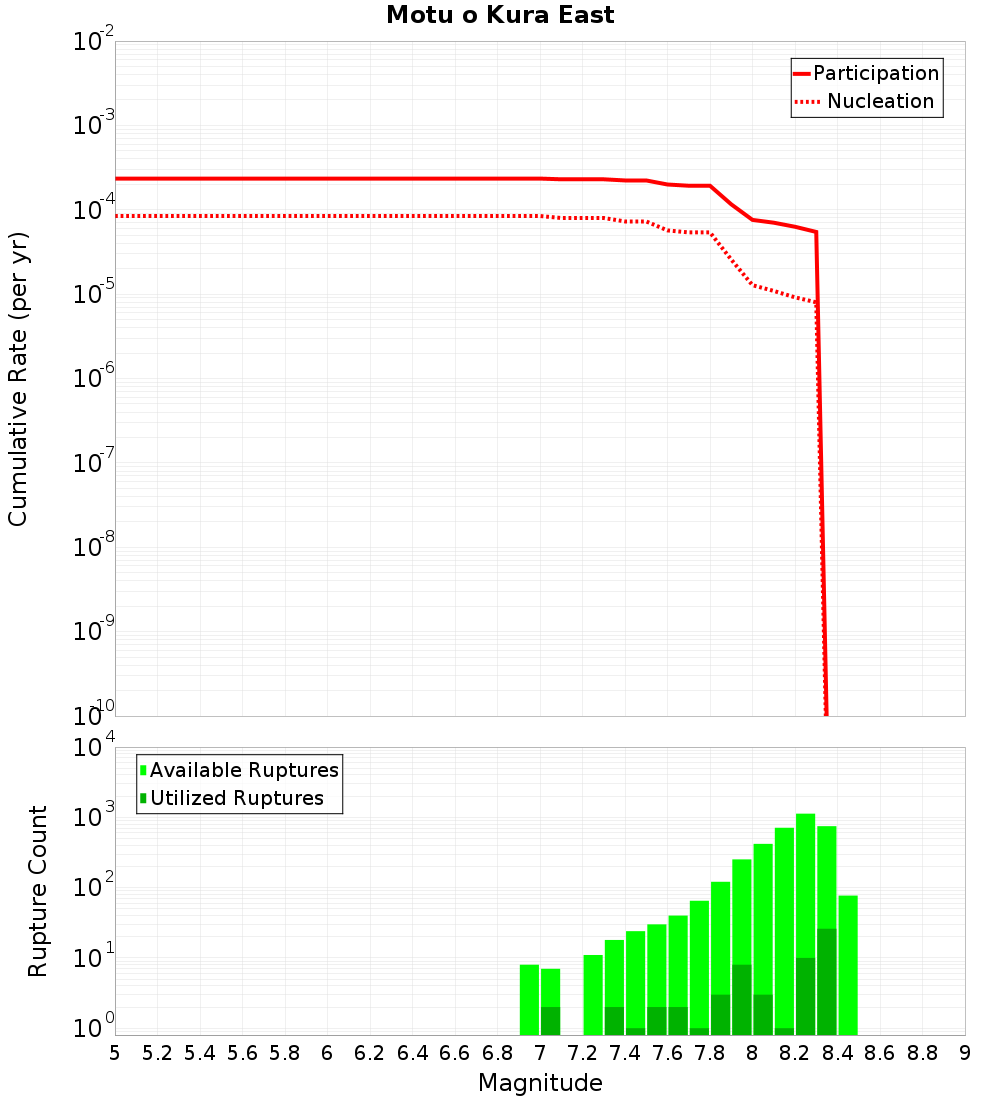

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

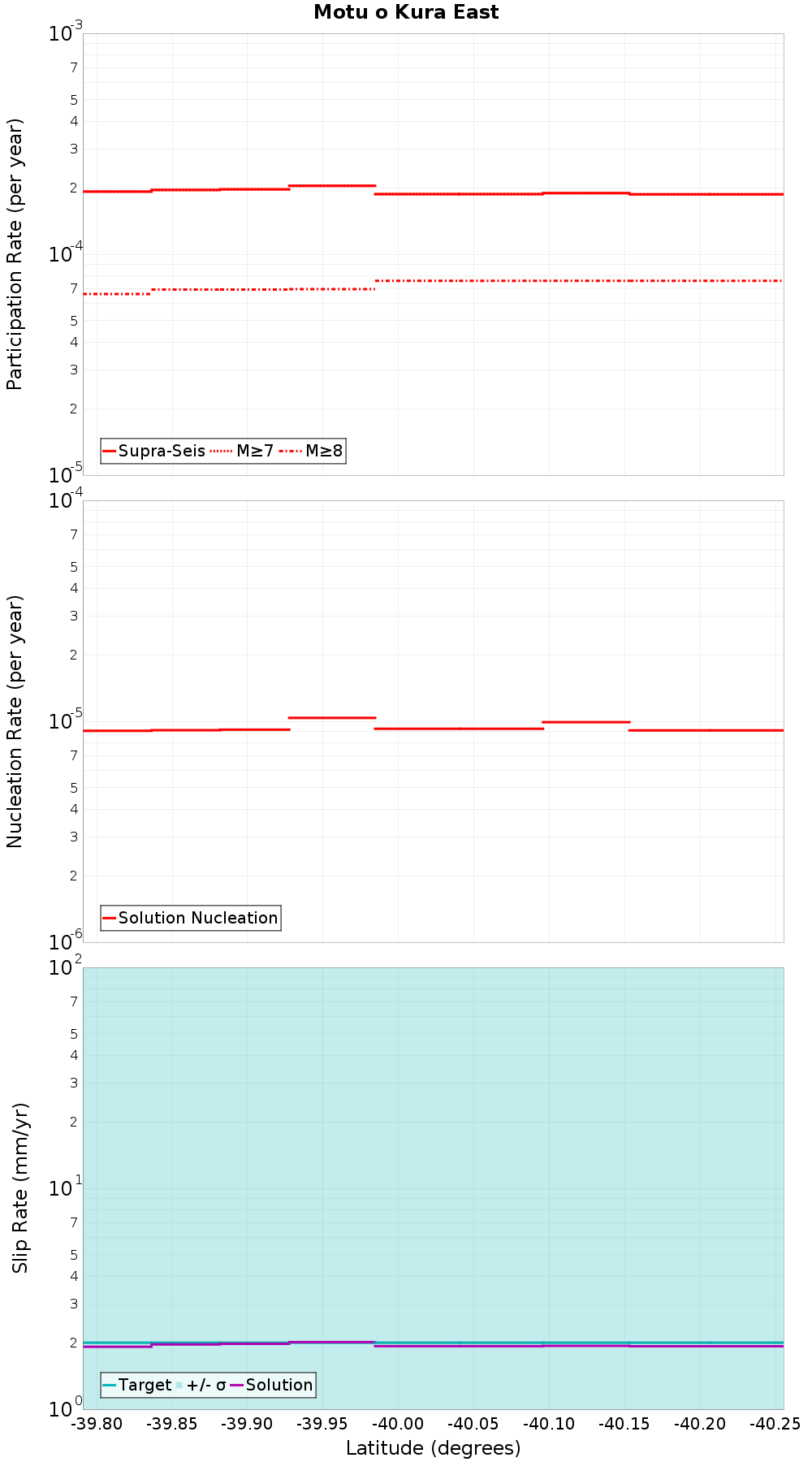

Along-Strike Values
Moment-Rates and b-Values

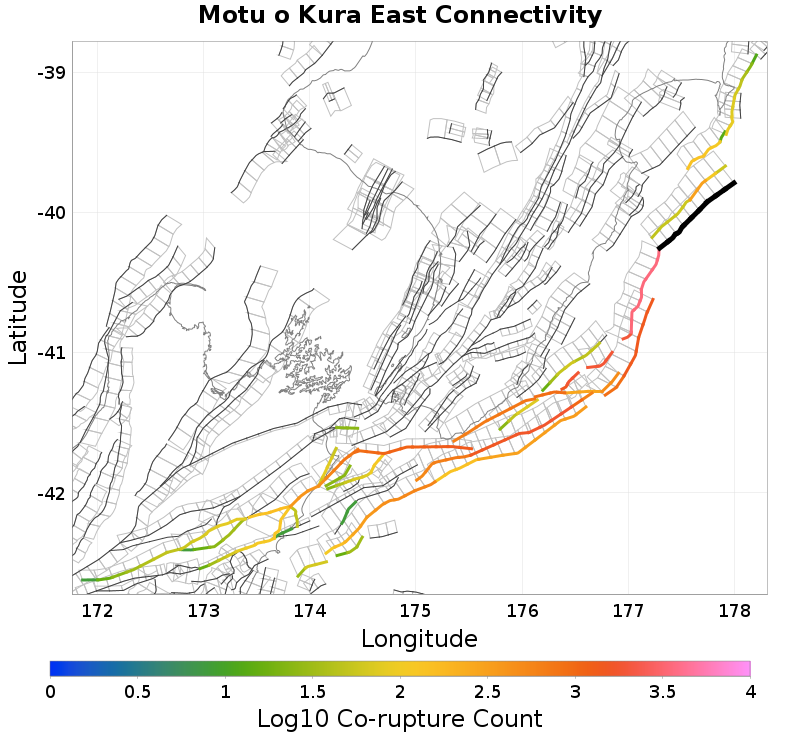

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Madden Banks, 0.5 km away |
| Motu o Kura Ridge, 6.46 km away |
| Motuokura North, 7.07 km away |
Madden Banks, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,547 |
| Co-rupture Rate | 1.9608226E-4 |
Motu o Kura Ridge, 6.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 57 |
| Co-rupture Rate | 4.488146E-5 |
Motuokura North, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMDkuMDZldDNj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 303 |
| Co-rupture Rate | 1.9733157E-5 |
