Garibaldi Details
| Property | Value |
|---|---|
| Rupture Count | 2,129 |
| Ruptures Above Sect Min Mag | 2,128 |
| Ruptures w/ Nonzero Rates | 52 |
| Magnitude Range | [7.20, 8.44] |
| Length Range | [22, 347] km |
| Total Rate | 5.5615747E-6 /yr |
| Multi-Fault Rate | 5.5615747E-6 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 44 |
Table Of Contents

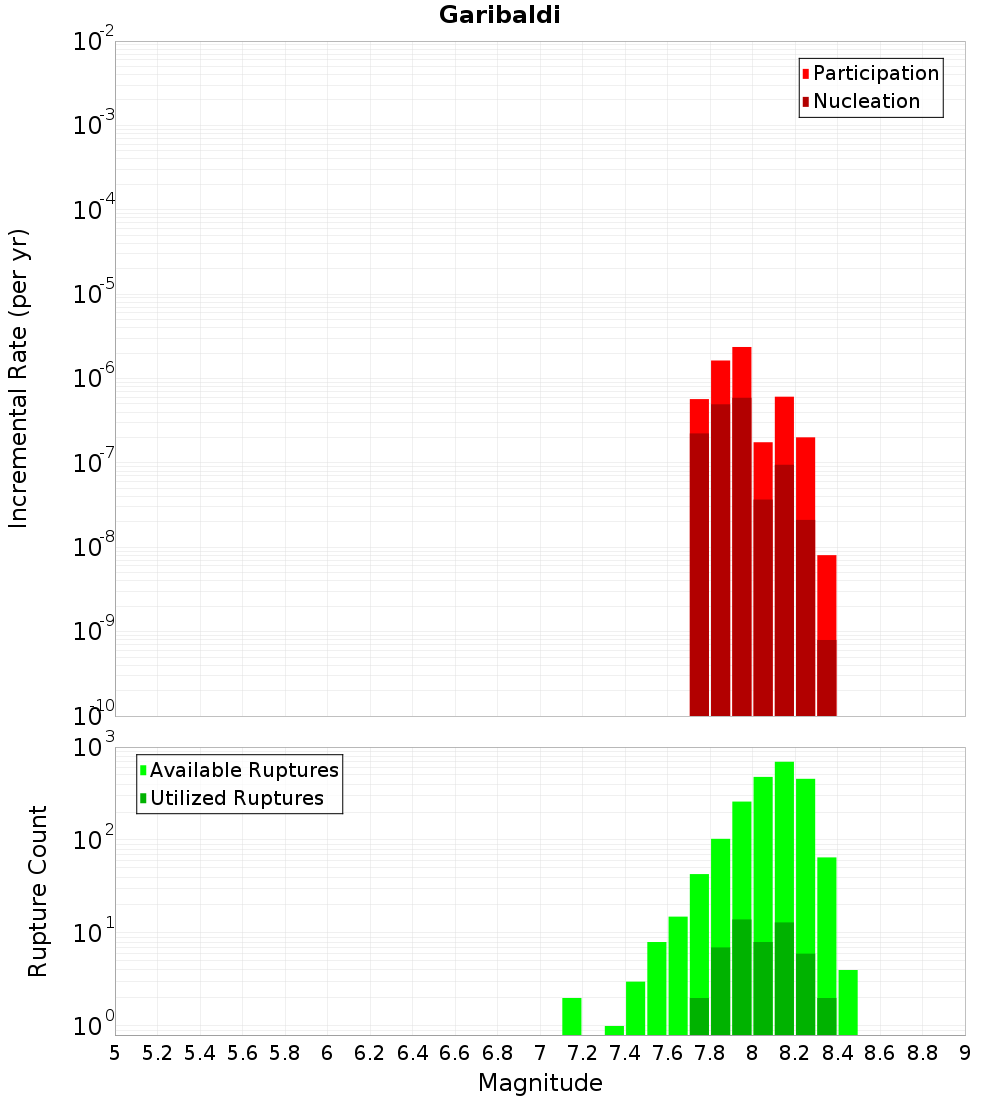

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

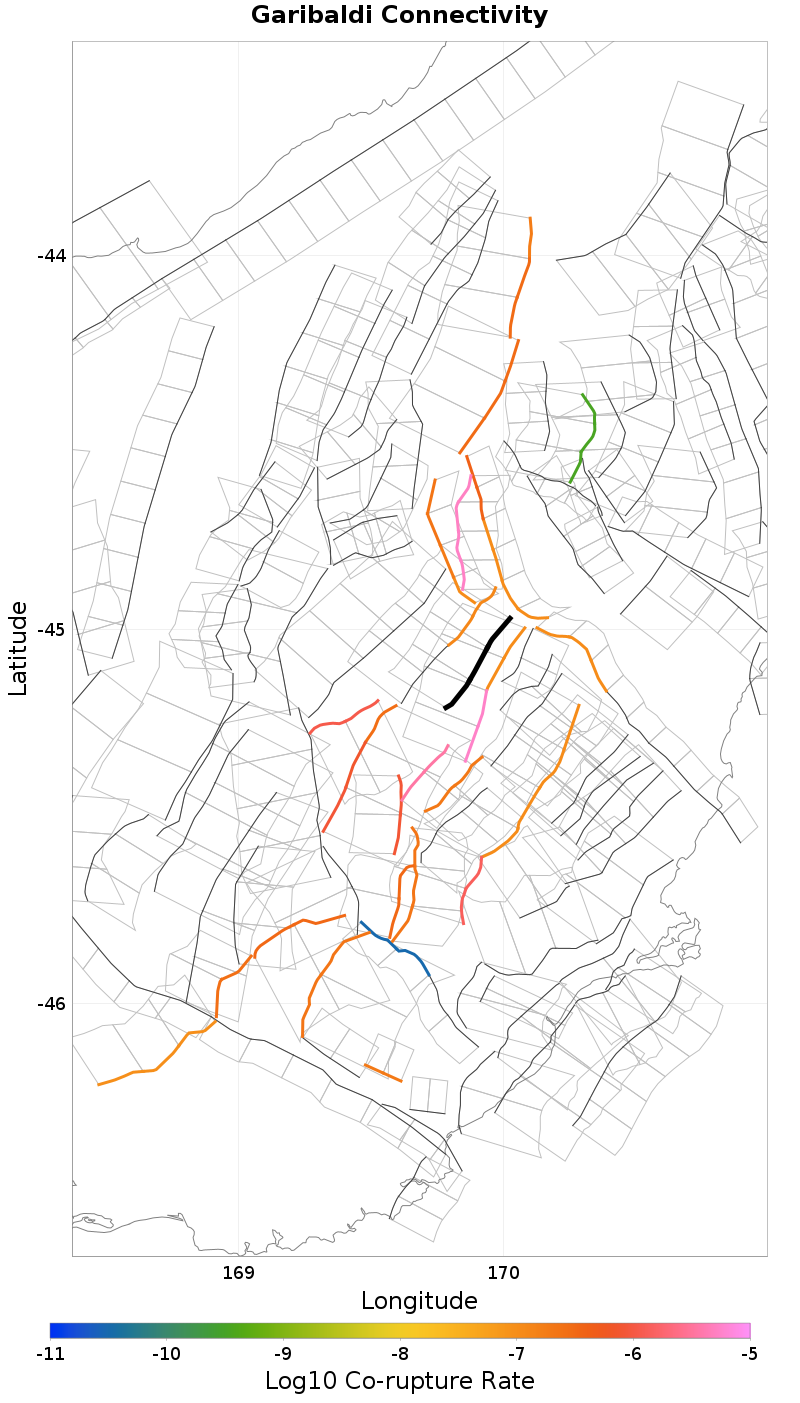

Connectivity
 |  |
|---|
Nearby Sections
Blue Lake, 1.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 624 |
| Co-rupture Rate | 3.3107298E-7 |
Omarama Saddle, 3.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 955 |
| Co-rupture Rate | 5.3316144E-6 |
Hawkdun, 3.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 344 |
| Co-rupture Rate | 4.0021604E-7 |
Gimmerburn, 3.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,970 |
| Co-rupture Rate | 5.456135E-6 |
Raggedy - Blackstone, 6.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 290 |
| Co-rupture Rate | 1.2519698E-7 |
Little Valley, 6.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 929 |
| Co-rupture Rate | 8.7061966E-7 |
Cross Eden, 7.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waihemo, 8.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 22 |
| Co-rupture Rate | 1.05439725E-7 |
Long Valley, 11.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 888 |
| Co-rupture Rate | 3.4841148E-6 |
Ranfurly, 12.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Galloway, 13.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 153 |
| Co-rupture Rate | 1.1081183E-6 |
Goodger, 14.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTQuMFU5R3oz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
