Lyell South Details
| Property | Value |
|---|---|
| Rupture Count | 2,183 |
| Ruptures Above Sect Min Mag | 2,179 |
| Ruptures w/ Nonzero Rates | 89 |
| Magnitude Range | [7.00, 8.56] |
| Length Range | [19, 814] km |
| Total Rate | 4.9081344E-5 /yr |
| Multi-Fault Rate | 4.7014695E-5 /yr (95.79%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 32 |
Table Of Contents

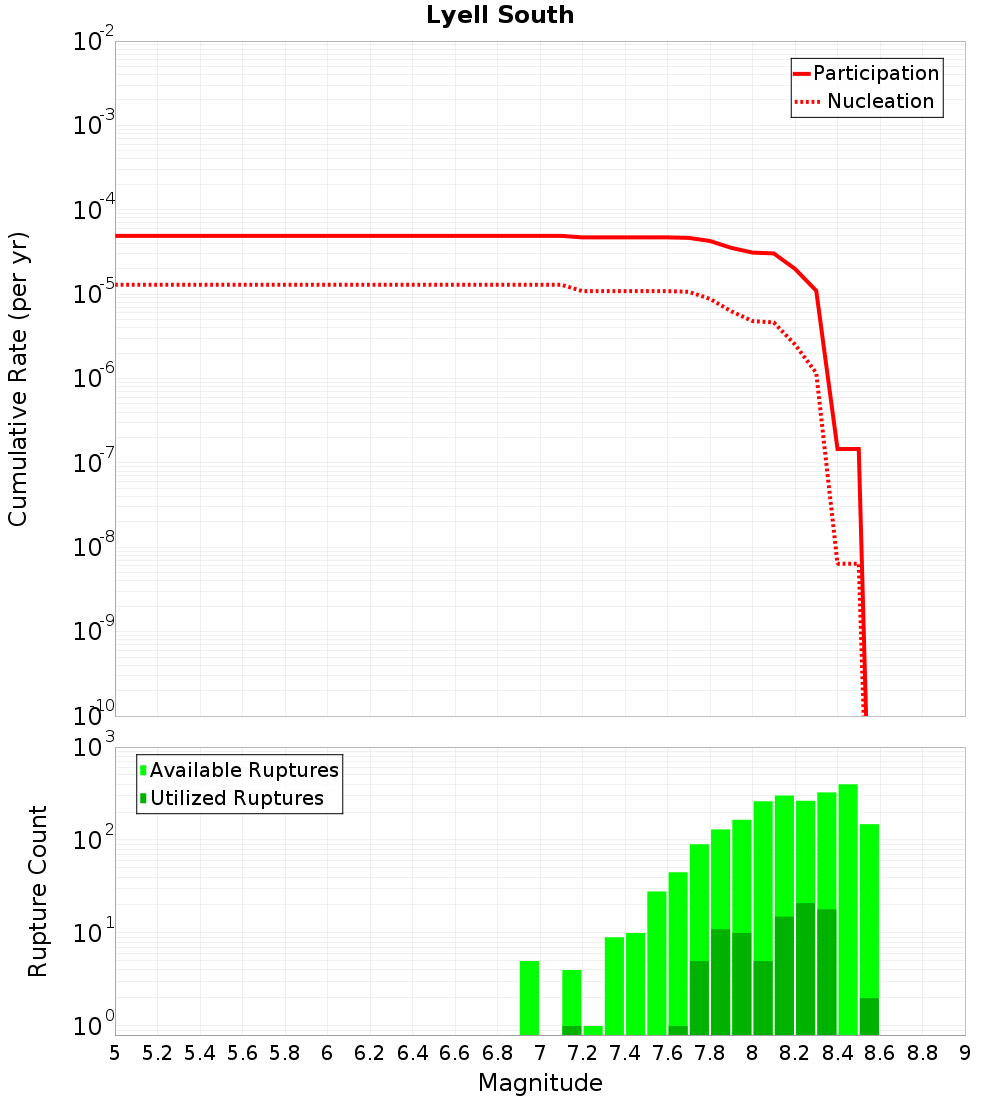

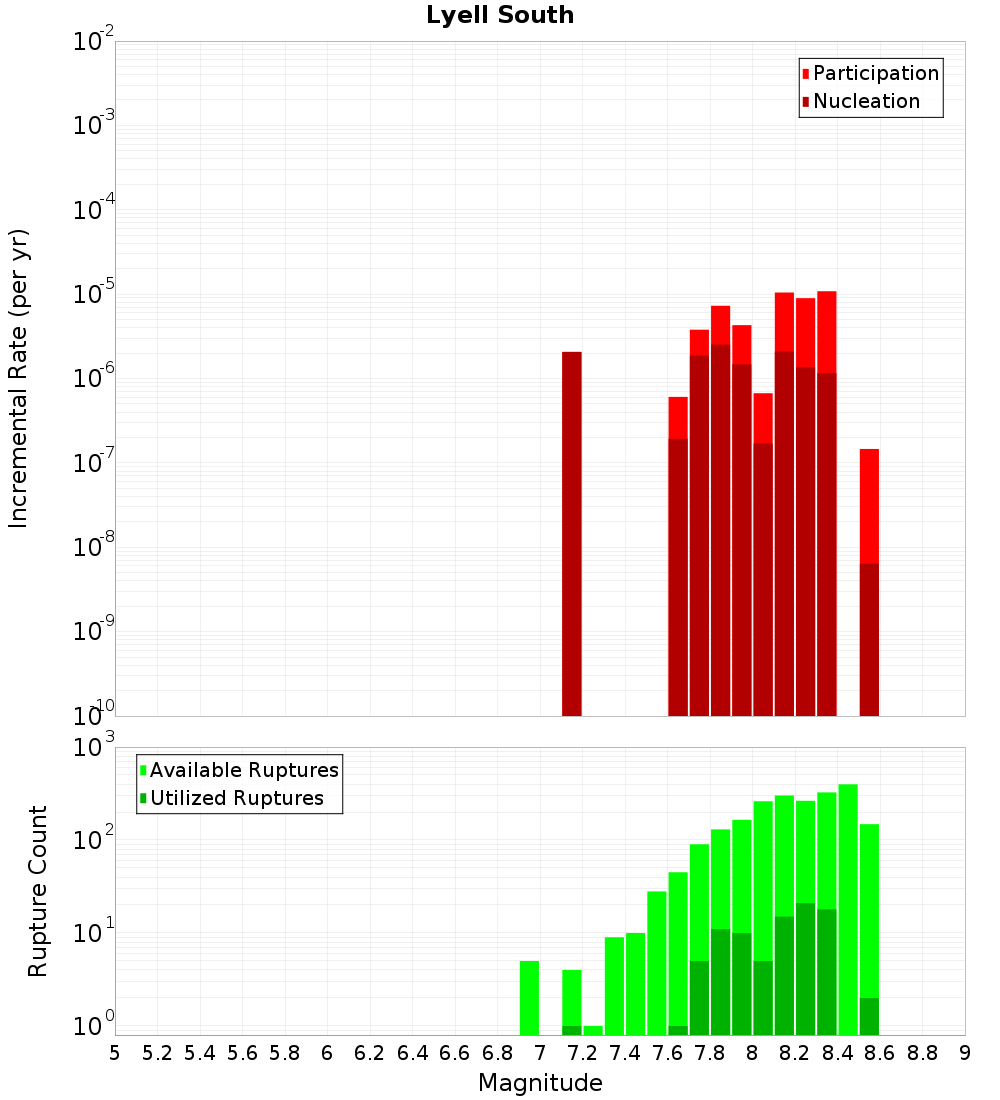

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

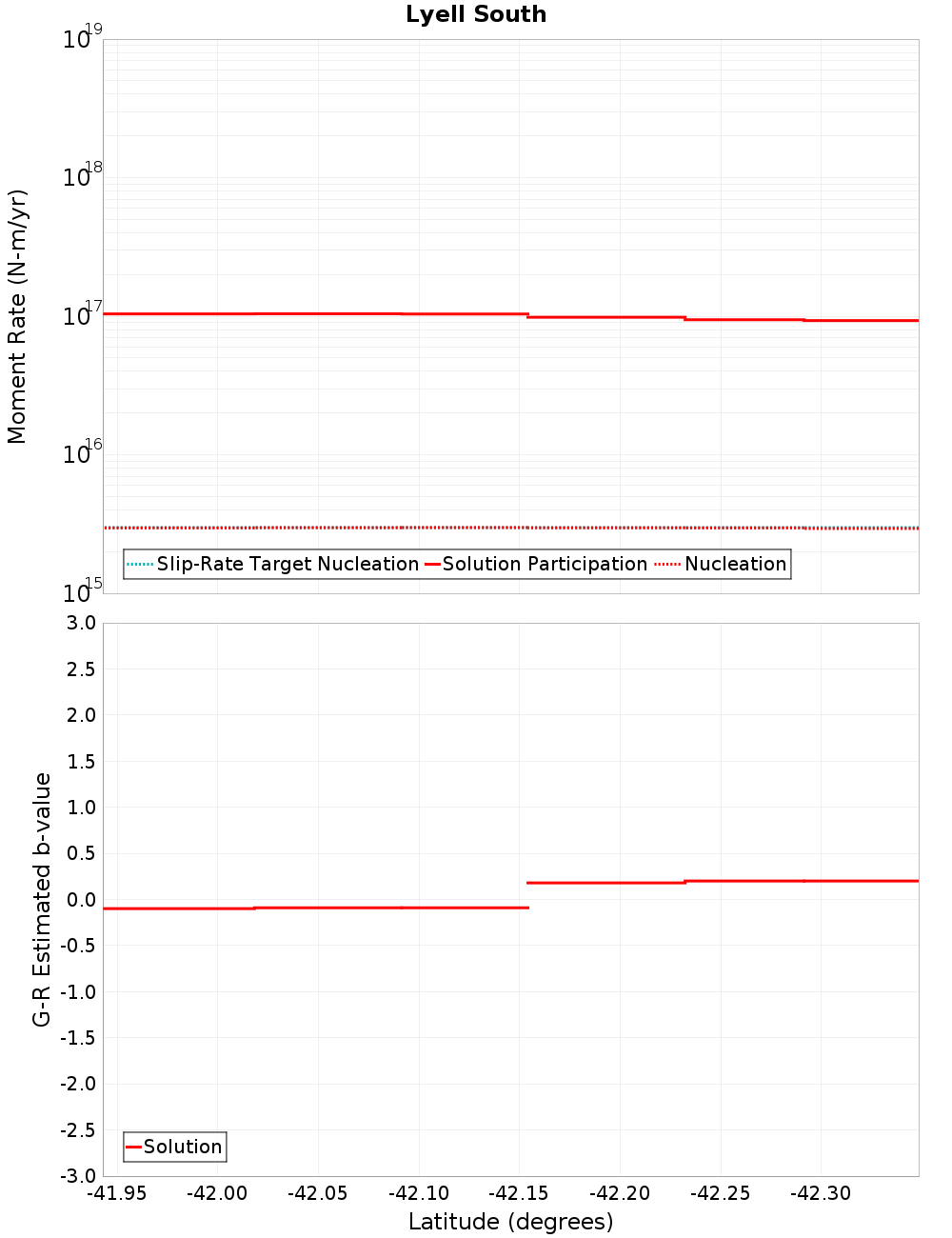

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lyell, 1.51 km away |
| White Creek, 6.32 km away |
| Maimai: North, 7.01 km away |
| White Creek - buried, 7.39 km away |
| Inangahua, 9 km away |
| Maimai, 9.15 km away |
| Maimai: South, 11.15 km away |
Lyell, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTkuMHhLYzYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,377 |
| Co-rupture Rate | 4.150378E-5 |
White Creek, 6.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTkuMHhLYzYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,891 |
| Co-rupture Rate | 3.413258E-5 |
Maimai: North, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTkuMHhLYzYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 131 |
| Co-rupture Rate | 1.1661598E-7 |
White Creek - buried, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTkuMHhLYzYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,318 |
| Co-rupture Rate | 2.8784169E-5 |
Inangahua, 9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTkuMHhLYzYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 249 |
| Co-rupture Rate | 1.16608206E-7 |
Maimai, 9.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTkuMHhLYzYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 7.7686035E-12 |
Maimai: South, 11.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMTkuMHhLYzYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 71 |
| Co-rupture Rate | 1.2156377E-5 |
