Maimai: Brunner Anticline Details
| Property | Value |
|---|---|
| Rupture Count | 1,598 |
| Ruptures Above Sect Min Mag | 1,595 |
| Ruptures w/ Nonzero Rates | 76 |
| Magnitude Range | [6.99, 8.32] |
| Length Range | [19, 383] km |
| Total Rate | 4.2544838E-5 /yr |
| Multi-Fault Rate | 3.906221E-5 /yr (91.81%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 19 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

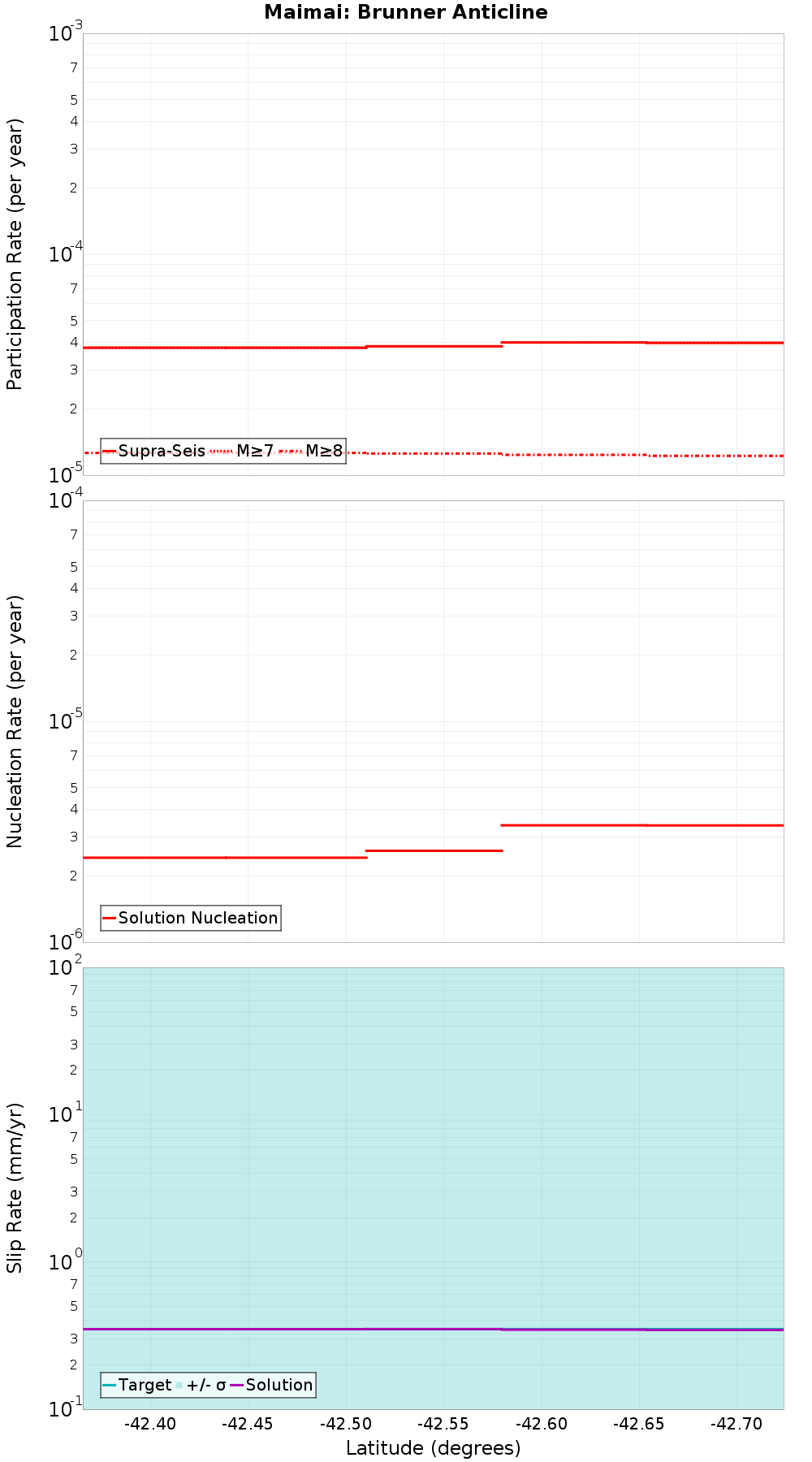

Along-Strike Values

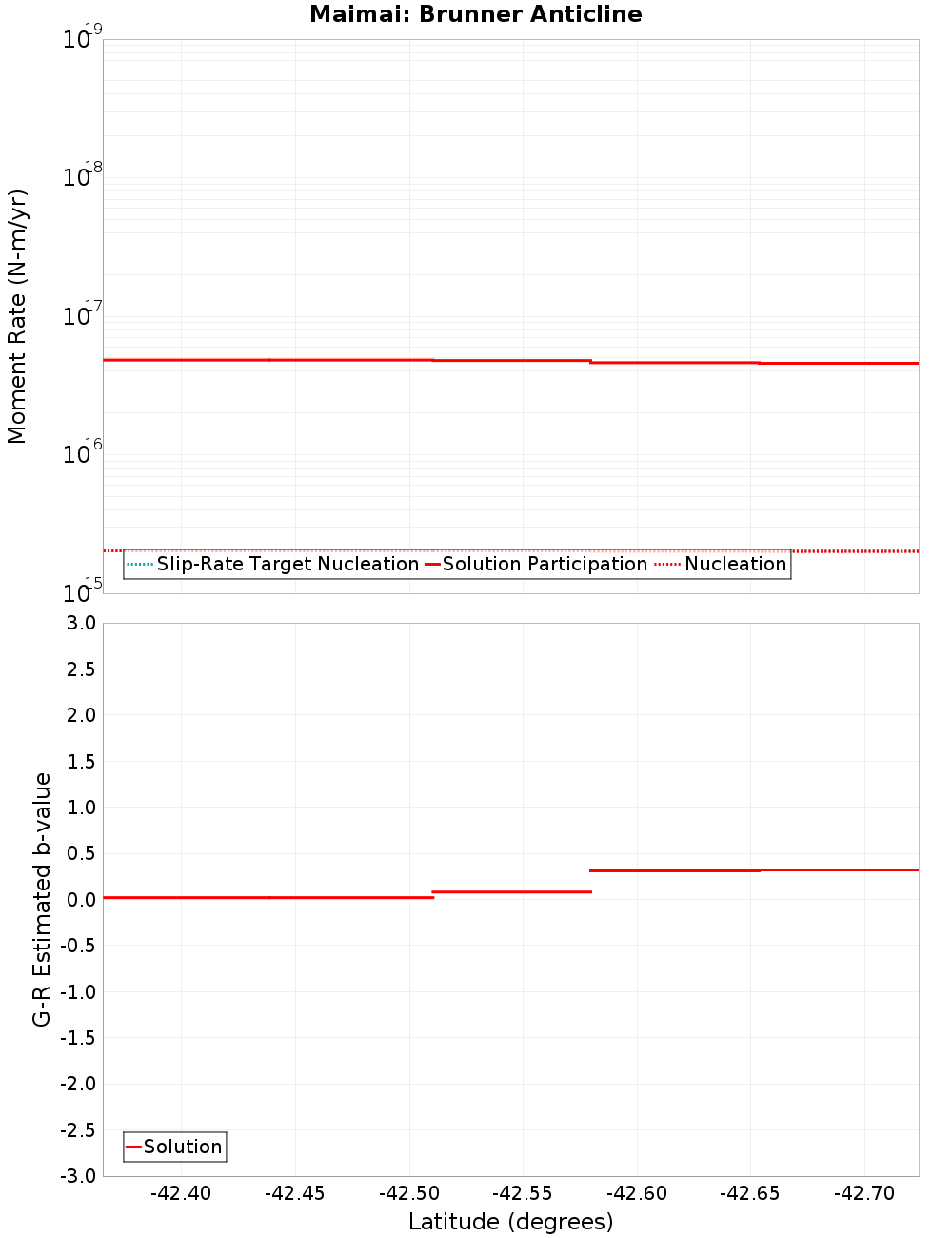

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: South, 0 km away |
| Cape Foulwind 1, 0.41 km away |
| Paparoa West, 7.81 km away |
Maimai: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjIuMHlHUWdm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,118 |
| Co-rupture Rate | 2.0755591E-5 |
Cape Foulwind 1, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjIuMHlHUWdm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 500 |
| Co-rupture Rate | 2.5900361E-5 |
Paparoa West, 7.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjIuMHlHUWdm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 332 |
| Co-rupture Rate | 2.9106873E-6 |
