Klondyke Moor Details
| Property | Value |
|---|---|
| Rupture Count | 84 |
| Ruptures Above Sect Min Mag | 83 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.98, 8.17] |
| Length Range | [18, 245] km |
| Total Rate | 1.6224443E-5 /yr |
| Multi-Fault Rate | 1.6224443E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 23 |
Table Of Contents

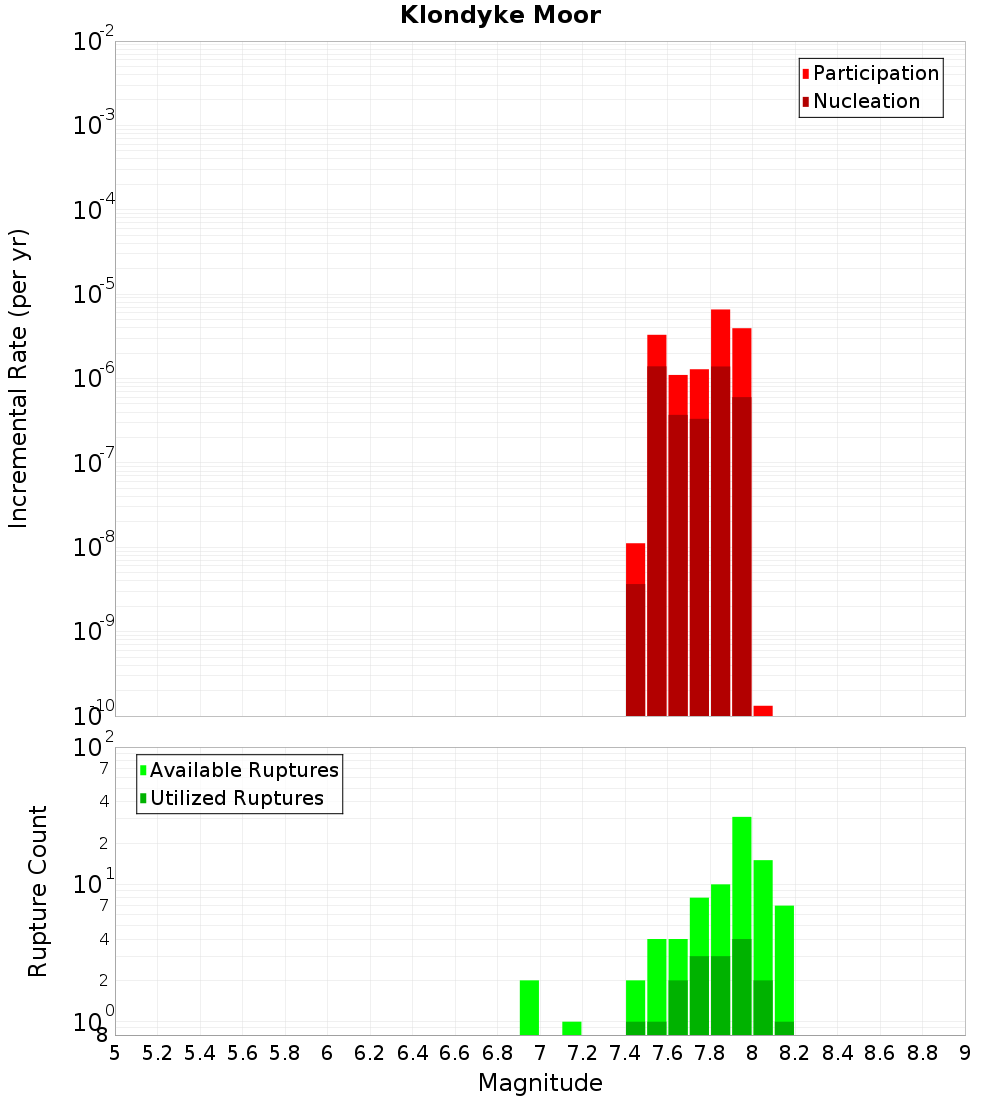

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

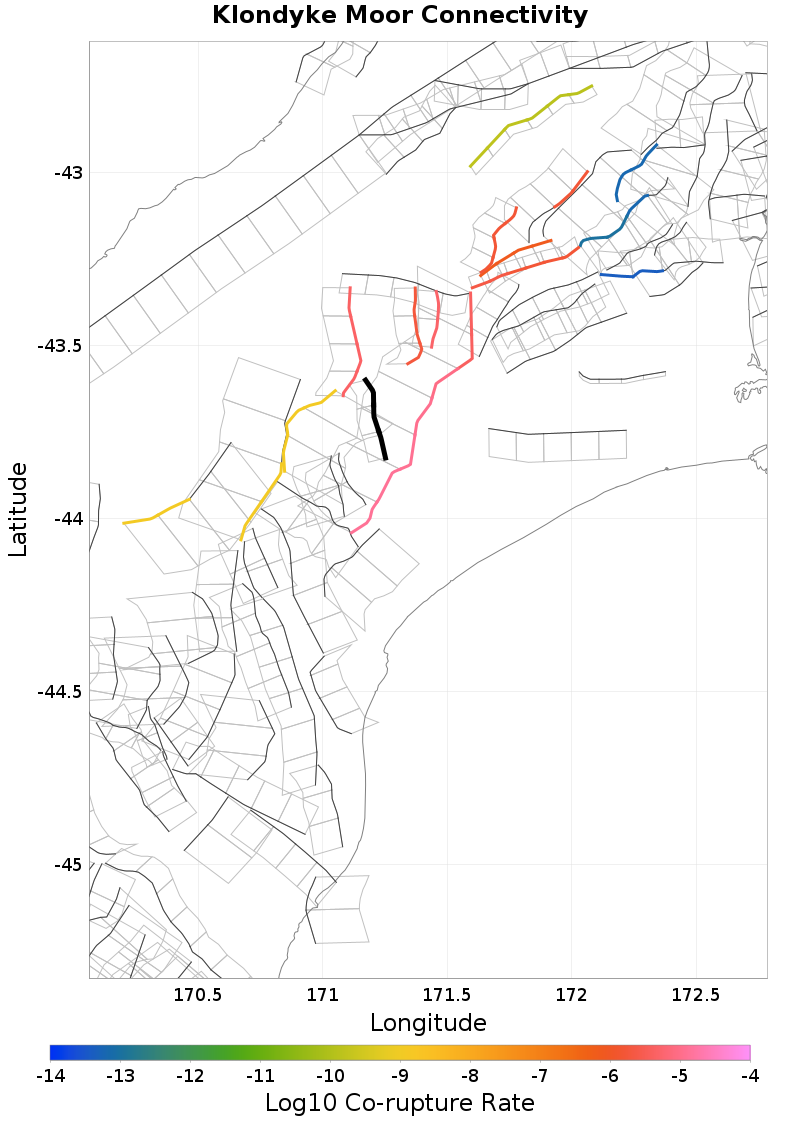

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hutt Peel, 0.09 km away |
| Ben McLeod, 0.13 km away |
| Lake Heron, 3.5 km away |
| North Branch, 12.86 km away |
| Edith, 13.75 km away |
Hutt Peel, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 69 |
| Co-rupture Rate | 1.2915483E-5 |
Ben McLeod, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 1.126679E-9 |
Lake Heron, 3.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 4.4919843E-6 |
North Branch, 12.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.894451E-6 |
Edith, 13.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
