Maimai: Brunner Anticline Details
| Property | Value |
|---|---|
| Rupture Count | 1,598 |
| Ruptures Above Sect Min Mag | 1,595 |
| Ruptures w/ Nonzero Rates | 95 |
| Magnitude Range | [6.99, 8.32] |
| Length Range | [19, 383] km |
| Total Rate | 4.2673735E-5 /yr |
| Multi-Fault Rate | 3.860932E-5 /yr (90.48%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

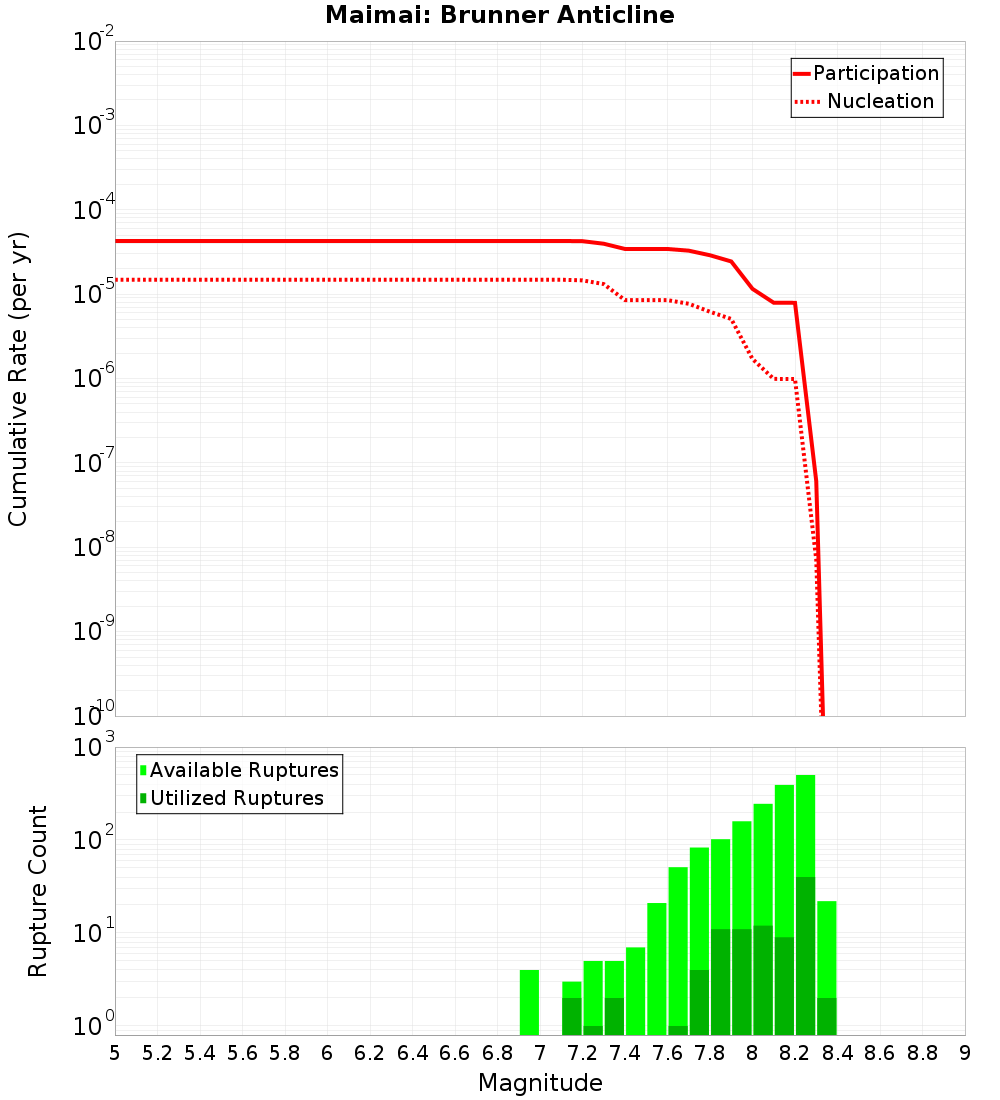

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

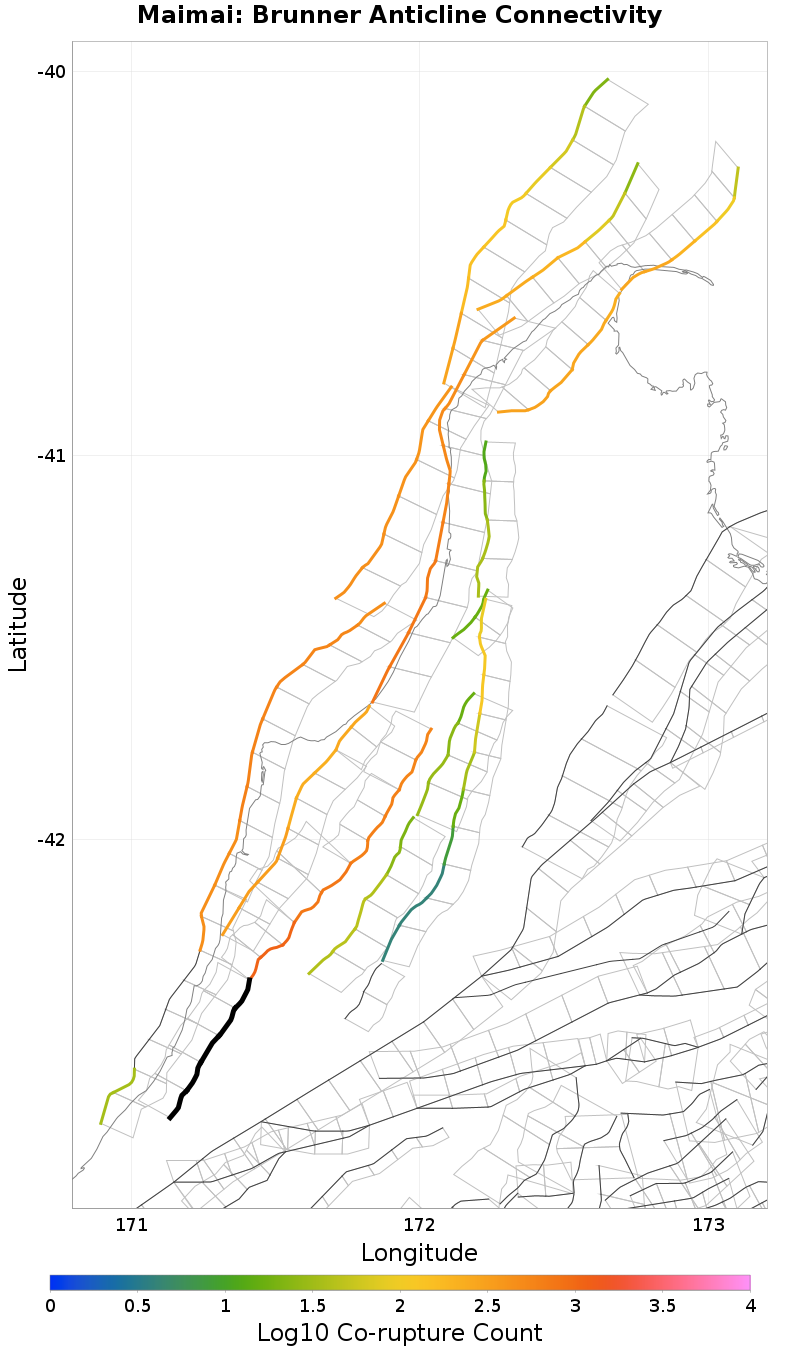

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: South, 0 km away |
| Cape Foulwind 1, 0.41 km away |
| Paparoa West, 7.81 km away |
Maimai: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,118 |
| Co-rupture Rate | 2.0493404E-5 |
Cape Foulwind 1, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 500 |
| Co-rupture Rate | 2.6129555E-5 |
Paparoa West, 7.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 332 |
| Co-rupture Rate | 4.1329176E-6 |
