Virginia Details

Property	Value
Rupture Count	167
Ruptures Above Sect Min Mag	166
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.91, 8.38]
Length Range	[16, 554] km
Total Rate	7.857543E-5 /yr
Multi-Fault Rate	7.857543E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

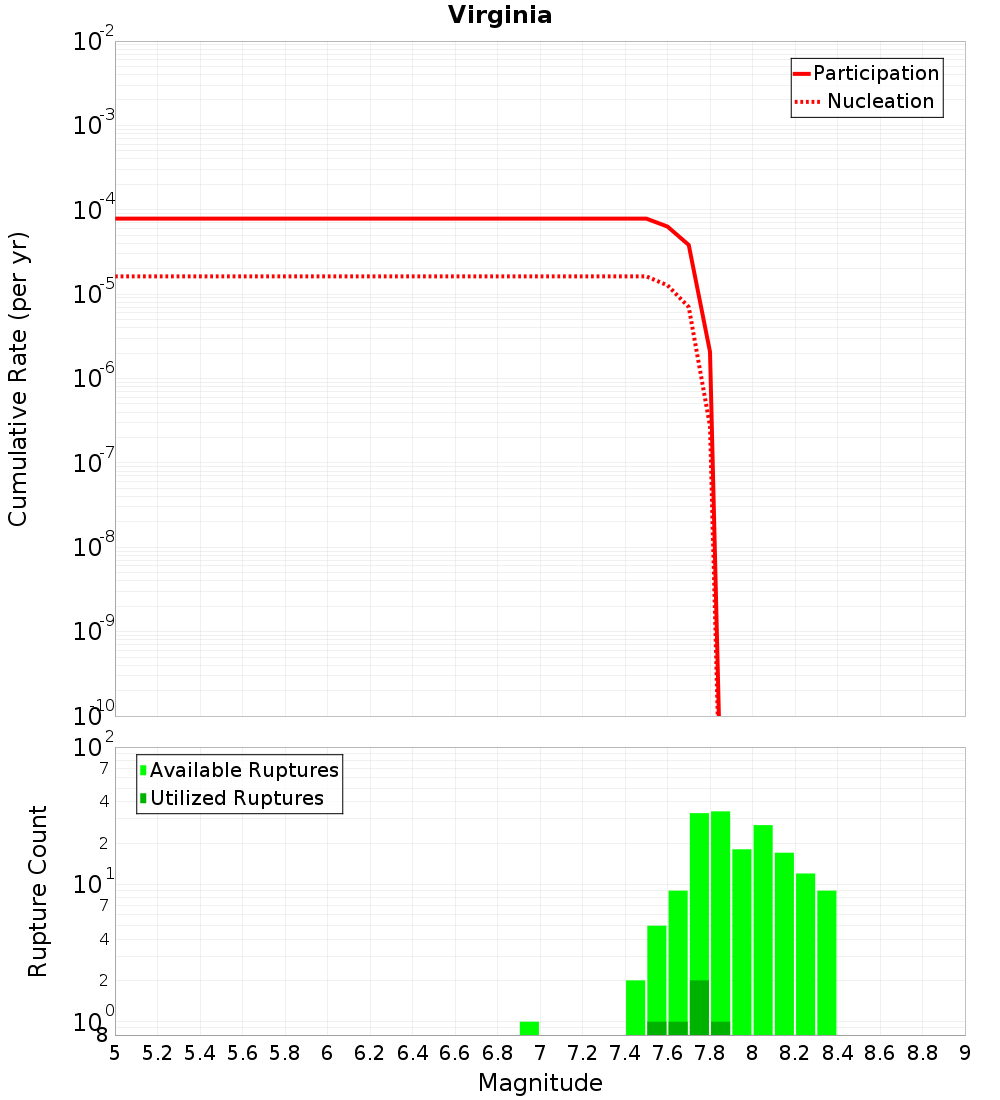

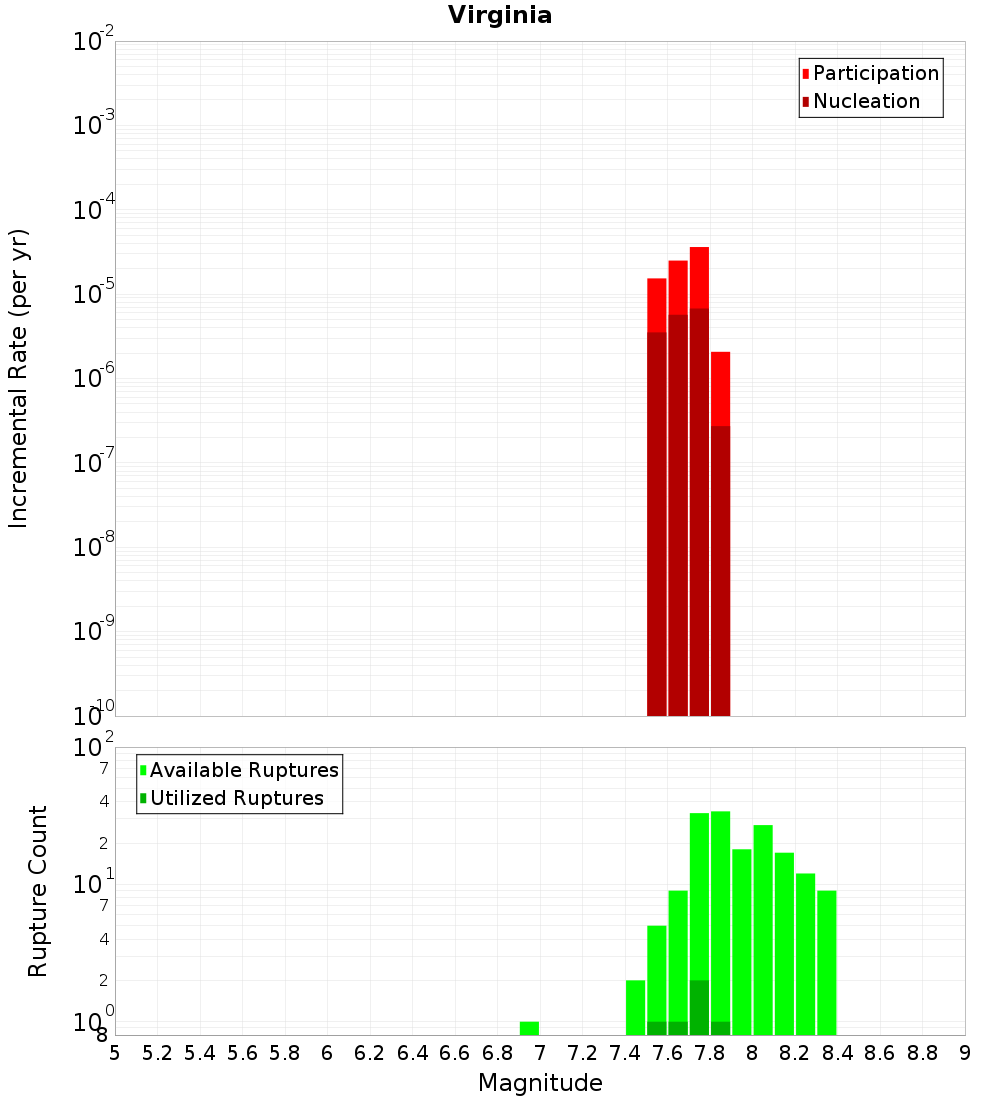

Magnitude-Frequency Distribution

Incremental	Cumulative

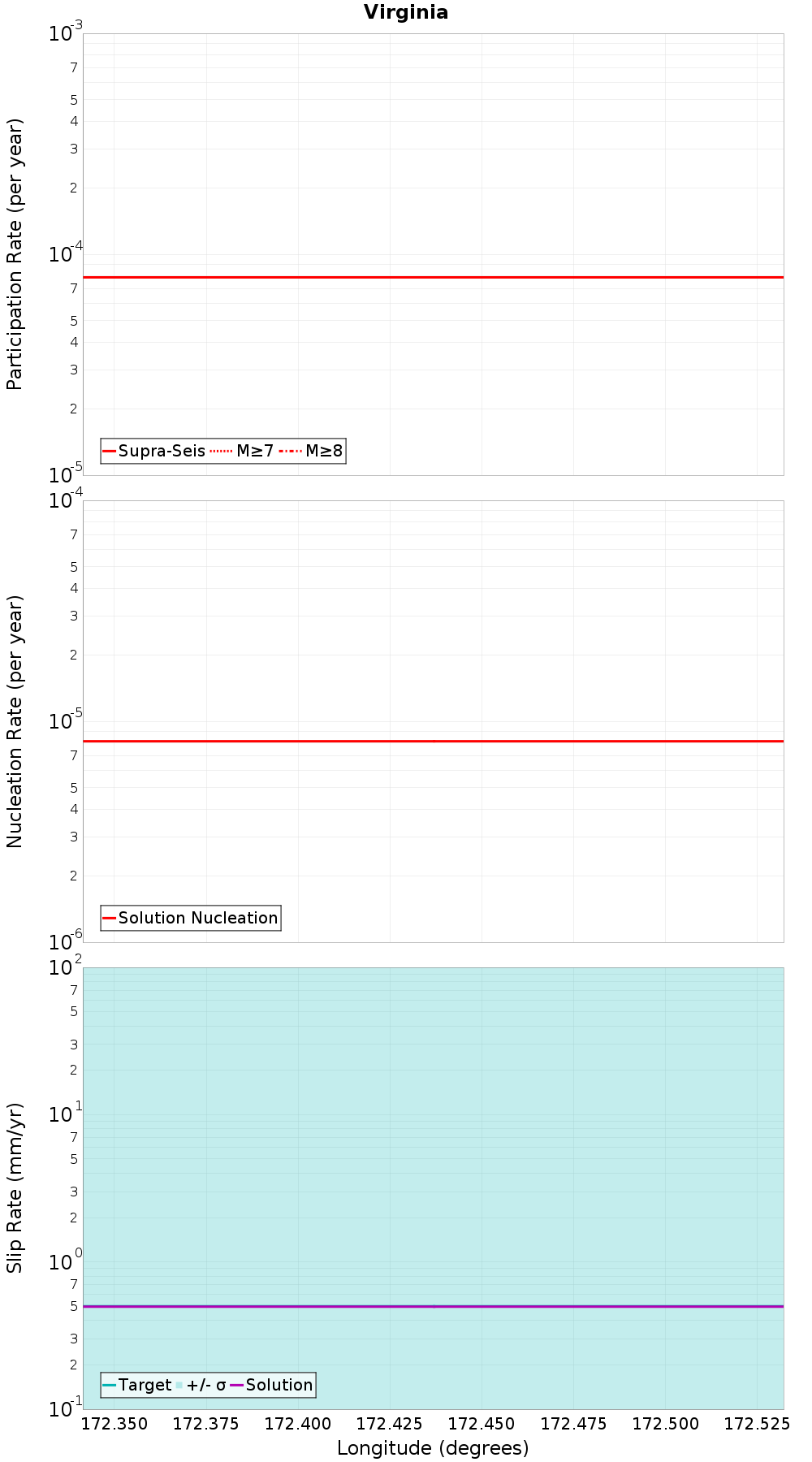

Along-Strike Values

Moment-Rates and b-Values

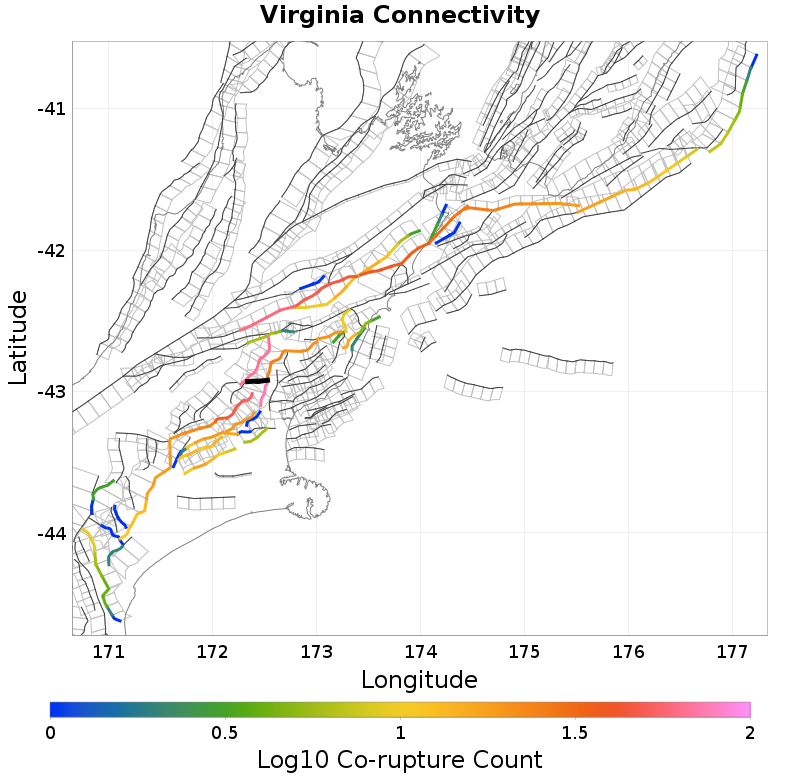

Connectivity

Nearby Sections

Fault Section
Balmoral, 0.15 km away
Hurunui Peak, 0.28 km away
Mt Arden, 0.31 km away
Pancake, 0.5 km away
Esk North, 2.08 km away
Esk South, 6.88 km away
Doctors, 7.82 km away
Lowry, 9.27 km away
Lees Valley, 9.67 km away
Kaiwara South, 12.91 km away

Balmoral, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hurunui Peak, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	true
Directly Connected?	true
Co-rupture Count	25
Co-rupture Rate	2.6237525E-5

Mt Arden, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	true
Directly Connected?	true
Co-rupture Count	74
Co-rupture Rate	0.0

Pancake, 0.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk North, 2.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	true
Directly Connected?	true
Co-rupture Count	67
Co-rupture Rate	5.2337906E-5

Esk South, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 7.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lowry, 9.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lees Valley, 9.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	true
Directly Connected?	false
Co-rupture Count	57
Co-rupture Rate	0.0

Kaiwara South, 12.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxMjMuMFVWeFdh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
