Te Arawa 1 Details

PropertyValue
Rupture Count5,706
Ruptures Above Sect Min Mag5,705
Ruptures w/ Nonzero Rates76
Magnitude Range[6.87, 8.35]
Length Range[19, 611] km
Total Rate3.8172488E-4 /yr
Multi-Fault Rate3.8172488E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults61

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

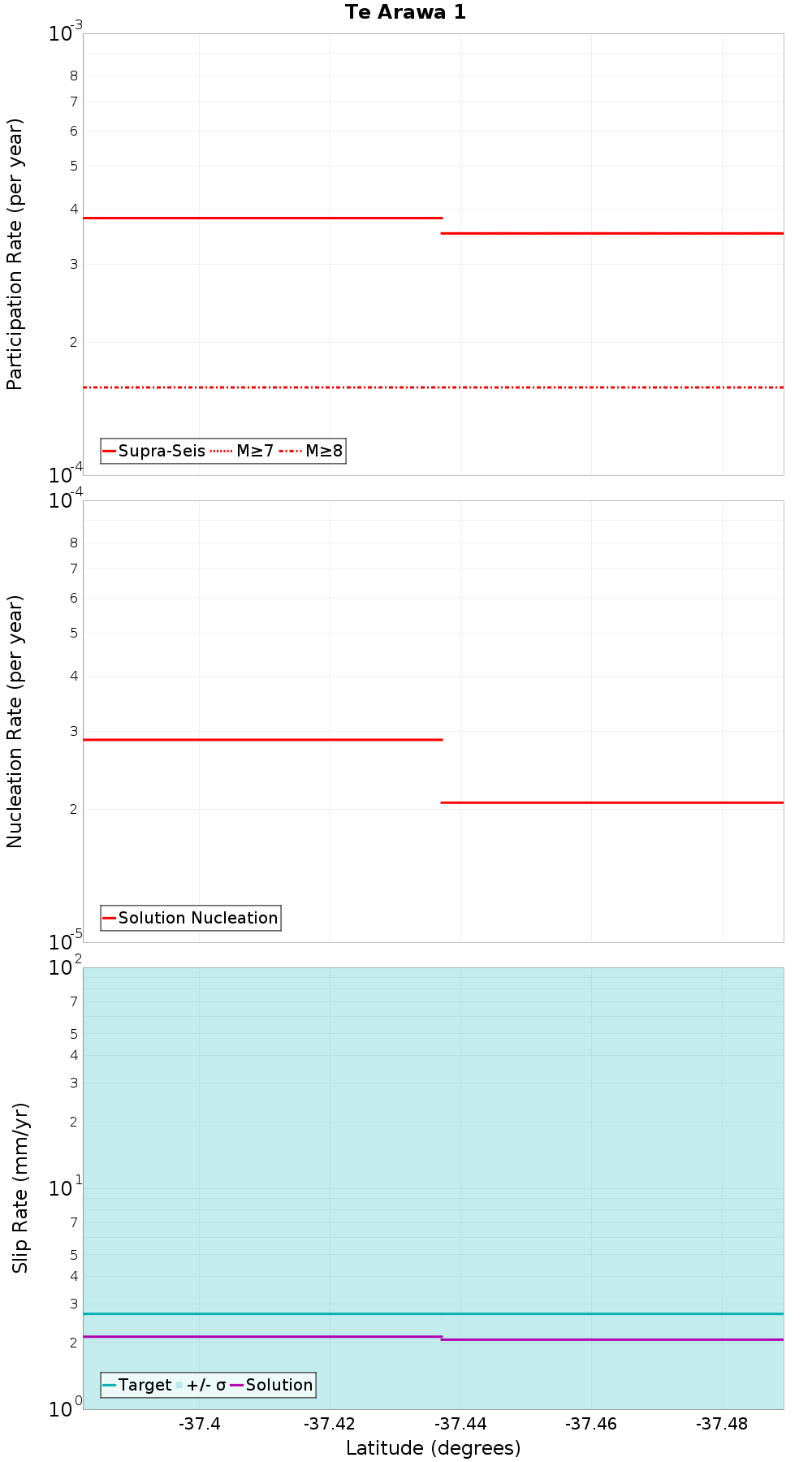

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

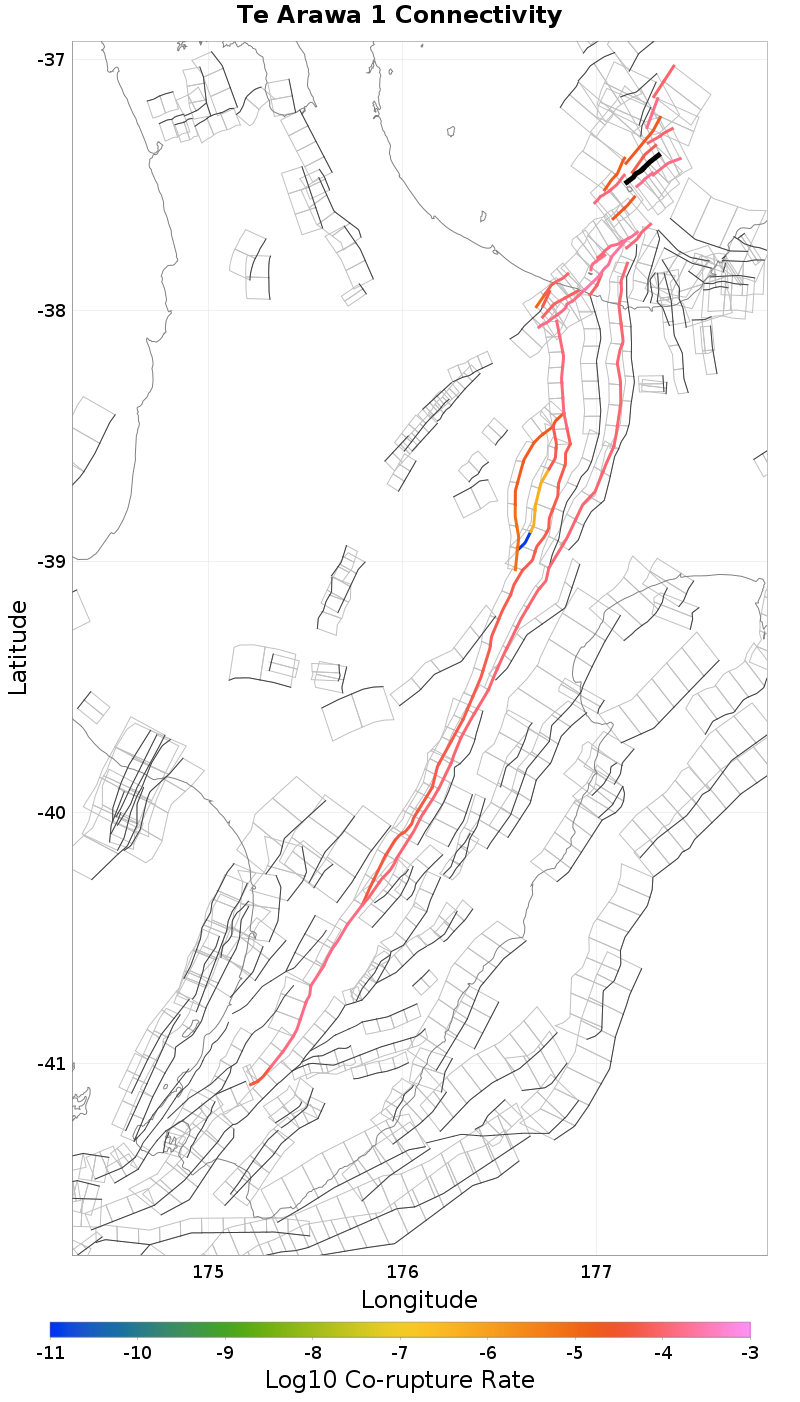

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.34 km away
Te Arawa 2, 1.19 km away
Calypso 2, 1.54 km away
Whakaari 4, 2.25 km away
Hariki, 2.72 km away
Tuatoru 1, 3.09 km away
White Island 2, 3.53 km away
Te Arawa 3, 5.29 km away
Volkner 3, 5.74 km away
Volkner 4, 6.45 km away
Opotiki 3, 7.5 km away
Ohiwa 1, 8.65 km away
Otara West 1, 11.56 km away
Otara East 1, 11.84 km away

Tuatoru 2, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?true
Co-rupture Count1,440
Co-rupture Rate1.4713012E-4

Te Arawa 2, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?true
Co-rupture Count1,257
Co-rupture Rate5.924146E-5

Calypso 2, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?false
Co-rupture Count118
Co-rupture Rate2.3609933E-5

Whakaari 4, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?true
Co-rupture Count2,966
Co-rupture Rate1.16383E-4

Hariki, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?true
Co-rupture Count845
Co-rupture Rate1.6382062E-4

White Island 2, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?true
Co-rupture Count1,938
Co-rupture Rate1.1662285E-4

Te Arawa 3, 5.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?true
Co-rupture Count797
Co-rupture Rate1.1723002E-4

Volkner 3, 5.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.7333665E-5

Volkner 4, 6.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate2.2051823E-5

Opotiki 3, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?true
Co-rupture Count1,646
Co-rupture Rate1.7571526E-4

Otara West 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNTMuMDQ1ZW1m
Connected?true
Directly Connected?false
Co-rupture Count697
Co-rupture Rate1.6918193E-4
